S3810 Friction Hinges

Name: S3810.AC0003
Brand: WC
SKU: S3810.AC0003
Price: 14.02 EUR
Availability: InStock

symmetric torque - 0,05-3,80 Nm. - plain bore, material: Steel

Article properties

Order No.

S3810.AC0003

Dia. size

Torque CW Nm

0.05

Torque CCW Nm

0.05

Shaft rotation

360°

Torque type

Symmetric

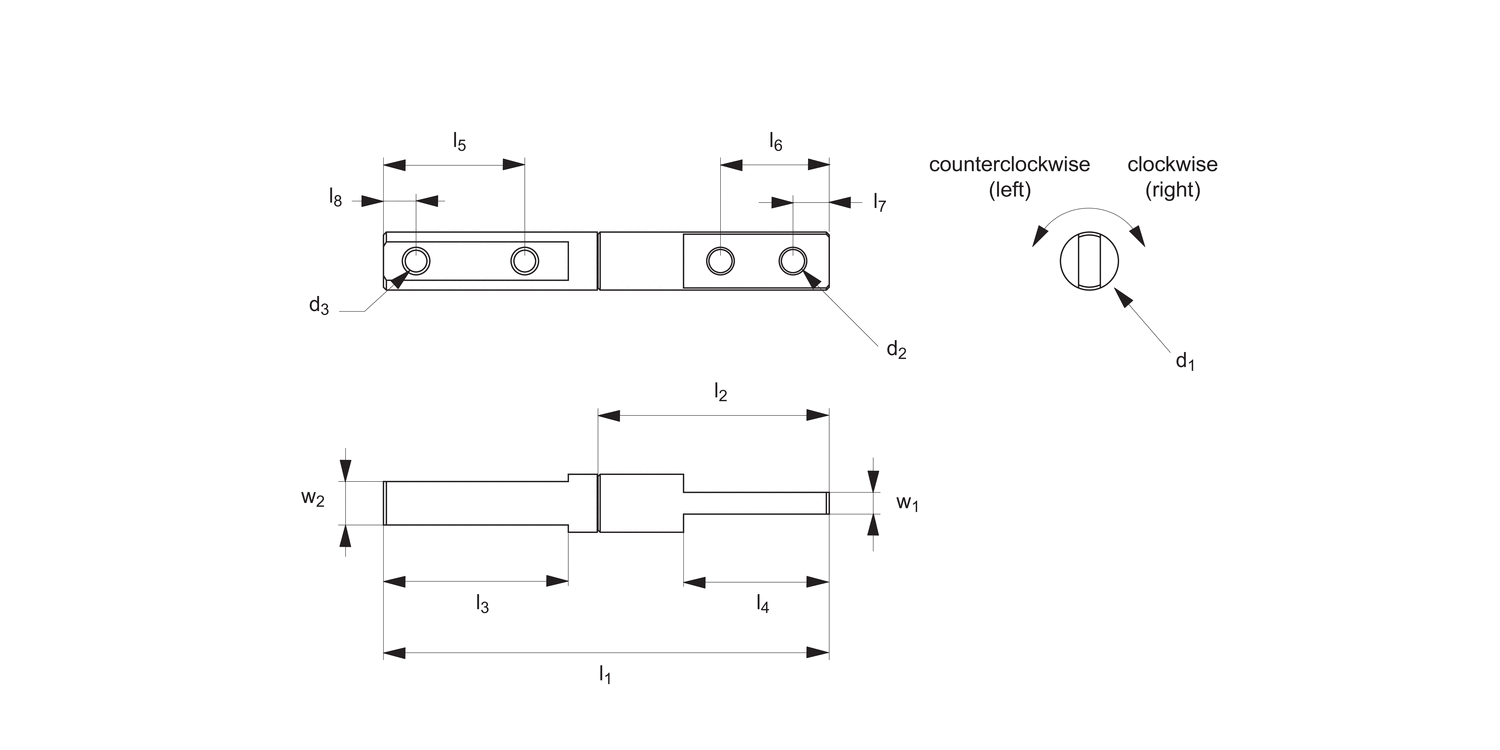

d₁

d₂

d₃

l₁

27.0

l₂

9.2

l₃

8.0

l₄

8.0

l₅

l₆

l₇

l₈

w₁

1.5

w₂

See full product selection

£ 14.02 per unit (click for quantity discounts)

Ready to despatch 49
Need more? Manufactured within 21 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 14.02	0%
10-19	£ 12.62	10%
20-49	£ 11.92	15%
50-99	£ 11.22	20%
100+	£ 10.52	25%

Download product datasheet

Technical & Application

Material

Steel with nickel plating finish.

Technical Notes

Tested to 10,000 cycles with static torque value remaining within +/- 25%. (Note; S3810.AC0003 and .AC0004 to within +/- 35%). 360° shaft rotation.

Important Notes

Symmetric hinges, offer same torque value in both clockwise and counterclockwise directions.
CW= clockwise.
CCW= counterclockwise.
