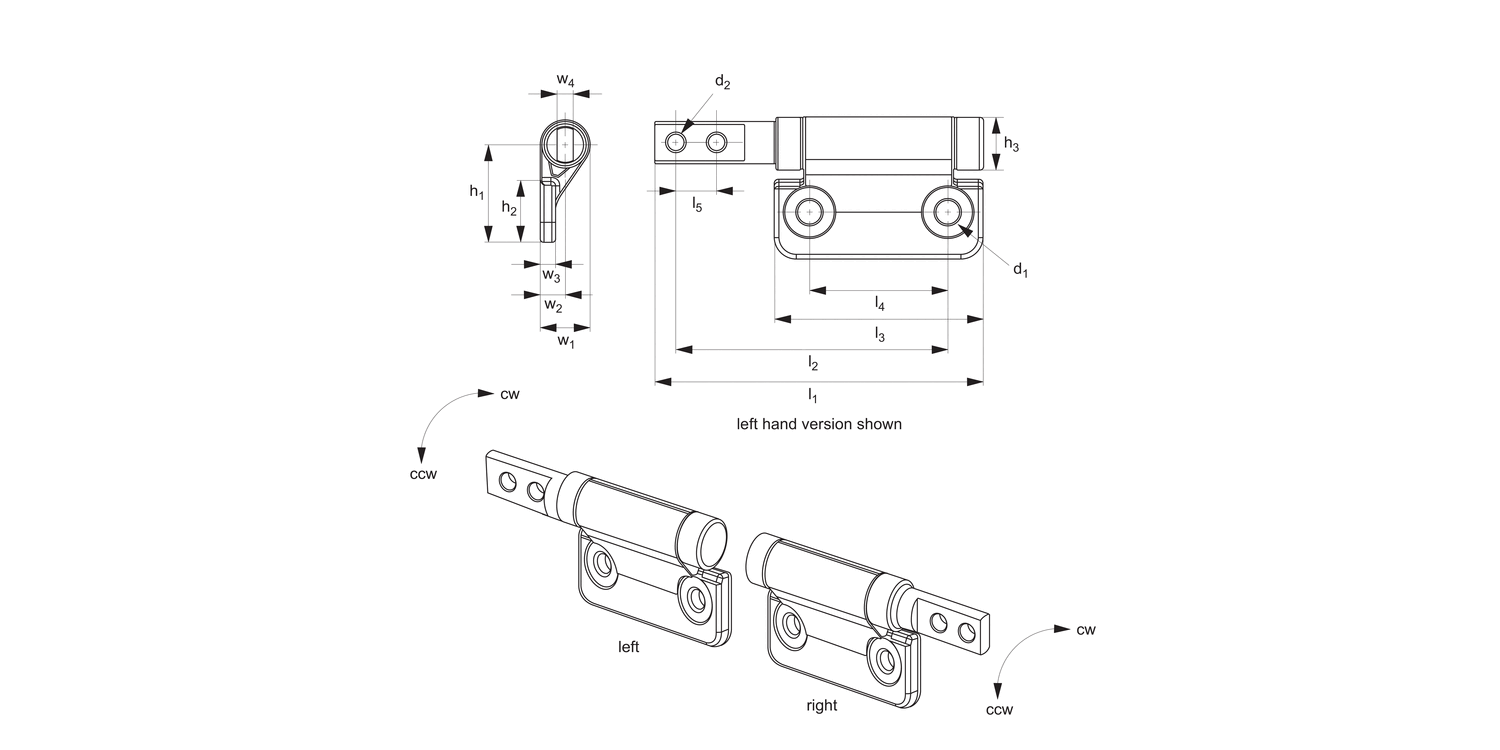

S3844 Friction Hinges
symmetric - asymmetric torque - 0,0-4,5 Nm. - plain bore, material: Steel
Order No.
S3844.AC1323
Torque CW
Nm
1.4
Torque CCW
Nm
2.3
Shaft rotation
270°
Hand
Left
Torque type
Asymmetric
d1
5.2
d2
4.5
h1
25.58
h2
19.5
h3
12.7
l1
80.8
l2
67.4
l3
50.8
l4
34
l5
10
w1
12.7
w2
6.35
w3
4.5
w4
4
£ 38.00 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 38.00 | 0% |
| 5-9 | £ 36.10 | 5% |
| 10-19 | £ 34.20 | 10% |
| 20-49 | £ 32.30 | 15% |
| 50+ | £ 28.50 | 25% |
Technical & Application
Material
Steel and zinc with natural finish.
Technical Notes
Tested to 25,000 cycles with static torque value remaining within +/- 20%. Oil ring seals against environmental contamination.
Tips
Also available as black oxide finish, on request and subject to min. quantity.
Important Notes
Symmetric hinges, offer same torque value in both clockwise and counterclockwise directions. Asymmetric hinges, offer different torque value in clockwise and counterclockwise directions - see data table.
CW= clockwise.
