S3854 Friction Hinges - Natural & Black

Name: S3854.AC0000
Brand: WC
SKU: S3854.AC0000
Price: 29.51 EUR
Availability: InStock

symmetric - asymmetric torque, material: Steel

Article properties

Order No.

S3854.AC0000

Torque CW Nm

0.0

Torque CCW Nm

0.0

Shaft rotation

270°

Finish

Natural

Torque type

Symmetric

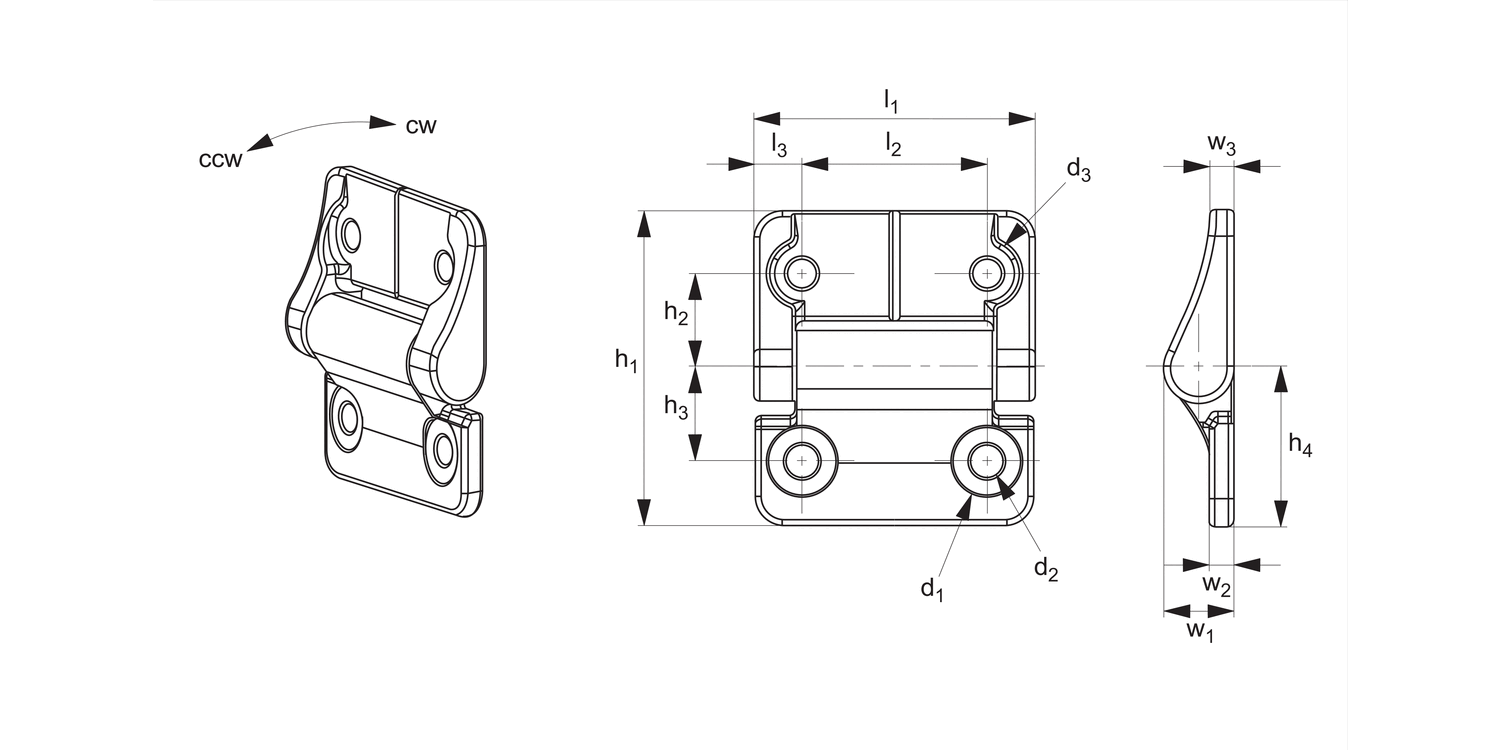

d₁

Ø12x0,7 dept.

d₂

5.2

d₃

h₁

57.15

h₂

h₃

h₄

28.58

l₁

50.8

l₂

l₃

8.4

w₁

12.8

w₂

4.5

w₃

3.81

See full product selection

£ 29.51 per unit (click for quantity discounts)

Ready to despatch 7
Need more? Manufactured within 21 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 29.51	0%
5-9	£ 28.03	5%
10-19	£ 26.56	10%
20-49	£ 25.08	15%
50+	£ 22.13	25%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Steel and zinc with natural or black oxide finish.

Technical Notes

Tested to 25,000 cycles with static torque value remaining within +/- 20%. Oil ring seals against environmental contamination.

Important Notes

Symmetric hinges, offer same torque value in both clockwise and counterclockwise directions. Asymmetric hinges, offer different torque value in clockwise and counterclockwise directions - see data table.
CW= clockwise.
CCW= counterclockwise.
