J0150 Draw Latches with Lock

stainless steel, material: Stainless steel

Download product datasheet

Download FREE CAD

Alternative products you may wish to consider

Draw Latches
Stainless steel

Draw Latches
with lock

Mini Draw Latches
s/s

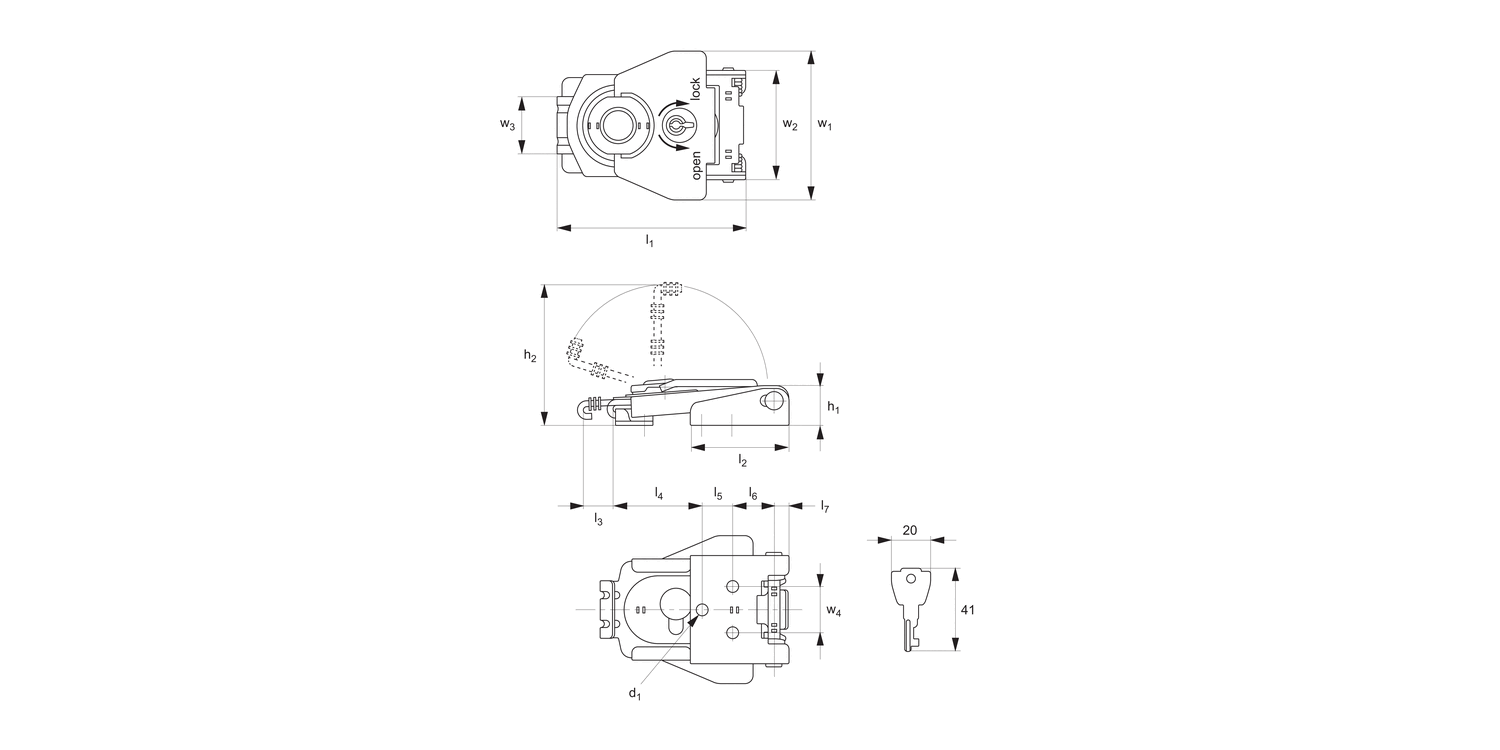

Draw Latches with Lock Stainless Steel

J0150.AC0030

l₁

65

h₁

13

w₁

52

d₁

4.2

h₂

48

l₂

34.5

l₃ stroke

10

l₄

34

l₅

11

l₆

14.4

l₇

5

w₂

38

w₃

20

w₄

16

Weight g

105

£ 31.49 per unit (click for quantity discounts)

Draw Latches with Lock Stainless Steel

J0150.AC0030

l₁

65

h₁

13

w₁

52

d₁

4.2

h₂

48

l₂

34.5

l₃ stroke

10

l₄

34

l₅

11

l₆

14.4

l₇

5

w₂

38

w₃

20

w₄

16

Weight g

105

£ 31.49 per unit (click for quantity discounts)



Select all

l₁

h₁

w₁

d₁

h₂

l₂

l₃ stroke

l₄

l₅

l₆

l₇

w₂

w₃

w₄

Weight g

Price & Availability	Article	l1	h1	w1	d1	h2	l2	l3 stroke	l4	l5	l6	l7	w2	w3	w4	Weight g
	J0150.AC0030	65	13	52	4.2	48	34.5	10	34	11	14.4	5	38	20	16	105
£ 31.49 per unit (click for quantity discounts) Ready to despatch 52 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 31.49 0% 10-19 £ 28.34 10% 20-49 £ 26.77 15% 50-99 £ 25.19 20% 100+ £ 23.62 25% l1 65 h1 13 w1 52 d1 4.2 h2 48 l2 34.5 l3 stroke 10 l4 34 l5 11 l6 14.4 l7 5 w2 38 w3 20 w4 16 Weight g 105 more info »
