Drawer Slide Full Extn
lever dis - +tive-lock - 45Kg

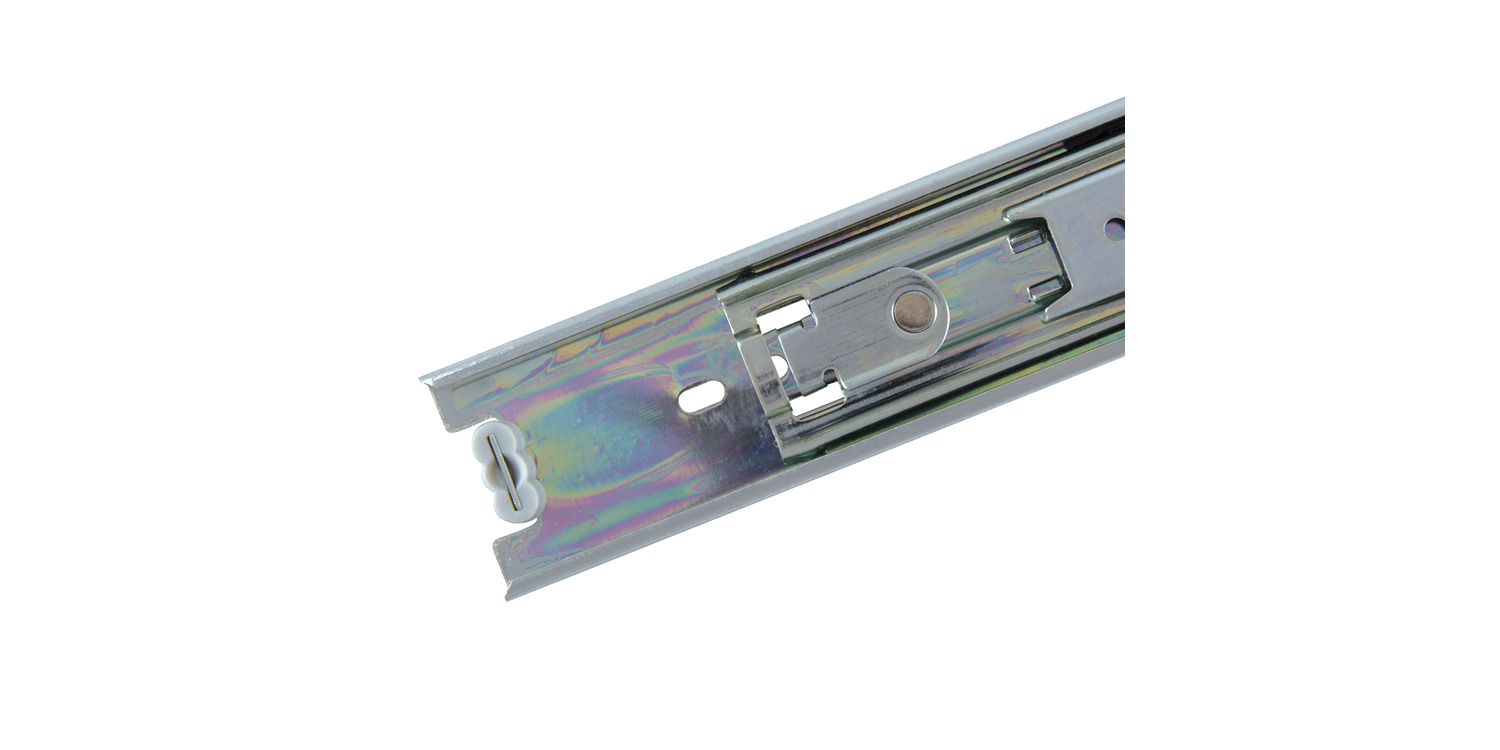

P5100 Drawer Slide - Full Extension
lever disconnect - positive-lock - 45 Kg load per pair, material: Steel
Alternative products you may wish to consider
Slide length sl
250
Slide travel tr
240
c
-
p
174
Load/pair
max.
kg
45
Weight
g
350
£ 14.52 per unit (click for quantity discounts)
Slide length sl
300
Slide travel tr
295
c
-
p
236
Load/pair
max.
kg
45
Weight
g
475
£ 15.74 per unit (click for quantity discounts)
Slide length sl
350
Slide travel tr
350
c
159
p
254
Load/pair
max.
kg
45
Weight
g
600
£ 14.88 per unit (click for quantity discounts)
Slide length sl
400
Slide travel tr
406
c
128
p
288
Load/pair
max.
kg
45
Weight
g
650
£ 17.70 per unit (click for quantity discounts)
Slide length sl
450
Slide travel tr
450
c
270
p
350
Load/pair
max.
kg
45
Weight
g
700
£ 19.12 per unit (click for quantity discounts)
Slide length sl
500
Slide travel tr
500
c
240
p
416
Load/pair
max.
kg
45
Weight
g
750
£ 20.51 per unit (click for quantity discounts)
Slide length sl
550
Slide travel tr
545
c
239
p
430
Load/pair
max.
kg
45
Weight
g
850
£ 21.90 per unit (click for quantity discounts)
Slide length sl
600
Slide travel tr
595
c
300
p
494
Load/pair
max.
kg
45
Weight
g
950
£ 23.30 per unit (click for quantity discounts)
Slide length sl
650
Slide travel tr
659
c
302
p
558
Load/pair
max.
kg
45
Weight
g
1050
£ 24.70 per unit (click for quantity discounts)
Slide length sl
700
Slide travel tr
709
c
335
p
650
Load/pair
max.
kg
45
Weight
g
1150
£ 26.11 per unit (click for quantity discounts)
Slide length sl
Slide travel tr
c
p
Load/pair
max.
kg
Weight
g
| Price & Availability | Article | Slide length sl | Slide travel tr | c | p | Load/pair max. kg | Weight g | |||||||||||||||
| P5100.AC0250 | 250 | 240 | - | 174 | 45 | 350 | ||||||||||||||||
£ 14.52 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Slide length sl 250 Slide travel tr 240 c - p 174 Load/pair
max.
kg 45 Weight
g 350 | ||||||||||||||||||||||
| P5100.AC0300 | 300 | 295 | - | 236 | 45 | 475 | ||||||||||||||||
£ 15.74 per unit (click for quantity discounts) Ready to despatch 2 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Slide length sl 300 Slide travel tr 295 c - p 236 Load/pair
max.
kg 45 Weight
g 475 | ||||||||||||||||||||||
| P5100.AC0350 | 350 | 350 | 159 | 254 | 45 | 600 | ||||||||||||||||
£ 14.88 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Slide length sl 350 Slide travel tr 350 c 159 p 254 Load/pair
max.
kg 45 Weight
g 600 | ||||||||||||||||||||||
| P5100.AC0400 | 400 | 406 | 128 | 288 | 45 | 650 | ||||||||||||||||
£ 17.70 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Slide length sl 400 Slide travel tr 406 c 128 p 288 Load/pair
max.
kg 45 Weight
g 650 | ||||||||||||||||||||||
| P5100.AC0450 | 450 | 450 | 270 | 350 | 45 | 700 | ||||||||||||||||
£ 19.12 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Slide length sl 450 Slide travel tr 450 c 270 p 350 Load/pair
max.
kg 45 Weight
g 700 | ||||||||||||||||||||||
| P5100.AC0500 | 500 | 500 | 240 | 416 | 45 | 750 | ||||||||||||||||
£ 20.51 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Slide length sl 500 Slide travel tr 500 c 240 p 416 Load/pair
max.
kg 45 Weight
g 750 | ||||||||||||||||||||||
| P5100.AC0550 | 550 | 545 | 239 | 430 | 45 | 850 | ||||||||||||||||
£ 21.90 per unit (click for quantity discounts) Ready to despatch 2 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Slide length sl 550 Slide travel tr 545 c 239 p 430 Load/pair
max.
kg 45 Weight
g 850 | ||||||||||||||||||||||
| P5100.AC0600 | 600 | 595 | 300 | 494 | 45 | 950 | ||||||||||||||||
£ 23.30 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Slide length sl 600 Slide travel tr 595 c 300 p 494 Load/pair
max.
kg 45 Weight
g 950 | ||||||||||||||||||||||
| P5100.AC0650 | 650 | 659 | 302 | 558 | 45 | 1050 | ||||||||||||||||
£ 24.70 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Slide length sl 650 Slide travel tr 659 c 302 p 558 Load/pair
max.
kg 45 Weight
g 1050 | ||||||||||||||||||||||
| P5100.AC0700 | 700 | 709 | 335 | 650 | 45 | 1150 | ||||||||||||||||
£ 26.11 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Slide length sl 700 Slide travel tr 709 c 335 p 650 Load/pair
max.
kg 45 Weight
g 1150 | ||||||||||||||||||||||
Technical & Application
Material
Cold rolled steel, zinc plated.
Technical Notes
Positive Lock - slide firmly held in open position, to release depress lever and push draw inward. Hold-in detent when slide closed. Rails can be disconnected via pressing disconnect lever.
These slides have been tested to 60,000 usage cycles.
Important Notes
Load capacity is static load per pair, at the centre of the rails using all mounting holes. Sold individually as single slides.
