Ceiling Hanger
Steel
61933 Acoustic Suspension Hanger without nut
without nut, material: Steel
Alternative products you may wish to consider
£ 9.39 per unit (click for quantity discounts)
£ 9.39 per unit (click for quantity discounts)

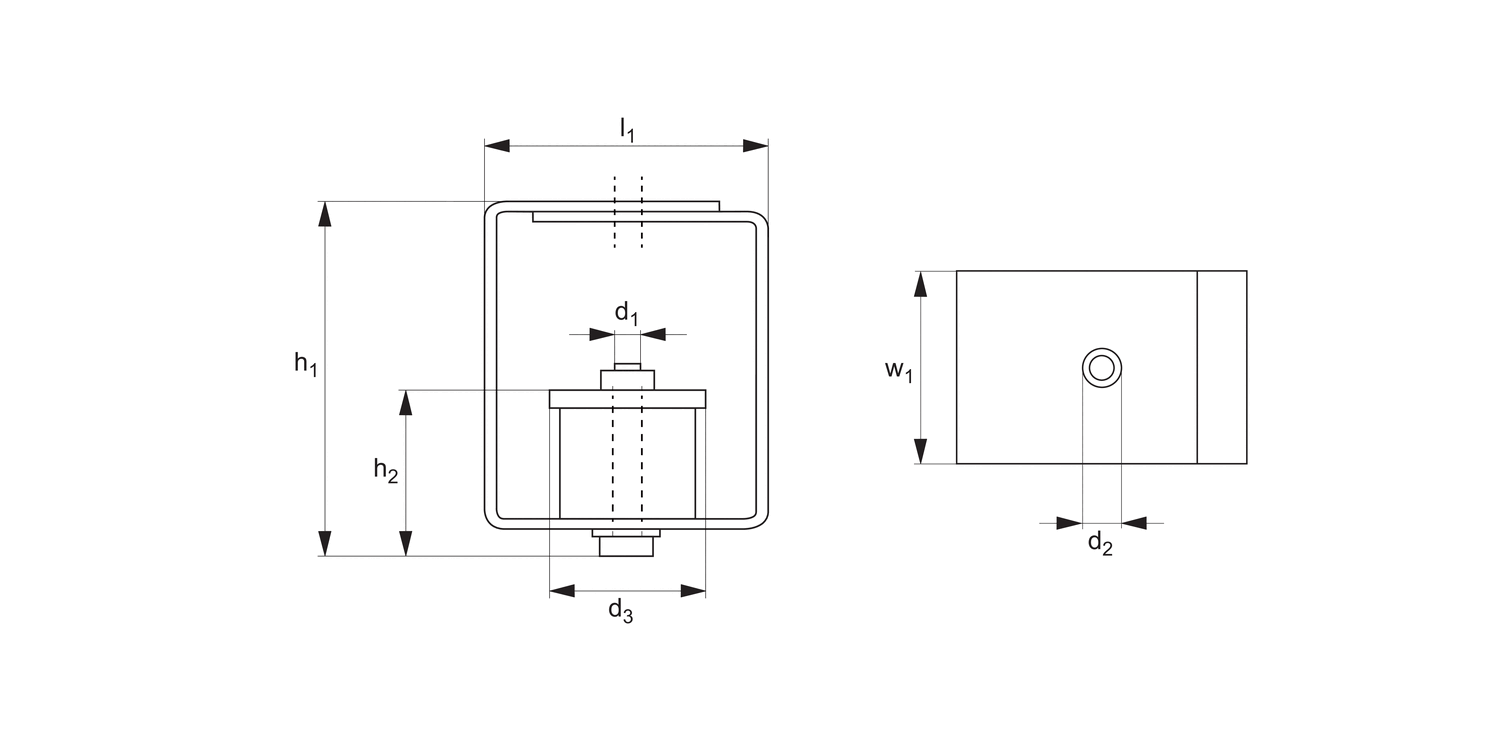

d1
w1
h1
d2
d3
h2
l1
Load
max.
kgf
| Price & Availability | Article | d1 | w1 | h1 | d2 | d3 | h2 | l1 | Load max. kgf | ||||||||||||||||||
| 61933.W0030 | M6 | 40 | 47 | 8 | 30 | 30 | 40 | 30 | |||||||||||||||||||
£ 9.39 per unit (click for quantity discounts) Ready to despatch 10 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M6 w1 40 h1 47 d2 8 d3 30 h2 30 l1 40 Load
max.
kgf 30 | |||||||||||||||||||||||||||
| 61933.W0060 | M6 | 40 | 47 | 8 | 30 | 30 | 40 | 60 | |||||||||||||||||||
£ 9.39 per unit (click for quantity discounts) Ready to despatch 4 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M6 w1 40 h1 47 d2 8 d3 30 h2 30 l1 40 Load
max.
kgf 60 | |||||||||||||||||||||||||||
Technical & Application
Material
Steel anti-corrosive zinc plated, with rubber (50 shore A) cylinder.
Technical Notes
These units are designed for installations where objects are suspended from ceilings. The spring in the body provides good anti-vibration properties.
Tips
Select the damper corresponding to the load to be carried per unit.
These hanger can be used for fans, distribution pipes, ducts and acoustic ceilings.
