A-V Feet
Steel
61206 Anti-vibration Cylinders Waisted
male feet, material: Steel
Alternative products you may wish to consider
d1
20
h1
20
d2
M 6
d3
12
l1
18
Compression
max.
2.5
Axial load
max.
kgf
15
£ 3.71 per unit (click for quantity discounts)
d1
30
h1
25
d2
M 8
d3
24
l1
20
Compression
max.
4
Axial load
max.
kgf
40
£ 3.93 per unit (click for quantity discounts)
£ 5.28 per unit (click for quantity discounts)
d1
60
h1
36
d2
M10
d3
37
l1
30
Compression
max.
5
Axial load
max.
kgf
90
£ 8.83 per unit (click for quantity discounts)
d1
60
h1
43
d2
M10
d3
35
l1
30
Compression
max.
4
Axial load
max.
kgf
70
£ 8.92 per unit (click for quantity discounts)
d1
60
h1
60
d2
M10
d3
51
l1
30
Compression
max.
6
Axial load
max.
kgf
150
£ 12.06 per unit (click for quantity discounts)
d1
70
h1
56
d2
M12
d3
50
l1
35
Compression
max.
6
Axial load
max.
kgf
220
£ 17.62 per unit (click for quantity discounts)
d1
80
h1
65
d2
M12
d3
70
l1
35
Compression
max.
8
Axial load
max.
kgf
400
£ 25.94 per unit (click for quantity discounts)
d1
90
h1
50
d2
M12
d3
80
l1
45
Compression
max.
4
Axial load
max.
kgf
800
£ 24.38 per unit (click for quantity discounts)
d1
95
h1
76
d2
M16
d3
80
l1
45
Compression
max.
9.5
Axial load
max.
kgf
400
£ 31.90 per unit (click for quantity discounts)
d1
108
h1
85
d2
M16
d3
95
l1
45
Compression
max.
10
Axial load
max.
kgf
800
£ 42.96 per unit (click for quantity discounts)
d1
h1
d2
d3
l1
Compression
max.
Axial load
max.
kgf
| Price & Availability | Article | d1 | h1 | d2 | d3 | l1 | Compression max. | Axial load max. kgf | |||||||||||||||||||||
| 61206.W0200 | 20 | 20 | M 6 | 12 | 18 | 2.5 | 15 | ||||||||||||||||||||||
£ 3.71 per unit (click for quantity discounts) Ready to despatch 8 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 20 h1 20 d2 M 6 d3 12 l1 18 Compression
max. 2.5 Axial load
max.
kgf 15 | |||||||||||||||||||||||||||||
| 61206.W0300 | 30 | 25 | M 8 | 24 | 20 | 4 | 40 | ||||||||||||||||||||||
£ 3.93 per unit (click for quantity discounts) Ready to despatch 33 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 30 h1 25 d2 M 8 d3 24 l1 20 Compression
max. 4 Axial load
max.
kgf 40 | |||||||||||||||||||||||||||||
| 61206.W0400 | 40 | 28 | M10 | 22 | 25 | 5 | 60 | ||||||||||||||||||||||
£ 5.28 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 40 h1 28 d2 M10 d3 22 l1 25 Compression
max. 5 Axial load
max.
kgf 60 | |||||||||||||||||||||||||||||
| 61206.W0600 | 60 | 36 | M10 | 37 | 30 | 5 | 90 | ||||||||||||||||||||||
£ 8.83 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 60 h1 36 d2 M10 d3 37 l1 30 Compression
max. 5 Axial load
max.
kgf 90 | |||||||||||||||||||||||||||||
| 61206.W0601 | 60 | 43 | M10 | 35 | 30 | 4 | 70 | ||||||||||||||||||||||
£ 8.92 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 60 h1 43 d2 M10 d3 35 l1 30 Compression
max. 4 Axial load
max.
kgf 70 | |||||||||||||||||||||||||||||
| 61206.W0602 | 60 | 60 | M10 | 51 | 30 | 6 | 150 | ||||||||||||||||||||||
£ 12.06 per unit (click for quantity discounts) Ready to despatch 30 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 60 h1 60 d2 M10 d3 51 l1 30 Compression
max. 6 Axial load
max.
kgf 150 | |||||||||||||||||||||||||||||
| 61206.W0700 | 70 | 56 | M12 | 50 | 35 | 6 | 220 | ||||||||||||||||||||||
£ 17.62 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 70 h1 56 d2 M12 d3 50 l1 35 Compression
max. 6 Axial load
max.
kgf 220 | |||||||||||||||||||||||||||||
| 61206.W0800 | 80 | 65 | M12 | 70 | 35 | 8 | 400 | ||||||||||||||||||||||
£ 25.94 per unit (click for quantity discounts) Ready to despatch 20 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 80 h1 65 d2 M12 d3 70 l1 35 Compression
max. 8 Axial load
max.
kgf 400 | |||||||||||||||||||||||||||||
| 61206.W0900 | 90 | 50 | M12 | 80 | 45 | 4 | 800 | ||||||||||||||||||||||
£ 24.38 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 90 h1 50 d2 M12 d3 80 l1 45 Compression
max. 4 Axial load
max.
kgf 800 | |||||||||||||||||||||||||||||
| 61206.W0950 | 95 | 76 | M16 | 80 | 45 | 9.5 | 400 | ||||||||||||||||||||||
£ 31.90 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
d1 95 h1 76 d2 M16 d3 80 l1 45 Compression
max. 9.5 Axial load
max.
kgf 400 | |||||||||||||||||||||||||||||
| 61206.W1080 | 108 | 85 | M16 | 95 | 45 | 10 | 800 | ||||||||||||||||||||||
£ 42.96 per unit (click for quantity discounts) Ready to despatch 8 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 108 h1 85 d2 M16 d3 95 l1 45 Compression
max. 10 Axial load
max.
kgf 800 | |||||||||||||||||||||||||||||
Technical & Application
Material
Rubber on silver zinc plated steel (rubber hardness - 55 Shore A).
Tips

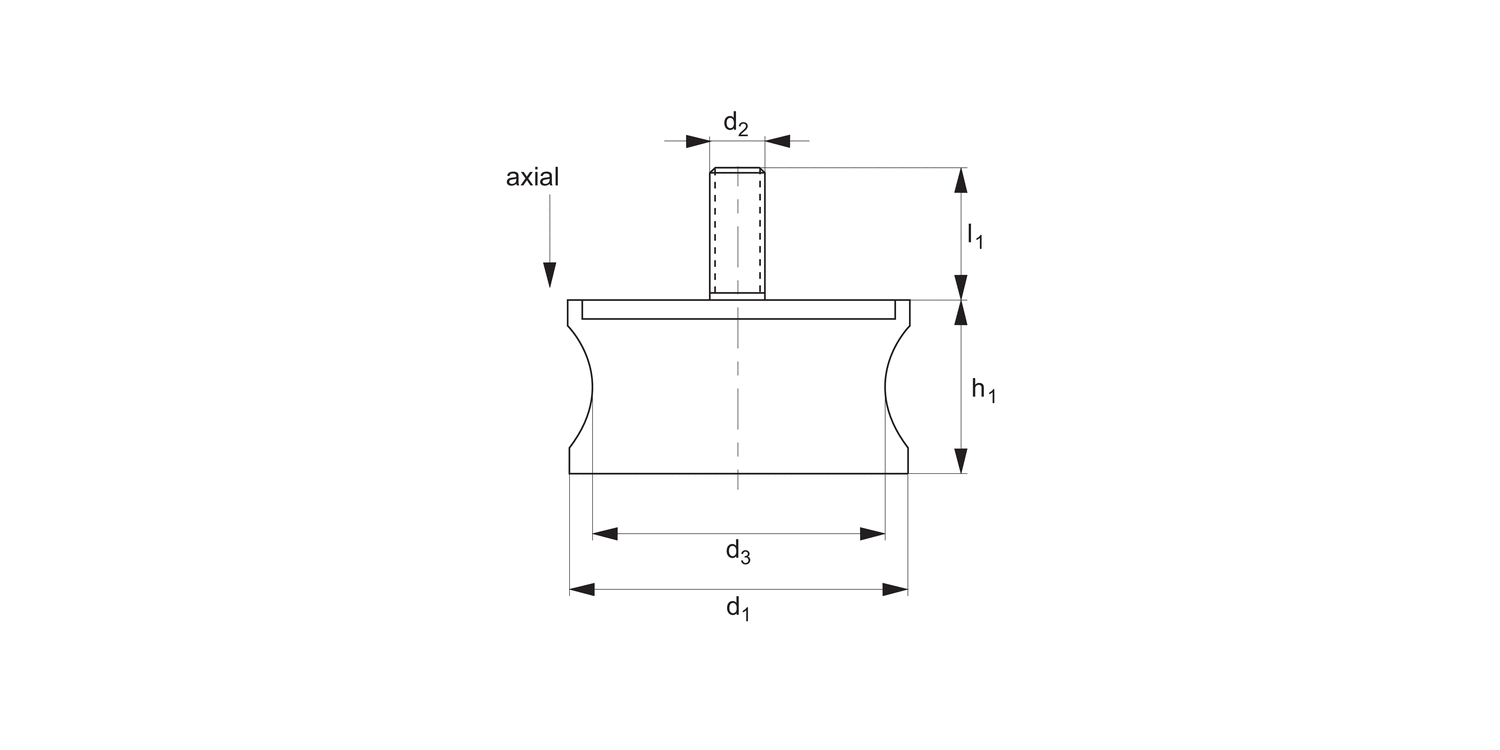

These cylinders are used to reduce vibration by allowing some movement (in axial and radial as shown in drawing).
Typically used in machinery, compressors, air conditioning units, light engineering equipment etc.
