A-V Cylinders
Steel

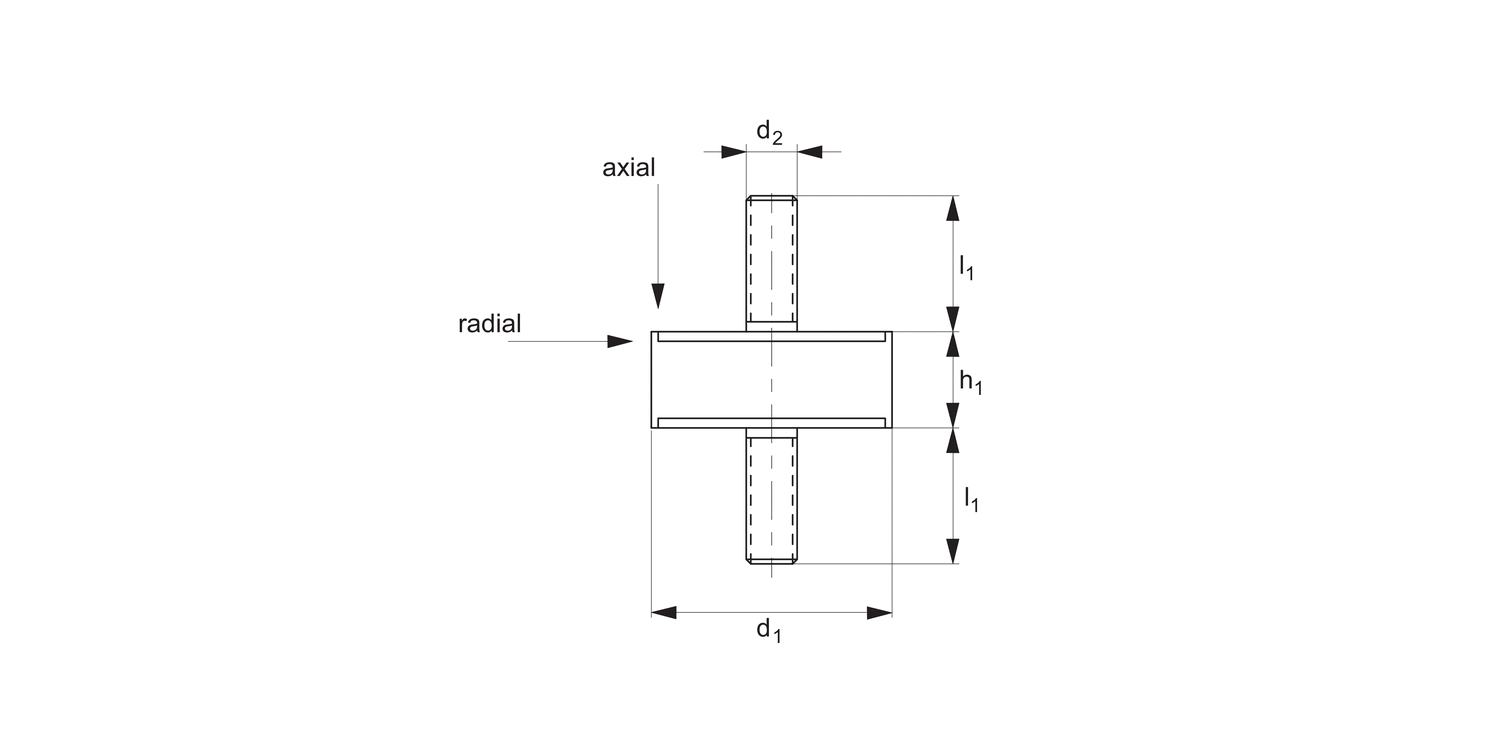

61040 Anti-vibration Cylinders
male:male, material: Steel
Order No.
61040.W0753
d1
75
h1
40
d2
M12
l1
35
Axial load
max.
kgf
500
Radial load
max.
kgf
75.0
£ 16.41 per unit (click for quantity discounts)
Ready to despatch 22
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-49 | £ 16.41 | 0% |
| 50-99 | £ 14.77 | 10% |
| 100-199 | £ 12.31 | 25% |
| 200-499 | £ 11.49 | 30% |
| 500+ | £ 8.21 | 50% |
Technical & Application
Material
Rubber on silver zinc plated steel (rubber hardness - 55 Shore A).
Technical Notes
Parts with small diameters (d1) and relatively long length (h) cannot accept radial loads (as shown in table).
Different thread sizes on request.
For rubber mounted on stainless steel - see part no. 61042.
Tips
These cylinders are used to reduce vibration by allowing some movement (in axial and radial as shown).
Typically used in machinery, compressors, air conditioning units, light engineering equipment etc.
