Metric Bumpers - Round
male and female

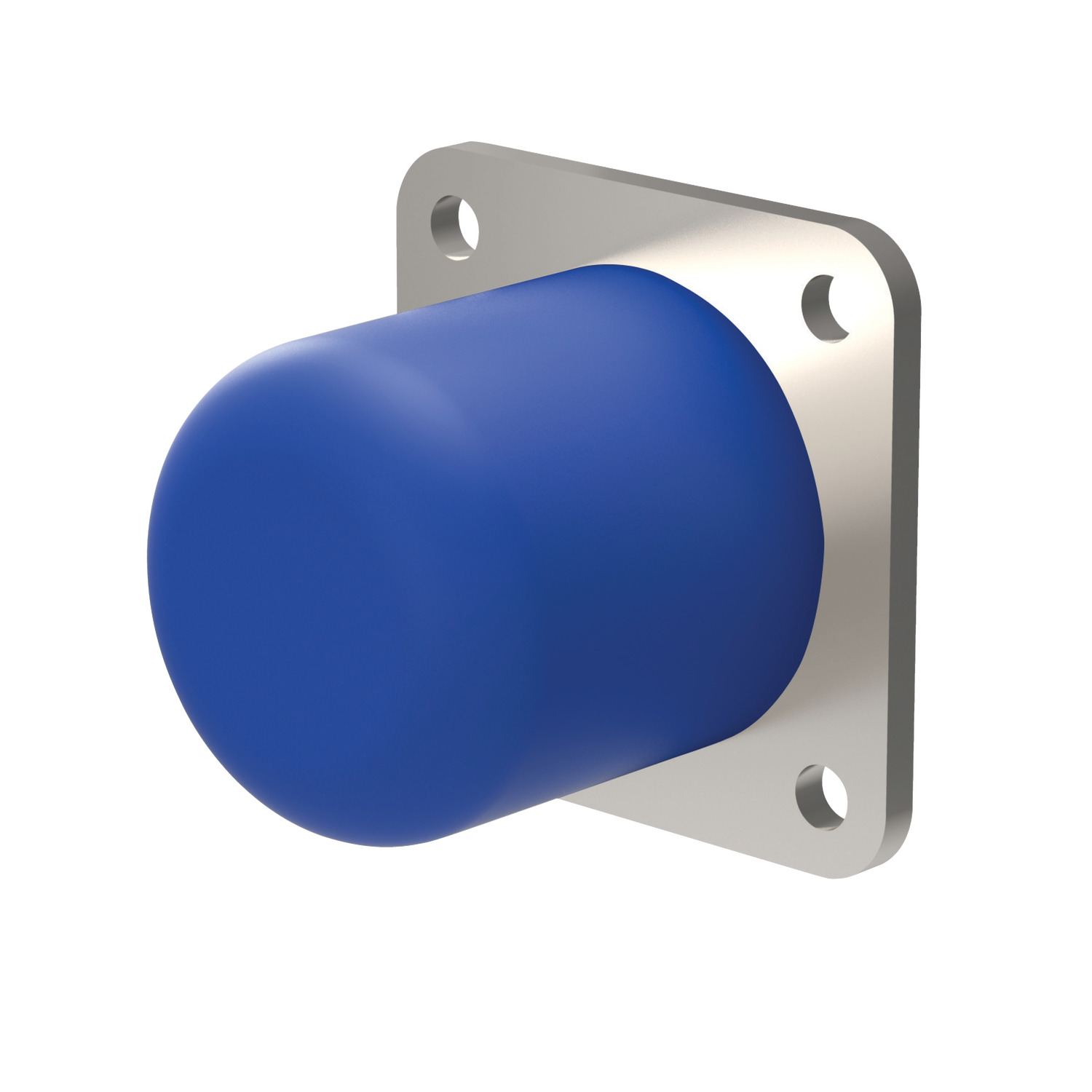

60910 Metric Bumpers - Round
with steel plates, material: Urethane
Alternative products you may wish to consider

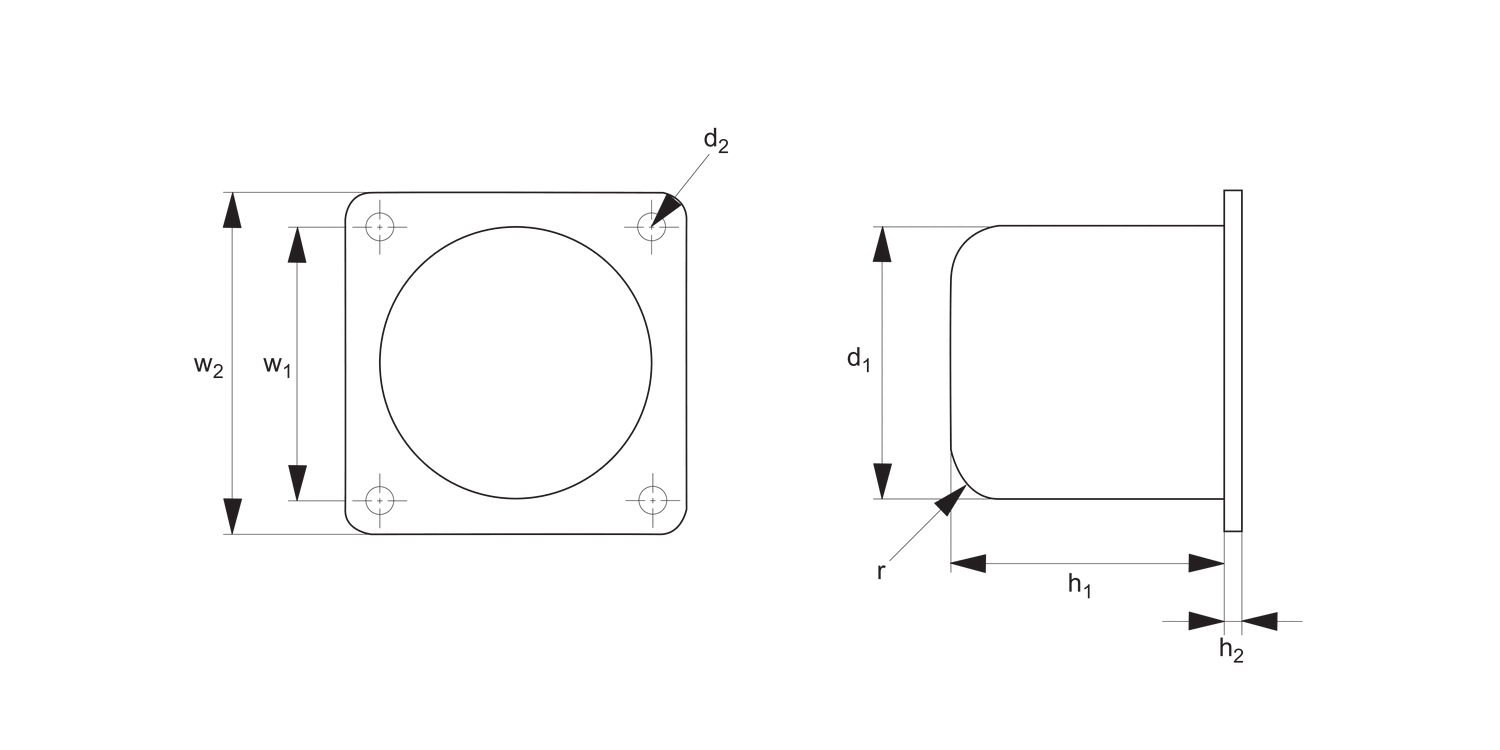

d1
50.8
h1
50.8
w1
50.8
d2
7.13
l2
4.76
w2
63.50
R
9.53
Durometer
60
£ 94.09 per unit (click for quantity discounts)
d1
63.5
h1
63.5
w1
63.5
d2
7.13
l2
4.76
w2
82.55
R
12.70
Durometer
60
£ 102.73 per unit (click for quantity discounts)
d1
76.2
h1
76.2
w1
76.2
d2
10.31
l2
6.35
w2
101.60
R
15.88
Durometer
60
£ 125.79 per unit (click for quantity discounts)
d1
101.6
h1
101.6
w1
101.6
d2
10.31
l2
6.35
w2
127.00
R
19.05
Durometer
60
£ 265.34 per unit (click for quantity discounts)
d1
50.8
h1
50.8
w1
50.8
d2
7.13
l2
4.76
w2
63.50
R
9.53
Durometer
80
£ 88.79 per unit (click for quantity discounts)
d1
63.5
h1
63.5
w1
63.5
d2
7.13
l2
4.76
w2
82.55
R
12.70
Durometer
80
£ 96.90 per unit (click for quantity discounts)
d1
76.2
h1
76.2
w1
76.2
d2
10.31
l2
6.35
w2
101.60
R
15.88
Durometer
80
£ 118.65 per unit (click for quantity discounts)
d1
101.6
h1
101.6
w1
101.6
d2
10.31
l2
6.35
w2
127.00
R
19.05
Durometer
80
£ 241.21 per unit (click for quantity discounts)
d1
h1
w1
d2
l2
w2
R
Durometer
| Price & Availability | Article | d1 | h1 | w1 | d2 | l2 | w2 | R | Durometer | ||||||||||||||||||
| 60910.W0701 | 50.8 | 50.8 | 50.8 | 7.13 | 4.76 | 63.50 | 9.53 | 60 | |||||||||||||||||||
£ 94.09 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 50.8 h1 50.8 w1 50.8 d2 7.13 l2 4.76 w2 63.50 R 9.53 Durometer 60 | |||||||||||||||||||||||||||
| 60910.W0702 | 63.5 | 63.5 | 63.5 | 7.13 | 4.76 | 82.55 | 12.70 | 60 | |||||||||||||||||||
£ 102.73 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 63.5 h1 63.5 w1 63.5 d2 7.13 l2 4.76 w2 82.55 R 12.70 Durometer 60 | |||||||||||||||||||||||||||
| 60910.W0703 | 76.2 | 76.2 | 76.2 | 10.31 | 6.35 | 101.60 | 15.88 | 60 | |||||||||||||||||||
£ 125.79 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 76.2 h1 76.2 w1 76.2 d2 10.31 l2 6.35 w2 101.60 R 15.88 Durometer 60 | |||||||||||||||||||||||||||
| 60910.W0704 | 101.6 | 101.6 | 101.6 | 10.31 | 6.35 | 127.00 | 19.05 | 60 | |||||||||||||||||||
£ 265.34 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 101.6 h1 101.6 w1 101.6 d2 10.31 l2 6.35 w2 127.00 R 19.05 Durometer 60 | |||||||||||||||||||||||||||
| 60910.W0711 | 50.8 | 50.8 | 50.8 | 7.13 | 4.76 | 63.50 | 9.53 | 80 | |||||||||||||||||||
£ 88.79 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 50.8 h1 50.8 w1 50.8 d2 7.13 l2 4.76 w2 63.50 R 9.53 Durometer 80 | |||||||||||||||||||||||||||
| 60910.W0712 | 63.5 | 63.5 | 63.5 | 7.13 | 4.76 | 82.55 | 12.70 | 80 | |||||||||||||||||||
£ 96.90 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 63.5 h1 63.5 w1 63.5 d2 7.13 l2 4.76 w2 82.55 R 12.70 Durometer 80 | |||||||||||||||||||||||||||
| 60910.W0713 | 76.2 | 76.2 | 76.2 | 10.31 | 6.35 | 101.60 | 15.88 | 80 | |||||||||||||||||||
£ 118.65 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 76.2 h1 76.2 w1 76.2 d2 10.31 l2 6.35 w2 101.60 R 15.88 Durometer 80 | |||||||||||||||||||||||||||
| 60910.W0714 | 101.6 | 101.6 | 101.6 | 10.31 | 6.35 | 127.00 | 19.05 | 80 | |||||||||||||||||||
£ 241.21 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 101.6 h1 101.6 w1 101.6 d2 10.31 l2 6.35 w2 127.00 R 19.05 Durometer 80 | |||||||||||||||||||||||||||
Technical & Application
Material
Urethane: highly abrasion resistant, high strength and load bearing. High elongation and hardness. Resists ozone and oxygen. Temperature resistance: -18°C to +93°C (shortly +120°C).
Technical Notes
Used for stops, guides, bumpers and protection. Moulded urethane bonded to steel plate.
Tips
All dimensions metric.
