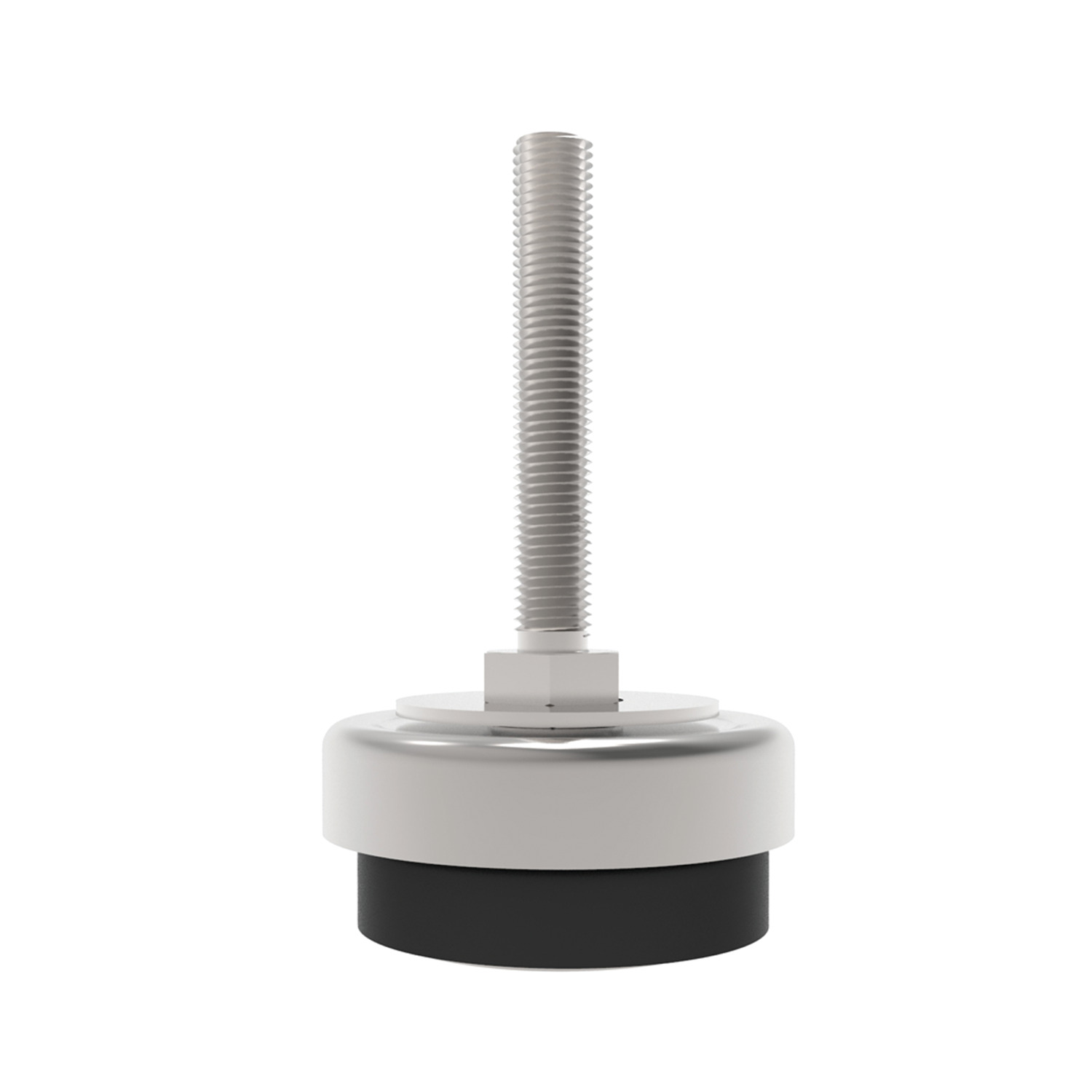

Heavy Duty Machine Mounts
34950 Heavy Duty Machine Mounts levelling
material: Steel
Alternative products you may wish to consider

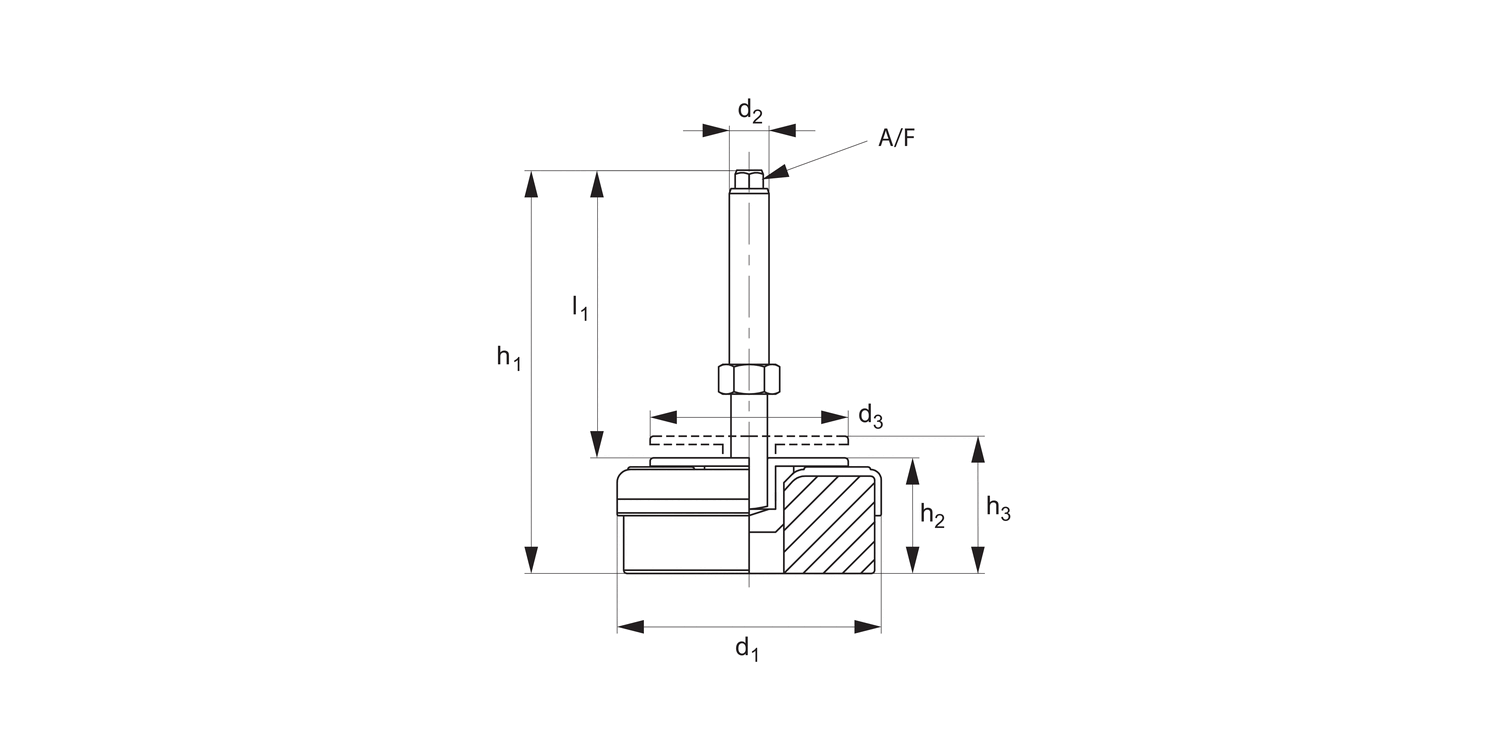

d1
120
h1
130
d2
M16x1,5
d3
80
l1
85
h2
45
h3
58
A/F
12
Dynamic load
kgf
400
Static load
kgf
1000
£ 62.36 per unit (click for quantity discounts)
d1
200
h1
195
d2
M20x1,5
d3
102
l1
136
h2
60
h3
75
A/F
15
Dynamic load
kgf
1500
Static load
kgf
3500
£ 146.37 per unit (click for quantity discounts)
d1
h1
d2
d3
l1
h2
h3
A/F
Dynamic load
kgf
Static load
kgf
| Price & Availability | Article | d1 | h1 | d2 | d3 | l1 | h2 | h3 | A/F | Dynamic load kgf | Static load kgf | ||||||||||||||||||
| 34950.W0120 | 120 | 130 | M16x1,5 | 80 | 85 | 45 | 58 | 12 | 400 | 1000 | |||||||||||||||||||
£ 62.36 per unit (click for quantity discounts) Ready to despatch 2 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 120 h1 130 d2 M16x1,5 d3 80 l1 85 h2 45 h3 58 A/F 12 Dynamic load
kgf 400 Static load
kgf 1000 | |||||||||||||||||||||||||||||
| 34950.W0200 | 200 | 195 | M20x1,5 | 102 | 136 | 60 | 75 | 15 | 1500 | 3500 | |||||||||||||||||||
£ 146.37 per unit (click for quantity discounts) Ready to despatch 3 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 200 h1 195 d2 M20x1,5 d3 102 l1 136 h2 60 h3 75 A/F 15 Dynamic load
kgf 1500 Static load
kgf 3500 | |||||||||||||||||||||||||||||
Technical & Application
Material
Galvanized steel, with rubber pad (90 Shore A).
Technical Notes
Provides great levelling accuracy, with its fine pitch thread. Can take very high horizontal loads.
Tips
Suitable for heavy machinery with strong vibration/impacts, such as plastic injection moulding machines, presses, guillotines etc. Do not raise higher than the max height (h3).
