Heavy Duty Machine Mounts
34960 Wedge Mounts
anti-vibration, material: Rubber or polyurethane
Alternative products you may wish to consider
£ 128.26 per unit (click for quantity discounts)
h1
60±5
l1
150
w1
75
l2
12
A/F
12
Base material
Polyurethane
Load range
kgf
700 - 2500
£ 151.48 per unit (click for quantity discounts)
h1
70±10
l1
200
w1
100
l2
12
A/F
12
Base material
Rubber
Load range
kgf
1500 - 3000
£ 214.42 per unit (click for quantity discounts)
h1
70±10
l1
200
w1
100
l2
12
A/F
12
Base material
Polyurethane
Load range
kgf
3000 - 6000
£ 271.35 per unit (click for quantity discounts)
h1
l1
w1
l2
A/F
Base material
Load range
kgf

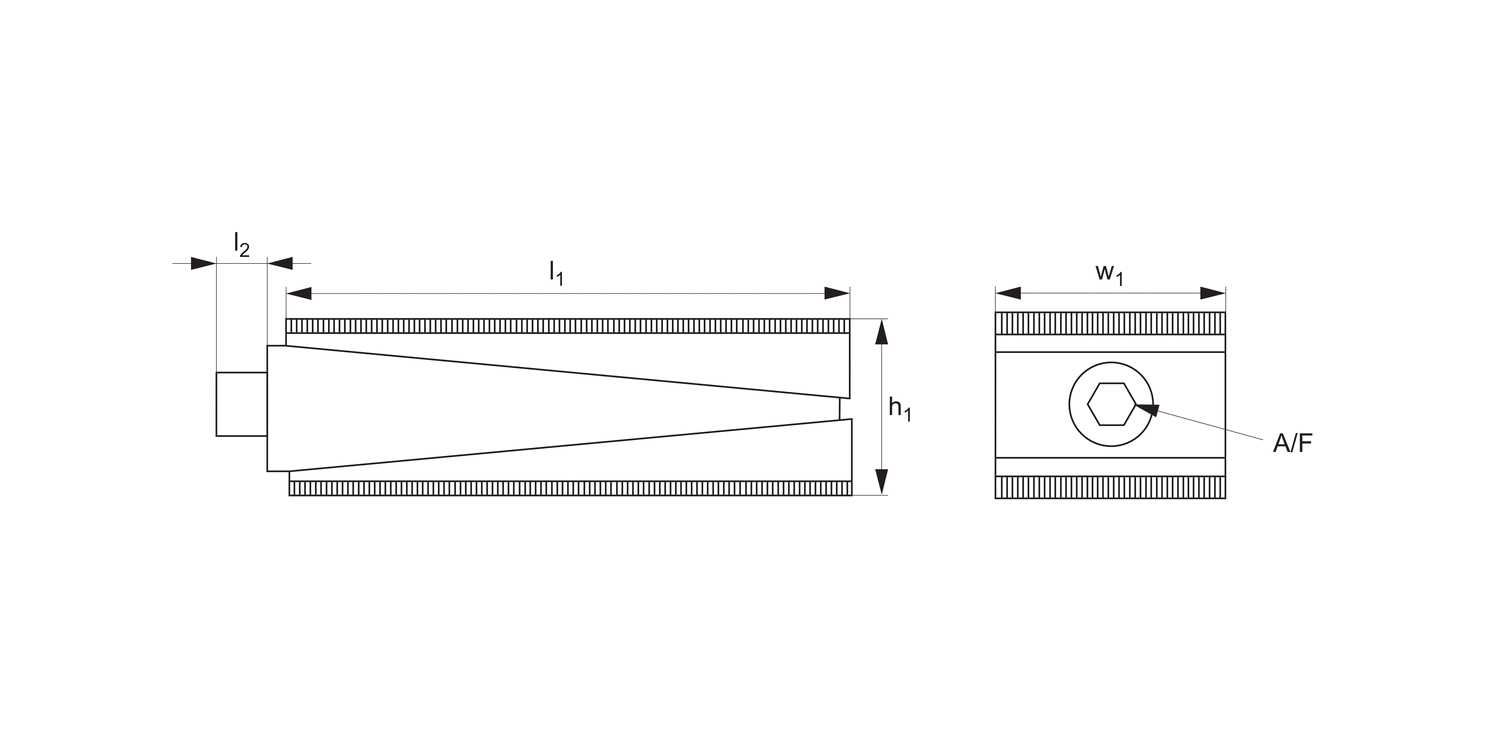

| Price & Availability | Article | h1 | l1 | w1 | l2 | A/F | Base material | Load range kgf | ||||||||||||||||||
| 34960.W0150 | 60±5 | 150 | 75 | 12 | 12 | Rubber | 500 - 1000 | |||||||||||||||||||
£ 128.26 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
h1 60±5 l1 150 w1 75 l2 12 A/F 12 Base material Rubber Load range
kgf 500 - 1000 | ||||||||||||||||||||||||||
| 34960.W0151 | 60±5 | 150 | 75 | 12 | 12 | Polyurethane | 700 - 2500 | |||||||||||||||||||
£ 151.48 per unit (click for quantity discounts) Ready to despatch 7 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
h1 60±5 l1 150 w1 75 l2 12 A/F 12 Base material Polyurethane Load range
kgf 700 - 2500 | ||||||||||||||||||||||||||
| 34960.W0220 | 70±10 | 200 | 100 | 12 | 12 | Rubber | 1500 - 3000 | |||||||||||||||||||
£ 214.42 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
h1 70±10 l1 200 w1 100 l2 12 A/F 12 Base material Rubber Load range
kgf 1500 - 3000 | ||||||||||||||||||||||||||
| 34960.W0221 | 70±10 | 200 | 100 | 12 | 12 | Polyurethane | 3000 - 6000 | |||||||||||||||||||
£ 271.35 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
h1 70±10 l1 200 w1 100 l2 12 A/F 12 Base material Polyurethane Load range
kgf 3000 - 6000 | ||||||||||||||||||||||||||
Technical & Application
Material
Cast body, coated, with rubber base (65 Shore A) or harder polyurethane base (90 Shore A).
Technical Notes
For leveling and vibration dampening of heavy loads. Adjustment by means of allan key on side.
Adjustment is ±5mm or ±10mm depending on version selected - see table.
Tips
The rubber base versions have lower load carrying capacity but are less expensive than the polyurethane versions.
Studded version available on the website.
