Basic CMM Fixturing Set
for M 8 threads

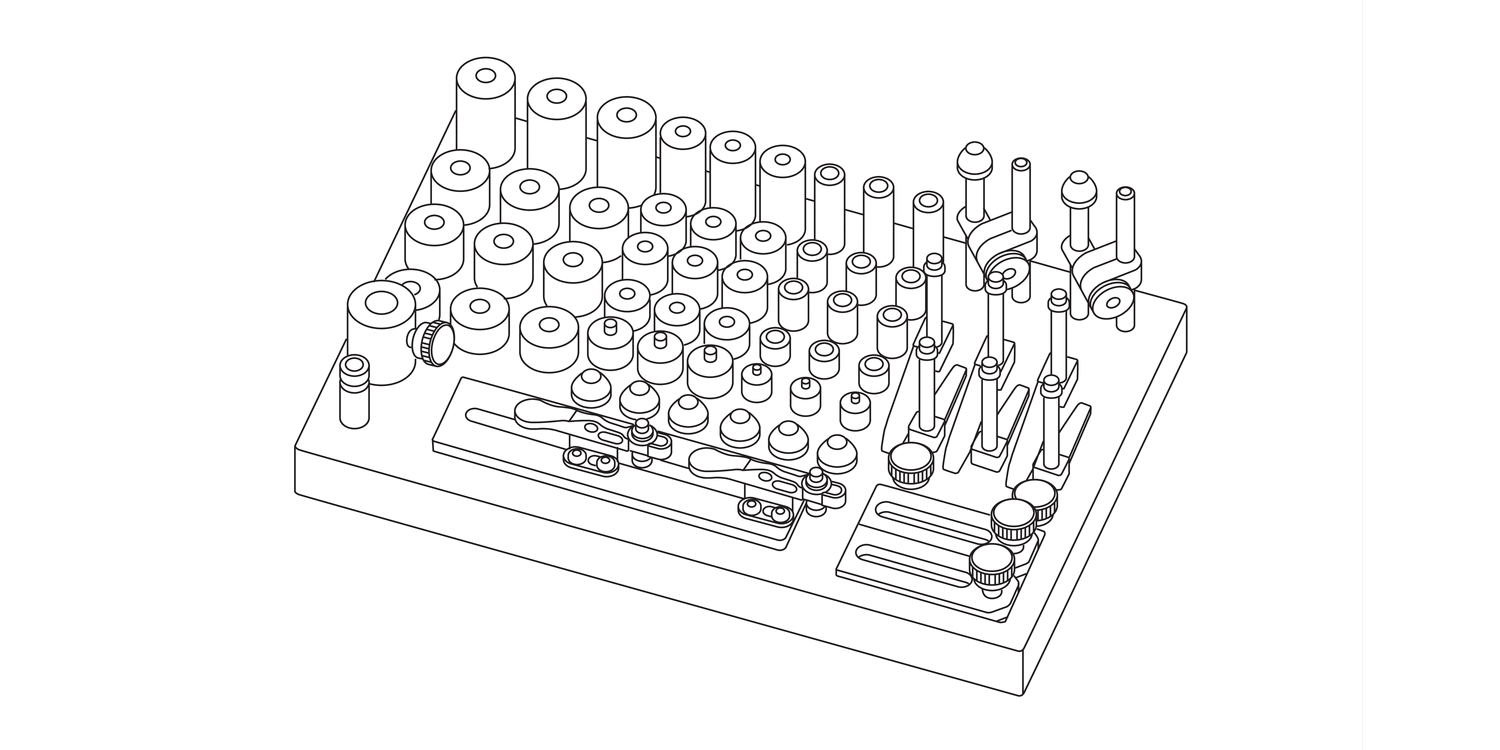

19312 Comprehensive CMM Fixturing Set
for M 8 threads, material: Aluminium and plastic
Alternative products you may wish to consider
Soft touch clamp 19320
CMM fixturing stand-off 19330
Toggle clamp 19322
| Price & Availability | Article | Soft touch clamp | CMM fixturing stand-off | Toggle clamp | |||||||||||||||
| 19312.W0008 | .W0008 x 3pcs .W0012 x 3pcs | .W1320 x 3pcs .W1325 x 6pcs .W1350 x 3pcs .W1920 x 3pcs .W1925 x 6pcs .W1950 x 3pcs .W2520 x 3pcs .W2525 x 6pcs .W2550 x 3pcs | .W0075 x 2pcs | ||||||||||||||||
£ 3,099.40 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Soft touch clamp .W0008 x 3pcs .W0012 x 3pcs CMM fixturing stand-off .W1320 x 3pcs .W1325 x 6pcs
.W1350 x 3pcs .W1920 x 3pcs
.W1925 x 6pcs .W1950 x 3pcs
.W2520 x 3pcs .W2525 x 6pcs
.W2550 x 3pcs Toggle clamp .W0075 x 2pcs | |||||||||||||||||||
Weight
g
CMM fixturing stand-off with pin 19331
CMM fixturing positioning cone 19332
CMM fixturing adj. positioner 19354
CMM fixturing stand-off adjustable 19350
CMM fixturing screw jack 19352
CMM fixturing adjustable stop 19358
| Price & Availability | Article | Weight g | CMM fixturing stand-off with pin | CMM fixturing positioning cone | CMM fixturing adj. positioner | CMM fixturing stand-off adjustable | CMM fixturing screw jack | CMM fixturing adjustable stop | |||||||||||||||
| 19312.W0008 | 4600 | .W1325 x 3pcs .W1925 x 3pcs | .W001613 x 3pcs | .W2835 x 2pcs | .W0028 x 1pc | .W1945 x 1pc | .W0008 x 2pcs | ||||||||||||||||
£ 3,099.40 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 4600 CMM fixturing stand-off with pin .W1325 x 3pcs .W1925 x 3pcs CMM fixturing positioning cone .W001613 x 3pcs CMM fixturing adj. positioner .W2835 x 2pcs CMM fixturing stand-off adjustable .W0028 x 1pc CMM fixturing screw jack .W1945 x 1pc CMM fixturing adjustable stop .W0008 x 2pcs | |||||||||||||||||||||||
Technical & Application
Technical Notes
M8 coarse thread. Comprehensive set of workholding components for fixturing components on CMMs. Components are of lightweight materials; aluminium, plastic etc. to avoid damage of workpieces. Supplied on a wooden holder for easy and tidy storage. For CMM fixturing plates and towers see parts 19300 and 19302.
