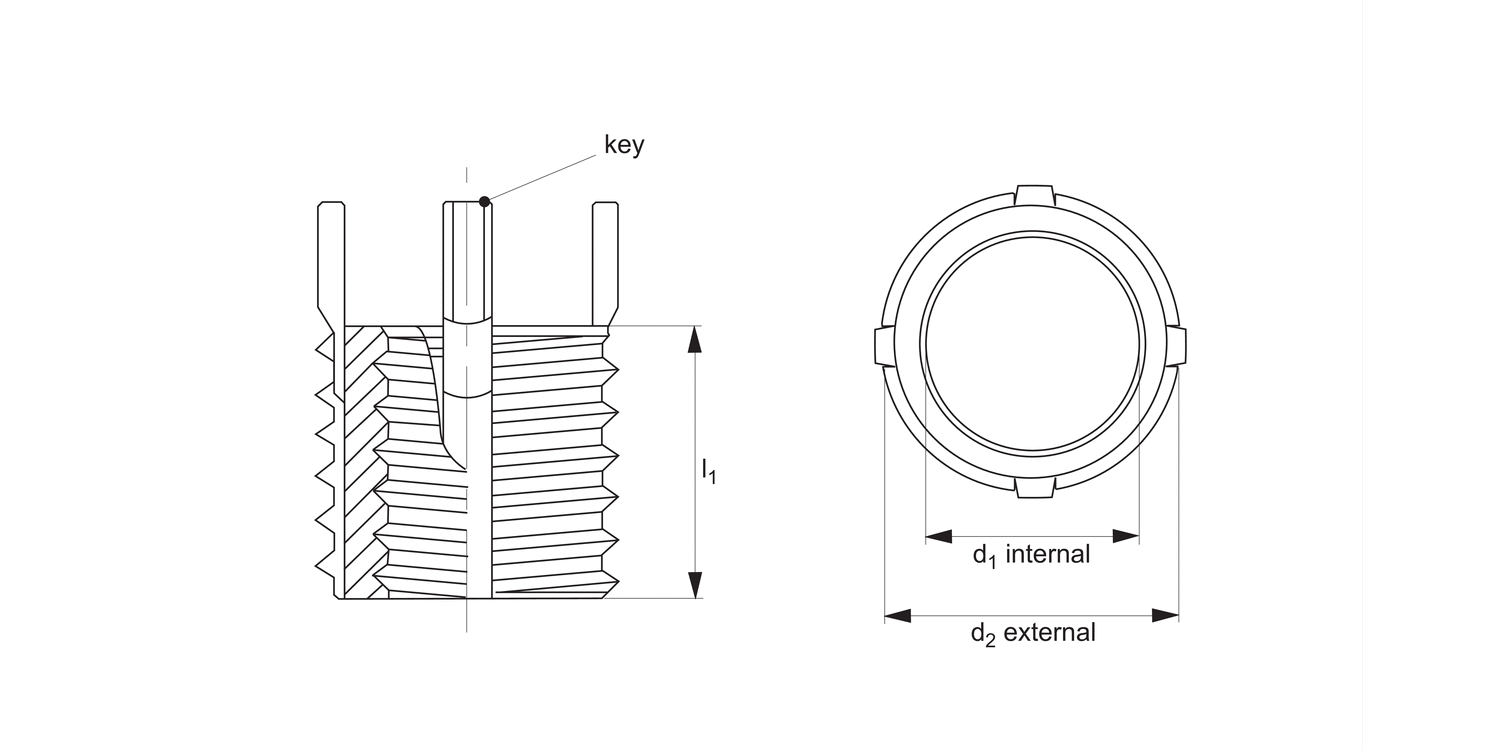

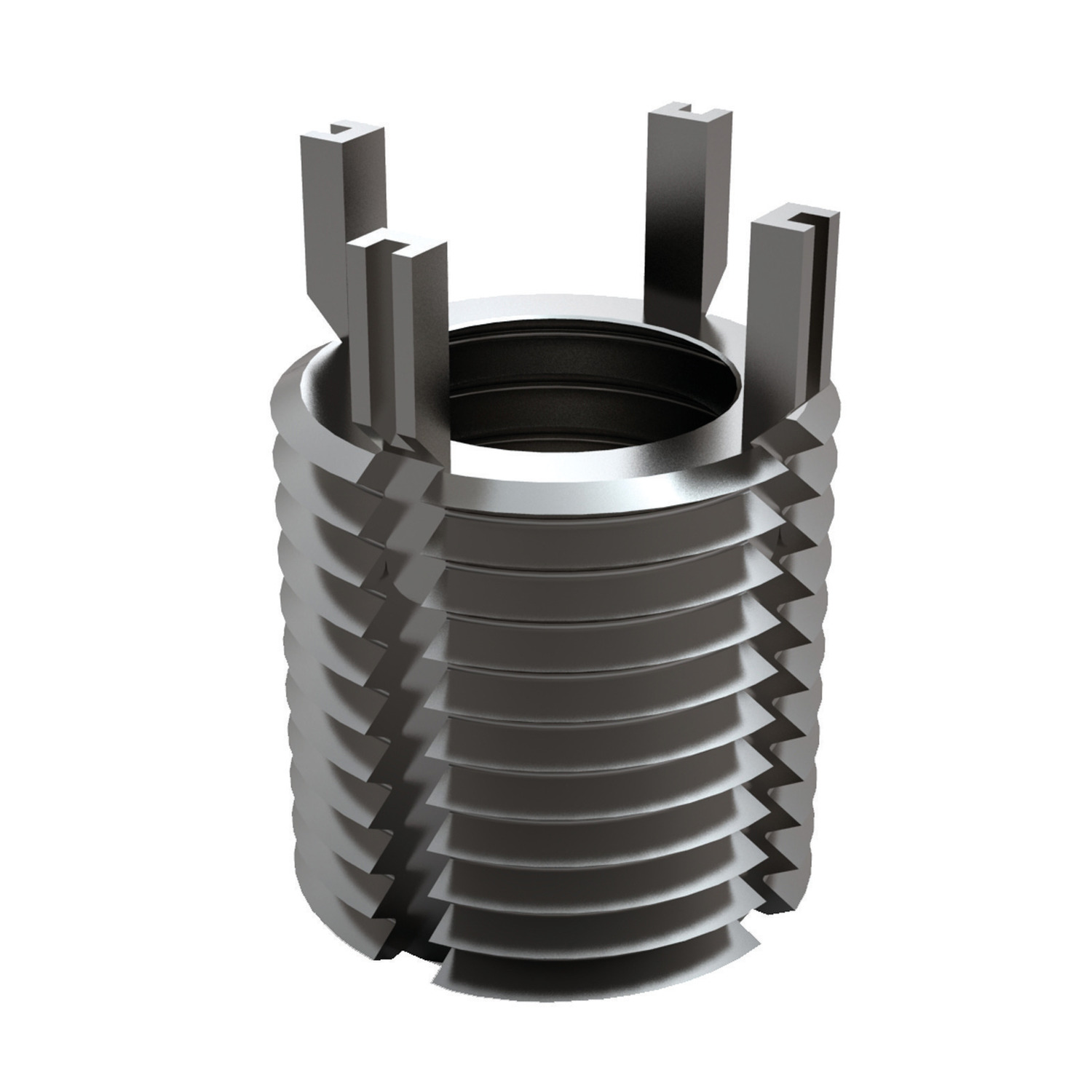

22002 Threaded Insert - Metric
heavy duty - stainless steel, material: Stainless steel
Alternative products you may wish to consider
Int. d1
tol. 6H
M 4x0,70
Int. thread type d1
Coarse
Ext. d2
tol. 6g
M 8x1,25
Ext. thread type d2
Coarse
l1
8
.W0630
Inst. tap drill size
6.9
Inst. c'sink dia.
±0.25|±0.000
8.3
Inst. thread tap
tol. 6H
M 8x1,25
Inst. thread depth
min.
9.5
Removal drill size
5.5
Removal drill depth
4.0
£ 9.03 per unit (click for quantity discounts)
Int. d1
tol. 6H
M 5x0,80
Int. thread type d1
Coarse
Ext. d2
tol. 6g
M10x1,25
Ext. thread type d2
Fine
l1
10
.W0640
Inst. tap drill size
8.8
Inst. c'sink dia.
±0.25|±0.000
10.3
Inst. thread tap
tol. 6H
M10x1,25
Inst. thread depth
min.
12.5
Removal drill size
7.5
Removal drill depth
4.8
£ 8.39 per unit (click for quantity discounts)
Int. d1
tol. 6H
M 6x1,00
Int. thread type d1
Coarse
Ext. d2
tol. 6g
M12x1,25
Ext. thread type d2
Fine
l1
12
.W0650
Inst. tap drill size
10.8
Inst. c'sink dia.
±0.25|±0.000
12.3
Inst. thread tap
tol. 6H
M12x1,25
Inst. thread depth
min.
14.5
Removal drill size
9.5
Removal drill depth
4.8
£ 6.91 per unit (click for quantity discounts)
Int. d1
tol. 6H
M 8x1,25
Int. thread type d1
Coarse
Ext. d2
tol. 6g
M14x1,50
Ext. thread type d2
Fine
l1
14
.W0660
Inst. tap drill size
12.8
Inst. c'sink dia.
±0.25|±0.000
14.3
Inst. thread tap
tol. 6H
M14x1,50
Inst. thread depth
min.
16.5
Removal drill size
11.5
Removal drill depth
4.8
£ 6.77 per unit (click for quantity discounts)
Int. d1
tol. 6H
M 8x1,00
Int. thread type d1
Fine
Ext. d2
tol. 6g
M14x1,50
Ext. thread type d2
Fine
l1
14
.W0660
Inst. tap drill size
12.8
Inst. c'sink dia.
±0.25|±0.000
14.3
Inst. thread tap
tol. 6H
M14x1,50
Inst. thread depth
min.
16.5
Removal drill size
11.5
Removal drill depth
4.8
£ 8.57 per unit (click for quantity discounts)
Int. d1
tol. 6H
M10x1,50
Int. thread type d1
Coarse
Ext. d2
tol. 6g
M16x1,50
Ext. thread type d2
Fine
l1
16
.W0670
Inst. tap drill size
14.8
Inst. c'sink dia.
±0.25|±0.000
16.3
Inst. thread tap
tol. 6H
M16x1,50
Inst. thread depth
min.
18.5
Removal drill size
13.5
Removal drill depth
4.8
£ 12.96 per unit (click for quantity discounts)
Int. d1
tol. 6H
M10x1,25
Int. thread type d1
Fine
Ext. d2
tol. 6g
M16x1,50
Ext. thread type d2
Fine
l1
16
.W0670
Inst. tap drill size
14.8
Inst. c'sink dia.
±0.25|±0.000
16.3
Inst. thread tap
tol. 6H
M16x1,50
Inst. thread depth
min.
18.5
Removal drill size
13.5
Removal drill depth
4.8
£ 9.77 per unit (click for quantity discounts)
Int. d1
tol. 6H
M12x1,75
Int. thread type d1
Coarse
Ext. d2
tol. 6g
M18x1,50
Ext. thread type d2
Fine
l1
18
.W0690
Inst. tap drill size
16.8
Inst. c'sink dia.
±0.25|±0.000
18.3
Inst. thread tap
tol. 6H
M18x1,50
Inst. thread depth
min.
20.5
Removal drill size
15.5
Removal drill depth
4.8
£ 12.32 per unit (click for quantity discounts)
Int. d1
tol. 6H
M12x1,25
Int. thread type d1
Fine
Ext. d2
tol. 6g
M18x1,50
Ext. thread type d2
Fine
l1
18
.W0690
Inst. tap drill size
16.8
Inst. c'sink dia.
±0.25|±0.000
18.3
Inst. thread tap
tol. 6H
M18x1,50
Inst. thread depth
min.
20.5
Removal drill size
15.5
Removal drill depth
4.8
£ 12.32 per unit (click for quantity discounts)
Int. d1
tol. 6H
M14x2,00
Int. thread type d1
Coarse
Ext. d2
tol. 6g
M20x1,50
Ext. thread type d2
Fine
l1
20
.W0700
Inst. tap drill size
18.8
Inst. c'sink dia.
±0.25|±0.000
20.3
Inst. thread tap
tol. 6H
M20x1,50
Inst. thread depth
min.
22.5
Removal drill size
17.5
Removal drill depth
4.8
£ 16.32 per unit (click for quantity discounts)
Int. d1
tol. 6H
M14x1,50
Int. thread type d1
Fine
Ext. d2
tol. 6g
M20x1,50
Ext. thread type d2
Fine
l1
20
.W0700
Inst. tap drill size
18.8
Inst. c'sink dia.
±0.25|±0.000
20.3
Inst. thread tap
tol. 6H
M20x1,50
Inst. thread depth
min.
22.5
Removal drill size
17.5
Removal drill depth
4.8
£ 16.32 per unit (click for quantity discounts)
Int. d1
tol. 6H
M16x2,00
Int. thread type d1
Coarse
Ext. d2
tol. 6g
M22x1,50
Ext. thread type d2
Fine
l1
22
.W0710
Inst. tap drill size
20.5
Inst. c'sink dia.
±0.25|±0.000
22.3
Inst. thread tap
tol. 6H
M22x1,50
Inst. thread depth
min.
24.5
Removal drill size
17.8
Removal drill depth
6.4
£ 17.95 per unit (click for quantity discounts)
Int. d1
tol. 6H
M16x1,50
Int. thread type d1
Fine
Ext. d2
tol. 6g
M22x1,50
Ext. thread type d2
Fine
l1
22
.W0710
Inst. tap drill size
20.5
Inst. c'sink dia.
±0.25|±0.000
22.3
Inst. thread tap
tol. 6H
M22x1,50
Inst. thread depth
min.
24.5
Removal drill size
17.8
Removal drill depth
6.4
£ 17.95 per unit (click for quantity discounts)
Int. d1
tol. 6H
M18x1,50
Int. thread type d1
Fine
Ext. d2
tol. 6g
M24x1,50
Ext. thread type d2
Fine
l1
24
.W0720
Inst. tap drill size
22.5
Inst. c'sink dia.
±0.25|±0.000
24.3
Inst. thread tap
tol. 6H
M24x1,50
Inst. thread depth
min.
26.5
Removal drill size
19.8
Removal drill depth
6.4
£ 32.80 per unit (click for quantity discounts)
Int. d1
tol. 6H
M20x2,50
Int. thread type d1
Coarse
Ext. d2
tol. 6g
M30x2,00
Ext. thread type d2
Non-Std
l1
30
.W0730
Inst. tap drill size
28.0
Inst. c'sink dia.
±0.25|±0.000
30.3
Inst. thread tap
tol. 6H
M30x2,00
Inst. thread depth
min.
34.5
Removal drill size
25.8
Removal drill depth
6.4
£ 40.51 per unit (click for quantity discounts)
Int. d1
tol. 6H
M20x1,50
Int. thread type d1
Fine
Ext. d2
tol. 6g
M30x2,00
Ext. thread type d2
Non-Std
l1
30
.W0730
Inst. tap drill size
28.0
Inst. c'sink dia.
±0.25|±0.000
30.3
Inst. thread tap
tol. 6H
M30x2,00
Inst. thread depth
min.
34.5
Removal drill size
25.8
Removal drill depth
6.4
£ 83.48 per unit (click for quantity discounts)
Int. d1
tol. 6H
M22x1,50
Int. thread type d1
Fine
Ext. d2
tol. 6g
M32x2,00
Ext. thread type d2
Non-Std
l1
32
.W0740
Inst. tap drill size
30.0
Inst. c'sink dia.
±0.25|±0.000
32.3
Inst. thread tap
tol. 6H
M32x2,00
Inst. thread depth
min.
36.5
Removal drill size
27.8
Removal drill depth
6.4
£ 55.05 per unit (click for quantity discounts)
Int. d1
tol. 6H
M24x3,00
Int. thread type d1
Coarse
Ext. d2
tol. 6g
M33x2,00
Ext. thread type d2
Non-Std
l1
33
.W0750
Inst. tap drill size
31.0
Inst. c'sink dia.
±0.25|±0.000
33.3
Inst. thread tap
tol. 6H
M33x2,00
Inst. thread depth
min.
37.5
Removal drill size
28.8
Removal drill depth
6.4
£ 68.78 per unit (click for quantity discounts)
Int. d1
tol. 6H
M24x2,00
Int. thread type d1
Fine
Ext. d2
tol. 6g
M33x2,00
Ext. thread type d2
Non-Std
l1
33
.W0750
Inst. tap drill size
31.0
Inst. c'sink dia.
±0.25|±0.000
33.3
Inst. thread tap
tol. 6H
M33x2,00
Inst. thread depth
min.
37.5
Removal drill size
28.8
Removal drill depth
6.4
£ 68.78 per unit (click for quantity discounts)
Int. d1
tol. 6H
Int. thread type d1
Ext. d2
tol. 6g
Ext. thread type d2
l1
Inst. tap drill size
Inst. c'sink dia.
±0.25|±0.000
Inst. thread tap
tol. 6H
Inst. thread depth
min.
Removal drill size
Removal drill depth
| Price & Availability | Article | Int. d1 tol. 6H | Int. thread type d1 | Ext. d2 tol. 6g | Ext. thread type d2 | l1 | Inst. tap drill size | Inst. c'sink dia. ±0.25|±0.000 | Inst. thread tap tol. 6H | Inst. thread depth min. | Removal drill size | Removal drill depth | |||||||||||||||||||||||||
| 22002.W5630 | M 4x0,70 | Coarse | M 8x1,25 | Coarse | 8 | .W0630 | 6.9 | 8.3 | M 8x1,25 | 9.5 | 5.5 | 4.0 | |||||||||||||||||||||||||
£ 9.03 per unit (click for quantity discounts) Ready to despatch 448 Need more? Please call us.
Int. d1
tol. 6H M 4x0,70 Int. thread type d1 Coarse Ext. d2
tol. 6g M 8x1,25 Ext. thread type d2 Coarse l1 8 .W0630 Inst. tap drill size 6.9 Inst. c'sink dia.
±0.25|±0.000 8.3 Inst. thread tap
tol. 6H M 8x1,25 Inst. thread depth
min. 9.5 Removal drill size 5.5 Removal drill depth 4.0 | |||||||||||||||||||||||||||||||||||||
| 22002.W5640 | M 5x0,80 | Coarse | M10x1,25 | Fine | 10 | .W0640 | 8.8 | 10.3 | M10x1,25 | 12.5 | 7.5 | 4.8 | |||||||||||||||||||||||||
£ 8.39 per unit (click for quantity discounts) Ready to despatch 1157 Need more? Please call us.
Int. d1
tol. 6H M 5x0,80 Int. thread type d1 Coarse Ext. d2
tol. 6g M10x1,25 Ext. thread type d2 Fine l1 10 .W0640 Inst. tap drill size 8.8 Inst. c'sink dia.
±0.25|±0.000 10.3 Inst. thread tap
tol. 6H M10x1,25 Inst. thread depth
min. 12.5 Removal drill size 7.5 Removal drill depth 4.8 | |||||||||||||||||||||||||||||||||||||
| 22002.W5650 | M 6x1,00 | Coarse | M12x1,25 | Fine | 12 | .W0650 | 10.8 | 12.3 | M12x1,25 | 14.5 | 9.5 | 4.8 | |||||||||||||||||||||||||
£ 6.91 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Int. d1
tol. 6H M 6x1,00 Int. thread type d1 Coarse Ext. d2
tol. 6g M12x1,25 Ext. thread type d2 Fine l1 12 .W0650 Inst. tap drill size 10.8 Inst. c'sink dia.
±0.25|±0.000 12.3 Inst. thread tap
tol. 6H M12x1,25 Inst. thread depth
min. 14.5 Removal drill size 9.5 Removal drill depth 4.8 | |||||||||||||||||||||||||||||||||||||
| 22002.W5660 | M 8x1,25 | Coarse | M14x1,50 | Fine | 14 | .W0660 | 12.8 | 14.3 | M14x1,50 | 16.5 | 11.5 | 4.8 | |||||||||||||||||||||||||
£ 6.77 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Int. d1
tol. 6H M 8x1,25 Int. thread type d1 Coarse Ext. d2
tol. 6g M14x1,50 Ext. thread type d2 Fine l1 14 .W0660 Inst. tap drill size 12.8 Inst. c'sink dia.
±0.25|±0.000 14.3 Inst. thread tap
tol. 6H M14x1,50 Inst. thread depth
min. 16.5 Removal drill size 11.5 Removal drill depth 4.8 | |||||||||||||||||||||||||||||||||||||
| 22002.W5661 | M 8x1,00 | Fine | M14x1,50 | Fine | 14 | .W0660 | 12.8 | 14.3 | M14x1,50 | 16.5 | 11.5 | 4.8 | |||||||||||||||||||||||||
£ 8.57 per unit (click for quantity discounts) Ready to despatch 3161 Need more? Please call us.
Int. d1
tol. 6H M 8x1,00 Int. thread type d1 Fine Ext. d2
tol. 6g M14x1,50 Ext. thread type d2 Fine l1 14 .W0660 Inst. tap drill size 12.8 Inst. c'sink dia.
±0.25|±0.000 14.3 Inst. thread tap
tol. 6H M14x1,50 Inst. thread depth
min. 16.5 Removal drill size 11.5 Removal drill depth 4.8 | |||||||||||||||||||||||||||||||||||||
| 22002.W5670 | M10x1,50 | Coarse | M16x1,50 | Fine | 16 | .W0670 | 14.8 | 16.3 | M16x1,50 | 18.5 | 13.5 | 4.8 | |||||||||||||||||||||||||
£ 12.96 per unit (click for quantity discounts) Ready to despatch 56 Need more? Please call us.
Int. d1
tol. 6H M10x1,50 Int. thread type d1 Coarse Ext. d2
tol. 6g M16x1,50 Ext. thread type d2 Fine l1 16 .W0670 Inst. tap drill size 14.8 Inst. c'sink dia.
±0.25|±0.000 16.3 Inst. thread tap
tol. 6H M16x1,50 Inst. thread depth
min. 18.5 Removal drill size 13.5 Removal drill depth 4.8 | |||||||||||||||||||||||||||||||||||||
| 22002.W5671 | M10x1,25 | Fine | M16x1,50 | Fine | 16 | .W0670 | 14.8 | 16.3 | M16x1,50 | 18.5 | 13.5 | 4.8 | |||||||||||||||||||||||||
£ 9.77 per unit (click for quantity discounts) Ready to despatch 90 Need more? Please call us.
Int. d1
tol. 6H M10x1,25 Int. thread type d1 Fine Ext. d2
tol. 6g M16x1,50 Ext. thread type d2 Fine l1 16 .W0670 Inst. tap drill size 14.8 Inst. c'sink dia.
±0.25|±0.000 16.3 Inst. thread tap
tol. 6H M16x1,50 Inst. thread depth
min. 18.5 Removal drill size 13.5 Removal drill depth 4.8 | |||||||||||||||||||||||||||||||||||||
| 22002.W5690 | M12x1,75 | Coarse | M18x1,50 | Fine | 18 | .W0690 | 16.8 | 18.3 | M18x1,50 | 20.5 | 15.5 | 4.8 | |||||||||||||||||||||||||
£ 12.32 per unit (click for quantity discounts) Ready to despatch 28 Need more? Please call us.
Int. d1
tol. 6H M12x1,75 Int. thread type d1 Coarse Ext. d2
tol. 6g M18x1,50 Ext. thread type d2 Fine l1 18 .W0690 Inst. tap drill size 16.8 Inst. c'sink dia.
±0.25|±0.000 18.3 Inst. thread tap
tol. 6H M18x1,50 Inst. thread depth
min. 20.5 Removal drill size 15.5 Removal drill depth 4.8 | |||||||||||||||||||||||||||||||||||||
| 22002.W5691 | M12x1,25 | Fine | M18x1,50 | Fine | 18 | .W0690 | 16.8 | 18.3 | M18x1,50 | 20.5 | 15.5 | 4.8 | |||||||||||||||||||||||||
£ 12.32 per unit (click for quantity discounts) Ready to despatch 47 Need more? Please call us.
Int. d1
tol. 6H M12x1,25 Int. thread type d1 Fine Ext. d2
tol. 6g M18x1,50 Ext. thread type d2 Fine l1 18 .W0690 Inst. tap drill size 16.8 Inst. c'sink dia.
±0.25|±0.000 18.3 Inst. thread tap
tol. 6H M18x1,50 Inst. thread depth
min. 20.5 Removal drill size 15.5 Removal drill depth 4.8 | |||||||||||||||||||||||||||||||||||||
| 22002.W5700 | M14x2,00 | Coarse | M20x1,50 | Fine | 20 | .W0700 | 18.8 | 20.3 | M20x1,50 | 22.5 | 17.5 | 4.8 | |||||||||||||||||||||||||
£ 16.32 per unit (click for quantity discounts) Ready to despatch 157 Need more? Please call us.
Int. d1
tol. 6H M14x2,00 Int. thread type d1 Coarse Ext. d2
tol. 6g M20x1,50 Ext. thread type d2 Fine l1 20 .W0700 Inst. tap drill size 18.8 Inst. c'sink dia.
±0.25|±0.000 20.3 Inst. thread tap
tol. 6H M20x1,50 Inst. thread depth
min. 22.5 Removal drill size 17.5 Removal drill depth 4.8 | |||||||||||||||||||||||||||||||||||||
| 22002.W5701 | M14x1,50 | Fine | M20x1,50 | Fine | 20 | .W0700 | 18.8 | 20.3 | M20x1,50 | 22.5 | 17.5 | 4.8 | |||||||||||||||||||||||||
£ 16.32 per unit (click for quantity discounts) Ready to despatch 1 Need more? Please call us.
Int. d1
tol. 6H M14x1,50 Int. thread type d1 Fine Ext. d2
tol. 6g M20x1,50 Ext. thread type d2 Fine l1 20 .W0700 Inst. tap drill size 18.8 Inst. c'sink dia.
±0.25|±0.000 20.3 Inst. thread tap
tol. 6H M20x1,50 Inst. thread depth
min. 22.5 Removal drill size 17.5 Removal drill depth 4.8 | |||||||||||||||||||||||||||||||||||||
| 22002.W5710 | M16x2,00 | Coarse | M22x1,50 | Fine | 22 | .W0710 | 20.5 | 22.3 | M22x1,50 | 24.5 | 17.8 | 6.4 | |||||||||||||||||||||||||
£ 17.95 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Int. d1
tol. 6H M16x2,00 Int. thread type d1 Coarse Ext. d2
tol. 6g M22x1,50 Ext. thread type d2 Fine l1 22 .W0710 Inst. tap drill size 20.5 Inst. c'sink dia.
±0.25|±0.000 22.3 Inst. thread tap
tol. 6H M22x1,50 Inst. thread depth
min. 24.5 Removal drill size 17.8 Removal drill depth 6.4 | |||||||||||||||||||||||||||||||||||||
| 22002.W5711 | M16x1,50 | Fine | M22x1,50 | Fine | 22 | .W0710 | 20.5 | 22.3 | M22x1,50 | 24.5 | 17.8 | 6.4 | |||||||||||||||||||||||||
£ 17.95 per unit (click for quantity discounts) Ready to despatch 218 Need more? Please call us.
Int. d1
tol. 6H M16x1,50 Int. thread type d1 Fine Ext. d2
tol. 6g M22x1,50 Ext. thread type d2 Fine l1 22 .W0710 Inst. tap drill size 20.5 Inst. c'sink dia.
±0.25|±0.000 22.3 Inst. thread tap
tol. 6H M22x1,50 Inst. thread depth
min. 24.5 Removal drill size 17.8 Removal drill depth 6.4 | |||||||||||||||||||||||||||||||||||||
| 22002.W5720 | M18x1,50 | Fine | M24x1,50 | Fine | 24 | .W0720 | 22.5 | 24.3 | M24x1,50 | 26.5 | 19.8 | 6.4 | |||||||||||||||||||||||||
£ 32.80 per unit (click for quantity discounts) Ready to despatch 51 Need more? Please call us.
Int. d1
tol. 6H M18x1,50 Int. thread type d1 Fine Ext. d2
tol. 6g M24x1,50 Ext. thread type d2 Fine l1 24 .W0720 Inst. tap drill size 22.5 Inst. c'sink dia.
±0.25|±0.000 24.3 Inst. thread tap
tol. 6H M24x1,50 Inst. thread depth
min. 26.5 Removal drill size 19.8 Removal drill depth 6.4 | |||||||||||||||||||||||||||||||||||||
| 22002.W5730 | M20x2,50 | Coarse | M30x2,00 | Non-Std | 30 | .W0730 | 28.0 | 30.3 | M30x2,00 | 34.5 | 25.8 | 6.4 | |||||||||||||||||||||||||
£ 40.51 per unit (click for quantity discounts) Ready to despatch 1 Need more? Please call us.
Int. d1
tol. 6H M20x2,50 Int. thread type d1 Coarse Ext. d2
tol. 6g M30x2,00 Ext. thread type d2 Non-Std l1 30 .W0730 Inst. tap drill size 28.0 Inst. c'sink dia.
±0.25|±0.000 30.3 Inst. thread tap
tol. 6H M30x2,00 Inst. thread depth
min. 34.5 Removal drill size 25.8 Removal drill depth 6.4 | |||||||||||||||||||||||||||||||||||||
| 22002.W5731 | M20x1,50 | Fine | M30x2,00 | Non-Std | 30 | .W0730 | 28.0 | 30.3 | M30x2,00 | 34.5 | 25.8 | 6.4 | |||||||||||||||||||||||||
£ 83.48 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Int. d1
tol. 6H M20x1,50 Int. thread type d1 Fine Ext. d2
tol. 6g M30x2,00 Ext. thread type d2 Non-Std l1 30 .W0730 Inst. tap drill size 28.0 Inst. c'sink dia.
±0.25|±0.000 30.3 Inst. thread tap
tol. 6H M30x2,00 Inst. thread depth
min. 34.5 Removal drill size 25.8 Removal drill depth 6.4 | |||||||||||||||||||||||||||||||||||||
| 22002.W5740 | M22x1,50 | Fine | M32x2,00 | Non-Std | 32 | .W0740 | 30.0 | 32.3 | M32x2,00 | 36.5 | 27.8 | 6.4 | |||||||||||||||||||||||||
£ 55.05 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Int. d1
tol. 6H M22x1,50 Int. thread type d1 Fine Ext. d2
tol. 6g M32x2,00 Ext. thread type d2 Non-Std l1 32 .W0740 Inst. tap drill size 30.0 Inst. c'sink dia.
±0.25|±0.000 32.3 Inst. thread tap
tol. 6H M32x2,00 Inst. thread depth
min. 36.5 Removal drill size 27.8 Removal drill depth 6.4 | |||||||||||||||||||||||||||||||||||||
| 22002.W5750 | M24x3,00 | Coarse | M33x2,00 | Non-Std | 33 | .W0750 | 31.0 | 33.3 | M33x2,00 | 37.5 | 28.8 | 6.4 | |||||||||||||||||||||||||
£ 68.78 per unit (click for quantity discounts) Ready to despatch 3 Need more? Please call us.
Int. d1
tol. 6H M24x3,00 Int. thread type d1 Coarse Ext. d2
tol. 6g M33x2,00 Ext. thread type d2 Non-Std l1 33 .W0750 Inst. tap drill size 31.0 Inst. c'sink dia.
±0.25|±0.000 33.3 Inst. thread tap
tol. 6H M33x2,00 Inst. thread depth
min. 37.5 Removal drill size 28.8 Removal drill depth 6.4 | |||||||||||||||||||||||||||||||||||||
| 22002.W5751 | M24x2,00 | Fine | M33x2,00 | Non-Std | 33 | .W0750 | 31.0 | 33.3 | M33x2,00 | 37.5 | 28.8 | 6.4 | |||||||||||||||||||||||||
£ 68.78 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Int. d1
tol. 6H M24x2,00 Int. thread type d1 Fine Ext. d2
tol. 6g M33x2,00 Ext. thread type d2 Non-Std l1 33 .W0750 Inst. tap drill size 31.0 Inst. c'sink dia.
±0.25|±0.000 33.3 Inst. thread tap
tol. 6H M33x2,00 Inst. thread depth
min. 37.5 Removal drill size 28.8 Removal drill depth 6.4 | |||||||||||||||||||||||||||||||||||||
Technical & Application
Material
Inserts: stainless steel (AISI 303) or equivalent. Passivated.
Keys: stainless steel (302 CRES) or equivalent. Passivated.
Technical Notes
General tolerances:
±0,25, unless specified.
Tap drill hole tolerances:
6,9 to 10,8 = +0,10/-0,025.
12,8 and over = +0,13/-0,025.
Tips
Order installation tool separately, as identified by "Inst. tool ref." in table.
Important Notes
Four locking keys on internal threads M 8 and over. Two locking keys on internal threads smaller than M 8.
Installation (Inst.) drill size, countersink, thread tap and thread depth as specified in table.
Removal drill size and drill depth as specified in table.
