Hook Spanners
With Hook Nose

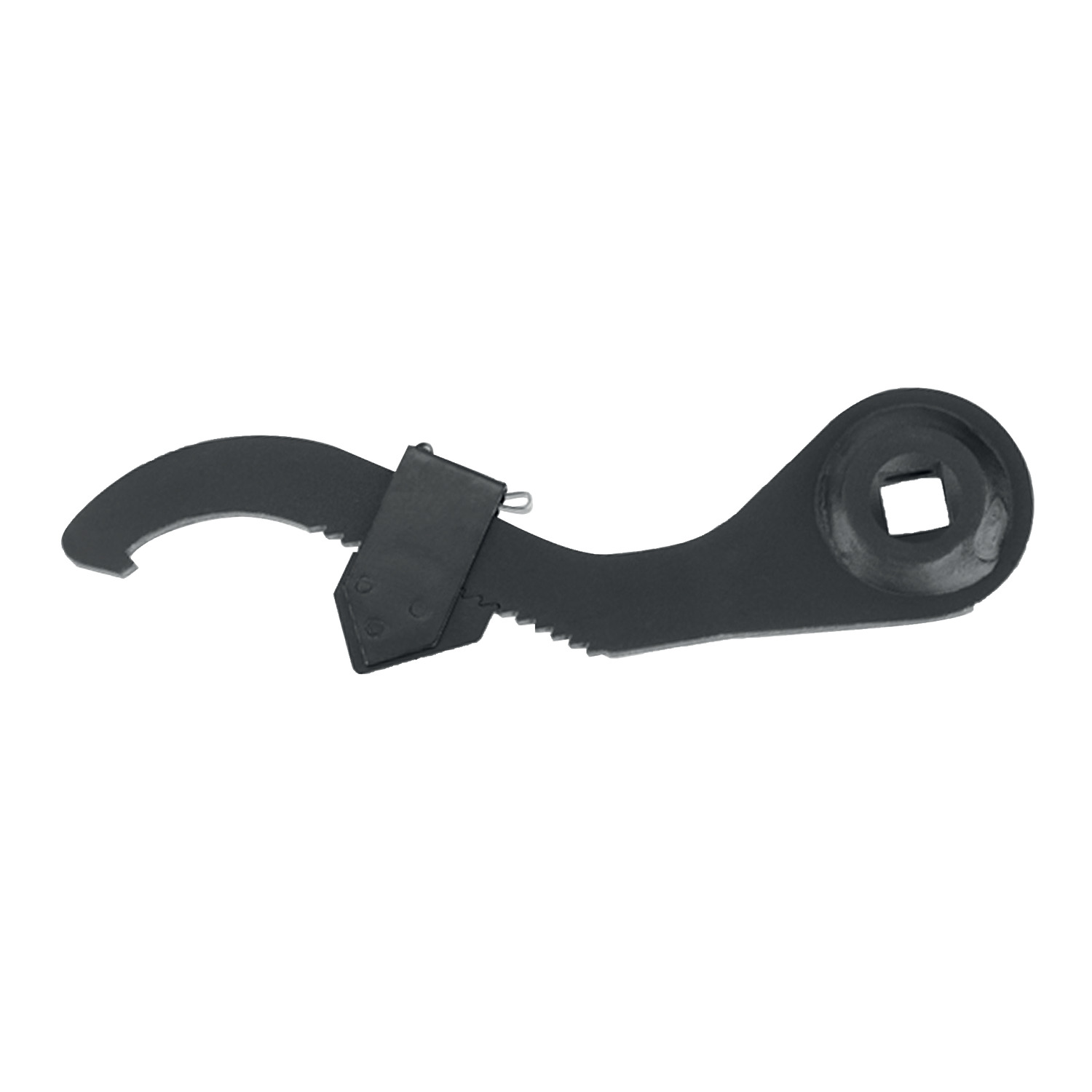

95105 Adjustable Hook Spanner
with hook nose - for use with torque wrench, material: Special steel
Alternative products you may wish to consider

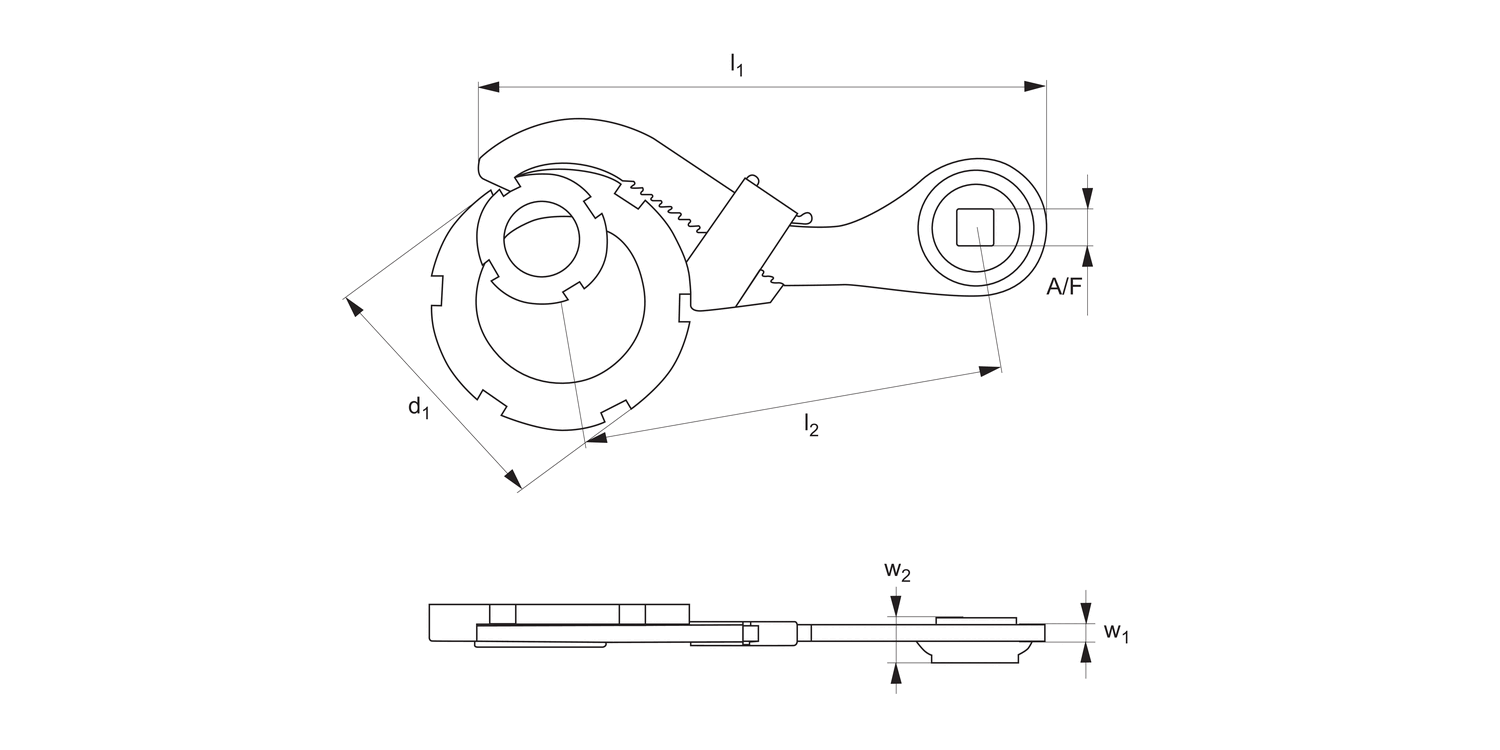

d1 for nut Ø
20-42
l1
135
l2
100
w1
4
w2
16.0
Drive A/F
1/2"
Weight
g
165
£ 115.84 per unit (click for quantity discounts)
d1 for nut Ø
45-90
l1
192
l2
150
w1
6
w2
16.0
Drive A/F
1/2"
Weight
g
310
£ 115.07 per unit (click for quantity discounts)
d1 for nut Ø
95-165
l1
272
l2
200
w1
10
w2
16.0
Drive A/F
1/2"
Weight
g
680
£ 121.09 per unit (click for quantity discounts)
d1 for nut Ø
95-165
l1
298
l2
220
w1
10
w2
20.5
Drive A/F
3/4"
Weight
g
910
£ 138.37 per unit (click for quantity discounts)
d1 for nut Ø
l1
l2
w1
w2
Drive A/F
Weight
g
| Price & Availability | Article | d1 for nut Ø | l1 | l2 | w1 | w2 | Drive A/F | Weight g | |||||||||||||||
| 95105.W0042 | 20-42 | 135 | 100 | 4 | 16.0 | 1/2" | 165 | ||||||||||||||||
£ 115.84 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 for nut Ø 20-42 l1 135 l2 100 w1 4 w2 16.0 Drive A/F 1/2" Weight
g 165 | |||||||||||||||||||||||
| 95105.W0090 | 45-90 | 192 | 150 | 6 | 16.0 | 1/2" | 310 | ||||||||||||||||
£ 115.07 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 for nut Ø 45-90 l1 192 l2 150 w1 6 w2 16.0 Drive A/F 1/2" Weight
g 310 | |||||||||||||||||||||||
| 95105.W0165 | 95-165 | 272 | 200 | 10 | 16.0 | 1/2" | 680 | ||||||||||||||||
£ 121.09 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 for nut Ø 95-165 l1 272 l2 200 w1 10 w2 16.0 Drive A/F 1/2" Weight
g 680 | |||||||||||||||||||||||
| 95105.W0166 | 95-165 | 298 | 220 | 10 | 20.5 | 3/4" | 910 | ||||||||||||||||
£ 138.37 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 for nut Ø 95-165 l1 298 l2 220 w1 10 w2 20.5 Drive A/F 3/4" Weight
g 910 | |||||||||||||||||||||||
Technical & Application
Material
Special steel, hardened and blued.
Technical Notes
Spanner for adjustment of nuts to DIN 1804 and DIN 981. For use with torque wrenches for more accurate installation and adjustment.
The required torque wrench value is dependent upon dimension l2. Please refer to the operating manual of your torque wrench.
