Taper Clamps
downhold action
12440 Taper Clamps - Economy Version
material: Hardened steel
Alternative products you may wish to consider
Taper
Single
Jaw type
Smooth

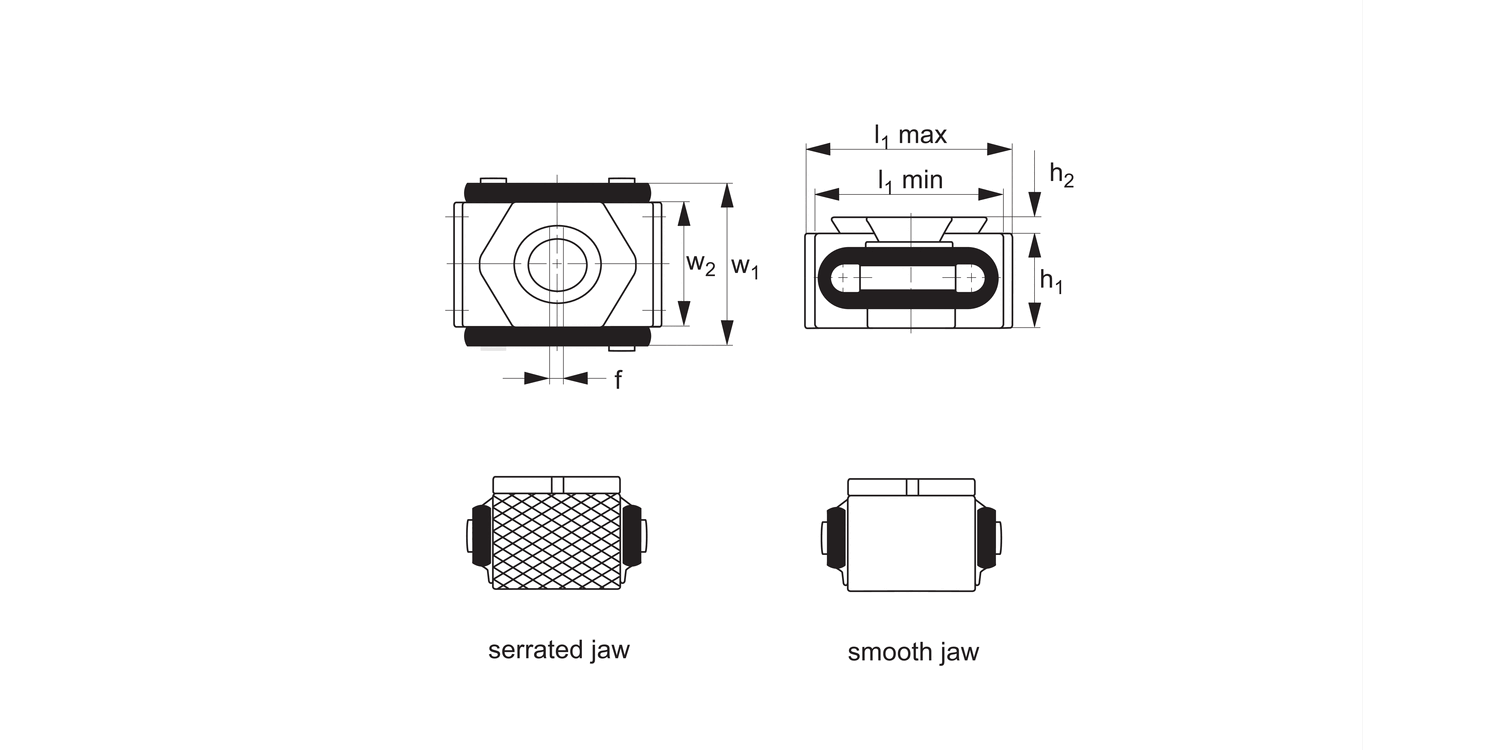

l1
min.
20
l1
max.
25
d1
M 5
h1
11
h2
4.2
w1
22
w2
15
f
max.
0.5
Clamping force
max.
kN
10
Torque to
max.
Nm
10
Weight
g
22
£ 41.67 per unit (click for quantity discounts)
Taper
Single
Jaw type
Serrated
l1
min.
28
l1
max.
32
d1
M 8
h1
15
h2
4.0
w1
29
w2
21
f
max.
1.0
Clamping force
max.
kN
15
Torque to
max.
Nm
25
Weight
g
55
£ 66.67 per unit (click for quantity discounts)
Taper
Single
Jaw type
Smooth
l1
min.
28
l1
max.
32
d1
M 8
h1
15
h2
3.5
w1
29
w2
21
f
max.
1.0
Clamping force
max.
kN
15
Torque to
max.
Nm
25
Weight
g
55
£ 66.67 per unit (click for quantity discounts)
Taper
Jaw type
l1
min.
l1
max.
d1
h1
h2
w1
w2
f
max.
Clamping force
max.
kN
Torque to
max.
Nm
Weight
g
| Price & Availability | Article | Taper | Jaw type | l1 min. | l1 max. | d1 | h1 | h2 | w1 | w2 | f max. | Clamping force max. kN | Torque to max. Nm | Weight g | |||||||||||||||
| 12440.W0005 | Single | Smooth | 20 | 25 | M 5 | 11 | 4.2 | 22 | 15 | 0.5 | 10 | 10 | 22 | ||||||||||||||||
£ 41.67 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Taper Single Jaw type Smooth l1
min. 20 l1
max. 25 d1 M 5 h1 11 h2 4.2 w1 22 w2 15 f
max. 0.5 Clamping force
max.
kN 10 Torque to
max.
Nm 10 Weight
g 22 | |||||||||||||||||||||||||||||
| 12440.W0008 | Single | Serrated | 28 | 32 | M 8 | 15 | 4.0 | 29 | 21 | 1.0 | 15 | 25 | 55 | ||||||||||||||||
£ 66.67 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Taper Single Jaw type Serrated l1
min. 28 l1
max. 32 d1 M 8 h1 15 h2 4.0 w1 29 w2 21 f
max. 1.0 Clamping force
max.
kN 15 Torque to
max.
Nm 25 Weight
g 55 | |||||||||||||||||||||||||||||
| 12440.W0009 | Single | Smooth | 28 | 32 | M 8 | 15 | 3.5 | 29 | 21 | 1.0 | 15 | 25 | 55 | ||||||||||||||||
£ 66.67 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Taper Single Jaw type Smooth l1
min. 28 l1
max. 32 d1 M 8 h1 15 h2 3.5 w1 29 w2 21 f
max. 1.0 Clamping force
max.
kN 15 Torque to
max.
Nm 25 Weight
g 55 | |||||||||||||||||||||||||||||
Technical & Application
Material
Body: tool steel, hardened, bright.
Clamping segments: tool steel, hardened to 48-52 HRC, ground and blackened.
Spring: rubber o-ring (12440.W0005) or steel (12440.W0008 and .W0009).
Technical Notes
Ideal for horizontal or vertical clamping of multiple parts. Tighten the socket head cap screw to move clamping segements outwards to press the workpiece(s) against a fixed stop. Can be mounted in a threaded hole or T-slot.
"f*" is the float around the clamping screw centre. Only bottom of jaw is ground.
Tips
OK-VISE is a registered trademark of OK-VISE OY.
For suitable T-nuts see no. 24000
