Shaft Clamps
for cylindrical parts - steel
32940.1 Steel Shaft Clamps
for cylindrical parts, material: Heat treated steel
Alternative products you may wish to consider
d1
tol. h11
8
d2
M 4
d3
M 2,5
l1
max.
27
l2
8
l3
4
Hub bore d4
tol. H7
8
Location hole shaft d5
6-10
w1
+0.2
2.8
A/F
3
Tightening torque
max.
Nm
2.9
Fitting tool 32940
.W0806
Weight
g
8
£ 41.51 per unit (click for quantity discounts)
d1
tol. h11
10
d2
M 5
d3
M 3
l1
max.
33
l2
10
l3
5
Hub bore d4
tol. H7
10
Location hole shaft d5
10-15
w1
+0.2
3.3
A/F
4
Tightening torque
max.
Nm
6.0
Fitting tool 32940
.W0810
Weight
g
12
£ 43.31 per unit (click for quantity discounts)
d1
tol. h11
12
d2
M 6
d3
M 4
l1
max.
39
l2
12
l3
6
Hub bore d4
tol. H7
12
Location hole shaft d5
15-20
w1
+0.2
3.5
A/F
5
Tightening torque
max.
Nm
10.0
Fitting tool 32940
.W0815
Weight
g
21
£ 45.75 per unit (click for quantity discounts)
d1
tol. h11
16
d2
M 8
d3
M 5
l1
max.
46
l2
16
l3
8
Hub bore d4
tol. H7
16
Location hole shaft d5
20-30
w1
+0.2
4.0
A/F
6
Tightening torque
max.
Nm
25.0
Fitting tool 32940
.W0820
Weight
g
52
£ 50.49 per unit (click for quantity discounts)
d1
tol. h11
20
d2
M10
d3
M 6
l1
max.
53
l2
20
l3
10
Hub bore d4
tol. H7
20
Location hole shaft d5
30-40
w1
+0.2
4.8
A/F
8
Tightening torque
max.
Nm
46.0
Fitting tool 32940
.W0830
Weight
g
98
£ 54.06 per unit (click for quantity discounts)
d1
tol. h11
25
d2
M12
d3
M 8
l1
max.
70
l2
25
l3
12
Hub bore d4
tol. H7
25
Location hole shaft d5
40-60
w1
+0.2
5.6
A/F
10
Tightening torque
max.
Nm
82.0
Fitting tool 32940
.W0840
Weight
g
183
£ 61.14 per unit (click for quantity discounts)
d1
tol. h11
30
d2
M16
d3
M10
l1
max.
81
l2
30
l3
16
Hub bore d4
tol. H7
30
Location hole shaft d5
60-125
w1
+0.2
7.9
A/F
14
Tightening torque
max.
Nm
206.0
Fitting tool 32940
.W0860
Weight
g
344
£ 79.85 per unit (click for quantity discounts)
d1
tol. h11
d2
d3
l1
max.
l2
l3
Hub bore d4
tol. H7
Location hole shaft d5
w1
+0.2
A/F
Tightening torque
max.
Nm
Fitting tool 32940
Weight
g
| Price & Availability | Article | d1 tol. h11 | d2 | d3 | l1 max. | l2 | l3 | Hub bore d4 tol. H7 | Location hole shaft d5 | w1 +0.2 | A/F | Tightening torque max. Nm | Fitting tool 32940 | Weight g | ||||||||||||||||||
| 32940.W0006 | 8 | M 4 | M 2,5 | 27 | 8 | 4 | 8 | 6-10 | 2.8 | 3 | 2.9 | .W0806 | 8 | |||||||||||||||||||
£ 41.51 per unit (click for quantity discounts) Ready to despatch 18 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h11 8 d2 M 4 d3 M 2,5 l1
max. 27 l2 8 l3 4 Hub bore d4
tol. H7 8 Location hole shaft d5 6-10 w1
+0.2 2.8 A/F 3 Tightening torque
max.
Nm 2.9 Fitting tool 32940 .W0806 Weight
g 8 | ||||||||||||||||||||||||||||||||
| 32940.W0010 | 10 | M 5 | M 3 | 33 | 10 | 5 | 10 | 10-15 | 3.3 | 4 | 6.0 | .W0810 | 12 | |||||||||||||||||||
£ 43.31 per unit (click for quantity discounts) Ready to despatch 8 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h11 10 d2 M 5 d3 M 3 l1
max. 33 l2 10 l3 5 Hub bore d4
tol. H7 10 Location hole shaft d5 10-15 w1
+0.2 3.3 A/F 4 Tightening torque
max.
Nm 6.0 Fitting tool 32940 .W0810 Weight
g 12 | ||||||||||||||||||||||||||||||||
| 32940.W0015 | 12 | M 6 | M 4 | 39 | 12 | 6 | 12 | 15-20 | 3.5 | 5 | 10.0 | .W0815 | 21 | |||||||||||||||||||
£ 45.75 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h11 12 d2 M 6 d3 M 4 l1
max. 39 l2 12 l3 6 Hub bore d4
tol. H7 12 Location hole shaft d5 15-20 w1
+0.2 3.5 A/F 5 Tightening torque
max.
Nm 10.0 Fitting tool 32940 .W0815 Weight
g 21 | ||||||||||||||||||||||||||||||||
| 32940.W0020 | 16 | M 8 | M 5 | 46 | 16 | 8 | 16 | 20-30 | 4.0 | 6 | 25.0 | .W0820 | 52 | |||||||||||||||||||
£ 50.49 per unit (click for quantity discounts) Ready to despatch 7 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h11 16 d2 M 8 d3 M 5 l1
max. 46 l2 16 l3 8 Hub bore d4
tol. H7 16 Location hole shaft d5 20-30 w1
+0.2 4.0 A/F 6 Tightening torque
max.
Nm 25.0 Fitting tool 32940 .W0820 Weight
g 52 | ||||||||||||||||||||||||||||||||
| 32940.W0030 | 20 | M10 | M 6 | 53 | 20 | 10 | 20 | 30-40 | 4.8 | 8 | 46.0 | .W0830 | 98 | |||||||||||||||||||
£ 54.06 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h11 20 d2 M10 d3 M 6 l1
max. 53 l2 20 l3 10 Hub bore d4
tol. H7 20 Location hole shaft d5 30-40 w1
+0.2 4.8 A/F 8 Tightening torque
max.
Nm 46.0 Fitting tool 32940 .W0830 Weight
g 98 | ||||||||||||||||||||||||||||||||
| 32940.W0040 | 25 | M12 | M 8 | 70 | 25 | 12 | 25 | 40-60 | 5.6 | 10 | 82.0 | .W0840 | 183 | |||||||||||||||||||
£ 61.14 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h11 25 d2 M12 d3 M 8 l1
max. 70 l2 25 l3 12 Hub bore d4
tol. H7 25 Location hole shaft d5 40-60 w1
+0.2 5.6 A/F 10 Tightening torque
max.
Nm 82.0 Fitting tool 32940 .W0840 Weight
g 183 | ||||||||||||||||||||||||||||||||
| 32940.W0060 | 30 | M16 | M10 | 81 | 30 | 16 | 30 | 60-125 | 7.9 | 14 | 206.0 | .W0860 | 344 | |||||||||||||||||||
£ 79.85 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h11 30 d2 M16 d3 M10 l1
max. 81 l2 30 l3 16 Hub bore d4
tol. H7 30 Location hole shaft d5 60-125 w1
+0.2 7.9 A/F 14 Tightening torque
max.
Nm 206.0 Fitting tool 32940 .W0860 Weight
g 344 | ||||||||||||||||||||||||||||||||
Technical & Application
Material
Body: steel, heat-treated, blackened.
Clamping screw: steel, zincpplated.
Spring: stainless.
RoHS compliant
REACH: contains no SVHC materials
Technical Notes
Installation:
1) machine bores
2) insert shaft clamp
3) expand jaws to appropriate dimension of the part to be clamped
4) position the shaft
5) clamp it using the working tool
The thread d3 serves to hold the assembly tool (optional).
Tips
For clamping shafts, axles, columns, bolts, bars, pipes etc. (with diameters 6-125mm), quickly and easily.
Product Datasheets

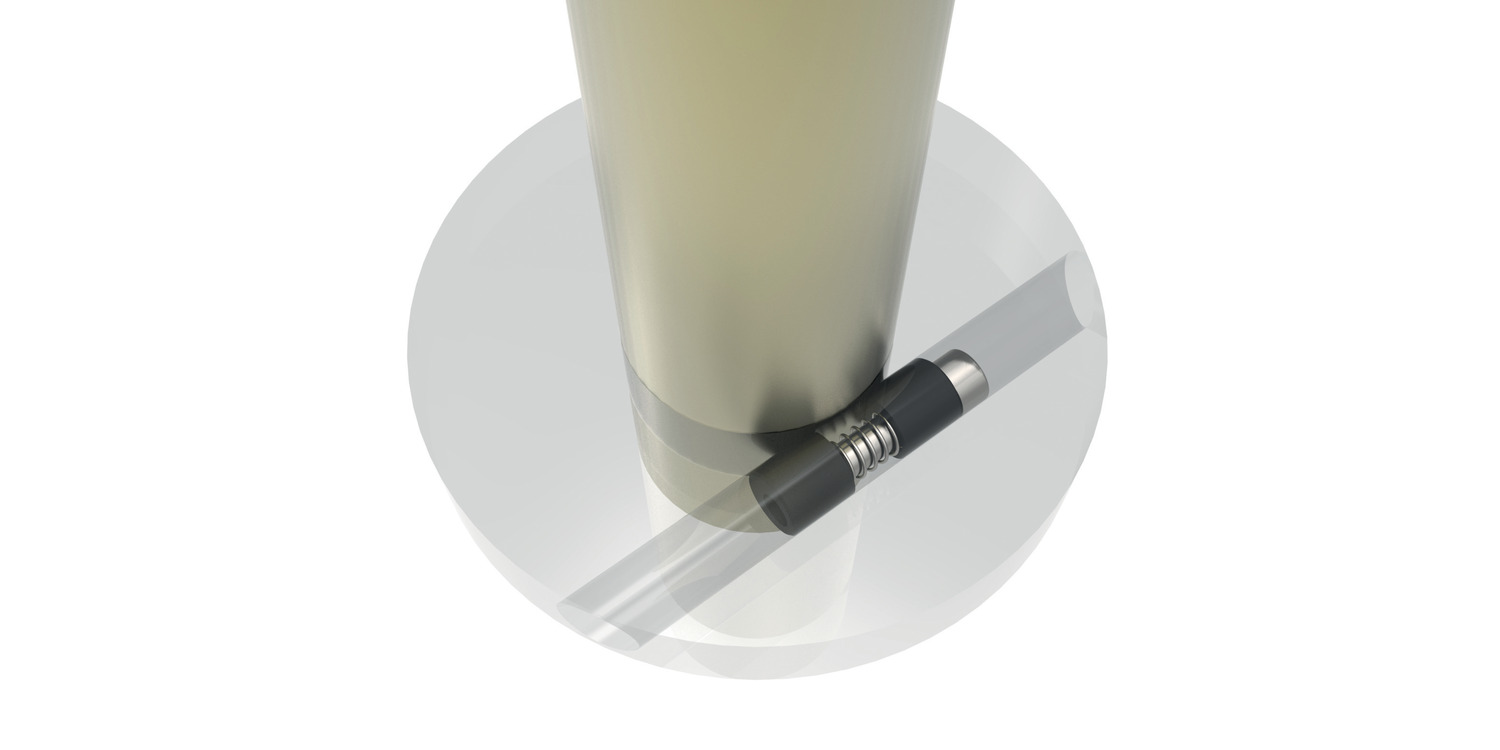

Application images
