Ball Lock Pin
single acting, simple finish

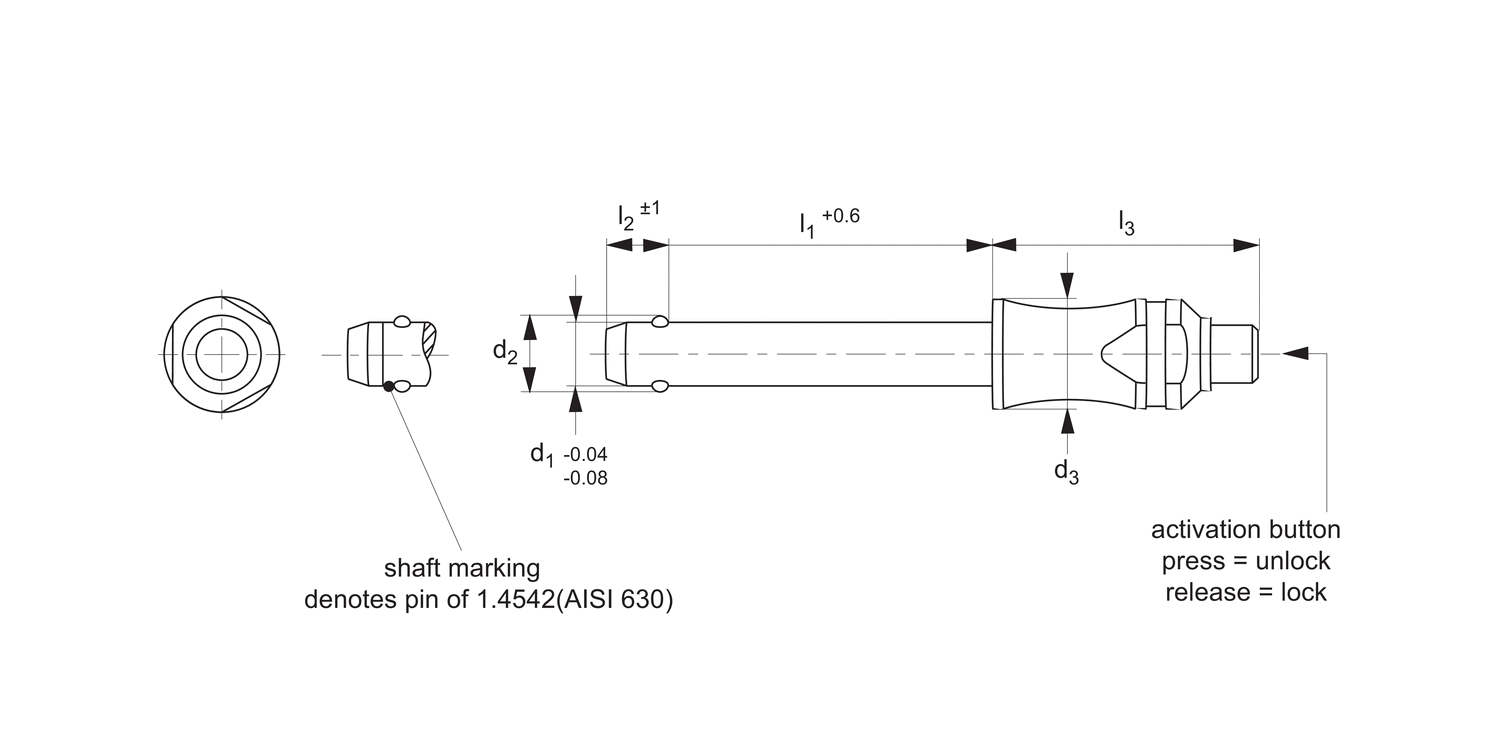

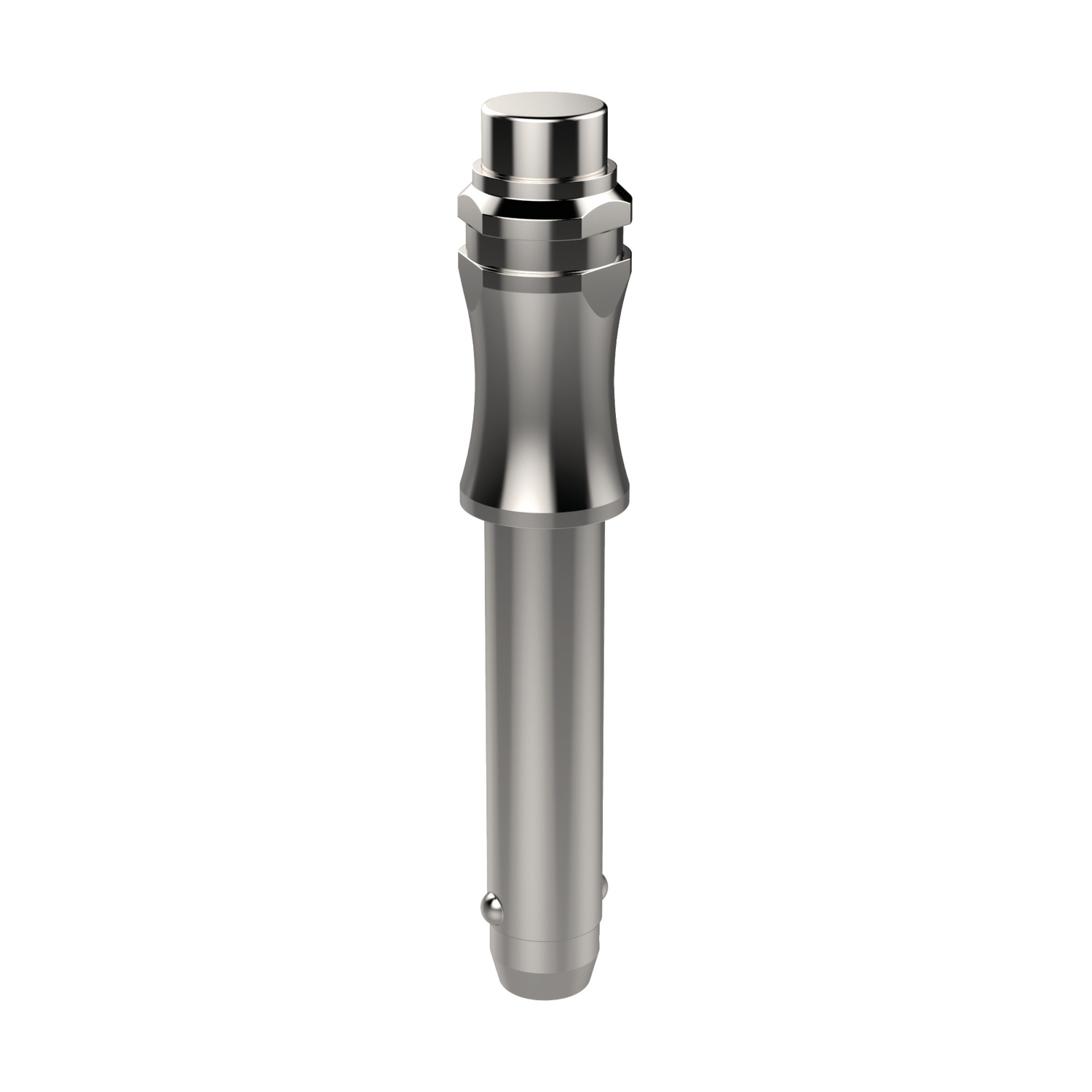

33194.1 Ball Lock Pins - Contoured Handle
self-locking - single acting - stainless 1.4305, material: Stainless steel
Alternative products you may wish to consider
Material
Stainless 1.4305
d1
5
d2
5.5
d3
10
l1
45
l2
6.0
l3
26.2
Location hole dia.
tol. H11
5
Shearing resistance, double
min.
kN
14
Weight
g
15
£ 21.21 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
5
d2
5.5
d3
10
l1
50
l2
6.0
l3
26.2
Location hole dia.
tol. H11
5
Shearing resistance, double
min.
kN
14
Weight
g
16
£ 21.21 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
5
d2
5.5
d3
10
l1
60
l2
6.0
l3
26.2
Location hole dia.
tol. H11
5
Shearing resistance, double
min.
kN
14
Weight
g
17
£ 21.94 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
5
d2
5.5
d3
10
l1
70
l2
6.0
l3
26.2
Location hole dia.
tol. H11
5
Shearing resistance, double
min.
kN
14
Weight
g
19
£ 22.38 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
5
d2
5.5
d3
10
l1
80
l2
6.0
l3
26.2
Location hole dia.
tol. H11
5
Shearing resistance, double
min.
kN
14
Weight
g
20
£ 23.19 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
5
d2
5.5
d3
10
l1
10
l2
6.0
l3
26.2
Location hole dia.
tol. H11
5
Shearing resistance, double
min.
kN
14
Weight
g
10
£ 19.93 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
5
d2
5.5
d3
10
l1
15
l2
6.0
l3
26.2
Location hole dia.
tol. H11
5
Shearing resistance, double
min.
kN
14
Weight
g
11
£ 19.93 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
5
d2
5.5
d3
10
l1
20
l2
6.0
l3
26.2
Location hole dia.
tol. H11
5
Shearing resistance, double
min.
kN
14
Weight
g
12
£ 19.93 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
5
d2
5.5
d3
10
l1
25
l2
6.0
l3
26.2
Location hole dia.
tol. H11
5
Shearing resistance, double
min.
kN
14
Weight
g
13
£ 19.93 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
5
d2
5.5
d3
10
l1
30
l2
6.0
l3
26.2
Location hole dia.
tol. H11
5
Shearing resistance, double
min.
kN
14
Weight
g
13
£ 21.21 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
5
d2
5.5
d3
10
l1
35
l2
6.0
l3
26.2
Location hole dia.
tol. H11
5
Shearing resistance, double
min.
kN
14
Weight
g
14
£ 21.21 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
5
d2
5.5
d3
10
l1
40
l2
6.0
l3
26.2
Location hole dia.
tol. H11
5
Shearing resistance, double
min.
kN
14
Weight
g
15
£ 21.21 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
6
d2
7.0
d3
10
l1
60
l2
7.0
l3
26.2
Location hole dia.
tol. H11
6
Shearing resistance, double
min.
kN
21
Weight
g
21
£ 23.57 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
6
d2
7.0
d3
10
l1
70
l2
7.0
l3
26.2
Location hole dia.
tol. H11
6
Shearing resistance, double
min.
kN
21
Weight
g
21
£ 24.75 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
6
d2
7.0
d3
10
l1
80
l2
7.0
l3
26.2
Location hole dia.
tol. H11
6
Shearing resistance, double
min.
kN
21
Weight
g
25
£ 25.67 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
6
d2
7.0
d3
10
l1
10
l2
7.0
l3
26.2
Location hole dia.
tol. H11
6
Shearing resistance, double
min.
kN
21
Weight
g
11
£ 20.01 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
6
d2
7.0
d3
10
l1
15
l2
7.0
l3
26.2
Location hole dia.
tol. H11
6
Shearing resistance, double
min.
kN
21
Weight
g
12
£ 20.01 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
6
d2
7.0
d3
10
l1
20
l2
7.0
l3
26.2
Location hole dia.
tol. H11
6
Shearing resistance, double
min.
kN
21
Weight
g
13
£ 20.01 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
6
d2
7.0
d3
10
l1
25
l2
7.0
l3
26.2
Location hole dia.
tol. H11
6
Shearing resistance, double
min.
kN
21
Weight
g
14
£ 20.01 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
6
d2
7.0
d3
10
l1
30
l2
7.0
l3
26.2
Location hole dia.
tol. H11
6
Shearing resistance, double
min.
kN
21
Weight
g
15
£ 22.48 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
6
d2
7.0
d3
10
l1
35
l2
7.0
l3
26.2
Location hole dia.
tol. H11
6
Shearing resistance, double
min.
kN
21
Weight
g
16
£ 22.48 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
6
d2
7.0
d3
10
l1
40
l2
7.0
l3
26.2
Location hole dia.
tol. H11
6
Shearing resistance, double
min.
kN
21
Weight
g
17
£ 22.48 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
6
d2
7.0
d3
10
l1
45
l2
7.0
l3
26.2
Location hole dia.
tol. H11
6
Shearing resistance, double
min.
kN
21
Weight
g
18
£ 22.48 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
6
d2
7.0
d3
10
l1
50
l2
7.0
l3
26.2
Location hole dia.
tol. H11
6
Shearing resistance, double
min.
kN
21
Weight
g
19
£ 22.48 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
8
d2
9.6
d3
14
l1
60
l2
8.2
l3
33.1
Location hole dia.
tol. H11
8
Shearing resistance, double
min.
kN
38
Weight
g
47
£ 25.11 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
8
d2
9.6
d3
14
l1
10
l2
8.2
l3
33.1
Location hole dia.
tol. H11
8
Shearing resistance, double
min.
kN
38
Weight
g
29
£ 21.76 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
8
d2
9.6
d3
14
l1
15
l2
8.2
l3
33.1
Location hole dia.
tol. H11
8
Shearing resistance, double
min.
kN
38
Weight
g
31
£ 21.76 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
8
d2
9.6
d3
14
l1
20
l2
8.2
l3
33.1
Location hole dia.
tol. H11
8
Shearing resistance, double
min.
kN
38
Weight
g
33
£ 21.76 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
8
d2
9.6
d3
14
l1
25
l2
8.2
l3
33.1
Location hole dia.
tol. H11
8
Shearing resistance, double
min.
kN
38
Weight
g
34
£ 21.76 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
8
d2
9.6
d3
14
l1
30
l2
8.2
l3
33.1
Location hole dia.
tol. H11
8
Shearing resistance, double
min.
kN
38
Weight
g
36
£ 24.11 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
8
d2
9.6
d3
14
l1
35
l2
8.2
l3
33.1
Location hole dia.
tol. H11
8
Shearing resistance, double
min.
kN
38
Weight
g
38
£ 24.11 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
8
d2
9.6
d3
14
l1
40
l2
8.2
l3
33.1
Location hole dia.
tol. H11
8
Shearing resistance, double
min.
kN
38
Weight
g
40
£ 24.11 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
8
d2
9.6
d3
14
l1
45
l2
8.2
l3
33.1
Location hole dia.
tol. H11
8
Shearing resistance, double
min.
kN
38
Weight
g
42
£ 24.11 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
8
d2
9.6
d3
14
l1
50
l2
8.2
l3
33.1
Location hole dia.
tol. H11
8
Shearing resistance, double
min.
kN
38
Weight
g
44
£ 24.11 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
8
d2
9.6
d3
14
l1
70
l2
8.2
l3
33.1
Location hole dia.
tol. H11
8
Shearing resistance, double
min.
kN
38
Weight
g
51
£ 26.04 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
8
d2
9.6
d3
14
l1
80
l2
8.2
l3
33.1
Location hole dia.
tol. H11
8
Shearing resistance, double
min.
kN
38
Weight
g
55
£ 26.04 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
8
d2
9.6
d3
14
l1
90
l2
8.2
l3
33.1
Location hole dia.
tol. H11
8
Shearing resistance, double
min.
kN
38
Weight
g
58
£ 26.92 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
10
d2
12.0
d3
14
l1
20
l2
9.6
l3
33.1
Location hole dia.
tol. H11
10
Shearing resistance, double
min.
kN
60
Weight
g
39
£ 33.03 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
10
d2
12.0
d3
14
l1
25
l2
9.6
l3
33.1
Location hole dia.
tol. H11
10
Shearing resistance, double
min.
kN
60
Weight
g
42
£ 33.03 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
10
d2
12.0
d3
14
l1
30
l2
9.6
l3
33.1
Location hole dia.
tol. H11
10
Shearing resistance, double
min.
kN
60
Weight
g
45
£ 34.76 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
10
d2
12.0
d3
14
l1
35
l2
9.6
l3
33.1
Location hole dia.
tol. H11
10
Shearing resistance, double
min.
kN
60
Weight
g
48
£ 34.76 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
10
d2
12.0
d3
14
l1
40
l2
9.6
l3
33.1
Location hole dia.
tol. H11
10
Shearing resistance, double
min.
kN
60
Weight
g
51
£ 34.76 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
10
d2
12.0
d3
14
l1
45
l2
9.6
l3
33.1
Location hole dia.
tol. H11
10
Shearing resistance, double
min.
kN
60
Weight
g
54
£ 34.76 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
10
d2
12.0
d3
14
l1
50
l2
9.6
l3
33.1
Location hole dia.
tol. H11
10
Shearing resistance, double
min.
kN
60
Weight
g
57
£ 34.76 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
8
d2
9.6
d3
14
l1
100
l2
8.2
l3
33.1
Location hole dia.
tol. H11
8
Shearing resistance, double
min.
kN
38
Weight
g
62
£ 27.76 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
10
d2
12.0
d3
14
l1
60
l2
9.6
l3
33.1
Location hole dia.
tol. H11
10
Shearing resistance, double
min.
kN
60
Weight
g
63
£ 36.76 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
10
d2
12.0
d3
14
l1
70
l2
9.6
l3
33.1
Location hole dia.
tol. H11
10
Shearing resistance, double
min.
kN
60
Weight
g
69
£ 36.76 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
10
d2
12.0
d3
14
l1
80
l2
9.6
l3
33.1
Location hole dia.
tol. H11
10
Shearing resistance, double
min.
kN
60
Weight
g
74
£ 36.76 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
10
d2
12.0
d3
14
l1
90
l2
9.6
l3
33.1
Location hole dia.
tol. H11
10
Shearing resistance, double
min.
kN
60
Weight
g
80
£ 37.48 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
10
d2
12.0
d3
14
l1
100
l2
9.6
l3
33.1
Location hole dia.
tol. H11
10
Shearing resistance, double
min.
kN
60
Weight
g
86
£ 37.48 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
10
d2
12.0
d3
14
l1
110
l2
9.6
l3
33.1
Location hole dia.
tol. H11
10
Shearing resistance, double
min.
kN
60
Weight
g
92
£ 38.49 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
10
d2
12.0
d3
14
l1
120
l2
9.6
l3
33.1
Location hole dia.
tol. H11
10
Shearing resistance, double
min.
kN
60
Weight
g
98
£ 39.57 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
10
d2
12.0
d3
14
l1
15
l2
9.6
l3
33.1
Location hole dia.
tol. H11
10
Shearing resistance, double
min.
kN
60
Weight
g
36
£ 33.03 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
12
d2
14.5
d3
20
l1
90
l2
10.6
l3
39.5
Location hole dia.
tol. H11
12
Shearing resistance, double
min.
kN
87
Weight
g
139
£ 39.40 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
12
d2
14.5
d3
20
l1
100
l2
10.6
l3
39.5
Location hole dia.
tol. H11
12
Shearing resistance, double
min.
kN
87
Weight
g
148
£ 40.30 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
12
d2
14.5
d3
20
l1
110
l2
10.6
l3
39.5
Location hole dia.
tol. H11
12
Shearing resistance, double
min.
kN
87
Weight
g
157
£ 41.75 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
12
d2
14.5
d3
20
l1
120
l2
10.6
l3
39.5
Location hole dia.
tol. H11
12
Shearing resistance, double
min.
kN
87
Weight
g
165
£ 43.77 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
12
d2
14.5
d3
20
l1
20
l2
10.6
l3
39.5
Location hole dia.
tol. H11
12
Shearing resistance, double
min.
kN
87
Weight
g
98
£ 33.66 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
12
d2
14.5
d3
20
l1
25
l2
10.6
l3
39.5
Location hole dia.
tol. H11
12
Shearing resistance, double
min.
kN
87
Weight
g
84
£ 33.66 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
12
d2
14.5
d3
20
l1
30
l2
10.6
l3
39.5
Location hole dia.
tol. H11
12
Shearing resistance, double
min.
kN
87
Weight
g
88
£ 35.22 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
12
d2
14.5
d3
20
l1
35
l2
10.6
l3
39.5
Location hole dia.
tol. H11
12
Shearing resistance, double
min.
kN
87
Weight
g
92
£ 35.22 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
12
d2
14.5
d3
20
l1
40
l2
10.6
l3
39.5
Location hole dia.
tol. H11
12
Shearing resistance, double
min.
kN
87
Weight
g
96
£ 35.22 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
12
d2
14.5
d3
20
l1
45
l2
10.6
l3
39.5
Location hole dia.
tol. H11
12
Shearing resistance, double
min.
kN
87
Weight
g
101
£ 35.22 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
12
d2
14.5
d3
20
l1
50
l2
10.6
l3
39.5
Location hole dia.
tol. H11
12
Shearing resistance, double
min.
kN
87
Weight
g
105
£ 35.22 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
12
d2
14.5
d3
20
l1
60
l2
10.6
l3
39.5
Location hole dia.
tol. H11
12
Shearing resistance, double
min.
kN
87
Weight
g
113
£ 37.11 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
12
d2
14.5
d3
20
l1
70
l2
10.6
l3
39.5
Location hole dia.
tol. H11
12
Shearing resistance, double
min.
kN
87
Weight
g
122
£ 37.11 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
12
d2
14.5
d3
20
l1
80
l2
10.6
l3
39.5
Location hole dia.
tol. H11
12
Shearing resistance, double
min.
kN
87
Weight
g
130
£ 38.49 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
16
d2
19.0
d3
20
l1
30
l2
14.0
l3
39.5
Location hole dia.
tol. H11
16
Shearing resistance, double
min.
kN
155
Weight
g
120
£ 60.12 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
16
d2
19.0
d3
20
l1
35
l2
14.0
l3
39.5
Location hole dia.
tol. H11
16
Shearing resistance, double
min.
kN
155
Weight
g
127
£ 60.12 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
16
d2
19.0
d3
20
l1
40
l2
14.0
l3
39.5
Location hole dia.
tol. H11
16
Shearing resistance, double
min.
kN
155
Weight
g
135
£ 60.12 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
16
d2
19.0
d3
20
l1
45
l2
14.0
l3
39.5
Location hole dia.
tol. H11
16
Shearing resistance, double
min.
kN
155
Weight
g
143
£ 60.12 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
16
d2
19.0
d3
20
l1
50
l2
14.0
l3
39.5
Location hole dia.
tol. H11
16
Shearing resistance, double
min.
kN
155
Weight
g
150
£ 60.12 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
16
d2
19.0
d3
20
l1
60
l2
14.0
l3
39.5
Location hole dia.
tol. H11
16
Shearing resistance, double
min.
kN
155
Weight
g
166
£ 64.94 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
16
d2
19.0
d3
20
l1
70
l2
14.0
l3
39.5
Location hole dia.
tol. H11
16
Shearing resistance, double
min.
kN
155
Weight
g
181
£ 64.94 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
16
d2
19.0
d3
20
l1
80
l2
14.0
l3
39.5
Location hole dia.
tol. H11
16
Shearing resistance, double
min.
kN
155
Weight
g
196
£ 68.87 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
16
d2
19.0
d3
20
l1
90
l2
14.0
l3
39.5
Location hole dia.
tol. H11
16
Shearing resistance, double
min.
kN
155
Weight
g
216
£ 69.75 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
16
d2
19.0
d3
20
l1
100
l2
14.0
l3
39.5
Location hole dia.
tol. H11
16
Shearing resistance, double
min.
kN
155
Weight
g
233
£ 70.51 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
16
d2
19.0
d3
20
l1
110
l2
14.0
l3
39.5
Location hole dia.
tol. H11
16
Shearing resistance, double
min.
kN
155
Weight
g
248
£ 72.05 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
16
d2
19.0
d3
20
l1
120
l2
14.0
l3
39.5
Location hole dia.
tol. H11
16
Shearing resistance, double
min.
kN
155
Weight
g
263
£ 73.15 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
16
d2
19.0
d3
20
l1
130
l2
14.0
l3
39.5
Location hole dia.
tol. H11
16
Shearing resistance, double
min.
kN
155
Weight
g
279
£ 74.49 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
16
d2
19.0
d3
20
l1
140
l2
14.0
l3
39.5
Location hole dia.
tol. H11
16
Shearing resistance, double
min.
kN
155
Weight
g
295
£ 75.87 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
16
d2
19.0
d3
20
l1
150
l2
14.0
l3
39.5
Location hole dia.
tol. H11
16
Shearing resistance, double
min.
kN
155
Weight
g
310
£ 77.04 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
20
d2
25.0
d3
28
l1
50
l2
20.5
l3
49.9
Location hole dia.
tol. H11
20
Shearing resistance, double
min.
kN
244
Weight
g
303
£ 120.34 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
20
d2
25.0
d3
28
l1
60
l2
20.5
l3
49.9
Location hole dia.
tol. H11
20
Shearing resistance, double
min.
kN
244
Weight
g
322
£ 121.89 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
20
d2
25.0
d3
28
l1
80
l2
20.5
l3
49.9
Location hole dia.
tol. H11
20
Shearing resistance, double
min.
kN
244
Weight
g
370
£ 126.88 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
20
d2
25.0
d3
28
l1
90
l2
20.5
l3
49.9
Location hole dia.
tol. H11
20
Shearing resistance, double
min.
kN
244
Weight
g
400
£ 131.34 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
20
d2
25.0
d3
28
l1
100
l2
20.5
l3
49.9
Location hole dia.
tol. H11
20
Shearing resistance, double
min.
kN
244
Weight
g
414
£ 132.88 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
20
d2
25.0
d3
28
l1
120
l2
20.5
l3
49.9
Location hole dia.
tol. H11
20
Shearing resistance, double
min.
kN
244
Weight
g
466
£ 138.16 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
20
d2
25.0
d3
28
l1
130
l2
20.5
l3
49.9
Location hole dia.
tol. H11
20
Shearing resistance, double
min.
kN
244
Weight
g
497
£ 139.25 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
20
d2
25.0
d3
28
l1
140
l2
20.5
l3
49.9
Location hole dia.
tol. H11
20
Shearing resistance, double
min.
kN
244
Weight
g
520
£ 141.25 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
20
d2
25.0
d3
28
l1
150
l2
20.5
l3
49.9
Location hole dia.
tol. H11
20
Shearing resistance, double
min.
kN
244
Weight
g
545
£ 143.18 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
25
d2
30.8
d3
28
l1
50
l2
22.0
l3
49.9
Location hole dia.
tol. H11
25
Shearing resistance, double
min.
kN
386
Weight
g
466
£ 120.34 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
25
d2
30.8
d3
28
l1
60
l2
22.0
l3
49.9
Location hole dia.
tol. H11
25
Shearing resistance, double
min.
kN
386
Weight
g
432
£ 129.98 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
20
d2
30.8
d3
28
l1
70
l2
22.0
l3
49.9
Location hole dia.
tol. H11
25
Shearing resistance, double
min.
kN
386
Weight
g
470
£ 123.90 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
25
d2
30.8
d3
28
l1
810
l2
22.0
l3
49.9
Location hole dia.
tol. H11
25
Shearing resistance, double
min.
kN
386
Weight
g
507
£ 141.55 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
25
d2
30.8
d3
28
l1
90
l2
22.0
l3
49.9
Location hole dia.
tol. H11
25
Shearing resistance, double
min.
kN
386
Weight
g
545
£ 148.89 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
25
d2
30.8
d3
28
l1
100
l2
22.0
l3
49.9
Location hole dia.
tol. H11
25
Shearing resistance, double
min.
kN
386
Weight
g
582
£ 152.16 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
25
d2
30.8
d3
28
l1
110
l2
22.0
l3
49.9
Location hole dia.
tol. H11
25
Shearing resistance, double
min.
kN
386
Weight
g
620
£ 156.01 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
25
d2
30.8
d3
28
l1
120
l2
22.0
l3
49.9
Location hole dia.
tol. H11
25
Shearing resistance, double
min.
kN
386
Weight
g
657
£ 158.81 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
25
d2
30.8
d3
28
l1
130
l2
22.0
l3
49.9
Location hole dia.
tol. H11
25
Shearing resistance, double
min.
kN
386
Weight
g
695
£ 161.46 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
25
d2
30.8
d3
28
l1
140
l2
22.0
l3
49.9
Location hole dia.
tol. H11
25
Shearing resistance, double
min.
kN
386
Weight
g
732
£ 165.27 per unit (click for quantity discounts)
Material
Stainless 1.4305
d1
25
d2
30.8
d3
28
l1
150
l2
22.0
l3
49.9
Location hole dia.
tol. H11
25
Shearing resistance, double
min.
kN
386
Weight
g
770
£ 167.71 per unit (click for quantity discounts)
Material
d1
d2
d3
l1
l2
l3
Location hole dia.
tol. H11
Shearing resistance, double
min.
kN
Weight
g
| Price & Availability | Article | Material | d1 | d2 | d3 | l1 | l2 | l3 | Location hole dia. tol. H11 | Shearing resistance, double min. kN | Weight g | ||||||||||||||||||
| 33194.W0007 | Stainless 1.4305 | 5 | 5.5 | 10 | 45 | 6.0 | 26.2 | 5 | 14 | 15 | |||||||||||||||||||
£ 21.21 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 5 d2 5.5 d3 10 l1 45 l2 6.0 l3 26.2 Location hole dia.
tol. H11 5 Shearing resistance, double
min.
kN 14 Weight
g 15 | |||||||||||||||||||||||||||||
| 33194.W0008 | Stainless 1.4305 | 5 | 5.5 | 10 | 50 | 6.0 | 26.2 | 5 | 14 | 16 | |||||||||||||||||||
£ 21.21 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 5 d2 5.5 d3 10 l1 50 l2 6.0 l3 26.2 Location hole dia.
tol. H11 5 Shearing resistance, double
min.
kN 14 Weight
g 16 | |||||||||||||||||||||||||||||
| 33194.W0009 | Stainless 1.4305 | 5 | 5.5 | 10 | 60 | 6.0 | 26.2 | 5 | 14 | 17 | |||||||||||||||||||
£ 21.94 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 5 d2 5.5 d3 10 l1 60 l2 6.0 l3 26.2 Location hole dia.
tol. H11 5 Shearing resistance, double
min.
kN 14 Weight
g 17 | |||||||||||||||||||||||||||||
| 33194.W0010 | Stainless 1.4305 | 5 | 5.5 | 10 | 70 | 6.0 | 26.2 | 5 | 14 | 19 | |||||||||||||||||||
£ 22.38 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 5 d2 5.5 d3 10 l1 70 l2 6.0 l3 26.2 Location hole dia.
tol. H11 5 Shearing resistance, double
min.
kN 14 Weight
g 19 | |||||||||||||||||||||||||||||
| 33194.W0011 | Stainless 1.4305 | 5 | 5.5 | 10 | 80 | 6.0 | 26.2 | 5 | 14 | 20 | |||||||||||||||||||
£ 23.19 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 5 d2 5.5 d3 10 l1 80 l2 6.0 l3 26.2 Location hole dia.
tol. H11 5 Shearing resistance, double
min.
kN 14 Weight
g 20 | |||||||||||||||||||||||||||||
| 33194.W0012 | Stainless 1.4305 | 5 | 5.5 | 10 | 10 | 6.0 | 26.2 | 5 | 14 | 10 | |||||||||||||||||||
£ 19.93 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 5 d2 5.5 d3 10 l1 10 l2 6.0 l3 26.2 Location hole dia.
tol. H11 5 Shearing resistance, double
min.
kN 14 Weight
g 10 | |||||||||||||||||||||||||||||
| 33194.W0013 | Stainless 1.4305 | 5 | 5.5 | 10 | 15 | 6.0 | 26.2 | 5 | 14 | 11 | |||||||||||||||||||
£ 19.93 per unit (click for quantity discounts) Ready to despatch 5 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 5 d2 5.5 d3 10 l1 15 l2 6.0 l3 26.2 Location hole dia.
tol. H11 5 Shearing resistance, double
min.
kN 14 Weight
g 11 | |||||||||||||||||||||||||||||
| 33194.W0014 | Stainless 1.4305 | 5 | 5.5 | 10 | 20 | 6.0 | 26.2 | 5 | 14 | 12 | |||||||||||||||||||
£ 19.93 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 5 d2 5.5 d3 10 l1 20 l2 6.0 l3 26.2 Location hole dia.
tol. H11 5 Shearing resistance, double
min.
kN 14 Weight
g 12 | |||||||||||||||||||||||||||||
| 33194.W0015 | Stainless 1.4305 | 5 | 5.5 | 10 | 25 | 6.0 | 26.2 | 5 | 14 | 13 | |||||||||||||||||||
£ 19.93 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 5 d2 5.5 d3 10 l1 25 l2 6.0 l3 26.2 Location hole dia.
tol. H11 5 Shearing resistance, double
min.
kN 14 Weight
g 13 | |||||||||||||||||||||||||||||
| 33194.W0016 | Stainless 1.4305 | 5 | 5.5 | 10 | 30 | 6.0 | 26.2 | 5 | 14 | 13 | |||||||||||||||||||
£ 21.21 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 5 d2 5.5 d3 10 l1 30 l2 6.0 l3 26.2 Location hole dia.
tol. H11 5 Shearing resistance, double
min.
kN 14 Weight
g 13 | |||||||||||||||||||||||||||||
| 33194.W0017 | Stainless 1.4305 | 5 | 5.5 | 10 | 35 | 6.0 | 26.2 | 5 | 14 | 14 | |||||||||||||||||||
£ 21.21 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 5 d2 5.5 d3 10 l1 35 l2 6.0 l3 26.2 Location hole dia.
tol. H11 5 Shearing resistance, double
min.
kN 14 Weight
g 14 | |||||||||||||||||||||||||||||
| 33194.W0018 | Stainless 1.4305 | 5 | 5.5 | 10 | 40 | 6.0 | 26.2 | 5 | 14 | 15 | |||||||||||||||||||
£ 21.21 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 5 d2 5.5 d3 10 l1 40 l2 6.0 l3 26.2 Location hole dia.
tol. H11 5 Shearing resistance, double
min.
kN 14 Weight
g 15 | |||||||||||||||||||||||||||||
| 33194.W0019 | Stainless 1.4305 | 6 | 7.0 | 10 | 60 | 7.0 | 26.2 | 6 | 21 | 21 | |||||||||||||||||||
£ 23.57 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 6 d2 7.0 d3 10 l1 60 l2 7.0 l3 26.2 Location hole dia.
tol. H11 6 Shearing resistance, double
min.
kN 21 Weight
g 21 | |||||||||||||||||||||||||||||
| 33194.W0020 | Stainless 1.4305 | 6 | 7.0 | 10 | 70 | 7.0 | 26.2 | 6 | 21 | 21 | |||||||||||||||||||
£ 24.75 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 6 d2 7.0 d3 10 l1 70 l2 7.0 l3 26.2 Location hole dia.
tol. H11 6 Shearing resistance, double
min.
kN 21 Weight
g 21 | |||||||||||||||||||||||||||||
| 33194.W0021 | Stainless 1.4305 | 6 | 7.0 | 10 | 80 | 7.0 | 26.2 | 6 | 21 | 25 | |||||||||||||||||||
£ 25.67 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 6 d2 7.0 d3 10 l1 80 l2 7.0 l3 26.2 Location hole dia.
tol. H11 6 Shearing resistance, double
min.
kN 21 Weight
g 25 | |||||||||||||||||||||||||||||
| 33194.W0022 | Stainless 1.4305 | 6 | 7.0 | 10 | 10 | 7.0 | 26.2 | 6 | 21 | 11 | |||||||||||||||||||
£ 20.01 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 6 d2 7.0 d3 10 l1 10 l2 7.0 l3 26.2 Location hole dia.
tol. H11 6 Shearing resistance, double
min.
kN 21 Weight
g 11 | |||||||||||||||||||||||||||||
| 33194.W0023 | Stainless 1.4305 | 6 | 7.0 | 10 | 15 | 7.0 | 26.2 | 6 | 21 | 12 | |||||||||||||||||||
£ 20.01 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 6 d2 7.0 d3 10 l1 15 l2 7.0 l3 26.2 Location hole dia.
tol. H11 6 Shearing resistance, double
min.
kN 21 Weight
g 12 | |||||||||||||||||||||||||||||
| 33194.W0024 | Stainless 1.4305 | 6 | 7.0 | 10 | 20 | 7.0 | 26.2 | 6 | 21 | 13 | |||||||||||||||||||
£ 20.01 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 6 d2 7.0 d3 10 l1 20 l2 7.0 l3 26.2 Location hole dia.
tol. H11 6 Shearing resistance, double
min.
kN 21 Weight
g 13 | |||||||||||||||||||||||||||||
| 33194.W0025 | Stainless 1.4305 | 6 | 7.0 | 10 | 25 | 7.0 | 26.2 | 6 | 21 | 14 | |||||||||||||||||||
£ 20.01 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 6 d2 7.0 d3 10 l1 25 l2 7.0 l3 26.2 Location hole dia.
tol. H11 6 Shearing resistance, double
min.
kN 21 Weight
g 14 | |||||||||||||||||||||||||||||
| 33194.W0026 | Stainless 1.4305 | 6 | 7.0 | 10 | 30 | 7.0 | 26.2 | 6 | 21 | 15 | |||||||||||||||||||
£ 22.48 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 6 d2 7.0 d3 10 l1 30 l2 7.0 l3 26.2 Location hole dia.
tol. H11 6 Shearing resistance, double
min.
kN 21 Weight
g 15 | |||||||||||||||||||||||||||||
| 33194.W0027 | Stainless 1.4305 | 6 | 7.0 | 10 | 35 | 7.0 | 26.2 | 6 | 21 | 16 | |||||||||||||||||||
£ 22.48 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 6 d2 7.0 d3 10 l1 35 l2 7.0 l3 26.2 Location hole dia.
tol. H11 6 Shearing resistance, double
min.
kN 21 Weight
g 16 | |||||||||||||||||||||||||||||
| 33194.W0028 | Stainless 1.4305 | 6 | 7.0 | 10 | 40 | 7.0 | 26.2 | 6 | 21 | 17 | |||||||||||||||||||
£ 22.48 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 6 d2 7.0 d3 10 l1 40 l2 7.0 l3 26.2 Location hole dia.
tol. H11 6 Shearing resistance, double
min.
kN 21 Weight
g 17 | |||||||||||||||||||||||||||||
| 33194.W0029 | Stainless 1.4305 | 6 | 7.0 | 10 | 45 | 7.0 | 26.2 | 6 | 21 | 18 | |||||||||||||||||||
£ 22.48 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 6 d2 7.0 d3 10 l1 45 l2 7.0 l3 26.2 Location hole dia.
tol. H11 6 Shearing resistance, double
min.
kN 21 Weight
g 18 | |||||||||||||||||||||||||||||
| 33194.W0030 | Stainless 1.4305 | 6 | 7.0 | 10 | 50 | 7.0 | 26.2 | 6 | 21 | 19 | |||||||||||||||||||
£ 22.48 per unit (click for quantity discounts) Ready to despatch 7 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 6 d2 7.0 d3 10 l1 50 l2 7.0 l3 26.2 Location hole dia.
tol. H11 6 Shearing resistance, double
min.
kN 21 Weight
g 19 | |||||||||||||||||||||||||||||
| 33194.W0031 | Stainless 1.4305 | 8 | 9.6 | 14 | 60 | 8.2 | 33.1 | 8 | 38 | 47 | |||||||||||||||||||
£ 25.11 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 8 d2 9.6 d3 14 l1 60 l2 8.2 l3 33.1 Location hole dia.
tol. H11 8 Shearing resistance, double
min.
kN 38 Weight
g 47 | |||||||||||||||||||||||||||||
| 33194.W0032 | Stainless 1.4305 | 8 | 9.6 | 14 | 10 | 8.2 | 33.1 | 8 | 38 | 29 | |||||||||||||||||||
£ 21.76 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 8 d2 9.6 d3 14 l1 10 l2 8.2 l3 33.1 Location hole dia.
tol. H11 8 Shearing resistance, double
min.
kN 38 Weight
g 29 | |||||||||||||||||||||||||||||
| 33194.W0033 | Stainless 1.4305 | 8 | 9.6 | 14 | 15 | 8.2 | 33.1 | 8 | 38 | 31 | |||||||||||||||||||
£ 21.76 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 8 d2 9.6 d3 14 l1 15 l2 8.2 l3 33.1 Location hole dia.
tol. H11 8 Shearing resistance, double
min.
kN 38 Weight
g 31 | |||||||||||||||||||||||||||||
| 33194.W0034 | Stainless 1.4305 | 8 | 9.6 | 14 | 20 | 8.2 | 33.1 | 8 | 38 | 33 | |||||||||||||||||||
£ 21.76 per unit (click for quantity discounts) Ready to despatch 15 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 8 d2 9.6 d3 14 l1 20 l2 8.2 l3 33.1 Location hole dia.
tol. H11 8 Shearing resistance, double
min.
kN 38 Weight
g 33 | |||||||||||||||||||||||||||||
| 33194.W0035 | Stainless 1.4305 | 8 | 9.6 | 14 | 25 | 8.2 | 33.1 | 8 | 38 | 34 | |||||||||||||||||||
£ 21.76 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 8 d2 9.6 d3 14 l1 25 l2 8.2 l3 33.1 Location hole dia.
tol. H11 8 Shearing resistance, double
min.
kN 38 Weight
g 34 | |||||||||||||||||||||||||||||
| 33194.W0036 | Stainless 1.4305 | 8 | 9.6 | 14 | 30 | 8.2 | 33.1 | 8 | 38 | 36 | |||||||||||||||||||
£ 24.11 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 8 d2 9.6 d3 14 l1 30 l2 8.2 l3 33.1 Location hole dia.
tol. H11 8 Shearing resistance, double
min.
kN 38 Weight
g 36 | |||||||||||||||||||||||||||||
| 33194.W0037 | Stainless 1.4305 | 8 | 9.6 | 14 | 35 | 8.2 | 33.1 | 8 | 38 | 38 | |||||||||||||||||||
£ 24.11 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 8 d2 9.6 d3 14 l1 35 l2 8.2 l3 33.1 Location hole dia.
tol. H11 8 Shearing resistance, double
min.
kN 38 Weight
g 38 | |||||||||||||||||||||||||||||
| 33194.W0038 | Stainless 1.4305 | 8 | 9.6 | 14 | 40 | 8.2 | 33.1 | 8 | 38 | 40 | |||||||||||||||||||
£ 24.11 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 8 d2 9.6 d3 14 l1 40 l2 8.2 l3 33.1 Location hole dia.
tol. H11 8 Shearing resistance, double
min.
kN 38 Weight
g 40 | |||||||||||||||||||||||||||||
| 33194.W0039 | Stainless 1.4305 | 8 | 9.6 | 14 | 45 | 8.2 | 33.1 | 8 | 38 | 42 | |||||||||||||||||||
£ 24.11 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 8 d2 9.6 d3 14 l1 45 l2 8.2 l3 33.1 Location hole dia.
tol. H11 8 Shearing resistance, double
min.
kN 38 Weight
g 42 | |||||||||||||||||||||||||||||
| 33194.W0040 | Stainless 1.4305 | 8 | 9.6 | 14 | 50 | 8.2 | 33.1 | 8 | 38 | 44 | |||||||||||||||||||
£ 24.11 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 8 d2 9.6 d3 14 l1 50 l2 8.2 l3 33.1 Location hole dia.
tol. H11 8 Shearing resistance, double
min.
kN 38 Weight
g 44 | |||||||||||||||||||||||||||||
| 33194.W0041 | Stainless 1.4305 | 8 | 9.6 | 14 | 70 | 8.2 | 33.1 | 8 | 38 | 51 | |||||||||||||||||||
£ 26.04 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 8 d2 9.6 d3 14 l1 70 l2 8.2 l3 33.1 Location hole dia.
tol. H11 8 Shearing resistance, double
min.
kN 38 Weight
g 51 | |||||||||||||||||||||||||||||
| 33194.W0042 | Stainless 1.4305 | 8 | 9.6 | 14 | 80 | 8.2 | 33.1 | 8 | 38 | 55 | |||||||||||||||||||
£ 26.04 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 8 d2 9.6 d3 14 l1 80 l2 8.2 l3 33.1 Location hole dia.
tol. H11 8 Shearing resistance, double
min.
kN 38 Weight
g 55 | |||||||||||||||||||||||||||||
| 33194.W0043 | Stainless 1.4305 | 8 | 9.6 | 14 | 90 | 8.2 | 33.1 | 8 | 38 | 58 | |||||||||||||||||||
£ 26.92 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 8 d2 9.6 d3 14 l1 90 l2 8.2 l3 33.1 Location hole dia.
tol. H11 8 Shearing resistance, double
min.
kN 38 Weight
g 58 | |||||||||||||||||||||||||||||
| 33194.W0044 | Stainless 1.4305 | 10 | 12.0 | 14 | 20 | 9.6 | 33.1 | 10 | 60 | 39 | |||||||||||||||||||
£ 33.03 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 10 d2 12.0 d3 14 l1 20 l2 9.6 l3 33.1 Location hole dia.
tol. H11 10 Shearing resistance, double
min.
kN 60 Weight
g 39 | |||||||||||||||||||||||||||||
| 33194.W0045 | Stainless 1.4305 | 10 | 12.0 | 14 | 25 | 9.6 | 33.1 | 10 | 60 | 42 | |||||||||||||||||||
£ 33.03 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 10 d2 12.0 d3 14 l1 25 l2 9.6 l3 33.1 Location hole dia.
tol. H11 10 Shearing resistance, double
min.
kN 60 Weight
g 42 | |||||||||||||||||||||||||||||
| 33194.W0046 | Stainless 1.4305 | 10 | 12.0 | 14 | 30 | 9.6 | 33.1 | 10 | 60 | 45 | |||||||||||||||||||
£ 34.76 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 10 d2 12.0 d3 14 l1 30 l2 9.6 l3 33.1 Location hole dia.
tol. H11 10 Shearing resistance, double
min.
kN 60 Weight
g 45 | |||||||||||||||||||||||||||||
| 33194.W0047 | Stainless 1.4305 | 10 | 12.0 | 14 | 35 | 9.6 | 33.1 | 10 | 60 | 48 | |||||||||||||||||||
£ 34.76 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 10 d2 12.0 d3 14 l1 35 l2 9.6 l3 33.1 Location hole dia.
tol. H11 10 Shearing resistance, double
min.
kN 60 Weight
g 48 | |||||||||||||||||||||||||||||
| 33194.W0048 | Stainless 1.4305 | 10 | 12.0 | 14 | 40 | 9.6 | 33.1 | 10 | 60 | 51 | |||||||||||||||||||
£ 34.76 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 10 d2 12.0 d3 14 l1 40 l2 9.6 l3 33.1 Location hole dia.
tol. H11 10 Shearing resistance, double
min.
kN 60 Weight
g 51 | |||||||||||||||||||||||||||||
| 33194.W0049 | Stainless 1.4305 | 10 | 12.0 | 14 | 45 | 9.6 | 33.1 | 10 | 60 | 54 | |||||||||||||||||||
£ 34.76 per unit (click for quantity discounts) Ready to despatch 70 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 10 d2 12.0 d3 14 l1 45 l2 9.6 l3 33.1 Location hole dia.
tol. H11 10 Shearing resistance, double
min.
kN 60 Weight
g 54 | |||||||||||||||||||||||||||||
| 33194.W0050 | Stainless 1.4305 | 10 | 12.0 | 14 | 50 | 9.6 | 33.1 | 10 | 60 | 57 | |||||||||||||||||||
£ 34.76 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 10 d2 12.0 d3 14 l1 50 l2 9.6 l3 33.1 Location hole dia.
tol. H11 10 Shearing resistance, double
min.
kN 60 Weight
g 57 | |||||||||||||||||||||||||||||
| 33194.W0051 | Stainless 1.4305 | 8 | 9.6 | 14 | 100 | 8.2 | 33.1 | 8 | 38 | 62 | |||||||||||||||||||
£ 27.76 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 8 d2 9.6 d3 14 l1 100 l2 8.2 l3 33.1 Location hole dia.
tol. H11 8 Shearing resistance, double
min.
kN 38 Weight
g 62 | |||||||||||||||||||||||||||||
| 33194.W0052 | Stainless 1.4305 | 10 | 12.0 | 14 | 60 | 9.6 | 33.1 | 10 | 60 | 63 | |||||||||||||||||||
£ 36.76 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 10 d2 12.0 d3 14 l1 60 l2 9.6 l3 33.1 Location hole dia.
tol. H11 10 Shearing resistance, double
min.
kN 60 Weight
g 63 | |||||||||||||||||||||||||||||
| 33194.W0053 | Stainless 1.4305 | 10 | 12.0 | 14 | 70 | 9.6 | 33.1 | 10 | 60 | 69 | |||||||||||||||||||
£ 36.76 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 10 d2 12.0 d3 14 l1 70 l2 9.6 l3 33.1 Location hole dia.
tol. H11 10 Shearing resistance, double
min.
kN 60 Weight
g 69 | |||||||||||||||||||||||||||||
| 33194.W0054 | Stainless 1.4305 | 10 | 12.0 | 14 | 80 | 9.6 | 33.1 | 10 | 60 | 74 | |||||||||||||||||||
£ 36.76 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 10 d2 12.0 d3 14 l1 80 l2 9.6 l3 33.1 Location hole dia.
tol. H11 10 Shearing resistance, double
min.
kN 60 Weight
g 74 | |||||||||||||||||||||||||||||
| 33194.W0055 | Stainless 1.4305 | 10 | 12.0 | 14 | 90 | 9.6 | 33.1 | 10 | 60 | 80 | |||||||||||||||||||
£ 37.48 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 10 d2 12.0 d3 14 l1 90 l2 9.6 l3 33.1 Location hole dia.
tol. H11 10 Shearing resistance, double
min.
kN 60 Weight
g 80 | |||||||||||||||||||||||||||||
| 33194.W0056 | Stainless 1.4305 | 10 | 12.0 | 14 | 100 | 9.6 | 33.1 | 10 | 60 | 86 | |||||||||||||||||||
£ 37.48 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 10 d2 12.0 d3 14 l1 100 l2 9.6 l3 33.1 Location hole dia.
tol. H11 10 Shearing resistance, double
min.
kN 60 Weight
g 86 | |||||||||||||||||||||||||||||
| 33194.W0057 | Stainless 1.4305 | 10 | 12.0 | 14 | 110 | 9.6 | 33.1 | 10 | 60 | 92 | |||||||||||||||||||
£ 38.49 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 10 d2 12.0 d3 14 l1 110 l2 9.6 l3 33.1 Location hole dia.
tol. H11 10 Shearing resistance, double
min.
kN 60 Weight
g 92 | |||||||||||||||||||||||||||||
| 33194.W0058 | Stainless 1.4305 | 10 | 12.0 | 14 | 120 | 9.6 | 33.1 | 10 | 60 | 98 | |||||||||||||||||||
£ 39.57 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 10 d2 12.0 d3 14 l1 120 l2 9.6 l3 33.1 Location hole dia.
tol. H11 10 Shearing resistance, double
min.
kN 60 Weight
g 98 | |||||||||||||||||||||||||||||
| 33194.W0059 | Stainless 1.4305 | 10 | 12.0 | 14 | 15 | 9.6 | 33.1 | 10 | 60 | 36 | |||||||||||||||||||
£ 33.03 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 10 d2 12.0 d3 14 l1 15 l2 9.6 l3 33.1 Location hole dia.
tol. H11 10 Shearing resistance, double
min.
kN 60 Weight
g 36 | |||||||||||||||||||||||||||||
| 33194.W0060 | Stainless 1.4305 | 12 | 14.5 | 20 | 90 | 10.6 | 39.5 | 12 | 87 | 139 | |||||||||||||||||||
£ 39.40 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 12 d2 14.5 d3 20 l1 90 l2 10.6 l3 39.5 Location hole dia.
tol. H11 12 Shearing resistance, double
min.
kN 87 Weight
g 139 | |||||||||||||||||||||||||||||
| 33194.W0061 | Stainless 1.4305 | 12 | 14.5 | 20 | 100 | 10.6 | 39.5 | 12 | 87 | 148 | |||||||||||||||||||
£ 40.30 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 12 d2 14.5 d3 20 l1 100 l2 10.6 l3 39.5 Location hole dia.
tol. H11 12 Shearing resistance, double
min.
kN 87 Weight
g 148 | |||||||||||||||||||||||||||||
| 33194.W0062 | Stainless 1.4305 | 12 | 14.5 | 20 | 110 | 10.6 | 39.5 | 12 | 87 | 157 | |||||||||||||||||||
£ 41.75 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 12 d2 14.5 d3 20 l1 110 l2 10.6 l3 39.5 Location hole dia.
tol. H11 12 Shearing resistance, double
min.
kN 87 Weight
g 157 | |||||||||||||||||||||||||||||
| 33194.W0063 | Stainless 1.4305 | 12 | 14.5 | 20 | 120 | 10.6 | 39.5 | 12 | 87 | 165 | |||||||||||||||||||
£ 43.77 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 12 d2 14.5 d3 20 l1 120 l2 10.6 l3 39.5 Location hole dia.
tol. H11 12 Shearing resistance, double
min.
kN 87 Weight
g 165 | |||||||||||||||||||||||||||||
| 33194.W0064 | Stainless 1.4305 | 12 | 14.5 | 20 | 20 | 10.6 | 39.5 | 12 | 87 | 98 | |||||||||||||||||||
£ 33.66 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 12 d2 14.5 d3 20 l1 20 l2 10.6 l3 39.5 Location hole dia.
tol. H11 12 Shearing resistance, double
min.
kN 87 Weight
g 98 | |||||||||||||||||||||||||||||
| 33194.W0065 | Stainless 1.4305 | 12 | 14.5 | 20 | 25 | 10.6 | 39.5 | 12 | 87 | 84 | |||||||||||||||||||
£ 33.66 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 12 d2 14.5 d3 20 l1 25 l2 10.6 l3 39.5 Location hole dia.
tol. H11 12 Shearing resistance, double
min.
kN 87 Weight
g 84 | |||||||||||||||||||||||||||||
| 33194.W0066 | Stainless 1.4305 | 12 | 14.5 | 20 | 30 | 10.6 | 39.5 | 12 | 87 | 88 | |||||||||||||||||||
£ 35.22 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 12 d2 14.5 d3 20 l1 30 l2 10.6 l3 39.5 Location hole dia.
tol. H11 12 Shearing resistance, double
min.
kN 87 Weight
g 88 | |||||||||||||||||||||||||||||
| 33194.W0067 | Stainless 1.4305 | 12 | 14.5 | 20 | 35 | 10.6 | 39.5 | 12 | 87 | 92 | |||||||||||||||||||
£ 35.22 per unit (click for quantity discounts) Ready to despatch 5 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 12 d2 14.5 d3 20 l1 35 l2 10.6 l3 39.5 Location hole dia.
tol. H11 12 Shearing resistance, double
min.
kN 87 Weight
g 92 | |||||||||||||||||||||||||||||
| 33194.W0068 | Stainless 1.4305 | 12 | 14.5 | 20 | 40 | 10.6 | 39.5 | 12 | 87 | 96 | |||||||||||||||||||
£ 35.22 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 12 d2 14.5 d3 20 l1 40 l2 10.6 l3 39.5 Location hole dia.
tol. H11 12 Shearing resistance, double
min.
kN 87 Weight
g 96 | |||||||||||||||||||||||||||||
| 33194.W0069 | Stainless 1.4305 | 12 | 14.5 | 20 | 45 | 10.6 | 39.5 | 12 | 87 | 101 | |||||||||||||||||||
£ 35.22 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 12 d2 14.5 d3 20 l1 45 l2 10.6 l3 39.5 Location hole dia.
tol. H11 12 Shearing resistance, double
min.
kN 87 Weight
g 101 | |||||||||||||||||||||||||||||
| 33194.W0070 | Stainless 1.4305 | 12 | 14.5 | 20 | 50 | 10.6 | 39.5 | 12 | 87 | 105 | |||||||||||||||||||
£ 35.22 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 12 d2 14.5 d3 20 l1 50 l2 10.6 l3 39.5 Location hole dia.
tol. H11 12 Shearing resistance, double
min.
kN 87 Weight
g 105 | |||||||||||||||||||||||||||||
| 33194.W0072 | Stainless 1.4305 | 12 | 14.5 | 20 | 60 | 10.6 | 39.5 | 12 | 87 | 113 | |||||||||||||||||||
£ 37.11 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 12 d2 14.5 d3 20 l1 60 l2 10.6 l3 39.5 Location hole dia.
tol. H11 12 Shearing resistance, double
min.
kN 87 Weight
g 113 | |||||||||||||||||||||||||||||
| 33194.W0074 | Stainless 1.4305 | 12 | 14.5 | 20 | 70 | 10.6 | 39.5 | 12 | 87 | 122 | |||||||||||||||||||
£ 37.11 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 12 d2 14.5 d3 20 l1 70 l2 10.6 l3 39.5 Location hole dia.
tol. H11 12 Shearing resistance, double
min.
kN 87 Weight
g 122 | |||||||||||||||||||||||||||||
| 33194.W0076 | Stainless 1.4305 | 12 | 14.5 | 20 | 80 | 10.6 | 39.5 | 12 | 87 | 130 | |||||||||||||||||||
£ 38.49 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 12 d2 14.5 d3 20 l1 80 l2 10.6 l3 39.5 Location hole dia.
tol. H11 12 Shearing resistance, double
min.
kN 87 Weight
g 130 | |||||||||||||||||||||||||||||
| 33194.W0086 | Stainless 1.4305 | 16 | 19.0 | 20 | 30 | 14.0 | 39.5 | 16 | 155 | 120 | |||||||||||||||||||
£ 60.12 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 16 d2 19.0 d3 20 l1 30 l2 14.0 l3 39.5 Location hole dia.
tol. H11 16 Shearing resistance, double
min.
kN 155 Weight
g 120 | |||||||||||||||||||||||||||||
| 33194.W0087 | Stainless 1.4305 | 16 | 19.0 | 20 | 35 | 14.0 | 39.5 | 16 | 155 | 127 | |||||||||||||||||||
£ 60.12 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 16 d2 19.0 d3 20 l1 35 l2 14.0 l3 39.5 Location hole dia.
tol. H11 16 Shearing resistance, double
min.
kN 155 Weight
g 127 | |||||||||||||||||||||||||||||
| 33194.W0088 | Stainless 1.4305 | 16 | 19.0 | 20 | 40 | 14.0 | 39.5 | 16 | 155 | 135 | |||||||||||||||||||
£ 60.12 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 16 d2 19.0 d3 20 l1 40 l2 14.0 l3 39.5 Location hole dia.
tol. H11 16 Shearing resistance, double
min.
kN 155 Weight
g 135 | |||||||||||||||||||||||||||||
| 33194.W0089 | Stainless 1.4305 | 16 | 19.0 | 20 | 45 | 14.0 | 39.5 | 16 | 155 | 143 | |||||||||||||||||||
£ 60.12 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 16 d2 19.0 d3 20 l1 45 l2 14.0 l3 39.5 Location hole dia.
tol. H11 16 Shearing resistance, double
min.
kN 155 Weight
g 143 | |||||||||||||||||||||||||||||
| 33194.W0090 | Stainless 1.4305 | 16 | 19.0 | 20 | 50 | 14.0 | 39.5 | 16 | 155 | 150 | |||||||||||||||||||
£ 60.12 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 16 d2 19.0 d3 20 l1 50 l2 14.0 l3 39.5 Location hole dia.
tol. H11 16 Shearing resistance, double
min.
kN 155 Weight
g 150 | |||||||||||||||||||||||||||||
| 33194.W0092 | Stainless 1.4305 | 16 | 19.0 | 20 | 60 | 14.0 | 39.5 | 16 | 155 | 166 | |||||||||||||||||||
£ 64.94 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 16 d2 19.0 d3 20 l1 60 l2 14.0 l3 39.5 Location hole dia.
tol. H11 16 Shearing resistance, double
min.
kN 155 Weight
g 166 | |||||||||||||||||||||||||||||
| 33194.W0094 | Stainless 1.4305 | 16 | 19.0 | 20 | 70 | 14.0 | 39.5 | 16 | 155 | 181 | |||||||||||||||||||
£ 64.94 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 16 d2 19.0 d3 20 l1 70 l2 14.0 l3 39.5 Location hole dia.
tol. H11 16 Shearing resistance, double
min.
kN 155 Weight
g 181 | |||||||||||||||||||||||||||||
| 33194.W0096 | Stainless 1.4305 | 16 | 19.0 | 20 | 80 | 14.0 | 39.5 | 16 | 155 | 196 | |||||||||||||||||||
£ 68.87 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 16 d2 19.0 d3 20 l1 80 l2 14.0 l3 39.5 Location hole dia.
tol. H11 16 Shearing resistance, double
min.
kN 155 Weight
g 196 | |||||||||||||||||||||||||||||
| 33194.W0097 | Stainless 1.4305 | 16 | 19.0 | 20 | 90 | 14.0 | 39.5 | 16 | 155 | 216 | |||||||||||||||||||
£ 69.75 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 16 d2 19.0 d3 20 l1 90 l2 14.0 l3 39.5 Location hole dia.
tol. H11 16 Shearing resistance, double
min.
kN 155 Weight
g 216 | |||||||||||||||||||||||||||||
| 33194.W0098 | Stainless 1.4305 | 16 | 19.0 | 20 | 100 | 14.0 | 39.5 | 16 | 155 | 233 | |||||||||||||||||||
£ 70.51 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 16 d2 19.0 d3 20 l1 100 l2 14.0 l3 39.5 Location hole dia.
tol. H11 16 Shearing resistance, double
min.
kN 155 Weight
g 233 | |||||||||||||||||||||||||||||
| 33194.W0099 | Stainless 1.4305 | 16 | 19.0 | 20 | 110 | 14.0 | 39.5 | 16 | 155 | 248 | |||||||||||||||||||
£ 72.05 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 16 d2 19.0 d3 20 l1 110 l2 14.0 l3 39.5 Location hole dia.
tol. H11 16 Shearing resistance, double
min.
kN 155 Weight
g 248 | |||||||||||||||||||||||||||||
| 33194.W0100 | Stainless 1.4305 | 16 | 19.0 | 20 | 120 | 14.0 | 39.5 | 16 | 155 | 263 | |||||||||||||||||||
£ 73.15 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 16 d2 19.0 d3 20 l1 120 l2 14.0 l3 39.5 Location hole dia.
tol. H11 16 Shearing resistance, double
min.
kN 155 Weight
g 263 | |||||||||||||||||||||||||||||
| 33194.W0101 | Stainless 1.4305 | 16 | 19.0 | 20 | 130 | 14.0 | 39.5 | 16 | 155 | 279 | |||||||||||||||||||
£ 74.49 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 16 d2 19.0 d3 20 l1 130 l2 14.0 l3 39.5 Location hole dia.
tol. H11 16 Shearing resistance, double
min.
kN 155 Weight
g 279 | |||||||||||||||||||||||||||||
| 33194.W0102 | Stainless 1.4305 | 16 | 19.0 | 20 | 140 | 14.0 | 39.5 | 16 | 155 | 295 | |||||||||||||||||||
£ 75.87 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 16 d2 19.0 d3 20 l1 140 l2 14.0 l3 39.5 Location hole dia.
tol. H11 16 Shearing resistance, double
min.
kN 155 Weight
g 295 | |||||||||||||||||||||||||||||
| 33194.W0103 | Stainless 1.4305 | 16 | 19.0 | 20 | 150 | 14.0 | 39.5 | 16 | 155 | 310 | |||||||||||||||||||
£ 77.04 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 16 d2 19.0 d3 20 l1 150 l2 14.0 l3 39.5 Location hole dia.
tol. H11 16 Shearing resistance, double
min.
kN 155 Weight
g 310 | |||||||||||||||||||||||||||||
| 33194.W0111 | Stainless 1.4305 | 20 | 25.0 | 28 | 50 | 20.5 | 49.9 | 20 | 244 | 303 | |||||||||||||||||||
£ 120.34 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 20 d2 25.0 d3 28 l1 50 l2 20.5 l3 49.9 Location hole dia.
tol. H11 20 Shearing resistance, double
min.
kN 244 Weight
g 303 | |||||||||||||||||||||||||||||
| 33194.W0112 | Stainless 1.4305 | 20 | 25.0 | 28 | 60 | 20.5 | 49.9 | 20 | 244 | 322 | |||||||||||||||||||
£ 121.89 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 20 d2 25.0 d3 28 l1 60 l2 20.5 l3 49.9 Location hole dia.
tol. H11 20 Shearing resistance, double
min.
kN 244 Weight
g 322 | |||||||||||||||||||||||||||||
| 33194.W0116 | Stainless 1.4305 | 20 | 25.0 | 28 | 80 | 20.5 | 49.9 | 20 | 244 | 370 | |||||||||||||||||||
£ 126.88 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 20 d2 25.0 d3 28 l1 80 l2 20.5 l3 49.9 Location hole dia.
tol. H11 20 Shearing resistance, double
min.
kN 244 Weight
g 370 | |||||||||||||||||||||||||||||
| 33194.W0117 | Stainless 1.4305 | 20 | 25.0 | 28 | 90 | 20.5 | 49.9 | 20 | 244 | 400 | |||||||||||||||||||
£ 131.34 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 20 d2 25.0 d3 28 l1 90 l2 20.5 l3 49.9 Location hole dia.
tol. H11 20 Shearing resistance, double
min.
kN 244 Weight
g 400 | |||||||||||||||||||||||||||||
| 33194.W0120 | Stainless 1.4305 | 20 | 25.0 | 28 | 100 | 20.5 | 49.9 | 20 | 244 | 414 | |||||||||||||||||||
£ 132.88 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 20 d2 25.0 d3 28 l1 100 l2 20.5 l3 49.9 Location hole dia.
tol. H11 20 Shearing resistance, double
min.
kN 244 Weight
g 414 | |||||||||||||||||||||||||||||
| 33194.W0124 | Stainless 1.4305 | 20 | 25.0 | 28 | 120 | 20.5 | 49.9 | 20 | 244 | 466 | |||||||||||||||||||
£ 138.16 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 20 d2 25.0 d3 28 l1 120 l2 20.5 l3 49.9 Location hole dia.
tol. H11 20 Shearing resistance, double
min.
kN 244 Weight
g 466 | |||||||||||||||||||||||||||||
| 33194.W0125 | Stainless 1.4305 | 20 | 25.0 | 28 | 130 | 20.5 | 49.9 | 20 | 244 | 497 | |||||||||||||||||||
£ 139.25 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 20 d2 25.0 d3 28 l1 130 l2 20.5 l3 49.9 Location hole dia.
tol. H11 20 Shearing resistance, double
min.
kN 244 Weight
g 497 | |||||||||||||||||||||||||||||
| 33194.W0126 | Stainless 1.4305 | 20 | 25.0 | 28 | 140 | 20.5 | 49.9 | 20 | 244 | 520 | |||||||||||||||||||
£ 141.25 per unit (click for quantity discounts) Ready to despatch 2 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 20 d2 25.0 d3 28 l1 140 l2 20.5 l3 49.9 Location hole dia.
tol. H11 20 Shearing resistance, double
min.
kN 244 Weight
g 520 | |||||||||||||||||||||||||||||
| 33194.W0127 | Stainless 1.4305 | 20 | 25.0 | 28 | 150 | 20.5 | 49.9 | 20 | 244 | 545 | |||||||||||||||||||
£ 143.18 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 20 d2 25.0 d3 28 l1 150 l2 20.5 l3 49.9 Location hole dia.
tol. H11 20 Shearing resistance, double
min.
kN 244 Weight
g 545 | |||||||||||||||||||||||||||||
| 33194.W0129 | Stainless 1.4305 | 25 | 30.8 | 28 | 50 | 22.0 | 49.9 | 25 | 386 | 466 | |||||||||||||||||||
£ 120.34 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 25 d2 30.8 d3 28 l1 50 l2 22.0 l3 49.9 Location hole dia.
tol. H11 25 Shearing resistance, double
min.
kN 386 Weight
g 466 | |||||||||||||||||||||||||||||
| 33194.W0130 | Stainless 1.4305 | 25 | 30.8 | 28 | 60 | 22.0 | 49.9 | 25 | 386 | 432 | |||||||||||||||||||
£ 129.98 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 25 d2 30.8 d3 28 l1 60 l2 22.0 l3 49.9 Location hole dia.
tol. H11 25 Shearing resistance, double
min.
kN 386 Weight
g 432 | |||||||||||||||||||||||||||||
| 33194.W0131 | Stainless 1.4305 | 20 | 30.8 | 28 | 70 | 22.0 | 49.9 | 25 | 386 | 470 | |||||||||||||||||||
£ 123.90 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 20 d2 30.8 d3 28 l1 70 l2 22.0 l3 49.9 Location hole dia.
tol. H11 25 Shearing resistance, double
min.
kN 386 Weight
g 470 | |||||||||||||||||||||||||||||
| 33194.W0132 | Stainless 1.4305 | 25 | 30.8 | 28 | 810 | 22.0 | 49.9 | 25 | 386 | 507 | |||||||||||||||||||
£ 141.55 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 25 d2 30.8 d3 28 l1 810 l2 22.0 l3 49.9 Location hole dia.
tol. H11 25 Shearing resistance, double
min.
kN 386 Weight
g 507 | |||||||||||||||||||||||||||||
| 33194.W0133 | Stainless 1.4305 | 25 | 30.8 | 28 | 90 | 22.0 | 49.9 | 25 | 386 | 545 | |||||||||||||||||||
£ 148.89 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 25 d2 30.8 d3 28 l1 90 l2 22.0 l3 49.9 Location hole dia.
tol. H11 25 Shearing resistance, double
min.
kN 386 Weight
g 545 | |||||||||||||||||||||||||||||
| 33194.W0134 | Stainless 1.4305 | 25 | 30.8 | 28 | 100 | 22.0 | 49.9 | 25 | 386 | 582 | |||||||||||||||||||
£ 152.16 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 25 d2 30.8 d3 28 l1 100 l2 22.0 l3 49.9 Location hole dia.
tol. H11 25 Shearing resistance, double
min.
kN 386 Weight
g 582 | |||||||||||||||||||||||||||||
| 33194.W0135 | Stainless 1.4305 | 25 | 30.8 | 28 | 110 | 22.0 | 49.9 | 25 | 386 | 620 | |||||||||||||||||||
£ 156.01 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 25 d2 30.8 d3 28 l1 110 l2 22.0 l3 49.9 Location hole dia.
tol. H11 25 Shearing resistance, double
min.
kN 386 Weight
g 620 | |||||||||||||||||||||||||||||
| 33194.W0136 | Stainless 1.4305 | 25 | 30.8 | 28 | 120 | 22.0 | 49.9 | 25 | 386 | 657 | |||||||||||||||||||
£ 158.81 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 25 d2 30.8 d3 28 l1 120 l2 22.0 l3 49.9 Location hole dia.
tol. H11 25 Shearing resistance, double
min.
kN 386 Weight
g 657 | |||||||||||||||||||||||||||||
| 33194.W0137 | Stainless 1.4305 | 25 | 30.8 | 28 | 130 | 22.0 | 49.9 | 25 | 386 | 695 | |||||||||||||||||||
£ 161.46 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 25 d2 30.8 d3 28 l1 130 l2 22.0 l3 49.9 Location hole dia.
tol. H11 25 Shearing resistance, double
min.
kN 386 Weight
g 695 | |||||||||||||||||||||||||||||
| 33194.W0138 | Stainless 1.4305 | 25 | 30.8 | 28 | 140 | 22.0 | 49.9 | 25 | 386 | 732 | |||||||||||||||||||
£ 165.27 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 25 d2 30.8 d3 28 l1 140 l2 22.0 l3 49.9 Location hole dia.
tol. H11 25 Shearing resistance, double
min.
kN 386 Weight
g 732 | |||||||||||||||||||||||||||||
| 33194.W0139 | Stainless 1.4305 | 25 | 30.8 | 28 | 150 | 22.0 | 49.9 | 25 | 386 | 770 | |||||||||||||||||||
£ 167.71 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material Stainless 1.4305 d1 25 d2 30.8 d3 28 l1 150 l2 22.0 l3 49.9 Location hole dia.
tol. H11 25 Shearing resistance, double
min.
kN 386 Weight
g 770 | |||||||||||||||||||||||||||||
Technical & Application
Material
Pin: stainless steel 1.4305 (AISI 303).
Spring: stainless steel.
Technical Notes
Pressing = unlocking.
Releasing = locking.
Single piece contoured design for limited space applications.
Temperature resistance up to 250°C.
For quick fastening and locking of frequently repeated connections.
For suitable lanyards see part no. 33250.W0970 and .W0974 only. Easy install locating bushes available see part no. 33248.
Tips
Single piece design, no danger of parts coming away from pin - ideal for applications with F.O.B (Foreign Object Body) issues.
Important Notes
*Shearing resistance similar to DIN 50141.
Product Datasheets
CAD files
Application images
This content is not visible because of your cookie settings.
Wixroyd Group Ltd
Alexia House, Glenmore Business Park
PO19 7BJ Chichester
United Kingdom
0333 207 4497
sales@wixroyd.com
Route via Google Maps
Alexia House, Glenmore Business Park
PO19 7BJ Chichester
United Kingdom
0333 207 4497
sales@wixroyd.com
Route via Google Maps
Company registration no: 00496138
Company VAT number GB 408154022
