Pitbull Clamps
12031.1 Pitbull Clamps
material: Tool steel
Order No.
12031.W0060
Material
Tool Steel
Type
Blunt Edge
Qty/pack
6
d1
M 6
h1
7.1
h2
3.8
h3
14.5
l1
7.6
Stroke s1
0.6
w1
19.0
Torque to
max.
Nm
22.5
Holding force
kN
16.0
Weight
g
132
£ 122.76 per unit (click for quantity discounts)
Ready to despatch 41
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 122.76 | 0% |
| 5-9 | £ 116.62 | 5% |
| 10-19 | £ 110.48 | 10% |
| 20-49 | £ 104.35 | 15% |
| 50+ | £ 92.07 | 25% |
Technical & Application
Material
Tool: steel (HRc 43-45) or brass.
Screw: steel and oil resistant nitrile rubber.
O-ring: plastic.
Technical Notes
Provides positive down force and a very low grip height. High vertical and horizontal clamping forces. The O-ring lifts the clamp when unclamping.
Hardness: approx. HRc 45.
Temperature range -30°C to +80°C.
Clamps sold by pack quantity.
Tips
The tool steel blunt edge is less likely to mark workpieces, whilst the knife edge version bites into the material for more aggressive machining requirements.
Often used with 12034 Talongrip or 12036 Versagrip.
Location rails are ideal for use with pitbull clamps.
Important Notes
1. Machine a slot for the Pitbull clamp in the fixture according to dimensions "w1" and "h1".
2. Drill and tap a fixing hole to match screw size- refer to dimension "l1" for distance of hole from the component.

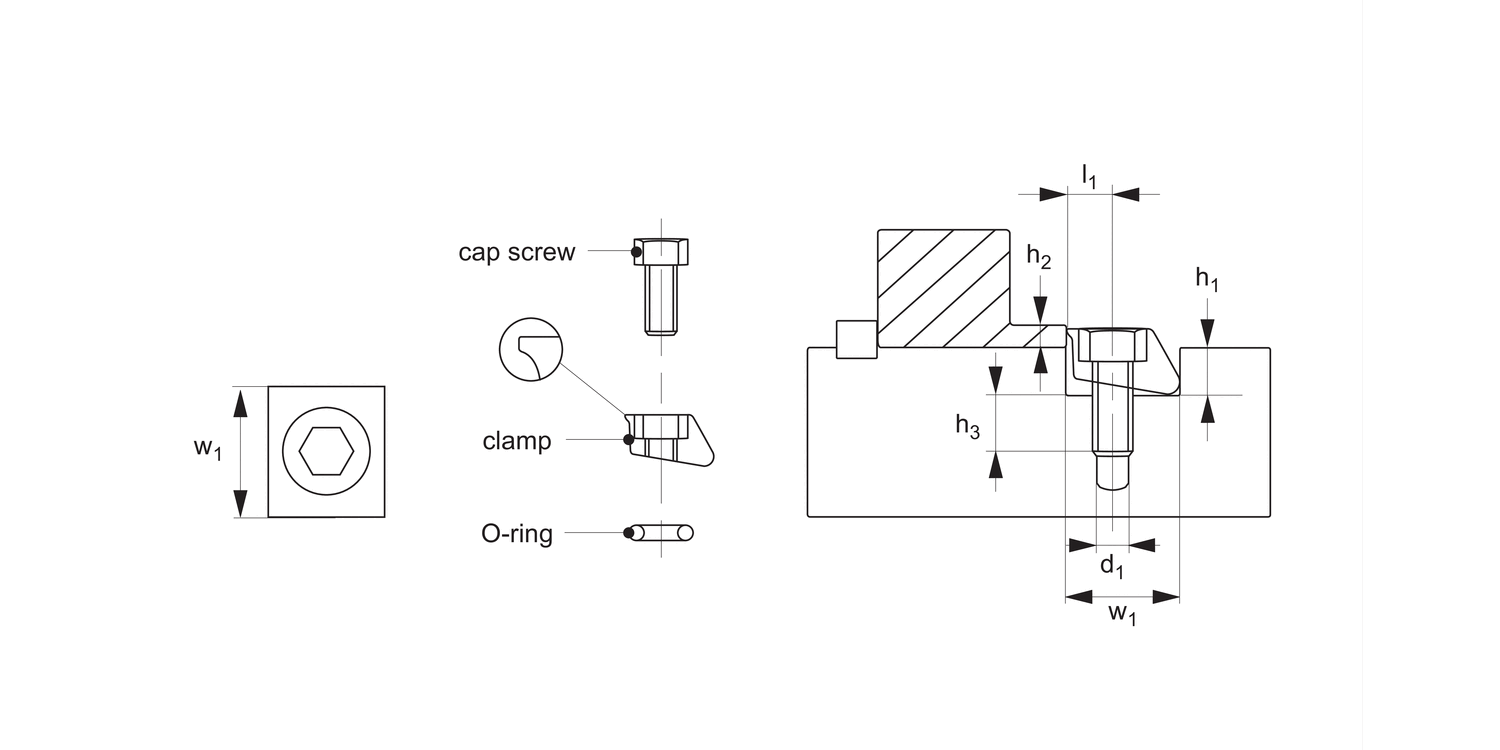

3. Assemble clamp as shown in the diagram above.
4. Position the clamp, and loosely screw to fixture.
5. Load the component and tighten screw cap.
Dimension "h2" is the minimum recommended clamping height.
Product Datasheets

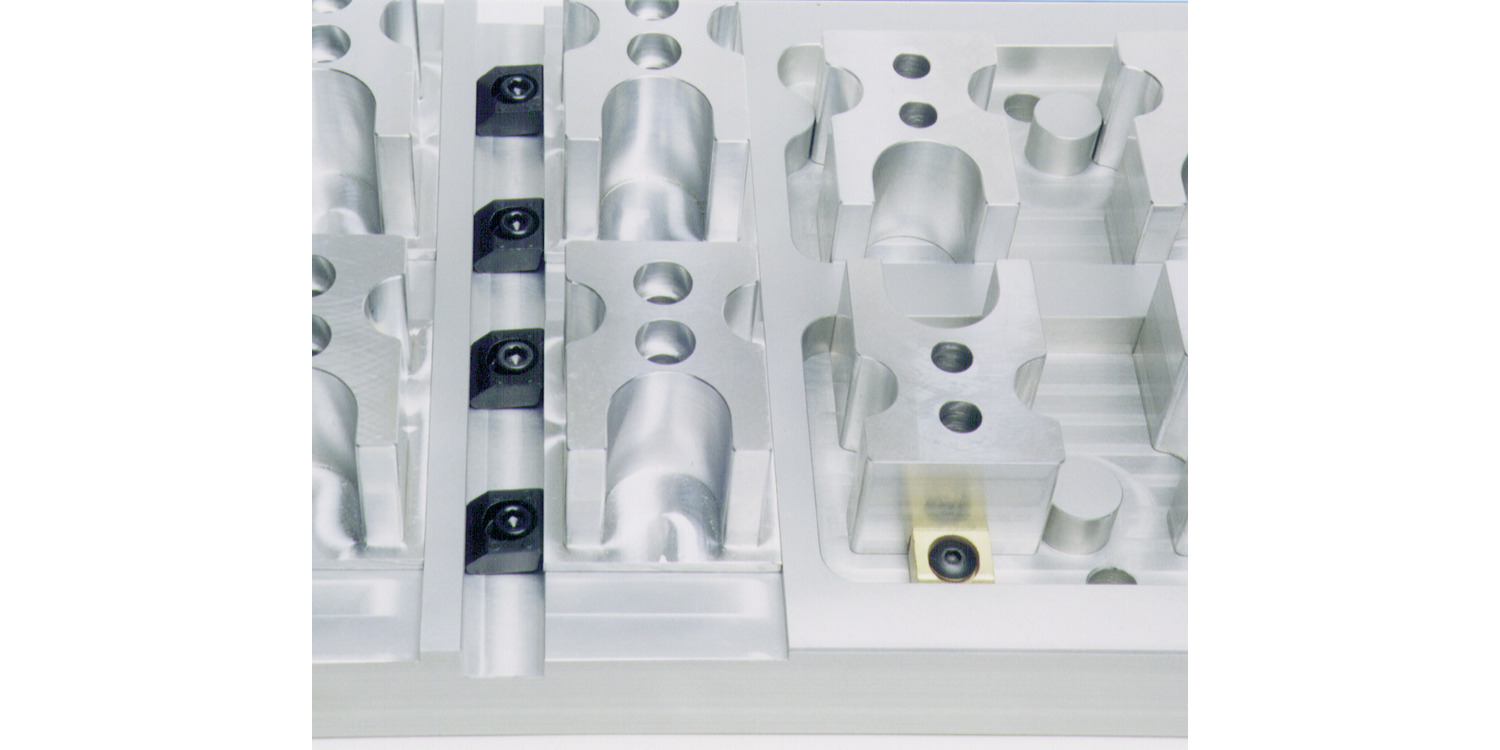

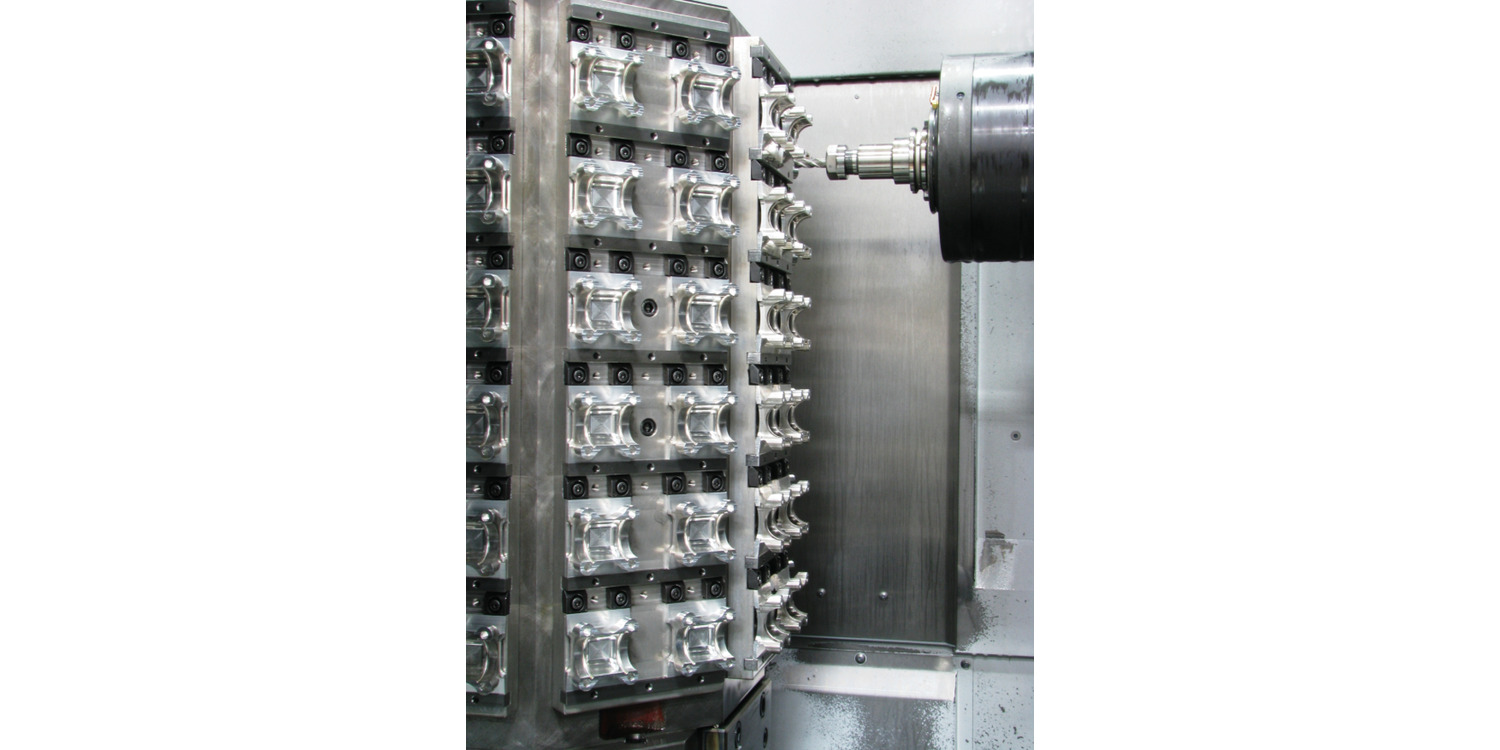

Application images
