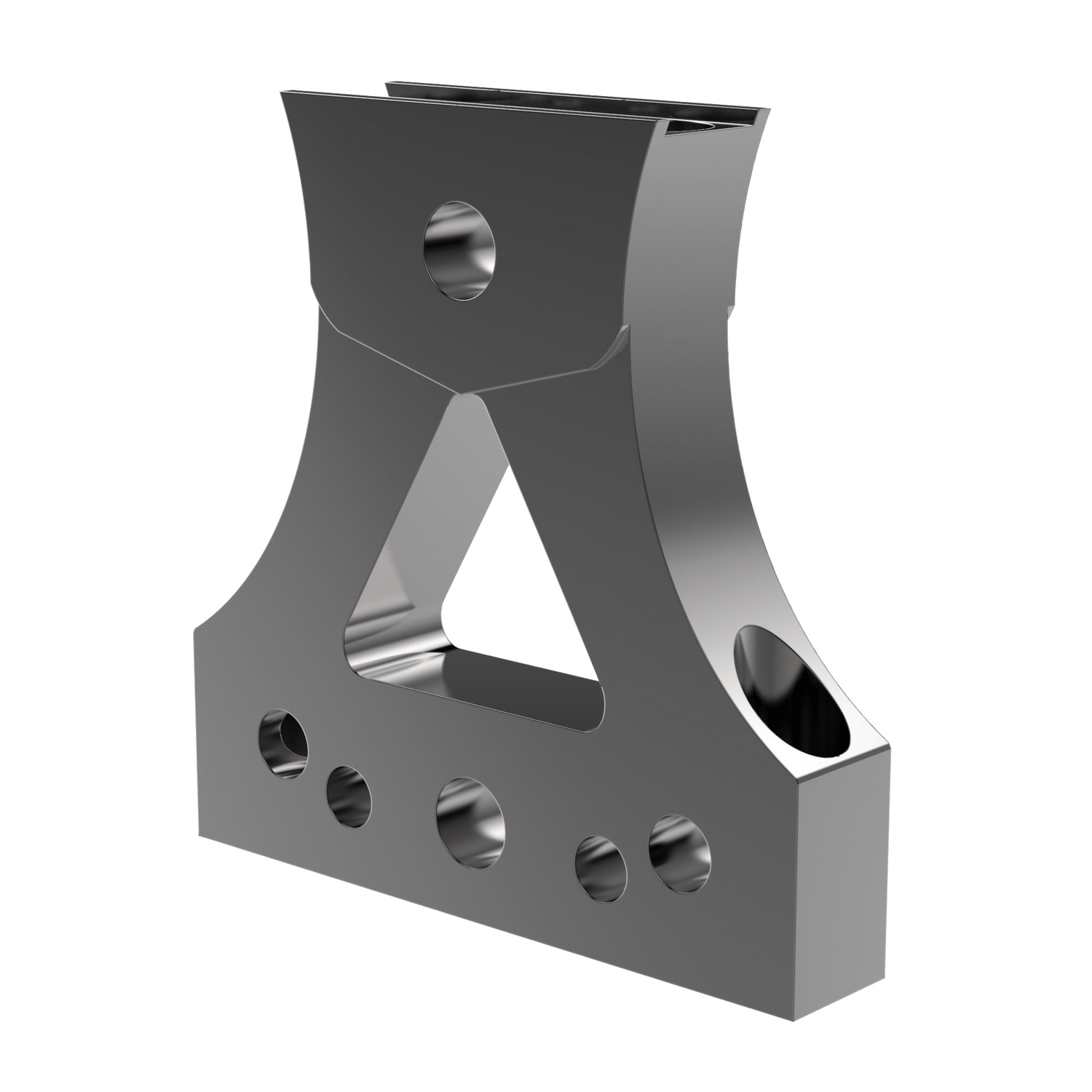

12464 Vice Tower Set

Name: 12464.W0066
Brand: WC
SKU: 12464.W0066
Price: 819.19 GBP
Availability: OutOfStock

for 5 side machining on vices, material: Steel

Article properties

Order No.

12464.W0066

Type

Set

Suitable vice size

4" or 6"

Mounting bolts

M12x55

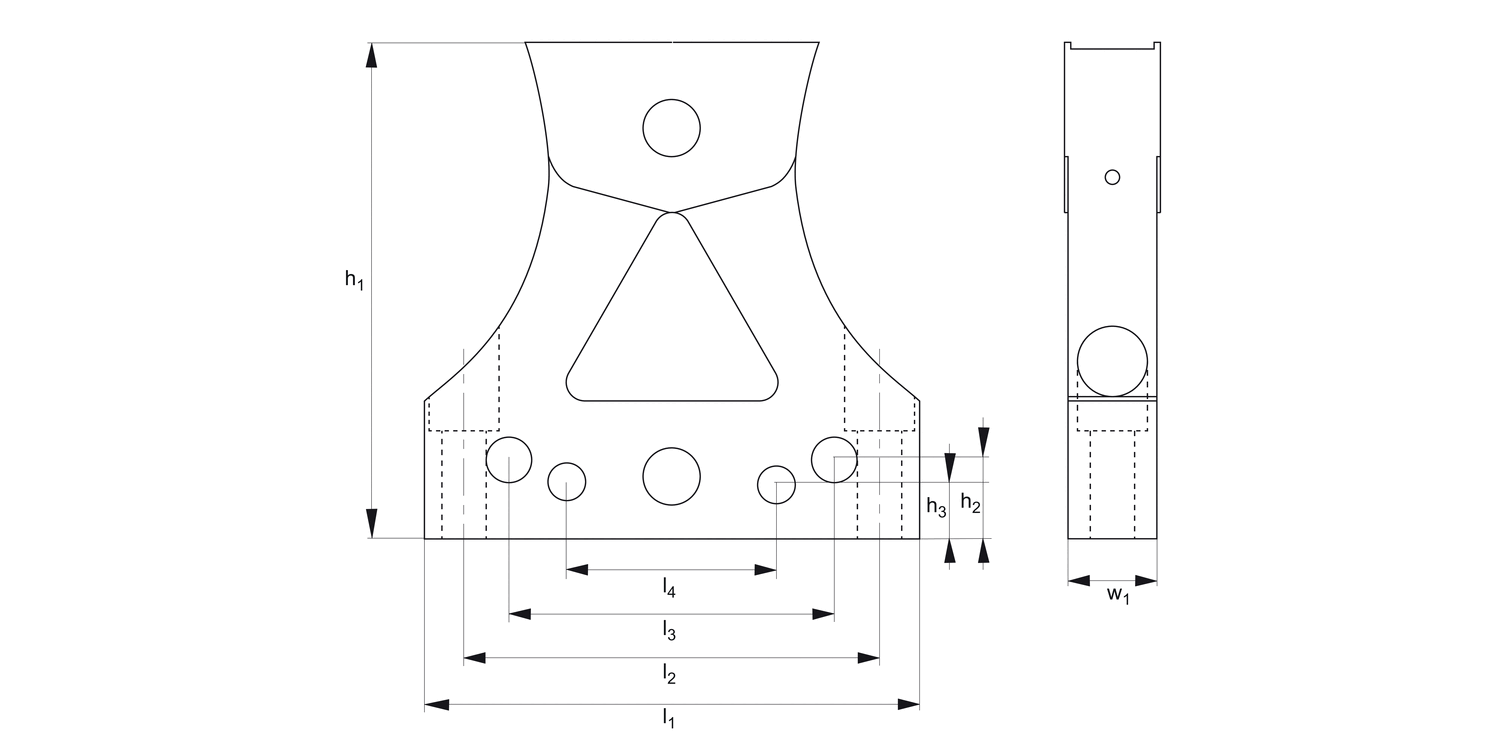

h₁

150

h₂

23.9

h₃

17.5

l₁

150

l₂

126.0

l₃

98.6

l₄

63.5

w₁

26.9

See full product selection

£ 819.19 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 819.19	0%
10-19	£ 737.27	10%
20-49	£ 696.31	15%
50-99	£ 655.35	20%
100+	£ 573.43	30%

Download product datasheet

Download FREE CAD

Technical & Application

Technical Notes

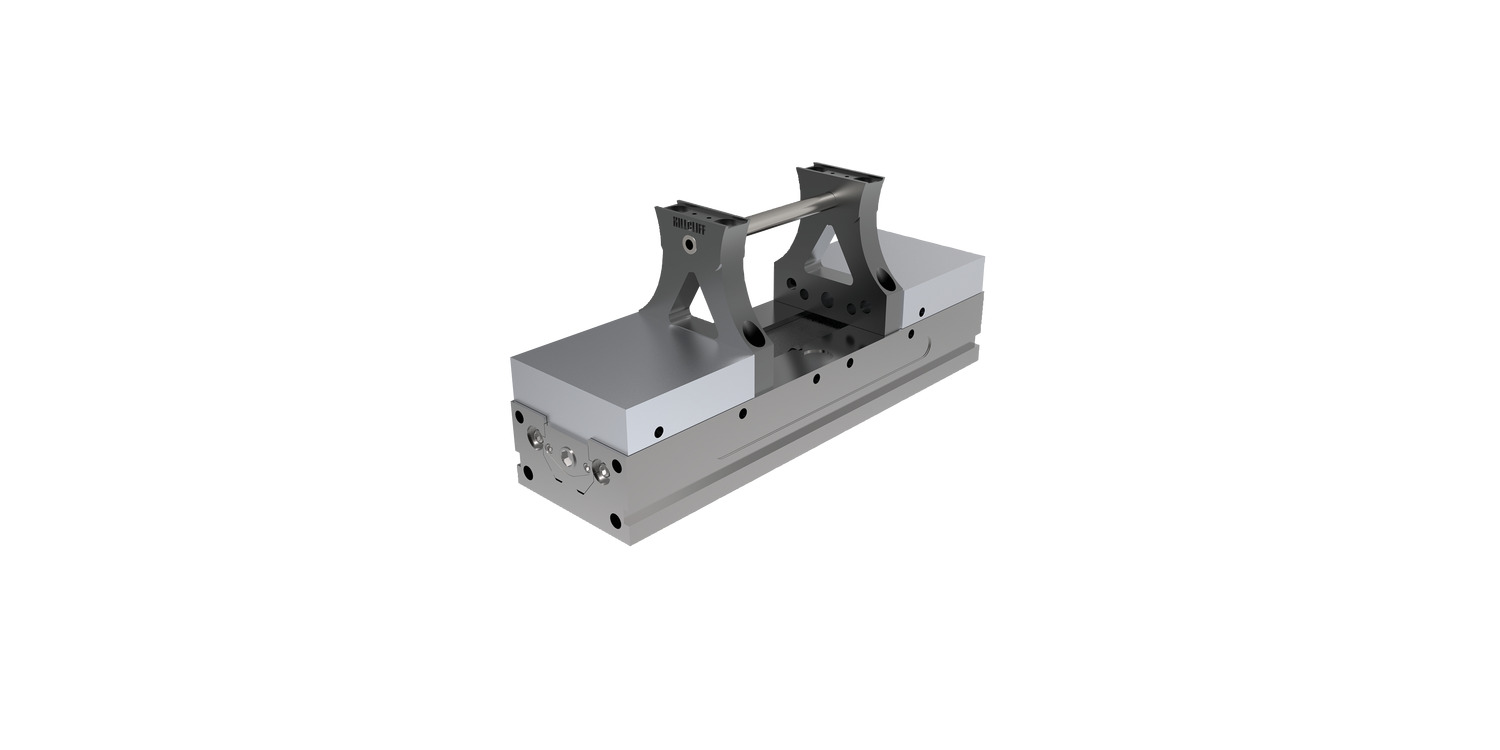

Vice towers mount directly to your 4" or 6" vice to elevate your workpiece into the 5-axis envelope and allow machining on 5 sides of the workpiece. Incorporating talon, versagrip and pitbull clamps the system is exceptionally versatile in securing round or square stock material.
As well as being suited for mounting to your vice, the vice towers can also be mounted to your T-slot table.

Tips

Low profile clamping reduces material costs and eliminates the need for time-consuming workpiece preparation.

Important Notes

Full set contents:
2 x vice towers
4 x talon grips 12034.W0075
4 x versagrips 12036.W0175
1 x talon stop 12035.W0220
2 x pitbull clamp 12031.W0060
2 x each support bolts M12x65/100/200
4 x mounting bolts M12x55
4 x T-nuts M12x16
