Pull Clamps

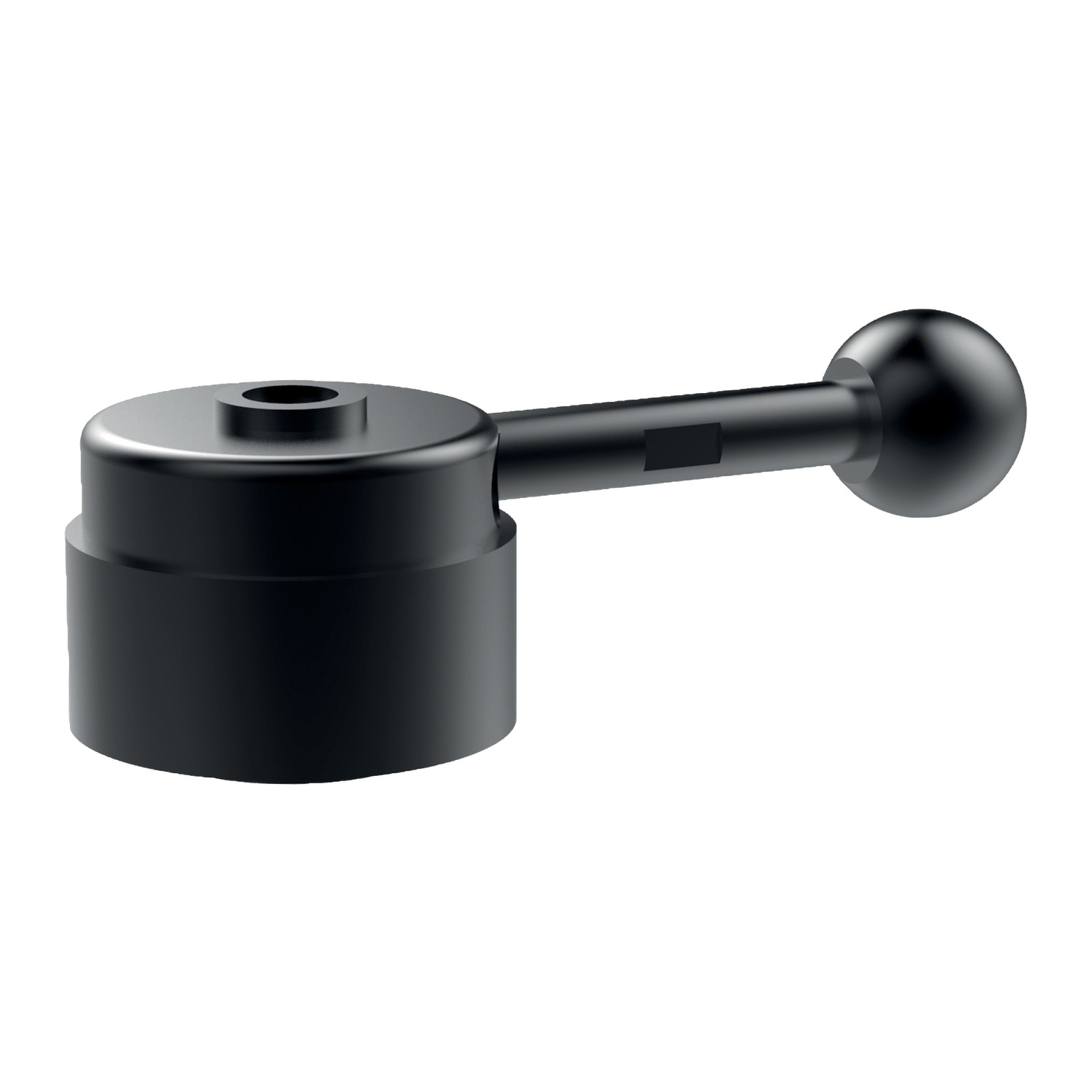

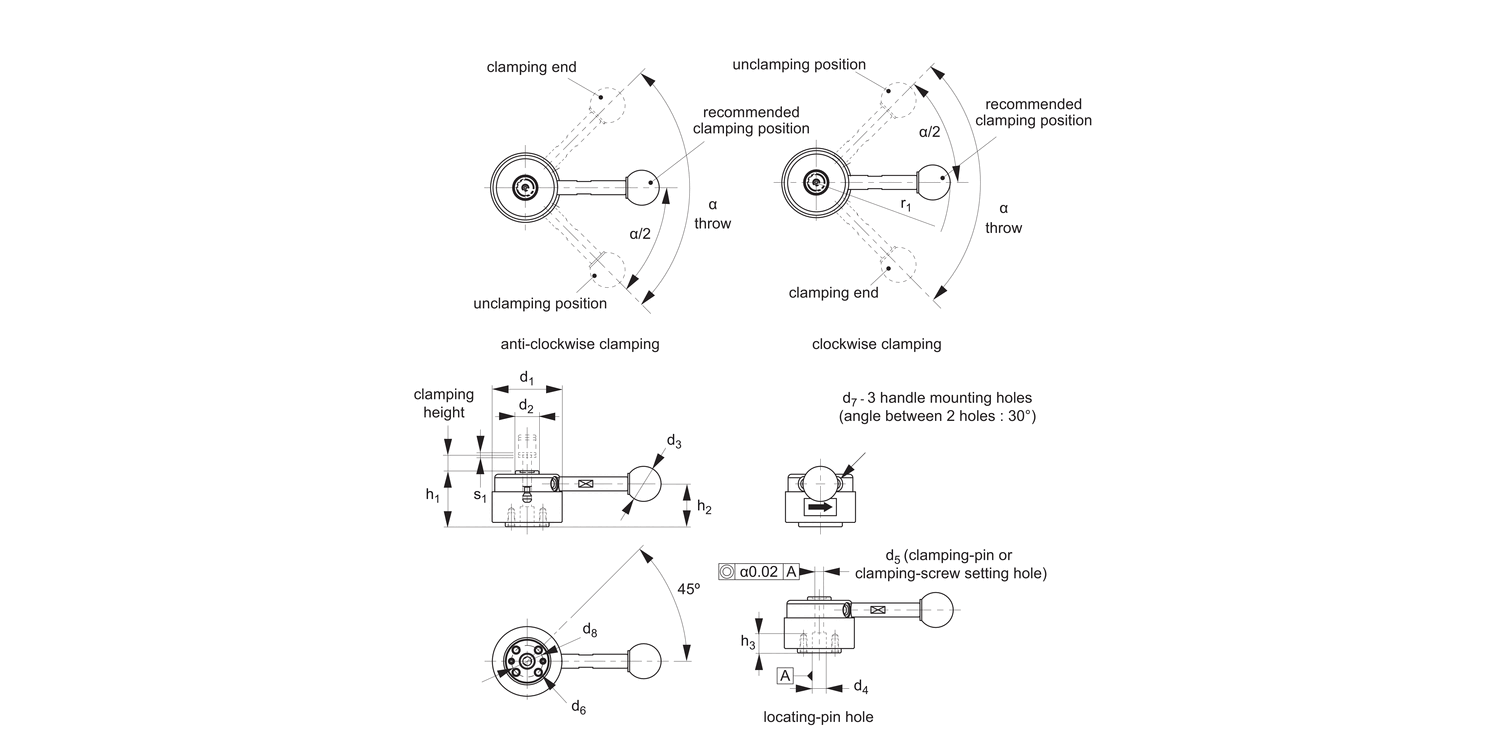

12620.1 Pull Clamps
material: Steel
Order No.
12620.W0105
Type
Anti Clockwise
s1
1.5
h1
±0.01
32
h2
24.5
h3
10
d1
40
d2
13.5
d3
20
d4
tol. G6
8
d5
tol. H7
5
Weight
g
245
d6
M4x8
d7
M5x0,8
d8
18
r1
76.5
α
90°
Recommended workpiece thickness
tolerance
±0,3
Clamping mechanism
Spiral Cam, 4°
Handle load
max.
N
150
Clamping force
max.
kN
0.9
£ 329.14 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 329.14 | 0% |
| 10-19 | £ 296.23 | 10% |
| 20-49 | £ 279.77 | 15% |
| 50-99 | £ 263.31 | 20% |
| 100+ | £ 230.40 | 30% |
Technical & Application
Material
Body: steel (42CrMo), quenched and tempered, black oxide finish.
Handle shank: steel (C43), black oxide finish.
Ball knob: ABS resin, black.
