Clamping - Sets
with low height clamps

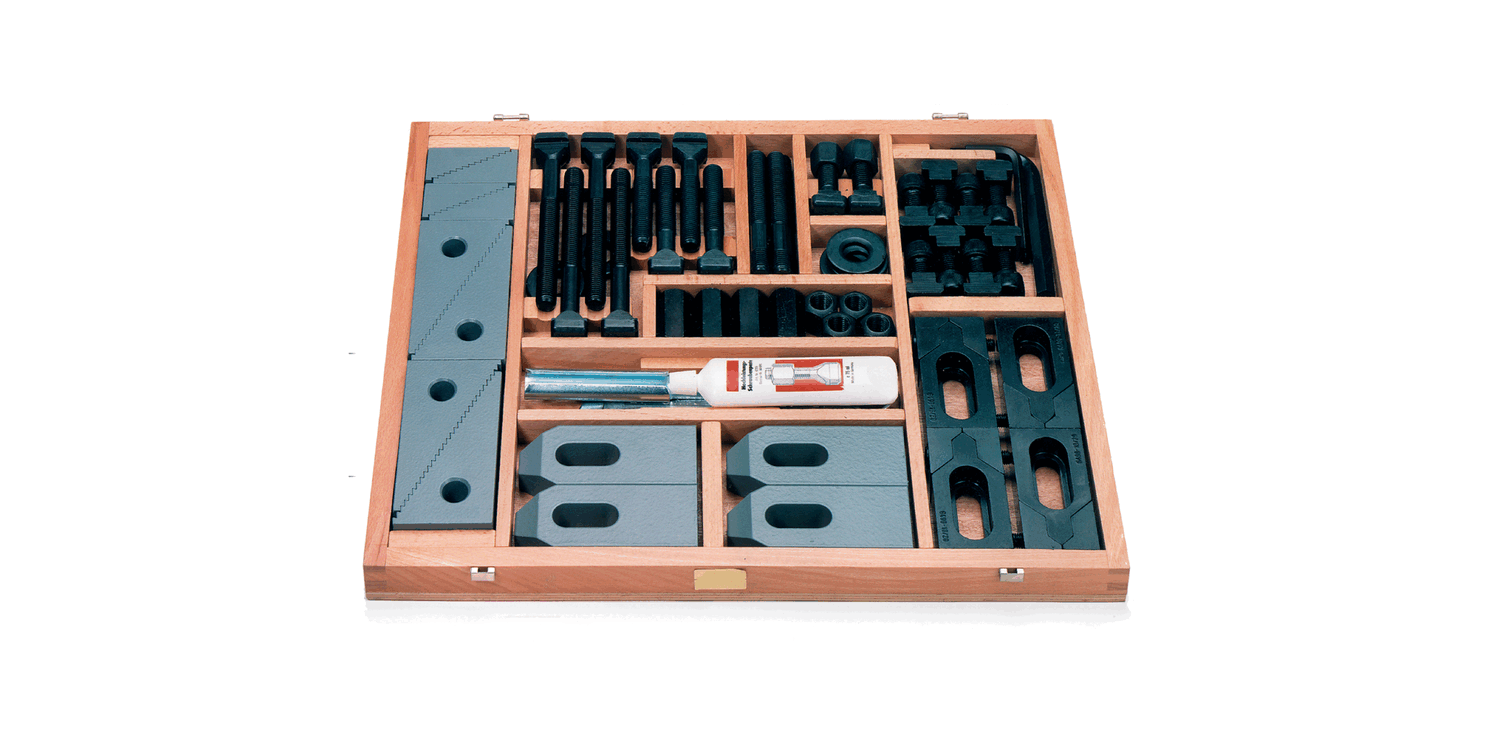

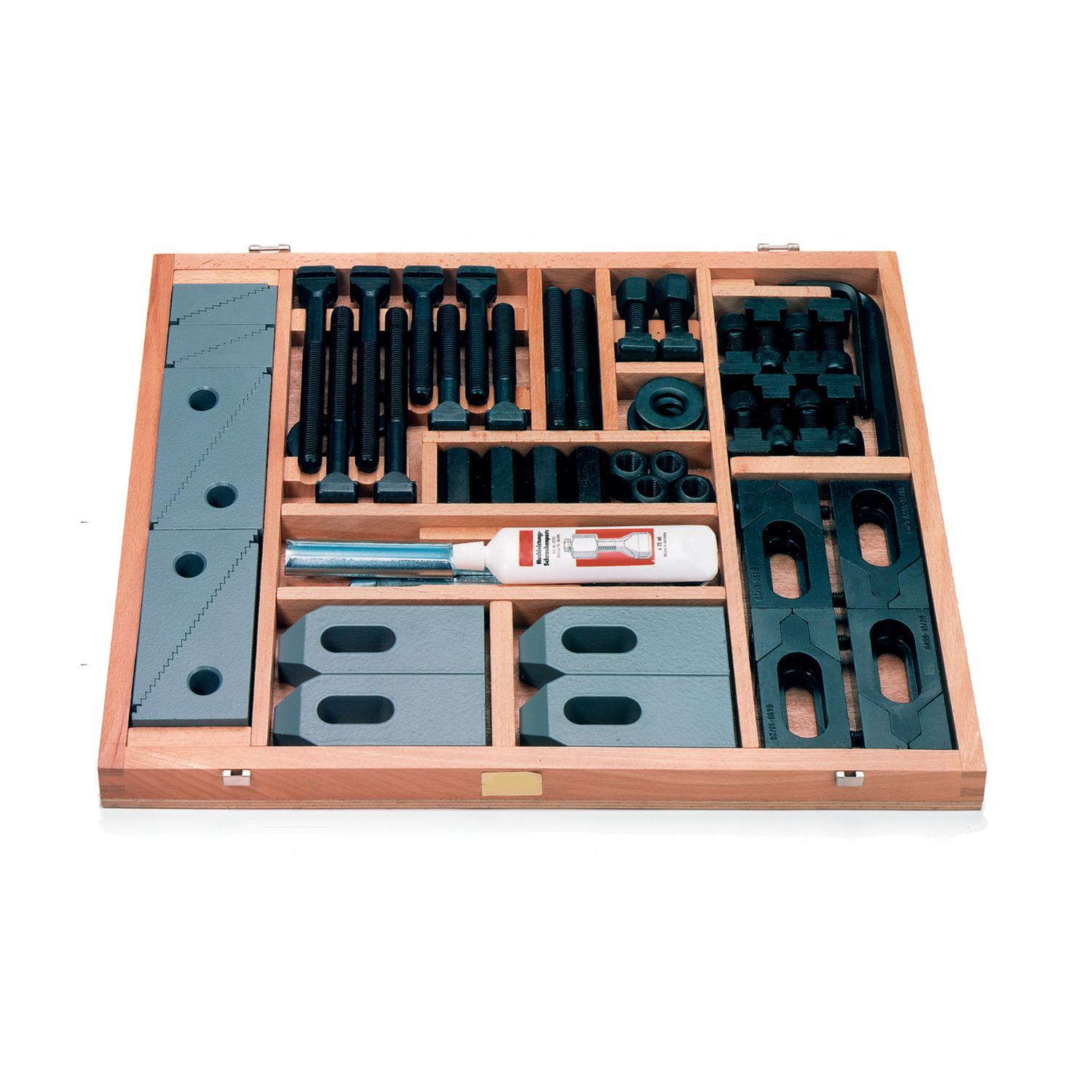

19100 Clamping Sets
with low height clamps 12200, material: Steel
Order No.
19100.W0010
Thread & Slot size
M10 x 10
Box l x w x h
355x270x47
Step blocks 14000
.W0001 x 4pcs
.W0002 x 4pcs
.W0003 x 2pcs
T-Bolts 21000
40mm .W0101 x 2pcs
63mm .W0102 x 4pcs
100mm.W0103 x 4pcs
Step clamps 10020
.W0010 x 4pcs
Studs 21100
80mm .W0102 x 4pcs
Weight
kg
9.2
Fixture nuts 24300
.W0110 x 6pcs
Extension nuts 24600
.W0110 x 4pcs
Dished washers 25700
.W0110 x 6pcs
Low height clamp 12200
.W0012 x 4pcs
T-Slot scrapper 26300
-
Spanner
16 x 1pc
Thread paste
1pc
£ 844.24 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-2 | £ 844.24 | 0% |
| 3-4 | £ 759.82 | 10% |
| 5+ | £ 717.60 | 15% |
Technical & Application
Material
Clamp sets are designed for use on T-slot machines, and contain all the necessary parts to quickly clamp tools, fixtures or workpieces. All parts are interchangeable and are made of heat treated steel to DIN standard (class 8 or class 10). The clamping set comes in a wooden box which has a removable lid.
