Clamping - Sets
with low height clamps

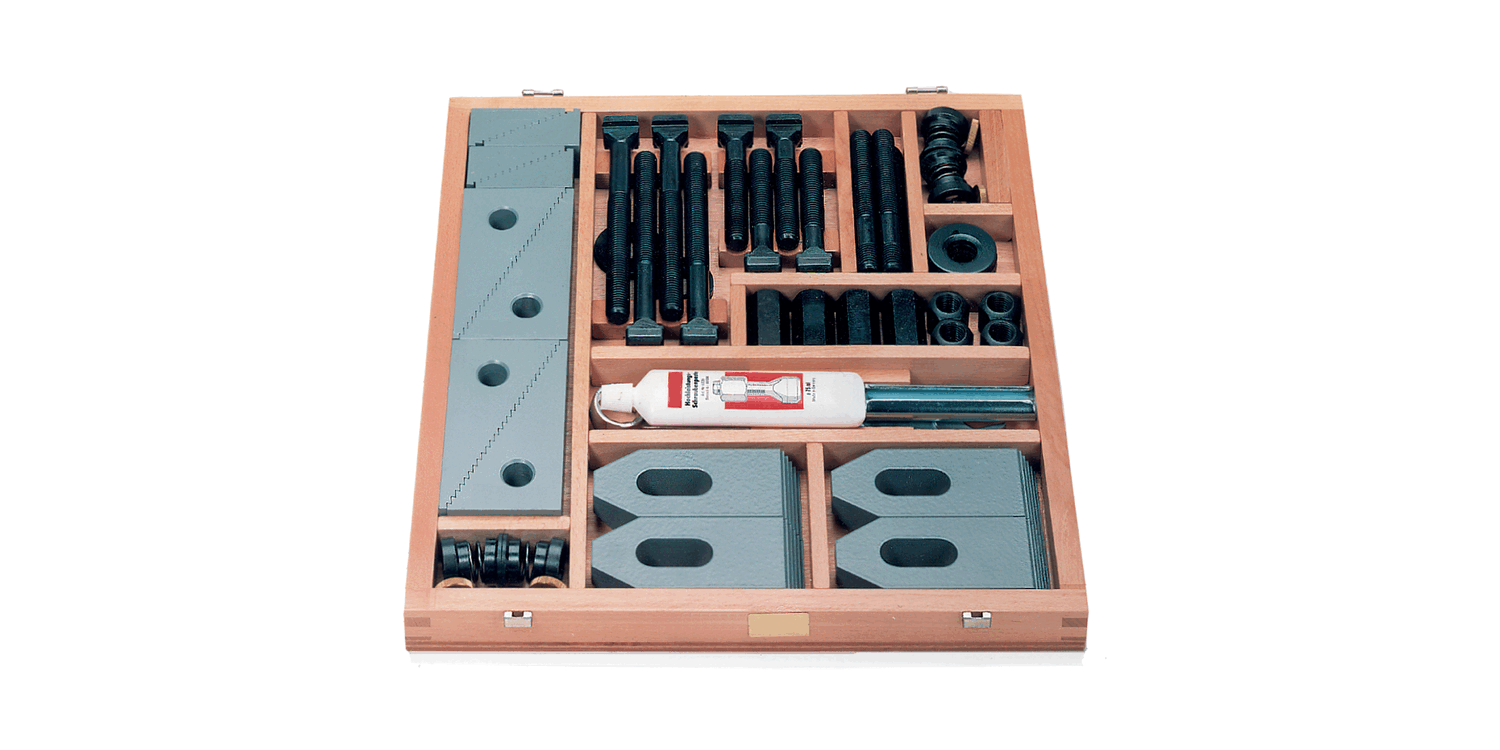

19200 Clamping Sets
with stop clamps 10020, material: Steel
Alternative products you may wish to consider
Thread & Slot size
Box l x w x h
Step blocks 14000
T-Bolts 21000
Step clamps 10020
Studs 21100
| Price & Availability | Article | Thread & Slot size | Box l x w x h | Step blocks | T-Bolts | Step clamps | Studs | ||||||||||||
| 19200.W0010 | M10 x 10 | 355x225x47 | .W0001 x 4pcs .W0002 x 4pcs .W0003 x 2pcs | 63mm .W0102 x 4pcs 100mm .W0103 x 4pcs | .W0011 x 4pcs | 80mm .W0083 x 4pcs | |||||||||||||
£ 641.74 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Thread & Slot size M10 x 10 Box l x w x h 355x225x47 Step blocks .W0001 x 4pcs
.W0002 x 4pcs
.W0003 x 2pcs T-Bolts 63mm .W0102 x 4pcs
100mm .W0103 x 4pcs Step clamps .W0011 x 4pcs Studs 80mm .W0083 x 4pcs | |||||||||||||||||||
| 19200.W0012 | M12 x 12 | 359x333x52 | .W0002 x 4pcs .W0003 x 4pcs | 80mm .W0123 x 4pcs 125mm .W0124 x 4pcs | .W0014 x 4pcs | 100mm .W0124 x 4pcs | |||||||||||||
£ 719.91 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Thread & Slot size M12 x 12 Box l x w x h 359x333x52 Step blocks .W0002 x 4pcs
.W0003 x 4pcs T-Bolts 80mm .W0123 x 4pcs
125mm .W0124 x 4pcs Step clamps .W0014 x 4pcs Studs 100mm .W0124 x 4pcs | |||||||||||||||||||
| 19200.W0014 | M12 x 14 | 359x333x52 | .W0002 x 4pcs .W0003 x 4pcs | 80mm .W0123 x 4pcs 125mm .W0124 x 4pcs | .W0014 x 4pcs | 100mm .W0124 x 4pcs | |||||||||||||
£ 729.50 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Thread & Slot size M12 x 14 Box l x w x h 359x333x52 Step blocks .W0002 x 4pcs
.W0003 x 4pcs T-Bolts 80mm .W0123 x 4pcs
125mm .W0124 x 4pcs Step clamps .W0014 x 4pcs Studs 100mm .W0124 x 4pcs | |||||||||||||||||||
| 19200.W0016 | M16 x 16 | 390x415x55 | .W0002 x 4pcs .W0003 x 4pcs | 100mm .W0167 x 4pcs 160mm .W0168 x 4pcs | .W0018 x 4pcs | 125mm .W0164 x 4pcs | |||||||||||||
£ 942.03 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Thread & Slot size M16 x 16 Box l x w x h 390x415x55 Step blocks .W0002 x 4pcs
.W0003 x 4pcs T-Bolts 100mm .W0167 x 4pcs
160mm .W0168 x 4pcs Step clamps .W0018 x 4pcs Studs 125mm .W0164 x 4pcs | |||||||||||||||||||
| 19200.W0018 | M16 x 18 | 390x415x55 | .W0002 x 4pcs .W0003 x 4pcs | 100mm .W0183 x 4pcs 160mm .W0184 x 4pcs | .W0018 x 4pcs | 125mm .W0164 x 4pcs | |||||||||||||
£ 957.12 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Thread & Slot size M16 x 18 Box l x w x h 390x415x55 Step blocks .W0002 x 4pcs
.W0003 x 4pcs T-Bolts 100mm .W0183 x 4pcs
160mm .W0184 x 4pcs Step clamps .W0018 x 4pcs Studs 125mm .W0164 x 4pcs | |||||||||||||||||||
| 19200.W0020 | M20 x 20 | 480x528x60 | .W0002 x 4pcs .W0003 x 4pcs | 125mm .W0203 x 4pcs 200mm .W0205 x 4pcs | .W0022 x 4pcs | 125mm .W0202 x 4pcs | |||||||||||||
£ 1,232.72 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Thread & Slot size M20 x 20 Box l x w x h 480x528x60 Step blocks .W0002 x 4pcs
.W0003 x 4pcs T-Bolts 125mm .W0203 x 4pcs
200mm .W0205 x 4pcs Step clamps .W0022 x 4pcs Studs 125mm .W0202 x 4pcs | |||||||||||||||||||
| 19200.W0022 | M20 x 22 | 480x528x60 | .W0002 x 4pcs .W0003 x 4pcs | 125mm .W0223 x 4pcs 200mm .W0225 x 4pcs | .W0022 x 4pcs | 125mm .W0202 x 4pcs | |||||||||||||
£ 1,247.81 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Thread & Slot size M20 x 22 Box l x w x h 480x528x60 Step blocks .W0002 x 4pcs
.W0003 x 4pcs T-Bolts 125mm .W0223 x 4pcs
200mm .W0225 x 4pcs Step clamps .W0022 x 4pcs Studs 125mm .W0202 x 4pcs | |||||||||||||||||||
| 19200.W0024 | M20 x 24 | 480x528x60 | .W0002 x 4pcs .W0003 x 4pcs | - | .W0022 x 4pcs | 125mm .W0202 x 8pcs 200mm .W0204 x 4pcs | |||||||||||||
£ 1,251.91 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Thread & Slot size M20 x 24 Box l x w x h 480x528x60 Step blocks .W0002 x 4pcs
.W0003 x 4pcs T-Bolts - Step clamps .W0022 x 4pcs Studs 125mm .W0202 x 8pcs
200mm .W0204 x 4pcs | |||||||||||||||||||
Weight
kg
T-nuts 24000
Fixture nuts 24300
Extension nuts 24600
Dished washers 25700
T-Slot scrapper 26300
Clamp Support 26000
Spanner
Thread paste
| Price & Availability | Article | Weight kg | T-nuts | Fixture nuts | Extension nuts | Dished washers | T-Slot scrapper | Clamp Support | Spanner | Thread paste | ||||||||||||
| 19200.W0010 | 6.5 | - | .W0110 x 6pcs | .W0110 x 4pcs | .W0110 x 6pcs | - | .W0101 x 4pcs | 16 x 1pc | 1pc | |||||||||||||
£ 641.74 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
kg 6.5 T-nuts - Fixture nuts .W0110 x 6pcs Extension nuts .W0110 x 4pcs Dished washers .W0110 x 6pcs T-Slot scrapper - Clamp Support .W0101 x 4pcs Spanner 16 x 1pc Thread paste 1pc | ||||||||||||||||||||||
| 19200.W0012 | 11.0 | - | .W0112 x 4pcs | .W0112 x 4pcs | .W0112 x 6pcs | - | .W0102 x 4pcs | 18 x 1pc | 1pc | |||||||||||||
£ 719.91 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
kg 11.0 T-nuts - Fixture nuts .W0112 x 4pcs Extension nuts .W0112 x 4pcs Dished washers .W0112 x 6pcs T-Slot scrapper - Clamp Support .W0102 x 4pcs Spanner 18 x 1pc Thread paste 1pc | ||||||||||||||||||||||
| 19200.W0014 | 11.1 | - | .W0112 x 4pcs | .W0112 x 4pcs | .W0112 x 6pcs | .W0120 x 1pc | .W0102 x 4pcs | 18 x 1pc | 1pc | |||||||||||||
£ 729.50 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
kg 11.1 T-nuts - Fixture nuts .W0112 x 4pcs Extension nuts .W0112 x 4pcs Dished washers .W0112 x 6pcs T-Slot scrapper .W0120 x 1pc Clamp Support .W0102 x 4pcs Spanner 18 x 1pc Thread paste 1pc | ||||||||||||||||||||||
| 19200.W0016 | 16.5 | - | .W0116 x 4pcs | .W0116 x 4pcs | .W0116 x 6pcs | .W0120 x 1pc | .W0103 x 4pcs | 24 x 1pc | 1pc | |||||||||||||
£ 942.03 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
kg 16.5 T-nuts - Fixture nuts .W0116 x 4pcs Extension nuts .W0116 x 4pcs Dished washers .W0116 x 6pcs T-Slot scrapper .W0120 x 1pc Clamp Support .W0103 x 4pcs Spanner 24 x 1pc Thread paste 1pc | ||||||||||||||||||||||
| 19200.W0018 | 16.5 | - | .W0116 x 4pcs | .W0116 x 4pcs | .W0116 x 6pcs | .W0120 x 1pc | .W0103 x 4pcs | 24 x 1pc | 1pc | |||||||||||||
£ 957.12 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
kg 16.5 T-nuts - Fixture nuts .W0116 x 4pcs Extension nuts .W0116 x 4pcs Dished washers .W0116 x 6pcs T-Slot scrapper .W0120 x 1pc Clamp Support .W0103 x 4pcs Spanner 24 x 1pc Thread paste 1pc | ||||||||||||||||||||||
| 19200.W0020 | 24.5 | - | .W0120 x 6pcs | .W0120 x 4pcs | .W0120 x 6pcs | .W0120 x 1pc | .W0104 x 4pcs | 30 x 1pc | 1pc | |||||||||||||
£ 1,232.72 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
kg 24.5 T-nuts - Fixture nuts .W0120 x 6pcs Extension nuts .W0120 x 4pcs Dished washers .W0120 x 6pcs T-Slot scrapper .W0120 x 1pc Clamp Support .W0104 x 4pcs Spanner 30 x 1pc Thread paste 1pc | ||||||||||||||||||||||
| 19200.W0022 | 24.5 | - | .W0120 x 6pcs | .W0120 x 4pcs | .W0120 x 6pcs | .W0132 x 1pc | .W0104 x 4pcs | 30 x 1pc | 1pc | |||||||||||||
£ 1,247.81 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
kg 24.5 T-nuts - Fixture nuts .W0120 x 6pcs Extension nuts .W0120 x 4pcs Dished washers .W0120 x 6pcs T-Slot scrapper .W0132 x 1pc Clamp Support .W0104 x 4pcs Spanner 30 x 1pc Thread paste 1pc | ||||||||||||||||||||||
| 19200.W0024 | 24.8 | .W0242 x 8pcs | .W0120 x 6pcs | .W0120 x 4pcs | .W0120 x 6pcs | .W0132 x 1pc | .W0104 x 4pcs | 30 x 1pc | 1pc | |||||||||||||
£ 1,251.91 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
kg 24.8 T-nuts .W0242 x 8pcs Fixture nuts .W0120 x 6pcs Extension nuts .W0120 x 4pcs Dished washers .W0120 x 6pcs T-Slot scrapper .W0132 x 1pc Clamp Support .W0104 x 4pcs Spanner 30 x 1pc Thread paste 1pc | ||||||||||||||||||||||
Technical & Application
Technical Notes
High quality clamping set for machines. Comprising step clamps no. 10200 and step blocks no. 14000. High quality T-bolts and studs (class 8 or class 10). With spring clamp supports.
