Clamping - Sets
with low height clamps

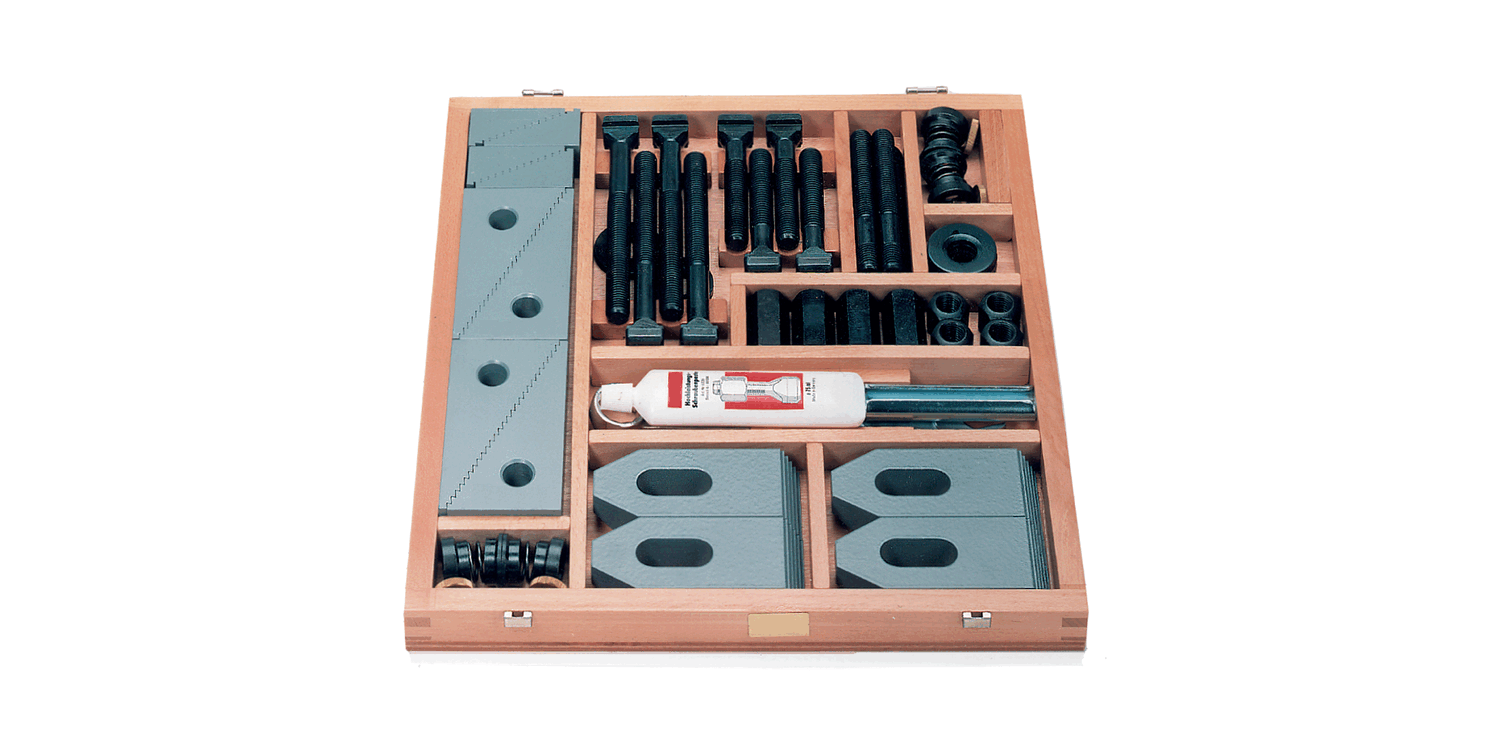

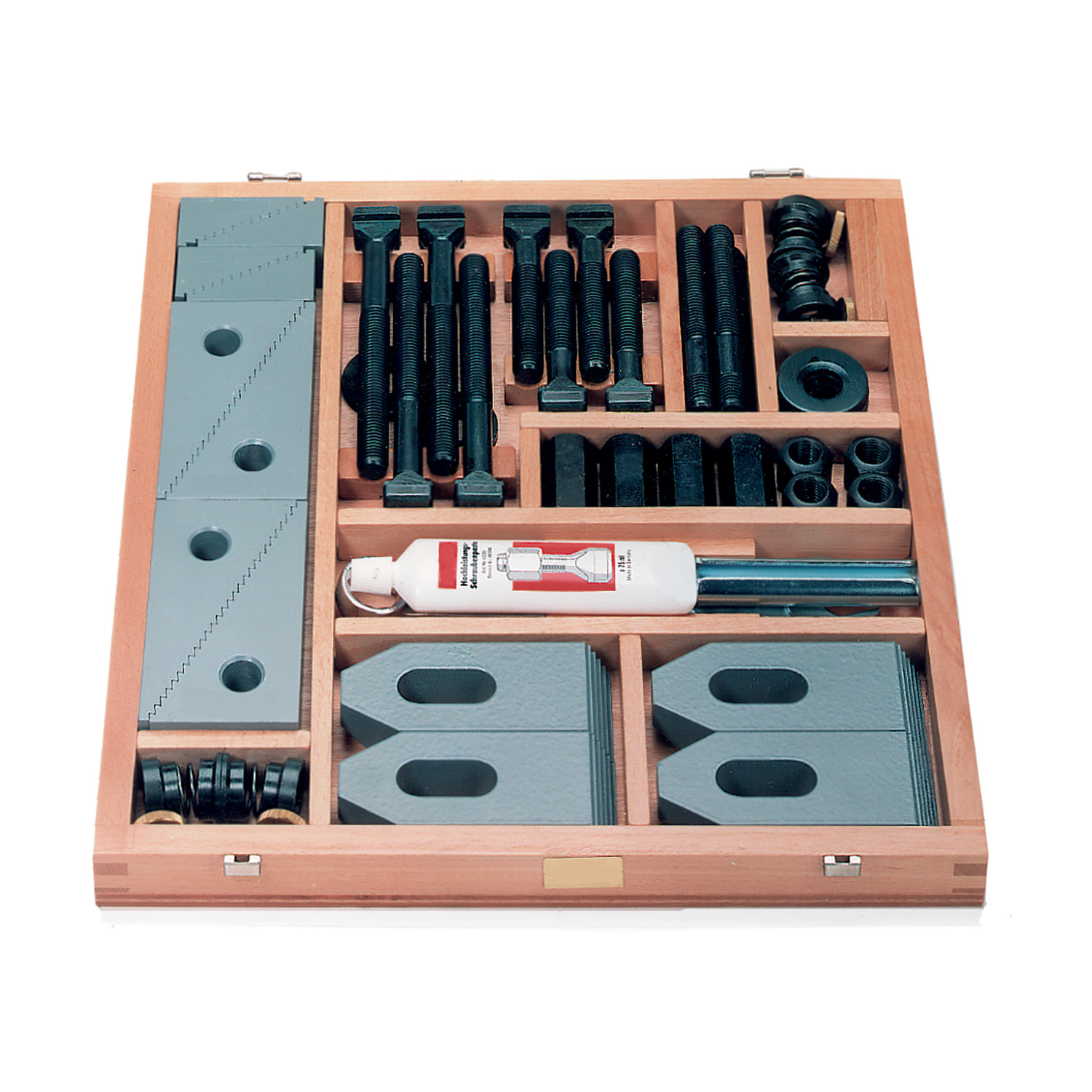

19200 Clamping Sets
with stop clamps 10020, material: Steel
Order No.
19200.W0018
Thread & Slot size
M16 x 18
Box l x w x h
390x415x55
Step blocks 14000
.W0002 x 4pcs
.W0003 x 4pcs
T-Bolts 21000
100mm .W0183 x 4pcs
160mm .W0184 x 4pcs
Step clamps 10020
.W0018 x 4pcs
Studs 21100
125mm .W0164 x 4pcs
Weight
kg
16.5
T-nuts 24000
-
Fixture nuts 24300
.W0116 x 4pcs
Extension nuts 24600
.W0116 x 4pcs
Dished washers 25700
.W0116 x 6pcs
T-Slot scrapper 26300
.W0120 x 1pc
Clamp Support 26000
.W0103 x 4pcs
Spanner
24 x 1pc
Thread paste
1pc
£ 995.40 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-2 | £ 995.40 | 0% |
| 3-4 | £ 895.86 | 10% |
| 5+ | £ 846.09 | 15% |
Technical & Application
Technical Notes
High quality clamping set for machines. Comprising step clamps no. 10200 and step blocks no. 14000. High quality T-bolts and studs (class 8 or class 10). With spring clamp supports.
