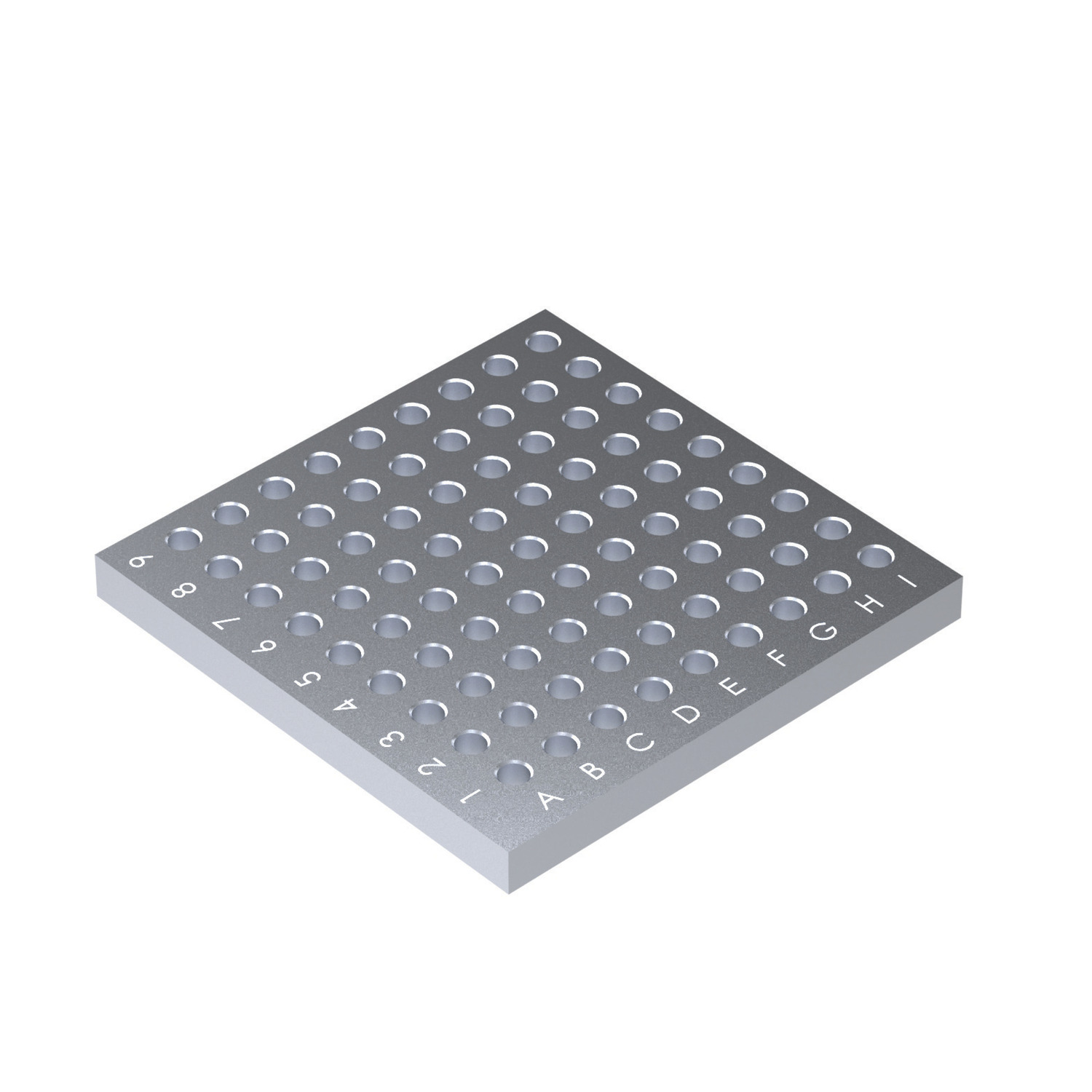

19300 Fixture Plates for CMMs

Name: 19300.W3030
Brand: WC
SKU: 19300.W3030

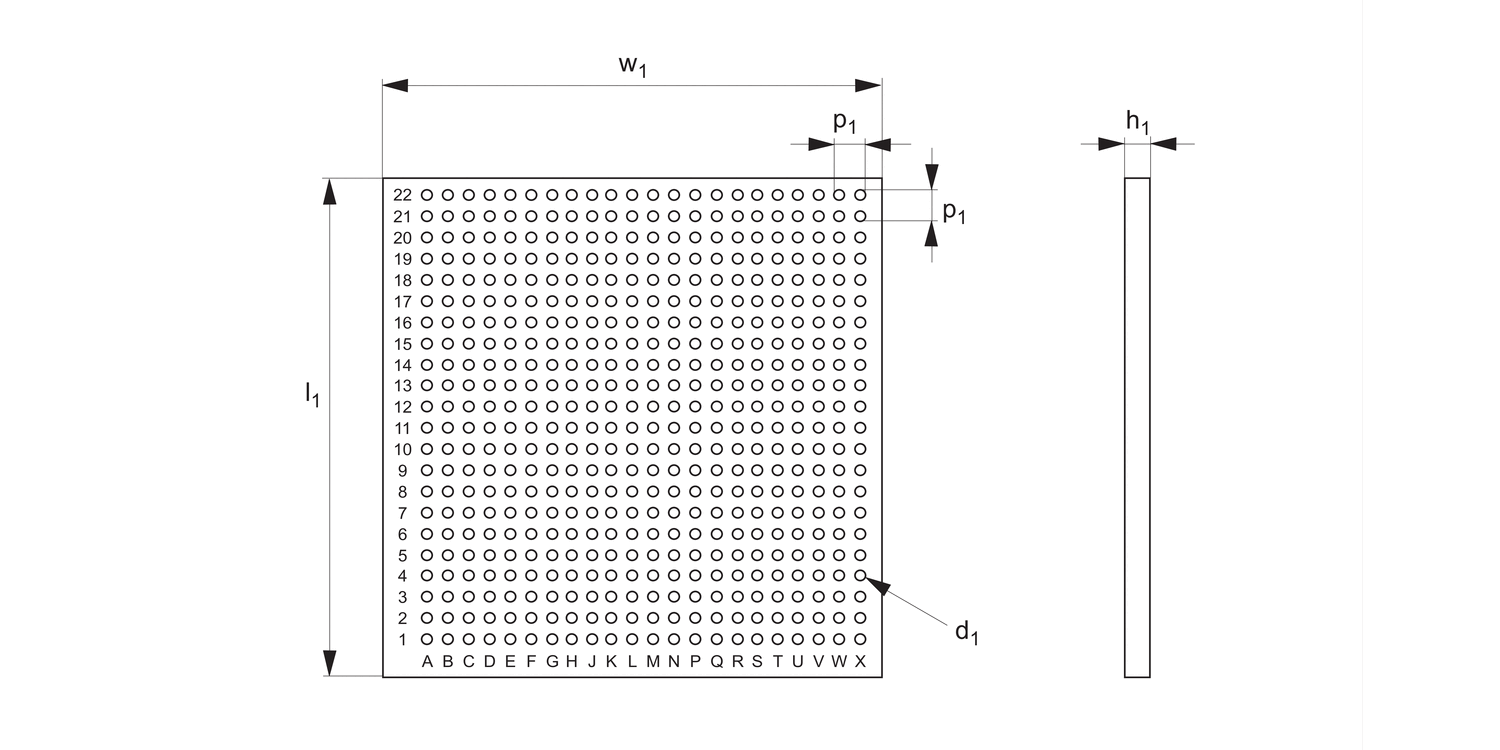

M 8 threads, material: Aluminium

Article properties

Order No.

19300.W3030

l₁

300

d₁

M 8

w₁

300

p₁

h₁

See full product selection

Ready to despatch 0
Need more? Manufactured within 14 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-2	-	0%
3-4	-	5%
5-9	-	10%
10+	-	15%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Aluminium, hard anodized (black).

Technical Notes

CMM fixture plates can be mounted to the surface plate of your CMM by using step blocks and clamps or by drilling mounting holes into the plate which correspond to the inserts on your surface plate.

Tips

Soft touch clamps 19320 are perfect for clamping in CMM fixturing applications.
