6" Single Station Parlec Vice
machinable jaws
19751 8" Single Station Parlec Vice
machinable jaws, material: Ductile iron
Order No.
19751.W0008
Type
Single Station
Style
Machinable Jaws
Clamping pressure
max.
lb
12000

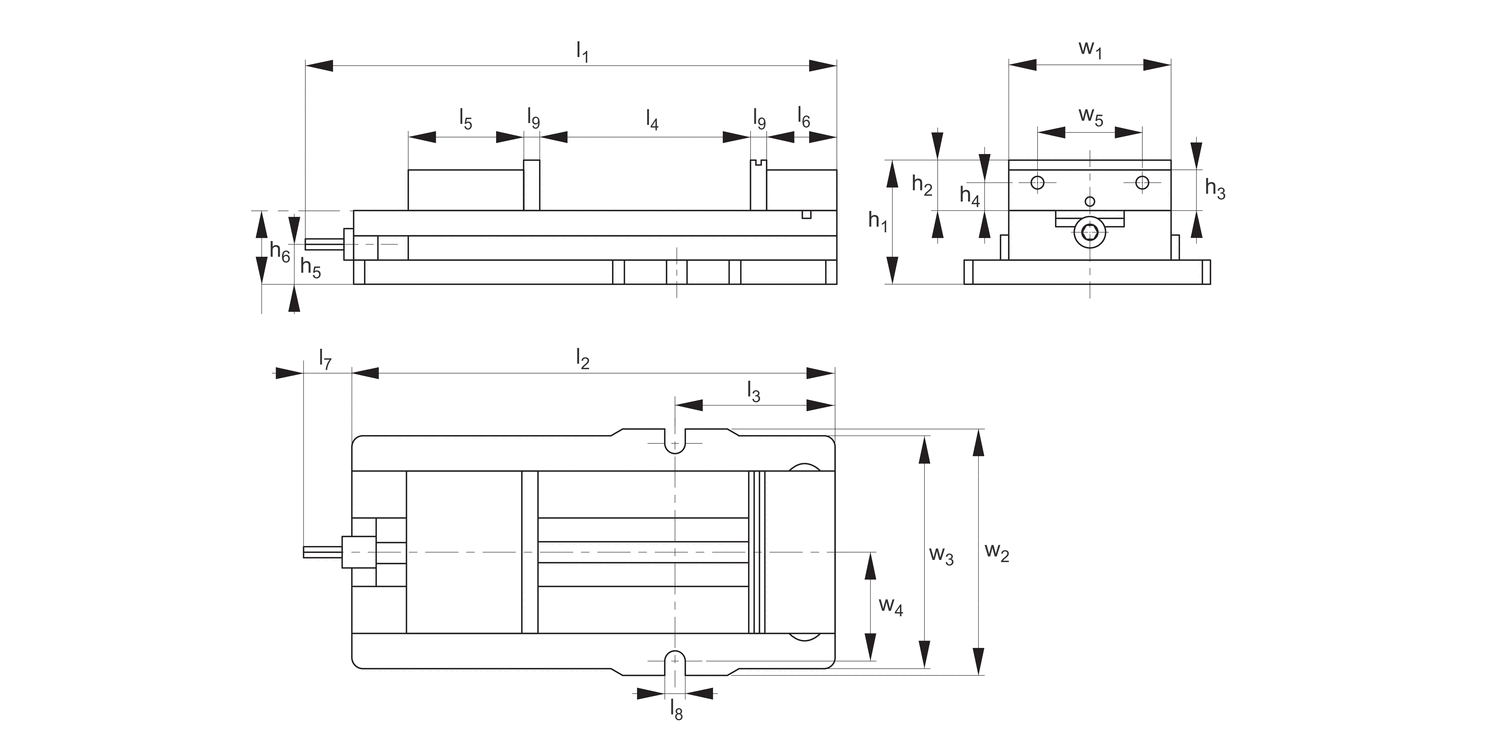

h1
5.51
l1
24.47
w1
8
h2
2.2
h3
1.565
h4
1.22
h5
1.655
Weight
lb
175
h6
3.31
l2
21.61
l3
8.34
l4
max.
11
l5
5.75
l6
3.681
l7
2.66
l8
0.875
l9
1.075
w2
11.5
w3
11
w4
4.94
w5
4.75
£ 3,113.44 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 3,113.44 | 0% |
| 5-9 | £ 2,957.77 | 5% |
| 10-19 | £ 2,802.10 | 10% |
| 20-49 | £ 2,646.42 | 15% |
| 50+ | £ 2,335.08 | 25% |
Technical & Application
Material
Ductile iron. Powder coated paint resists flaking and peeling. 80000 psi ductile iron body with increased nickel content for improved corrosion resistance.
Technical Notes
Hardened vice base and jaw plates. Sealed and lubricated needle roller thrust bearing for maximum life and minimum torque.
Up to 12000lbs. (53379N) of clamping force. Repeatability within 0,001" (0,025mm). Outside rails of body are machined within 0,0005" (0,013mm) square to jaw. Bed height matched to size 3.310" ±0,0005" (84,07mm ±0,013mm). Footprint and distance from the keyway to stationary jaw meets industry standard.
Important Notes
All dimensions are in inches.
