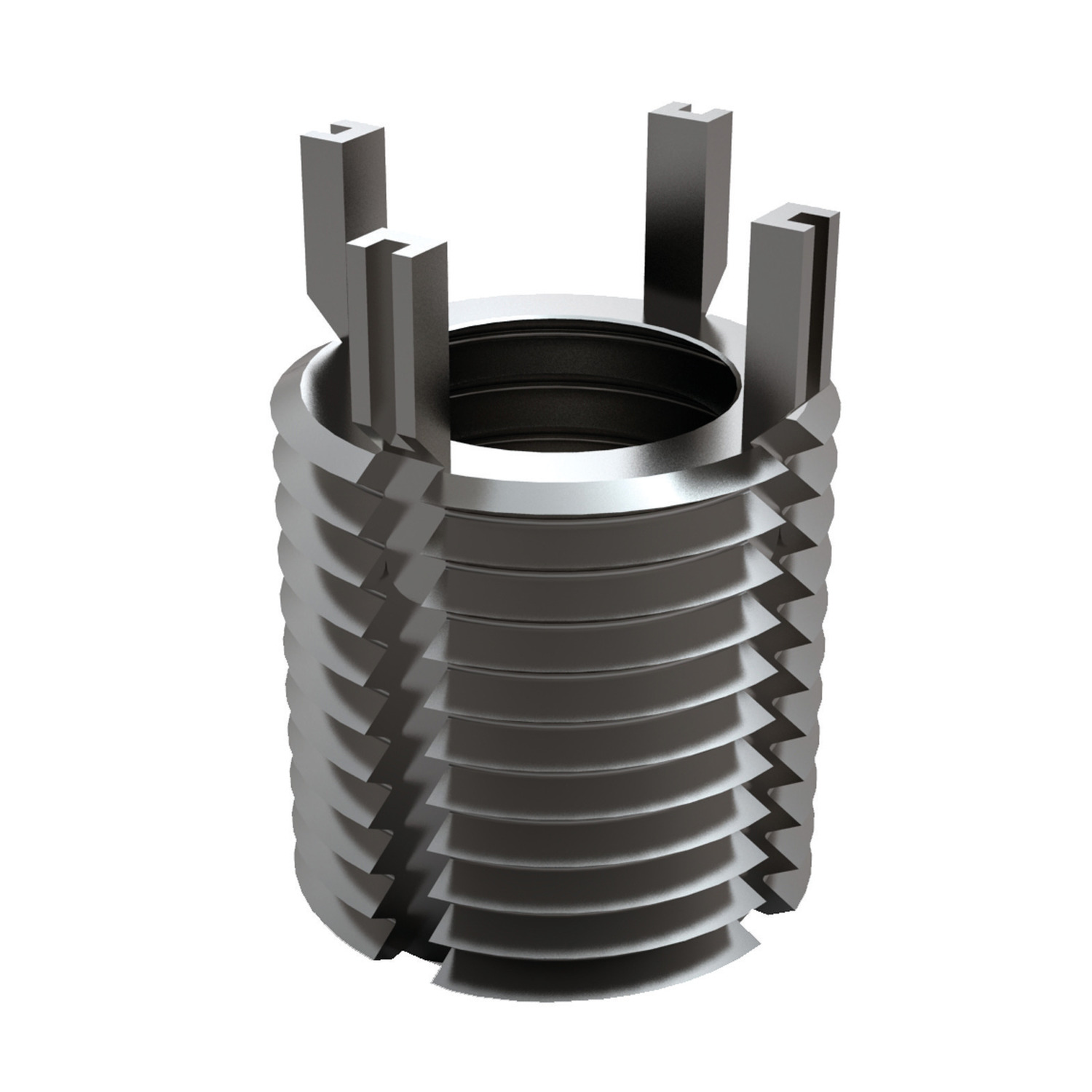

22022 Threaded Insert - Inch
heavy duty - stainless steel, material: stainless steel
Order No.
22022.W5081
Int. d1
tol. 2B
5/8"-18
Int. thread type d1
UNF
Ext. d2
tol. 2A
7/8"-14
Ext. thread type d2
UNF
l1
0.87
.W0080
Inst. tap drill size
53/64"
Inst. c'sink dia.
+0.010|-0.000
0.88
Inst. thread tap
tol. 2B
7/8"-14
Inst. thread depth
min.
1.00
Removal drill size
25/32"
Removal drill depth
5/16"
£ 17.84 per unit (click for quantity discounts)
Ready to despatch 9
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 17.84 | 0% |
| 10-19 | £ 16.06 | 10% |
| 20-49 | £ 15.16 | 15% |
| 50-99 | £ 14.27 | 20% |
| 100-499 | £ 11.60 | 35% |
| 500-999 | £ 10.70 | 40% |
| 1000+ | £ 8.03 | 55% |
Technical & Application
Material
Inserts: stainless steel (AISI 303) or equivalent. Passivated.
Keys: stainless steel (302 CRES) or equivalent. Passivated.
Technical Notes
General tolerances:
± 0,010" unless specified.
Tap drill hole tolerances:
0,234 to 0,500 = +0,004/-0,001".
0,500 and over = +0,005/-0,001".
Tips

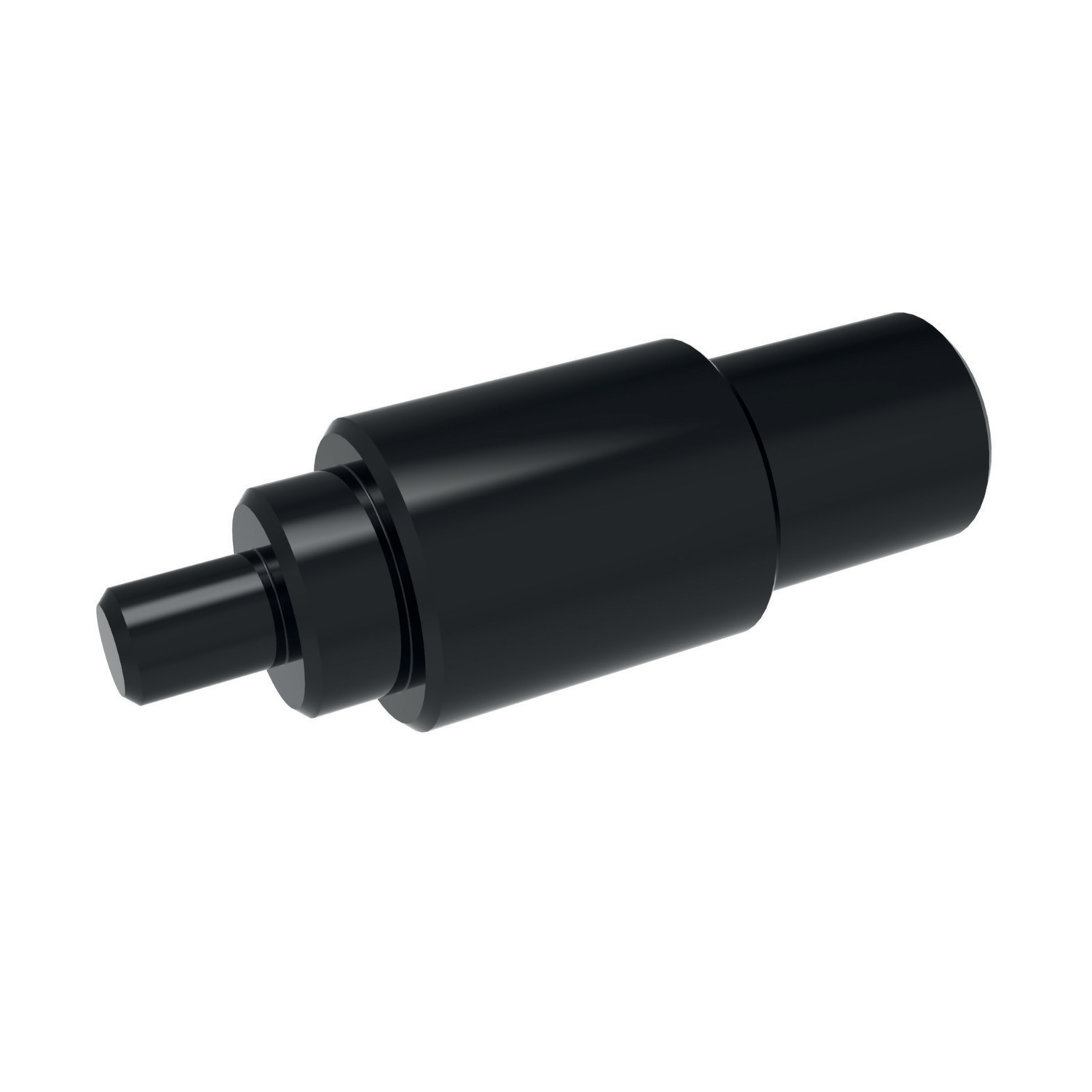

Order installation tool separately, as identified by "Inst. tool ref." in table.
Important Notes

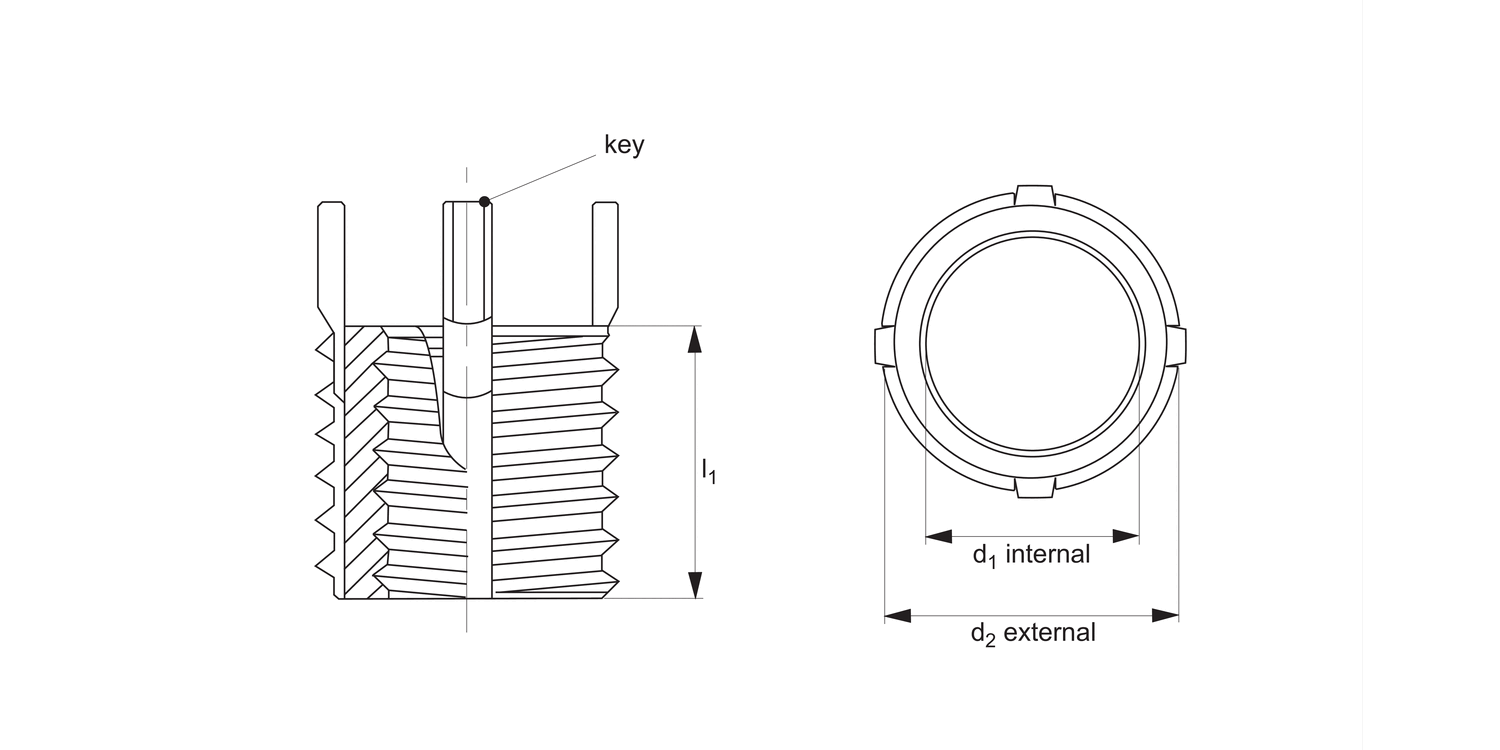

Four locking keys on internal threads 5/16" and over. Two locking keys on internal threads smaller than 5/16".
Installation (Inst.) drill size, countersink, thread tap and thread depth as specified in table.
Removal drill size and drill depth as specified in table.
All dimensions in inches.
