Precision Indexer
with cylindrical pin
32480 Index Plungers - Precision
tapered pin, material: Case Hardened steel
Order No.
32480.W0194
Type
Tapered Bush
Dia. Ø
nom.
20
d1
15.49
d2
33
d3
tol. n6
30
d4
-
d5
-
l1
min.
16
l2
13.0
l3
-
l4
-
l5
-
l6
-
Spring load F1
≈
N
-
Spring load F2
≈
N
-
Weight
g
60
£ 41.18 per unit (click for quantity discounts)
Ready to despatch 4
Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-2 | £ 41.18 | 0% |
| 3-4 | £ 39.12 | 5% |
| 5-9 | £ 37.06 | 10% |
| 10+ | £ 35.00 | 15% |
Technical & Application
Material
Pin, body & bush: case hardened steel, blackened and ground.
Grip: thermoplastic, black.
Technical Notes

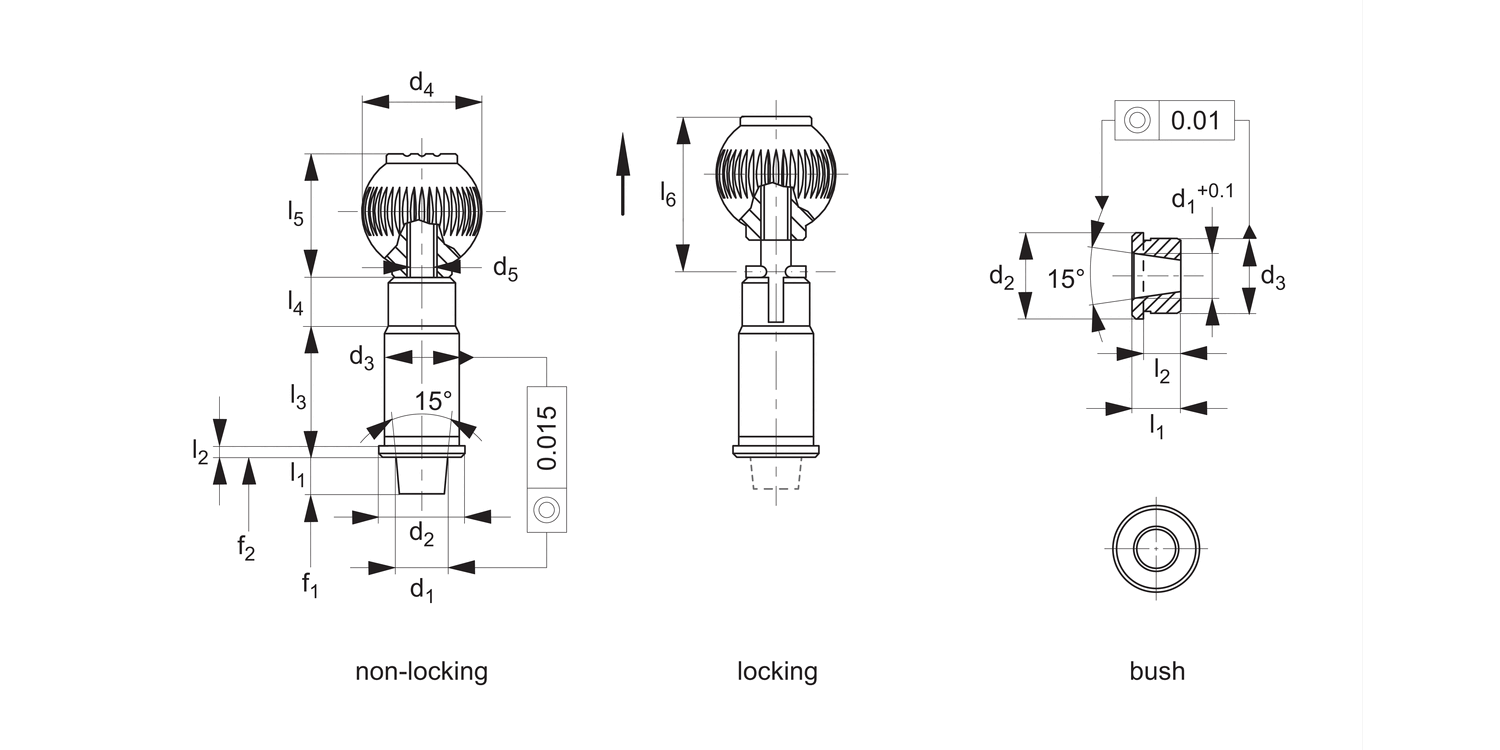

Supplied part assembled to enable precise setting, grip and body must be glued after mounting. Non removable once installed.
"Locking" type - enable pin to be held in retracted/non-projecting position; pull back grip, turn 90° to engage 'locking' on a notched catch.
"Non Locking" type - pin simply springs back when grip released.
Tips

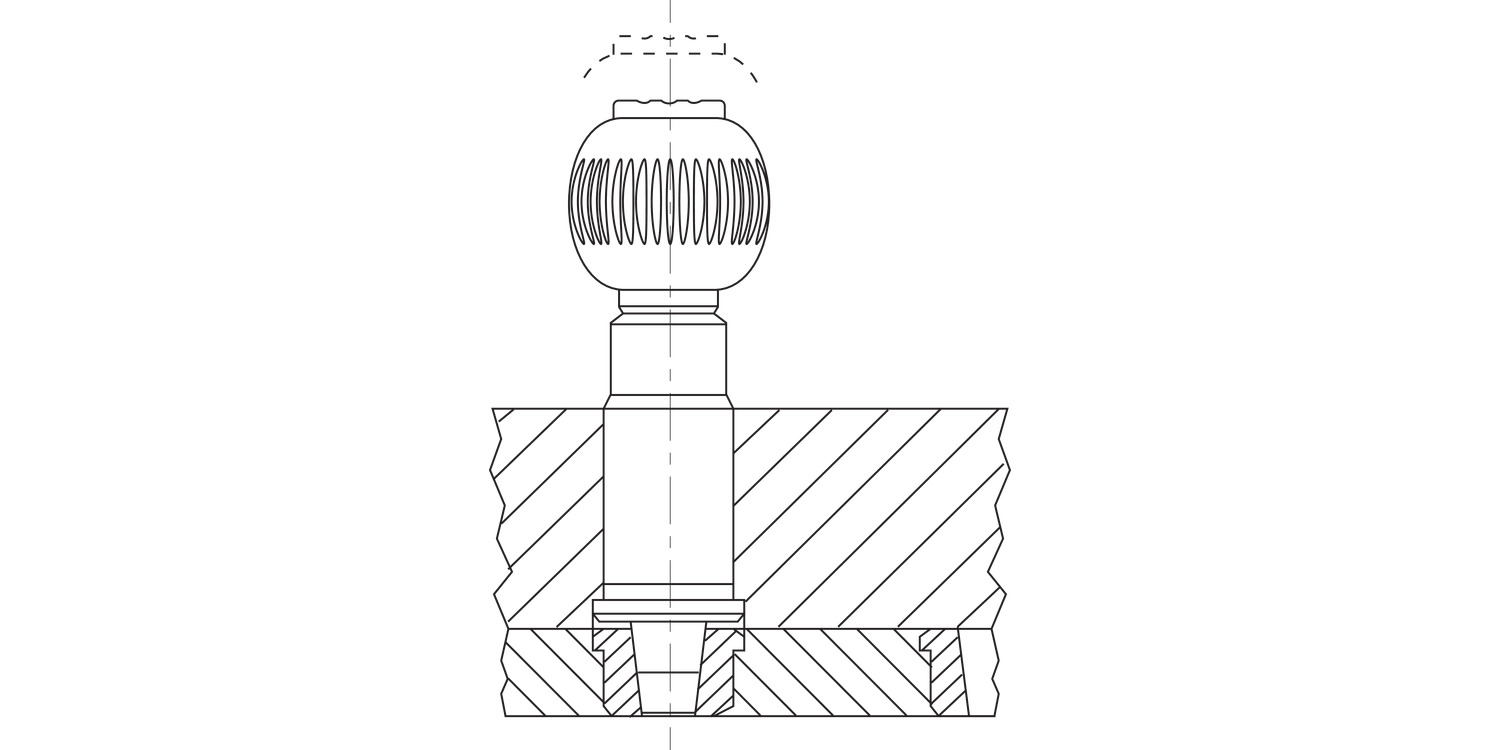

When used for alignment of two sub-plates, the plunger's precise finish on pin allows easier alignment of pin and bushing.
Spring loads * = statistical average.
