Index Plunger
simple, with pull-ring

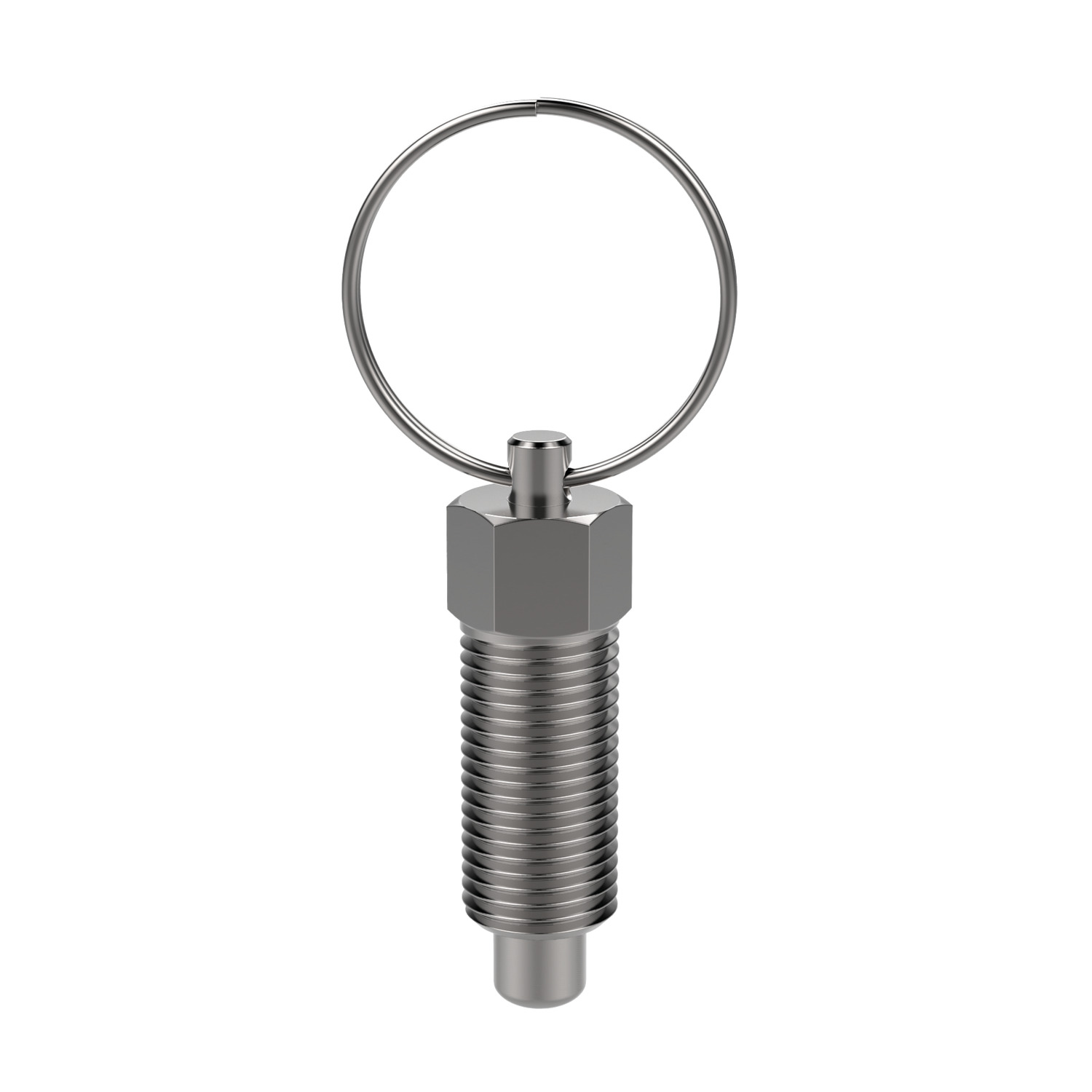

32550 Index Plungers - Pull Ring
non-locking - coarse thread, material: Free cutting steel
Order No.
32550.W0728
Type
Non Locking

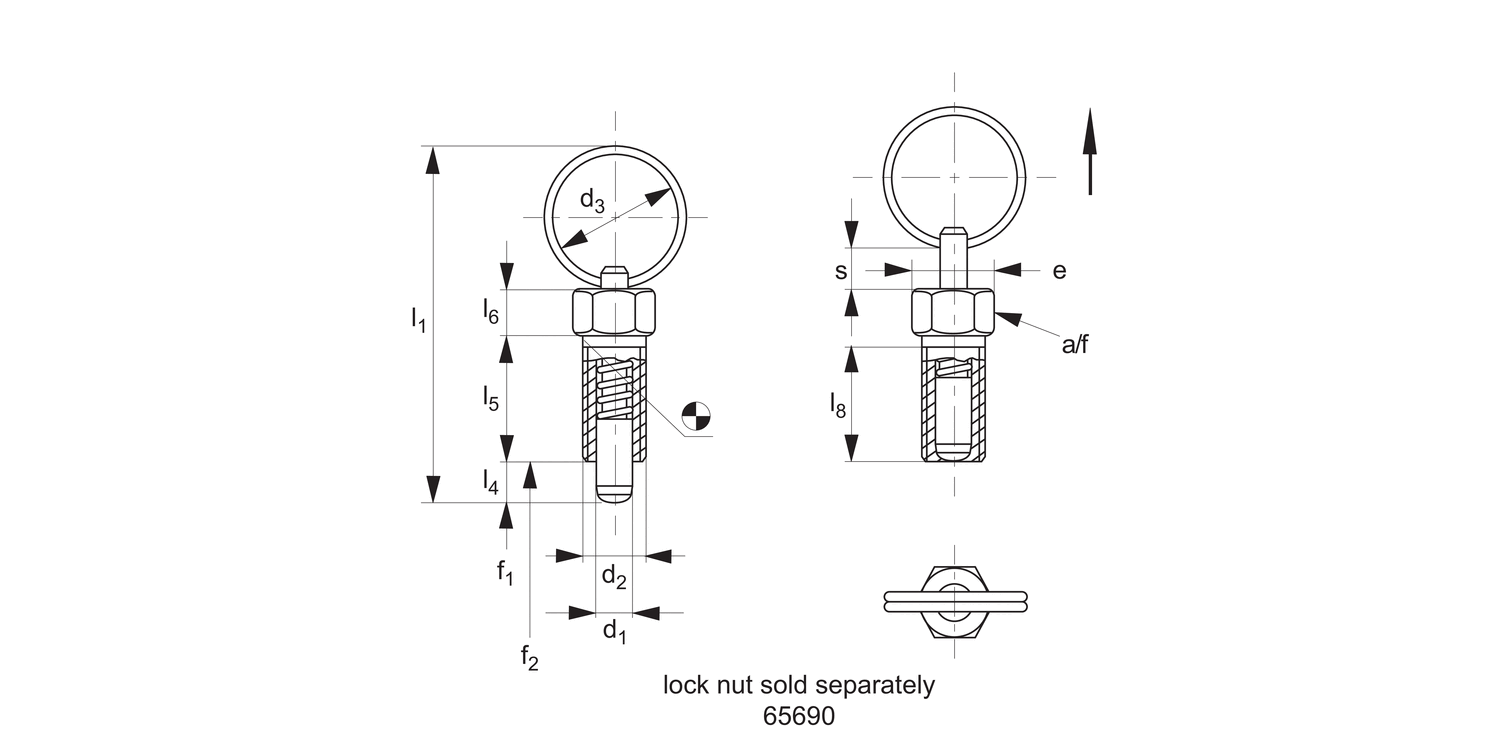

d1
tol. h9
8
d2
M12x1,75
d3
30
e
13.8
l1
71.0
l4 =s
min.
8
l5
24
l6
9.0
l8
20.5
A/F
12
Spring load F1
≈
N
6
Spring load F2
≈
N
22
Tightening torque
max.
Nm
20
Weight
g
31.0
£ 9.82 per unit (click for quantity discounts)
Ready to despatch 17
Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 9.82 | 0% |
| 10-19 | £ 8.84 | 10% |
| 20-49 | £ 8.35 | 15% |
| 50-99 | £ 7.86 | 20% |
| 100+ | £ 7.37 | 25% |
Technical & Application
Material
Body: free cutting steel, galvanized.
Pin: stainless steel 1.4305 (AISI 303).
Pull Ring: stainless steel 1.4310 (AISI 301).
Technical Notes
For applications where high precision is not required.
Coarse thread.
Temperature resistance up to 250ºC
Lock nuts sold separately. See product 65690.
Tips
Spring loads * = statistical average
