Gripping Pads
rear fixing - stainless body

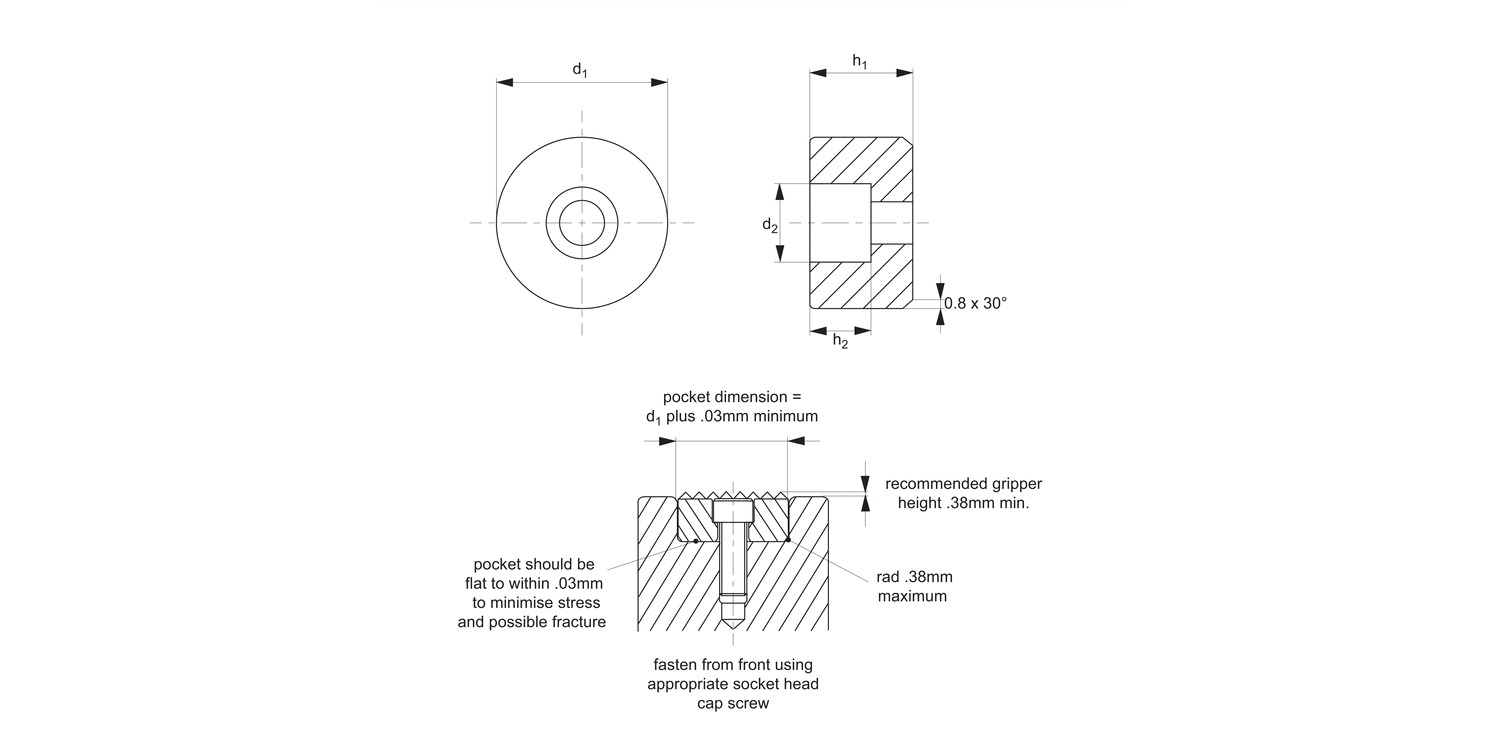

35632 Gripping Pads - Diamond Coated
stainless - round - front fixing, material: Stainless steel
Order No.
35632.W1252
d1
+0.00|-0.13
12
d2 to fit DIN 912
M 4
h1
+0.00|-0.13
12
h2
5.6
£ 36.35 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 36.35 | 0% |
| 10-19 | £ 32.72 | 10% |
| 20-49 | £ 30.90 | 15% |
| 50-99 | £ 29.08 | 20% |
| 100+ | £ 25.45 | 30% |
Technical & Application
Material
Stainless steel (AISI 630, precipitation-hardened), heat treated to HRc 43-46.
Technical Notes
Permanently fused diamond powder creates an abrasive surface comparable to 100 grit abrasive value. Ideal for holding smooth or slippery components with a minimum of clamping pressure, and minimal surface marking. Excellent wear resistance.
