Toggle Clamps
vertical - open arm - horizontal

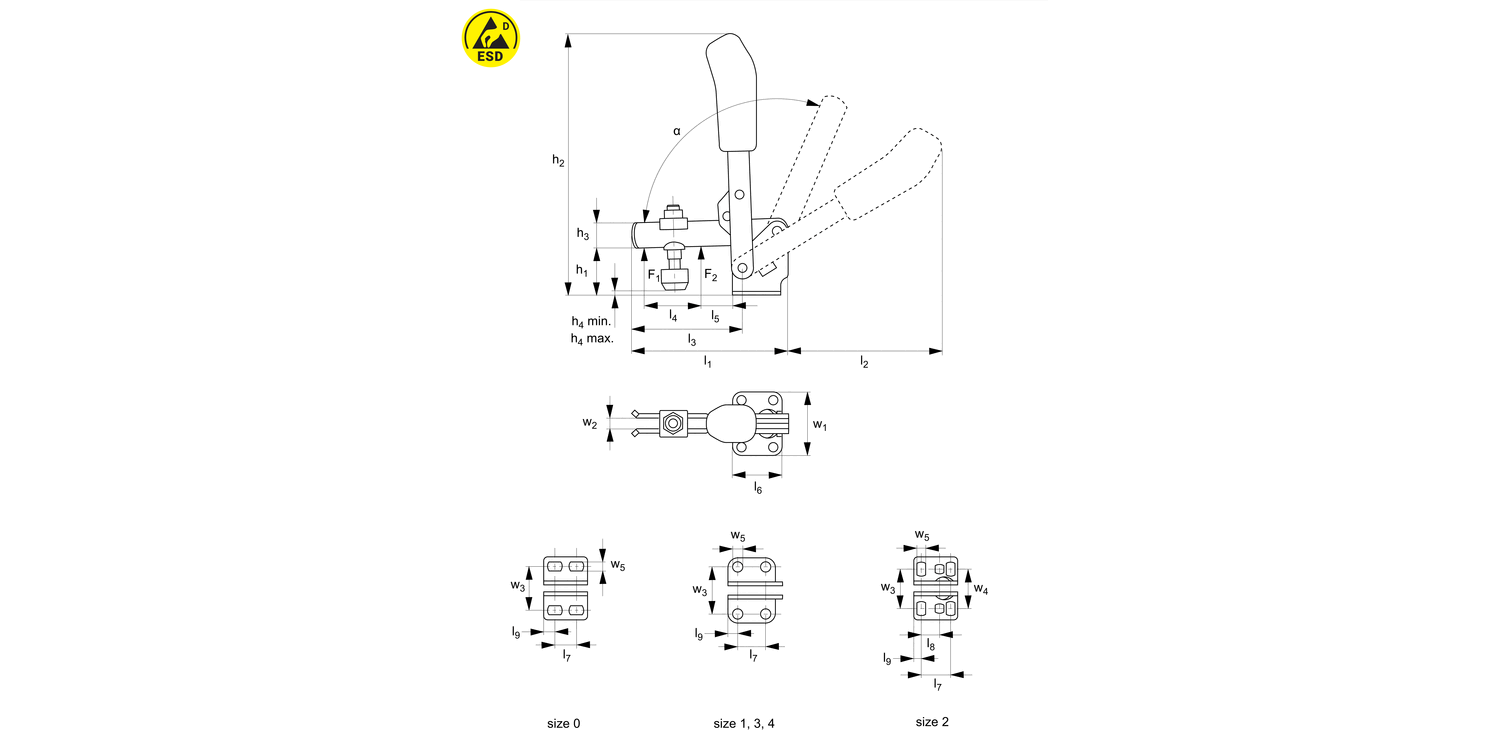

40000.3 Vertical Acting Toggle Clamps
ESD - open arm - horizontal base, material: Steel, zinc plated
Order No.
40000.W0201
Size
1
F1
kN
0.6
F2
kN
1.1
Clamping screw
M 5x30
h1
19
h2
98
h3
10
h4
min.
-4.0
h4
max.
2.0
l1
61
l2
58
l3
39
Weight
g
105
l4
18
l5
6
l6
27
l7
16.0
l8
-
l9
5.5
w1
34
w2
5
w3
22,5-26,0
w4
-
w5
4.5
α
95°
α*
-
£ 44.35 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 44.35 | 0% |
| 10-14 | £ 39.92 | 10% |
| 15-24 | £ 37.70 | 15% |
| 25-49 | £ 35.48 | 20% |
| 50+ | £ 31.05 | 30% |
Technical & Application
Material
Body: steel, zinc plated.
Rivets: stainless steel running in hardened bushings (sizes 2-3). Bearing positions are greased.
With protective cap and handle made of electrostatic conductive (dissipative) material. The handle is ergonomic, soft feel, oil-resistant and with large grip area. Safety clamping piece with finger protection, retainer for the clamping screw at the end of the clamping arm.

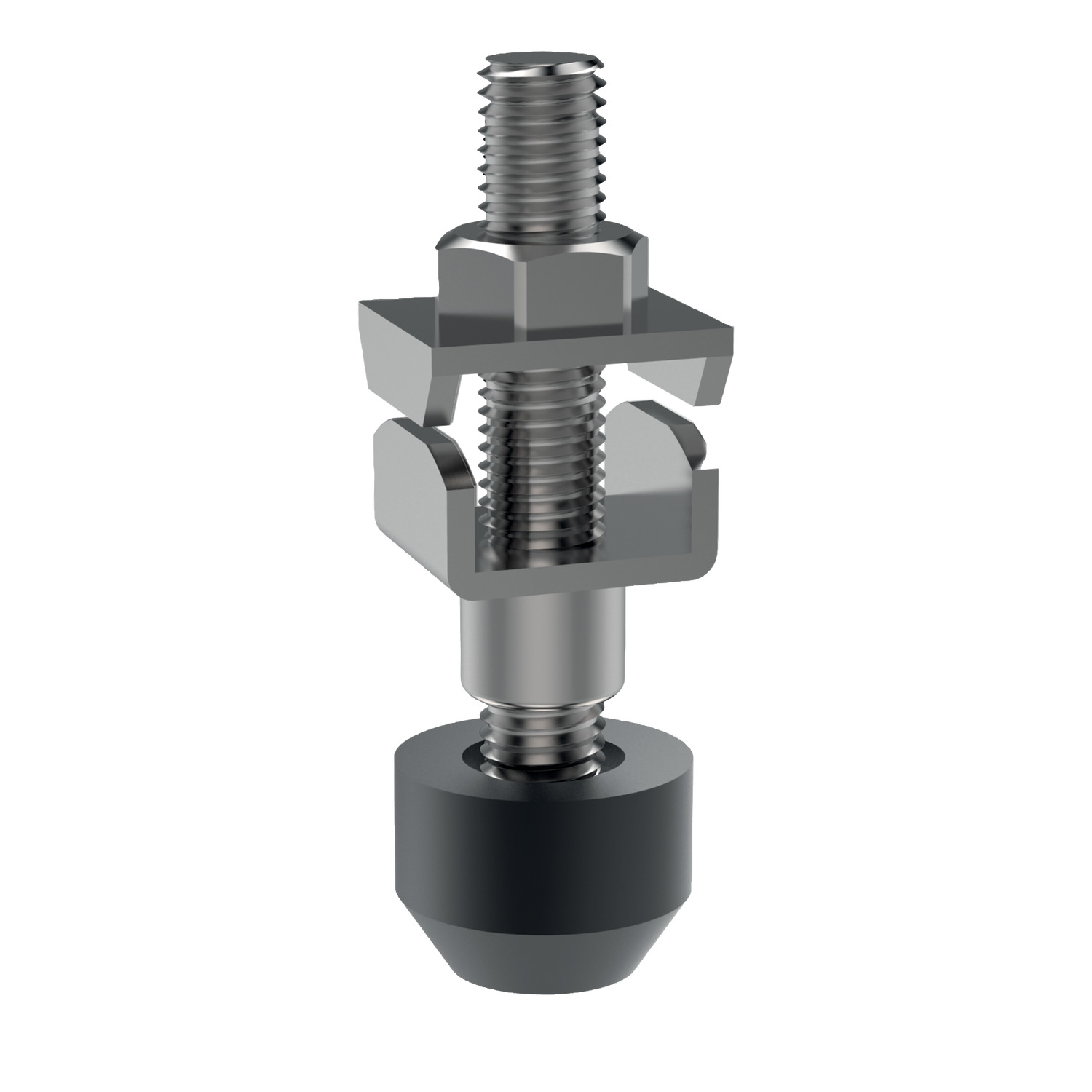

Complete with zinc plated and tempered clamping screw no. 45060.W0300- .W0303.
Technical Notes
Temperature range -10°C to +80°C.
The ESD (electrostatically sensitive devices) vertical clamp is non-insulating. It must not be used in areas where open voltages are used.
