Toggle Clamps
vertical - open arm - horizontal

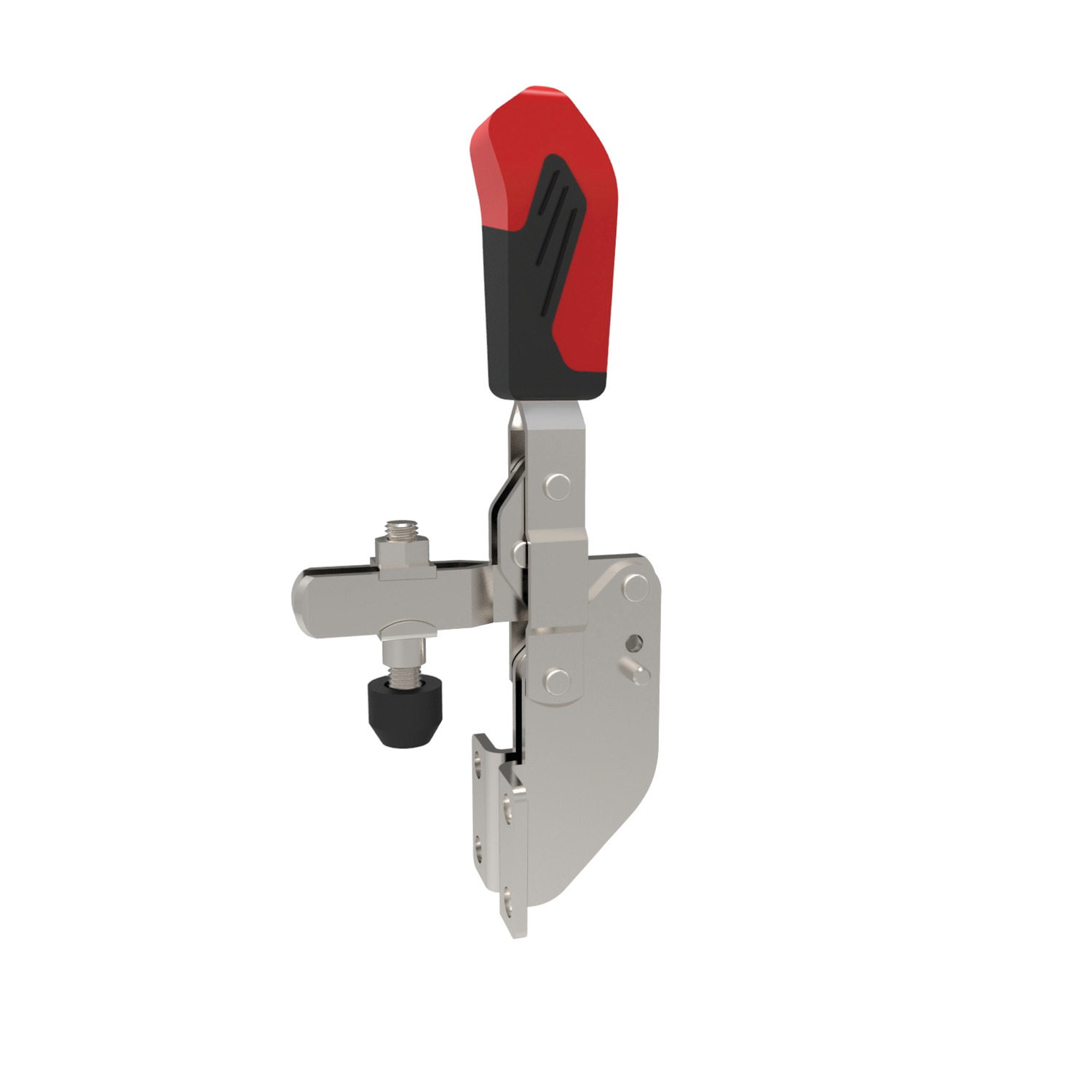

40000.4 Vertical Acting Toggle Clamps
stainless steel - open arm - horizontal base, material: Stainless steel
Order No.
40000.W0304
Size
4
F1
kN
1.7
F2
kN
3.0
Clamping screw
M 8x65
h1
42.5
h2
221
h3
20
h4
min.
-6.0
h4
max.
19.5
l1
141
l2
130
l3
101
Weight
g
630
l4
54
l5
16.0
l6
53
l7
32.0
l8
-
l9
13.0
w1
64
w2
10
w3
45
w4
-
w5
8.6
α
105°
α*
60°
£ 143.52 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 143.52 | 0% |
| 10-14 | £ 129.17 | 10% |
| 15-24 | £ 121.99 | 15% |
| 25-49 | £ 114.82 | 20% |
| 50+ | £ 100.46 | 30% |
Technical & Application
Material
Body: stainless steel (AISI 304, 1.4301). Rivets: stainless steel running in hardened bushes (sizes 2-4). Pre-lubricated bearings.
Ergonomic soft feel oil-resistant handle with large grip area.
Supplied complete with stainless clamping screw (with rubber pad).
Technical Notes
Opening angle (symbola/symbol/symbola/symbol*) can be changed by pressing in a stop pin on the clamp body.
Temperature range -10°C to +80°C.
