Toggle Clamps
vertical - open arm - horizontal

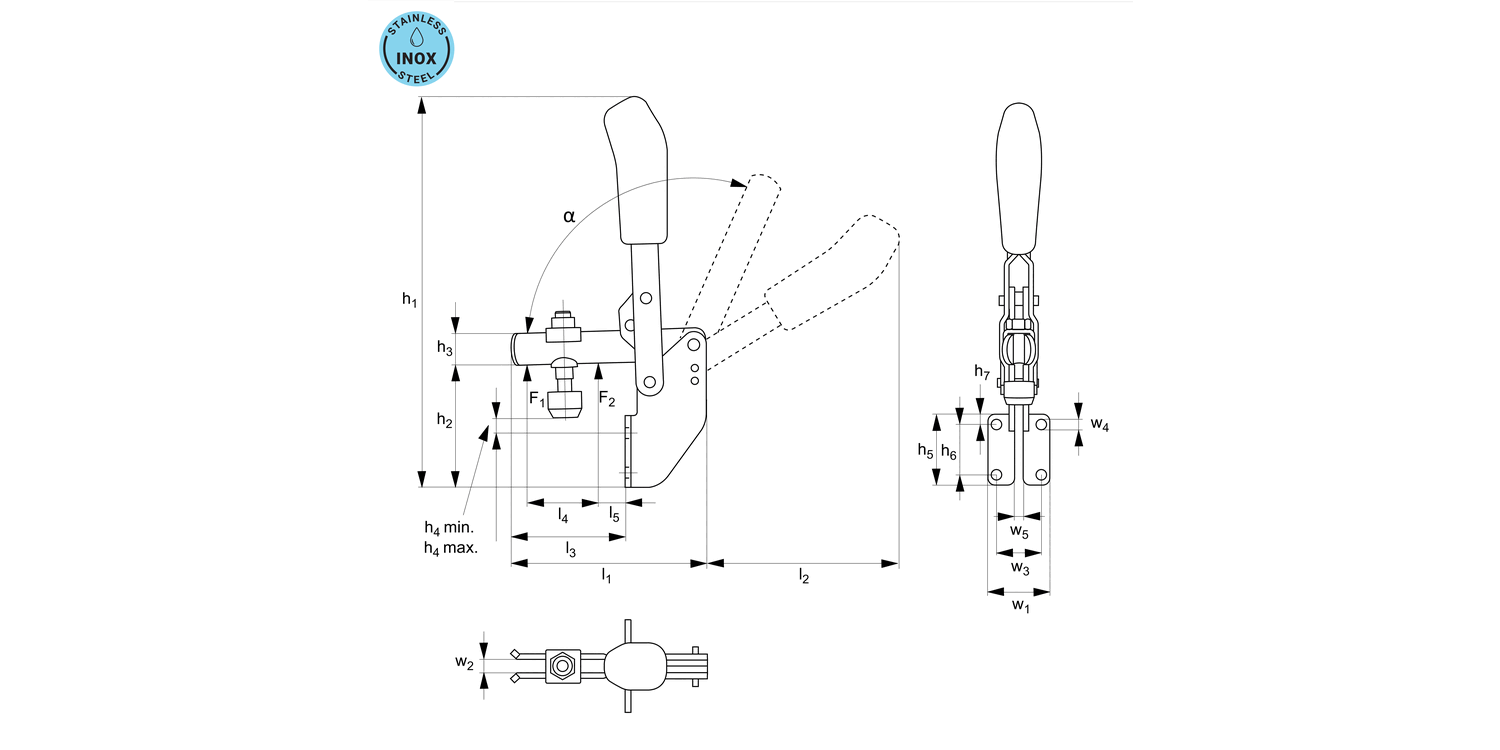

40100.4 Vertical Acting Toggle Clamps
angle base - stainless steel, material: Stainless steel
Order No.
40100.W0302
Size
2
F1
kN
0.8
F2
kN
1.2
Clamping screw
M 6x35
h1
167
h2
60
h3
12
h4
min.
8
h4
max.
15
h5
32
h6
20
h7
6
Weight
g
220
l1
77
l2
81
l3
41
l4
25
l5
6
w1
37
w2
6
w3
25.5
w4
6.1
w5
5
α
105°
α*
60°
£ 124.27 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 124.27 | 0% |
| 10-14 | £ 111.84 | 10% |
| 15-24 | £ 105.63 | 15% |
| 25-49 | £ 99.42 | 20% |
| 50+ | £ 86.99 | 30% |
Technical & Application
Material
Body: stainless steel (AISI 304, 1.4301). Rivets: stainless steel running in hardened bushes.
Pre-lubricated bearings.
Ergonomic soft feel oil-resistant handle with large grip area.
Supplied complete with stainless clamping screw (with rubber pad).
Technical Notes
Suitable for use in the food industry.
Opening angle (symbola/symbol/symbola/symbol*) can be changed by pressing in a stop pin on the clamp body.
Temperature range -10°C to +80°C.
