Toggle Clamps
latch type - safety knob

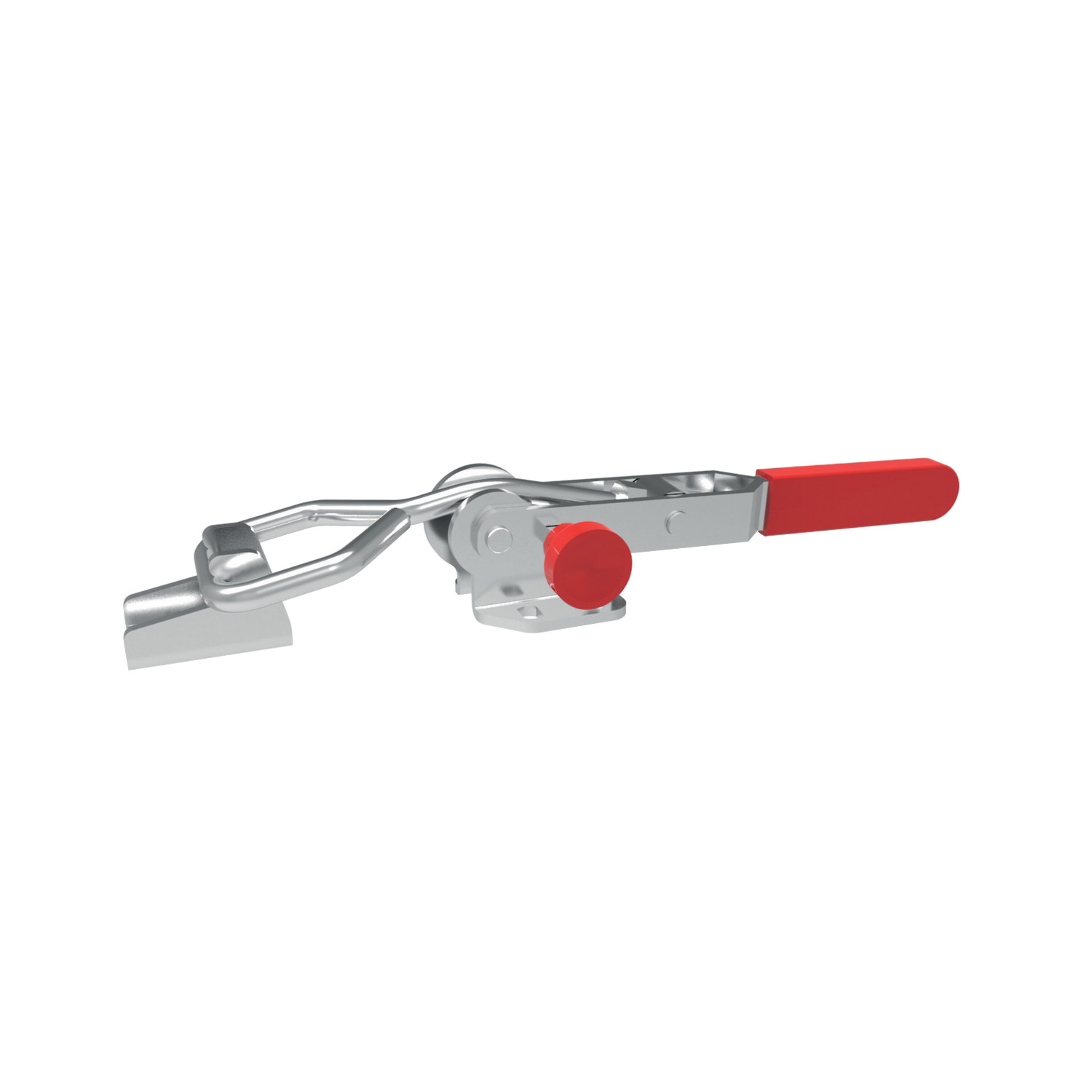

41620 Latch Type Toggle Clamp
safety knob, material: Steel, zinc plated
Order No.
41620.W0003

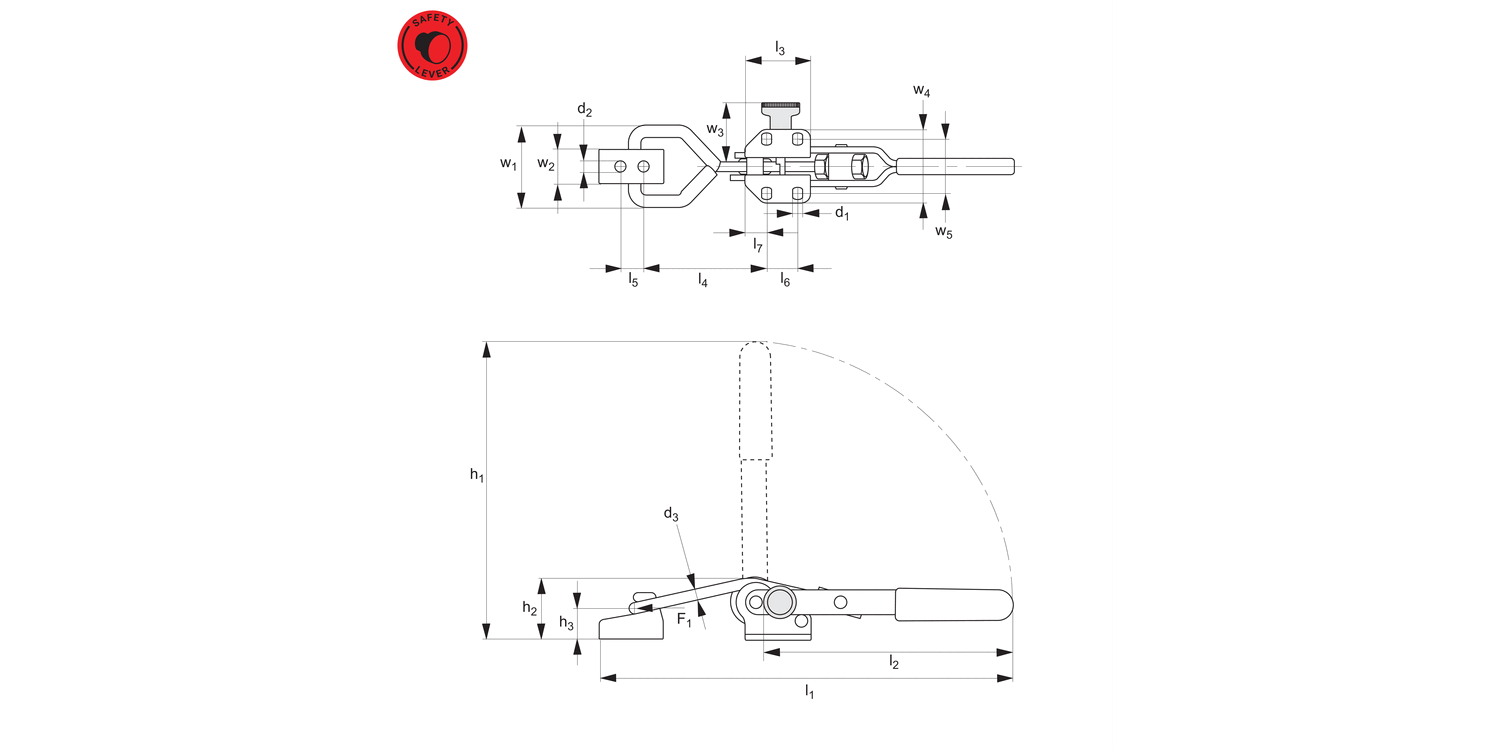

Size
3
F1
kN
3
h1
179
h2
38
h3
19
l1
257
l2
149
l3
40
l4
79.5
Weight
g
295
l5
14
l6
19
l7
13
w1
49
w2
21
w3
38.5
w4
32-35
w5
45
d1
5.6
d2
6.5
Ø d3
7.1
£ 91.42 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 91.42 | 0% |
| 5-14 | £ 82.28 | 10% |
| 15-24 | £ 77.71 | 15% |
| 25+ | £ 73.14 | 20% |
Technical & Application
Material
Body: steel, zinc plated.
Rivets: stainless steel running in hardened bushes. Pre-lubricated bearings (grease suitable for food industry use).
Handle: oil-resistant plastic with large grip area.
Technical Notes
The safety knob locks the clamp in the closed position. This prevents opening under vibration or inadvertent movement of the clamping arm when loading or unloading a fixture.
Pull out the safety knob to release the clamp.
Supplied complete with counter strike.
For additional counter strikes, see part 41801.W00012- .W0014.
Temperature range -10°C to +80°C.
Product Datasheets
CAD files
