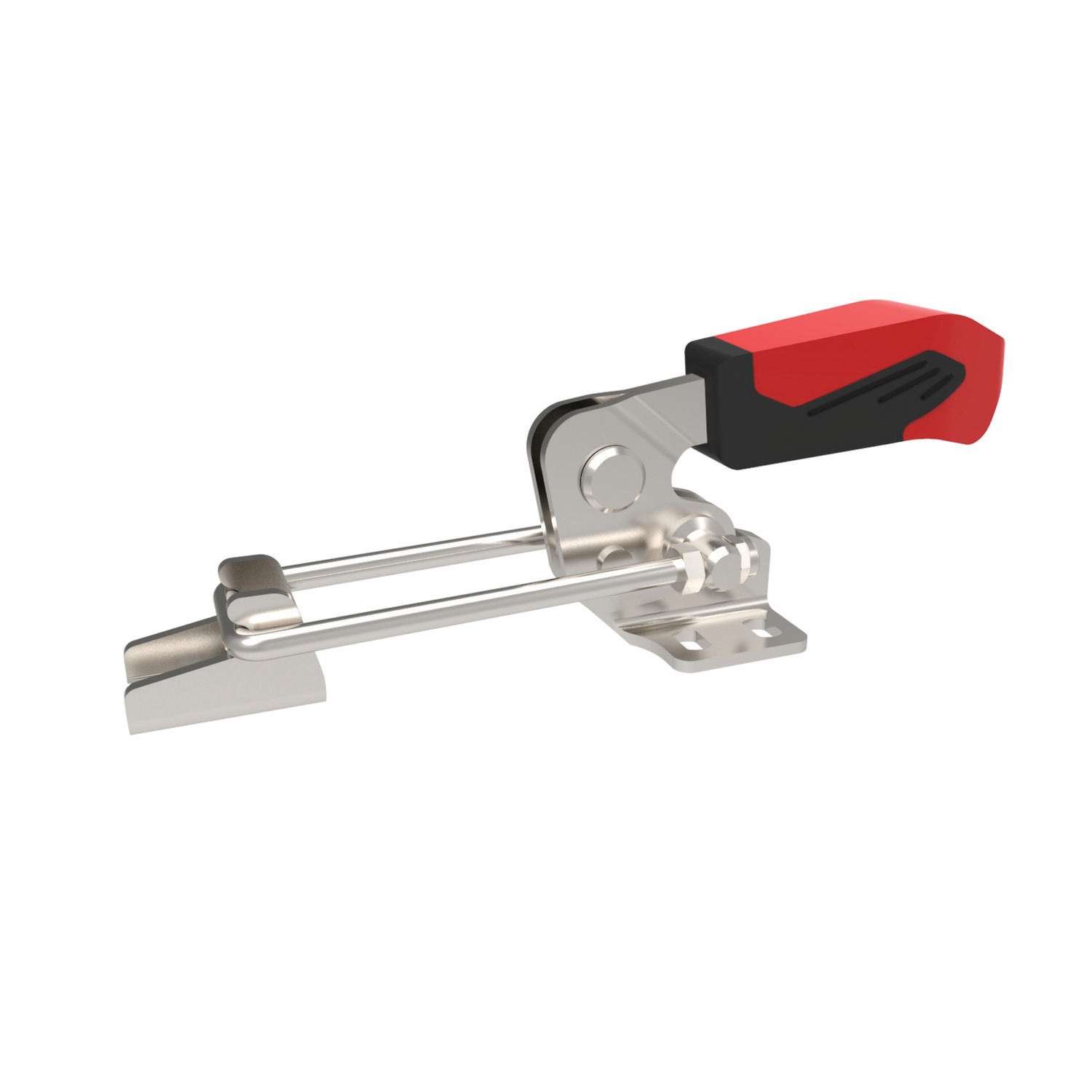

41805.1 Latch Type Horizontal Toggle Clamp

Name: 41805.W0004
Brand: WC
SKU: 41805.W0004
Price: 170.4 GBP
Availability: OutOfStock

safety button, material: Steel, zinc plated

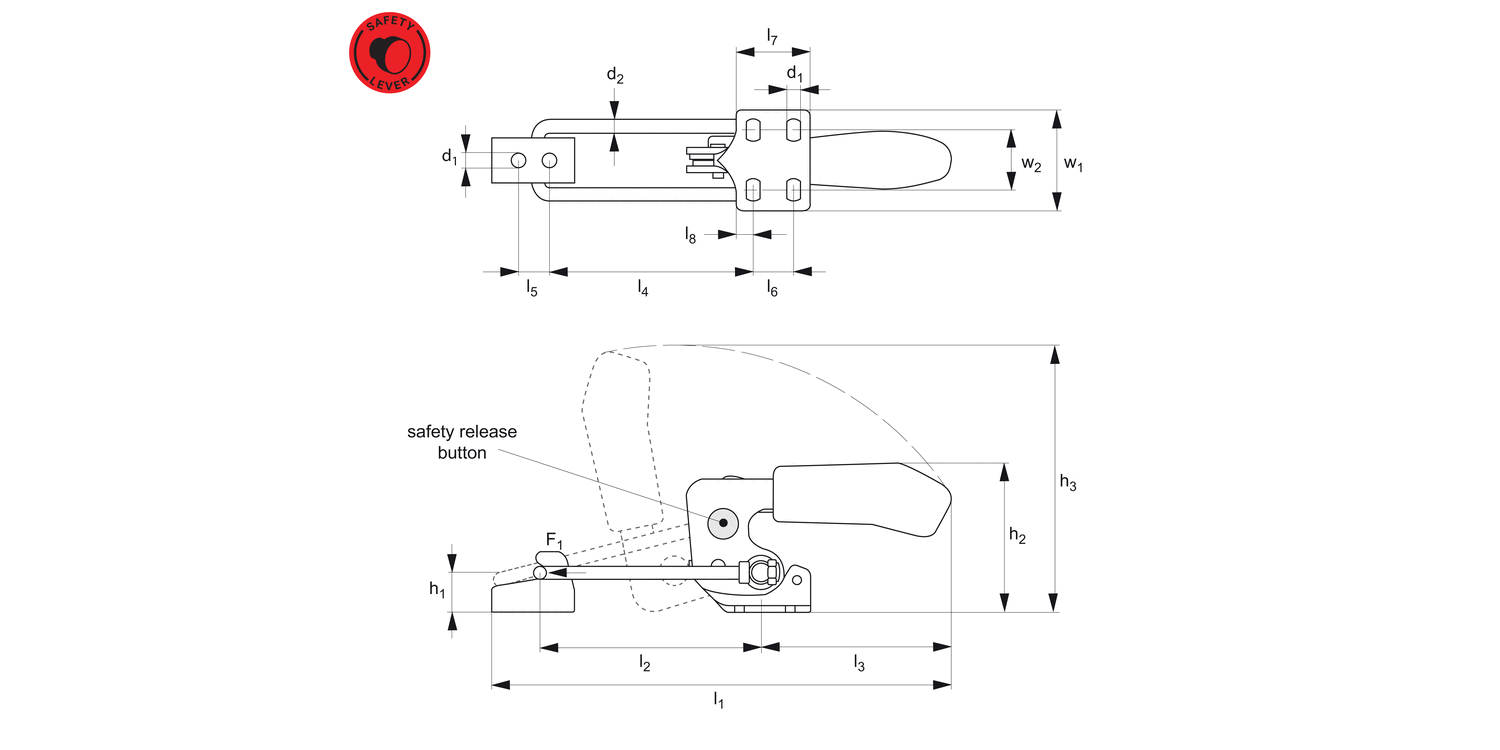

Article properties

Order No.

41805.W0004

Size

F₁ kN

7.0

h₁

h₂

h₃

168

l₁ min.

209

l₁ max.

273

l₂ min.

l₂ max.

130

l₃

111

Weight g

850

l₄ min.

l₄ max.

123

l₅

l₆

l₇

53.5

l₈

9.5

w₁

64.5

w₂

35-46

d₁

8.5

d₂

See full product selection

£ 170.40 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 14 working days from order.
Typical UK delivery charge: £14.37.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 170.40	0%
5-14	£ 153.36	10%
15-24	£ 144.84	15%
25+	£ 136.32	20%

Download product datasheet

Technical & Application

Material

Body: steel, zinc plated.
Rivets: stainless steel running in hardened bushes. Pre-lubricated bearings (grease suitable for food industry use).
Handle: ergonomic soft feel, oil-resistant with a large grip area.
Hook: steel, tempered.

Technical Notes

The safety button locks the clamp in the closed position. This prevents opening under vibration or inadvertent movement of the clamping arm when loading or unloading a fixture.
Temperature range -10°C to +80°C.
