Toggle Clamps
push-pull - compact

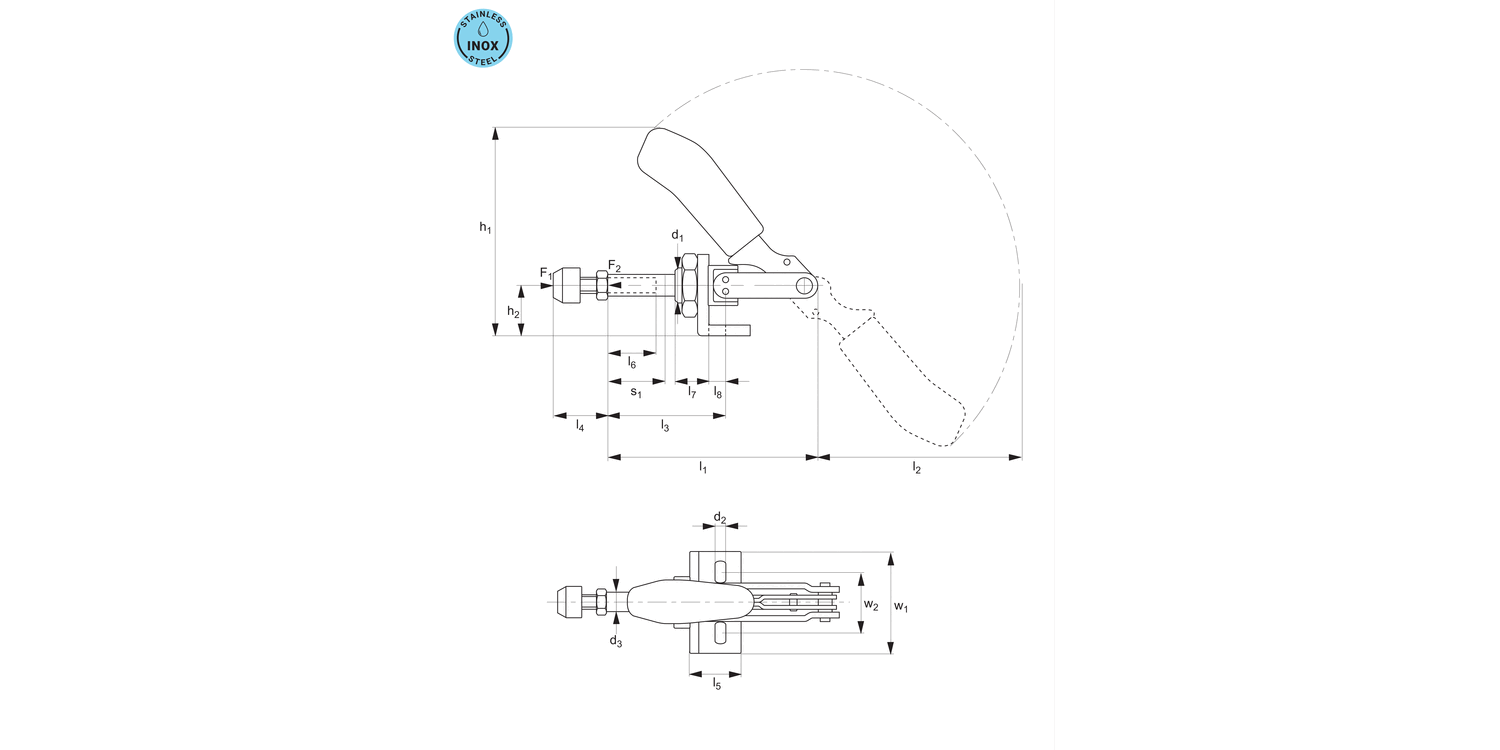

41890 Push-Pull Toggle Clamps
stainless steel - angle bracket, material: Stainless steel
Order No.
41890.W0000
Size
0
F1
kN
0.8
F2
kN
0.8
Clamping screw
M 4x20
Stroke s1
16
h1
49.3
h2
12
l1
66.5
l2
54
Weight
g
65
l3
min.
17
l3
max.
33
l4
min.
12
l4
max.
20
l5
16
l6
13
l7
10
l8
6.5
w1
25
w2
16.0
d1
M10x1,0
d2
4.5
d3
6.5
£ 90.72 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 90.72 | 0% |
| 5-14 | £ 81.65 | 10% |
| 15-24 | £ 77.11 | 15% |
| 25+ | £ 72.58 | 20% |
Technical & Application
Material
Body: stainless steel (AISI 304, 1.4301), polished.
Rivets: stainless steel running in hardened bushes. Pre-lubricated bearings.
Ergonomic soft feel, oil-resistant handle with large grip area.
Supplied complete with stainless clamping screw (with rubber pad).
Technical Notes
Long clamping stroke. Lever can be set to any angle relative to base.
Suitable for use in the food industry.
Temperature range -10°C to +80°C.
