Push-pull Toggle Clamp
safety latch

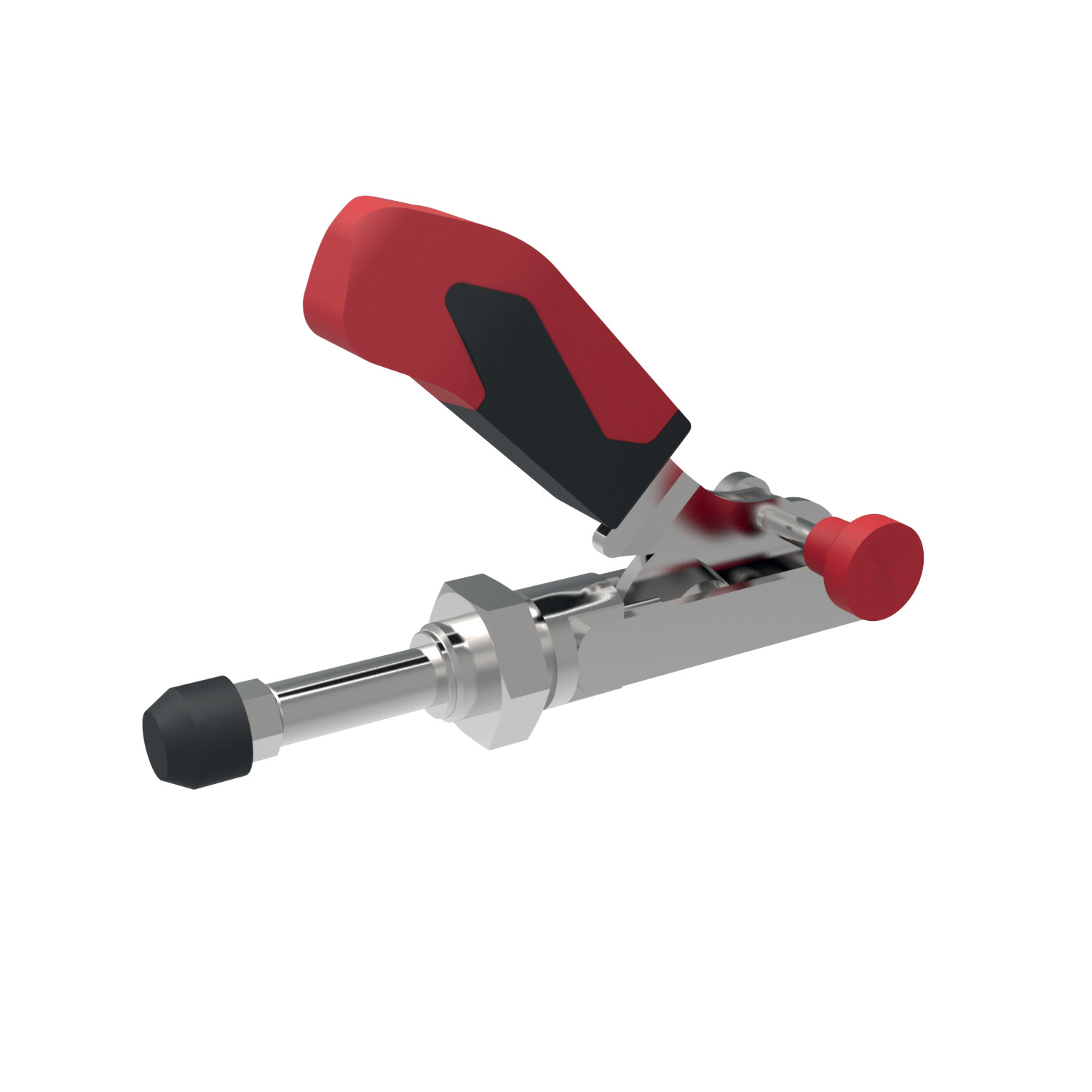

41895 Push-Pull Type Toggle Clamp
safety knob, material: Steel, zinc plated
Order No.
41895.W0003
Size
3
F1
kN
2.5
F2
kN
2.5
Clamping screw
M 8x35

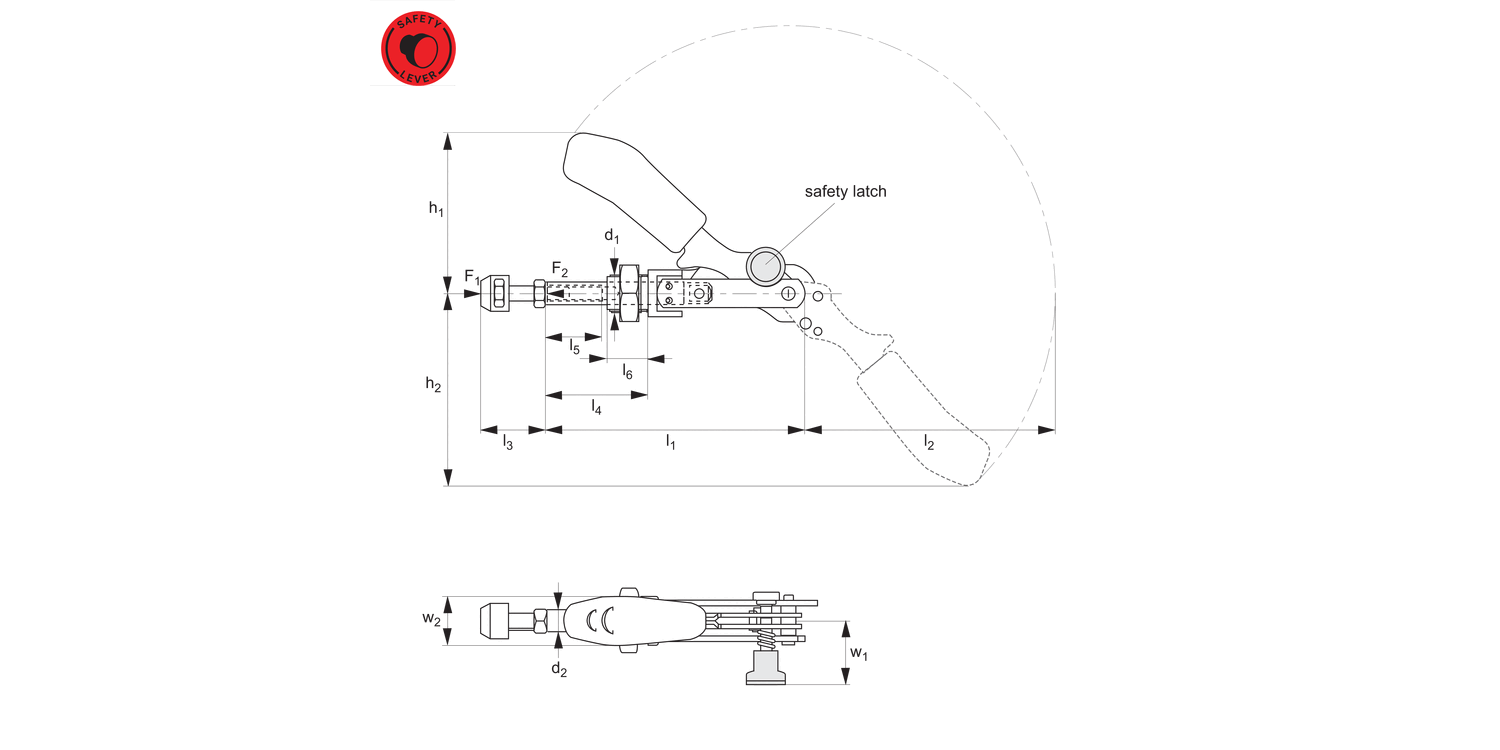

d1
M20x1,5
d2
12
h1
86
h2
103
l1
140
l2
134
l3
min.|max.
22-35
l4
56
l5
30
l6
22
w1
36
w2
27
Weight
g
402
£ 130.15 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 130.15 | 0% |
| 10-19 | £ 117.14 | 10% |
| 20-49 | £ 104.12 | 20% |
| 50-99 | £ 91.11 | 30% |
| 100+ | £ 78.09 | 40% |
Technical & Application
Material
Body: steel, zinc plated.
Rivets: stainless steel running in hardened bushes. Pre-lubricated bearings (grease suitable for food industry use).
Handle: ergonomic soft feel, oil-resistant with a large grip area.
Technical Notes
The safety knob holds the clamp in both the open and the closed position. This prevents opening under vibration or inadvertent movement of the clamping arm when loading or unloading a fixture.
Without angle bracket. Push and pull-clamping (equal operation of rod and lever). Long rod-guide with attaching thread and nut.
Temperature range -10°C to +80°C.
