Push-pull Toggle Clamp
safety latch
41895 Push-Pull Type Toggle Clamp
safety knob, material: Steel, zinc plated
Alternative products you may wish to consider

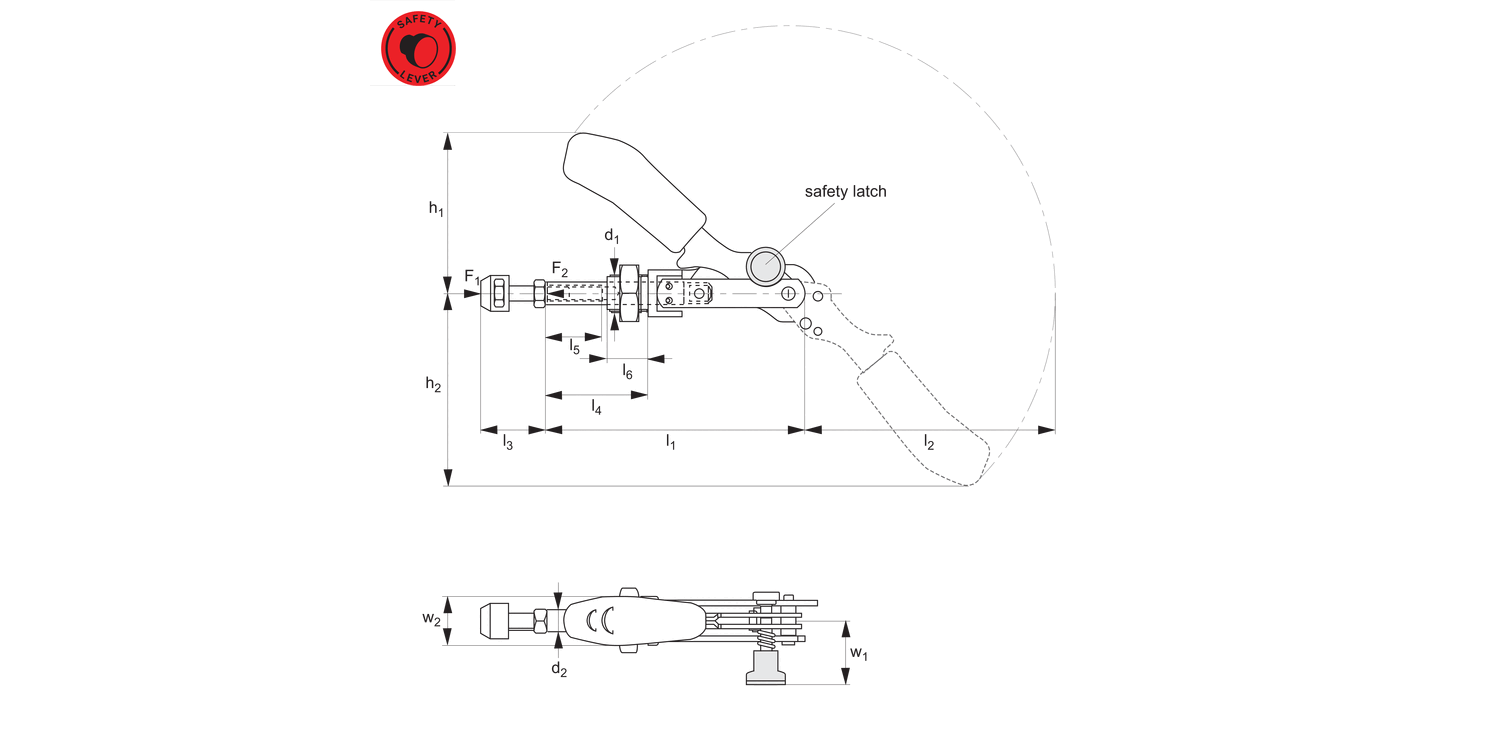

Size
3
F1
kN
2.5
F2
kN
2.5
Clamping screw
M 8x35
d1
M20x1,5
d2
12
h1
86
h2
103
l1
140
l2
134
l3
min.|max.
22-35
l4
56
l5
30
l6
22
w1
36
w2
27
Weight
g
402
£ 130.15 per unit (click for quantity discounts)
Size
F1
kN
F2
kN
Clamping screw
d1
d2
h1
h2
l1
l2
l3
min.|max.
l4
l5
l6
w1
w2
Weight
g
| Price & Availability | Article | Size | F1 kN | F2 kN | Clamping screw | d1 | d2 | h1 | h2 | l1 | l2 | l3 min.|max. | l4 | l5 | l6 | w1 | w2 | Weight g | ||||||||||||||||||
| 41895.W0003 | 3 | 2.5 | 2.5 | M 8x35 | M20x1,5 | 12 | 86 | 103 | 140 | 134 | 22-35 | 56 | 30 | 22 | 36 | 27 | 402 | |||||||||||||||||||
£ 130.15 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 3 F1
kN 2.5 F2
kN 2.5 Clamping screw M 8x35 d1 M20x1,5 d2 12 h1 86 h2 103 l1 140 l2 134 l3
min.|max. 22-35 l4 56 l5 30 l6 22 w1 36 w2 27 Weight
g 402 | ||||||||||||||||||||||||||||||||||||
Technical & Application
Material
Body: steel, zinc plated.
Rivets: stainless steel running in hardened bushes. Pre-lubricated bearings (grease suitable for food industry use).
Handle: ergonomic soft feel, oil-resistant with a large grip area.
Technical Notes
The safety knob holds the clamp in both the open and the closed position. This prevents opening under vibration or inadvertent movement of the clamping arm when loading or unloading a fixture.
Without angle bracket. Push and pull-clamping (equal operation of rod and lever). Long rod-guide with attaching thread and nut.
Temperature range -10°C to +80°C.
