Toggle Clamps
push-pull

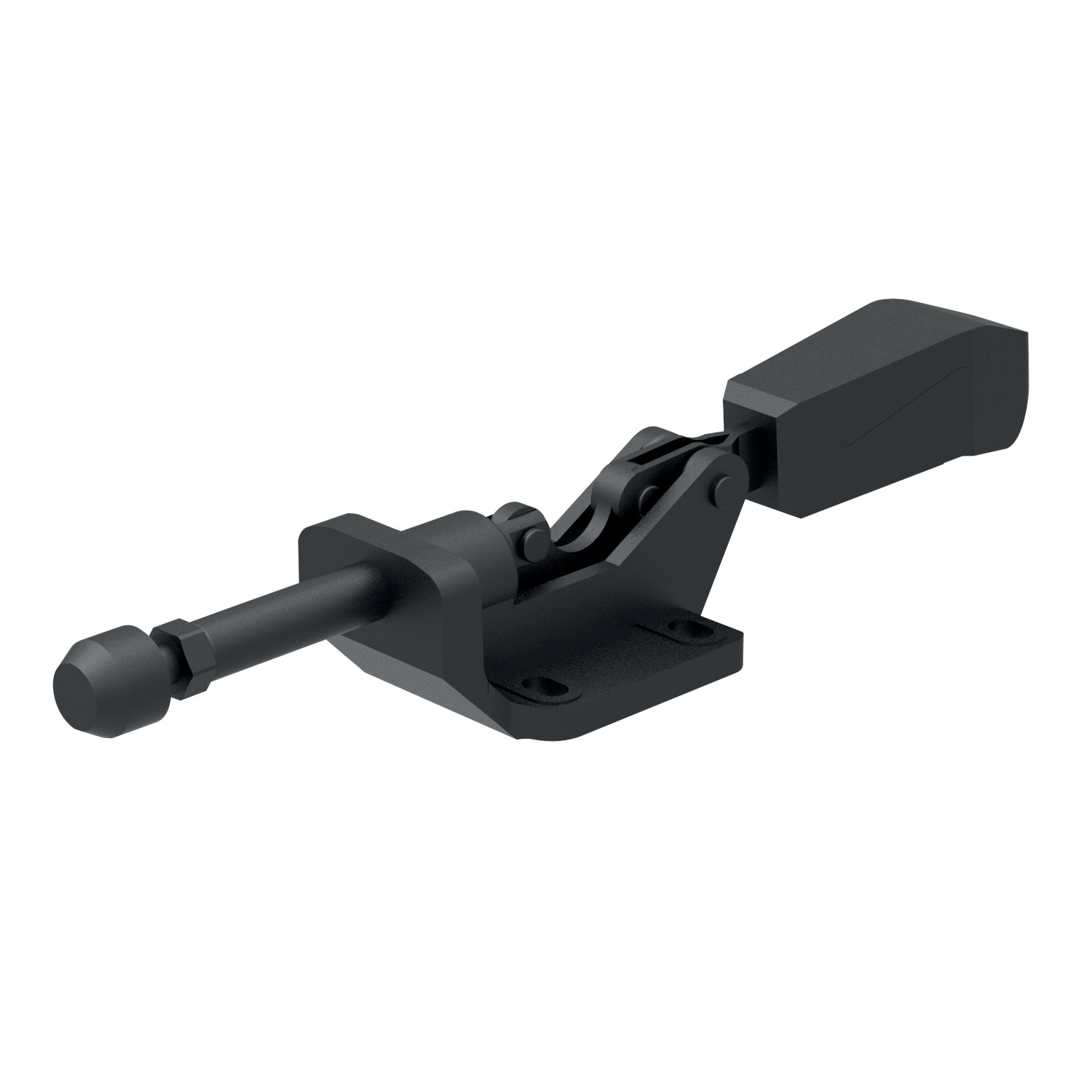

42050.2 Push-Pull Type Toggle Clamps - Black
for optical measuring equipment, material: Cast iron, matt black
Order No.
42050.W0103
Size
3
F1
kN
4
Clamping screw
M 8x44
Weight
g
540
£ 157.10 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 157.10 | 0% |
| 10-14 | £ 141.39 | 10% |
| 15-24 | £ 133.54 | 15% |
| 25-49 | £ 125.68 | 20% |
| 50+ | £ 109.97 | 30% |
Technical & Application
Material
Body: malleable cast iron, matt black.
Levers and rods of tempered steel, matt black galvanised.
Technical Notes
For optical analysis applications.
Tips
Designed specifically for clamping of parts during photometric measurement. Uniform matt black surface prevents reflection, enabling easy "knocking-out" of the clamp during optical analysis of a component.
