Pneumatic Toggle Clamp
double acting

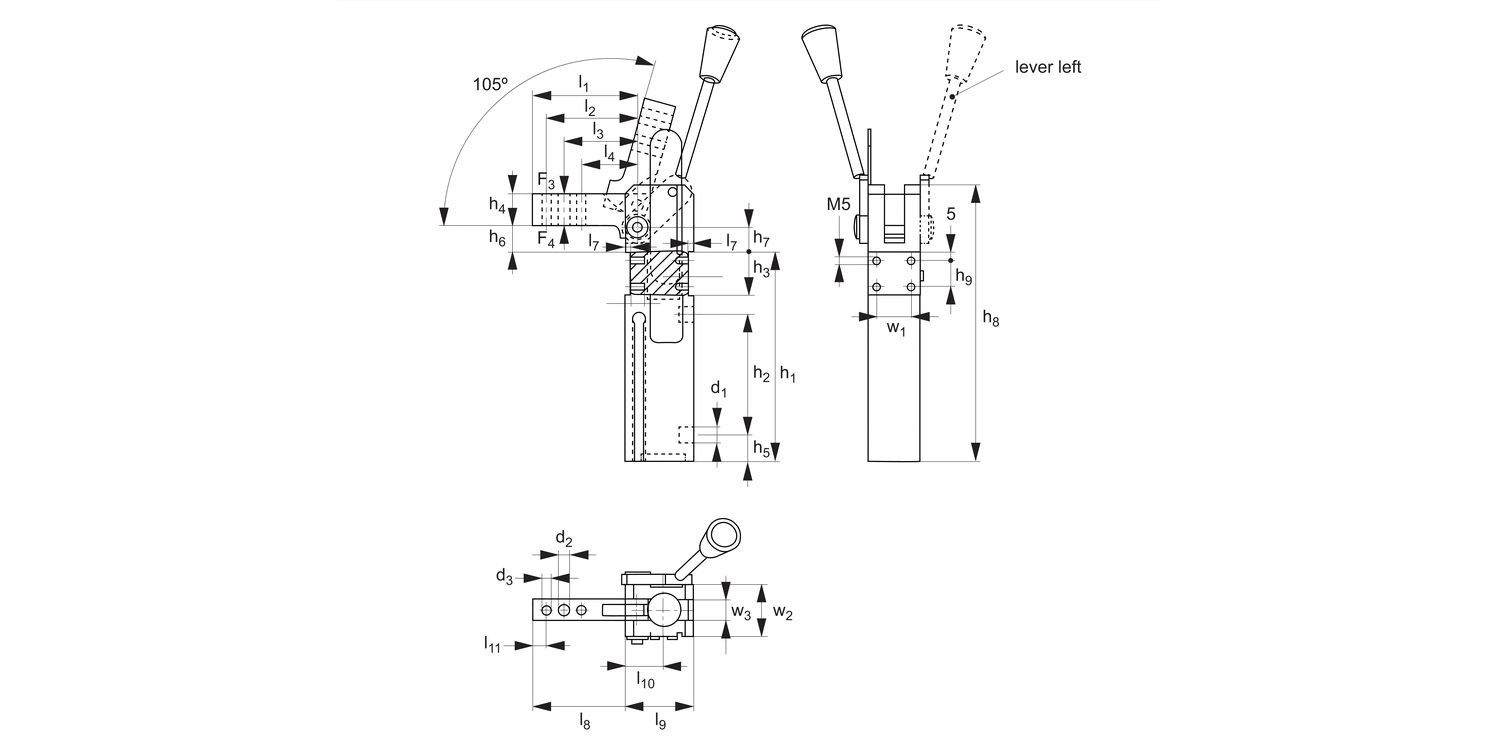

47904 Pneumatic Clamp with Lever
double acting, material: Aluminium
Order No.
47904.W0002
Size
16
Clamping moment at 5 bar
Nm
8
Holding moment
max.
Nm
25
l1
50
l2
44
l3
36.0
l4
28
l5
7
l6
5
l7
2.5
l8
44
l9
32
l10
18
l11
6
h1
96
Weight
g
320
h2
57
h3
+0.1
20
h4
15
h5
12
h6
7.5
h7
7.5
h8
123
h9
±0.1
10
d1
M 5
d2
5.5
d3
tol. H7
4
w1
±0.1
10
w2
26
w3
10
Lever type
Left
Piston dia.
16
£ 1,108.13 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 1,108.13 | 0% |
| 10-14 | £ 997.32 | 10% |
| 15-24 | £ 941.91 | 15% |
| 25-49 | £ 886.50 | 20% |
| 50+ | £ 775.69 | 30% |
Technical & Application
Material
Case: high-strength aluminium, red anodised.
Clamp arm: steel, bronzed, with three bores.
Max. operating pressure 6 bar. Double-acting and with additional lever for manual opening and/or closing. Mini design in block version for clamping and gripping applications.
Magnetic piston for end-position monitoring.
Technical Notes
Suitable proximity switches for end-position monitoring are available using order 45001. 0.3m PUR cable with M8 connector and rotatable knurled nuts.
Switching function: NOC. Output: PNP.
