Pneumatic Toggle Clamp
double acting

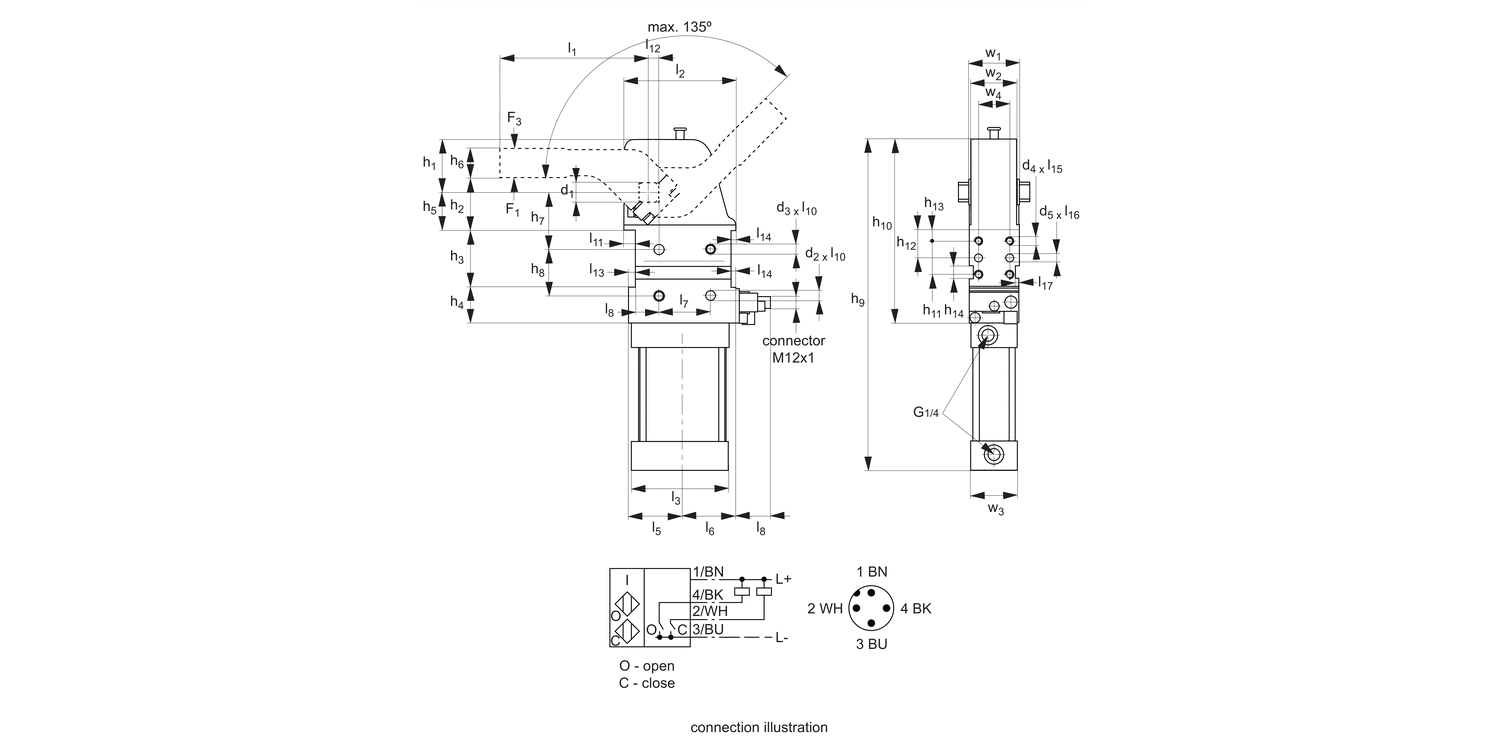

47912.1 Heavy Pneumatic Toggle Clamp
dual acting, material: Aluminium
Order No.
47912.W0001
l1
144
l2
108.0
l3
94
l4
93
l5
52
l6
52
l7
50
l8
33
l9
±0.1
23
l10
12
l11
11
l12
10
l13
7
l14
5
l15
12
h1
51.5
h10
±0.2
178
h11
±0.1
32
Weight
g
3.5
h12
±0.05
27
h13
±0.1
11
h14
12
h2
52
h3
±0.1
55
h4
35
h5
±0.05
37
h6
±0.1
28
h7
±0.05
55
h8
45
h9
±0.1
321
d1
19
d2
tol. H7
10
d3
tol. H7
M10
d4
M 8
w1
48
w2
45
w3
45
w4
30
£ 2,141.74 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 2,141.74 | 0% |
| 10-14 | £ 1,927.57 | 10% |
| 15-24 | £ 1,820.48 | 15% |
| 25-49 | £ 1,713.39 | 20% |
| 50+ | £ 1,499.22 | 30% |
Technical & Application
Material
Case: aluminium. Max. operating pressure 6 bar. With continuously adjustable opening angle in the range 5° to 135°. With pneumatic end position cushioning and self-locking. With inductive query 24V as standard. Clamp arm not included.
Technical Notes
Accessories (not included in the standard scope of delivery) are clamping arm no. 47912.W0210 - .W0218 centre, right and left, and connecting plug for inductive query.
Tips
These pneumatic toggle clamps are suitable for use in material handling lines and on special machines. Opening and clamping position of the clamp can be controlled electrically, allowing integration into automated manufacturing processes.
