Double Swivel Nuts

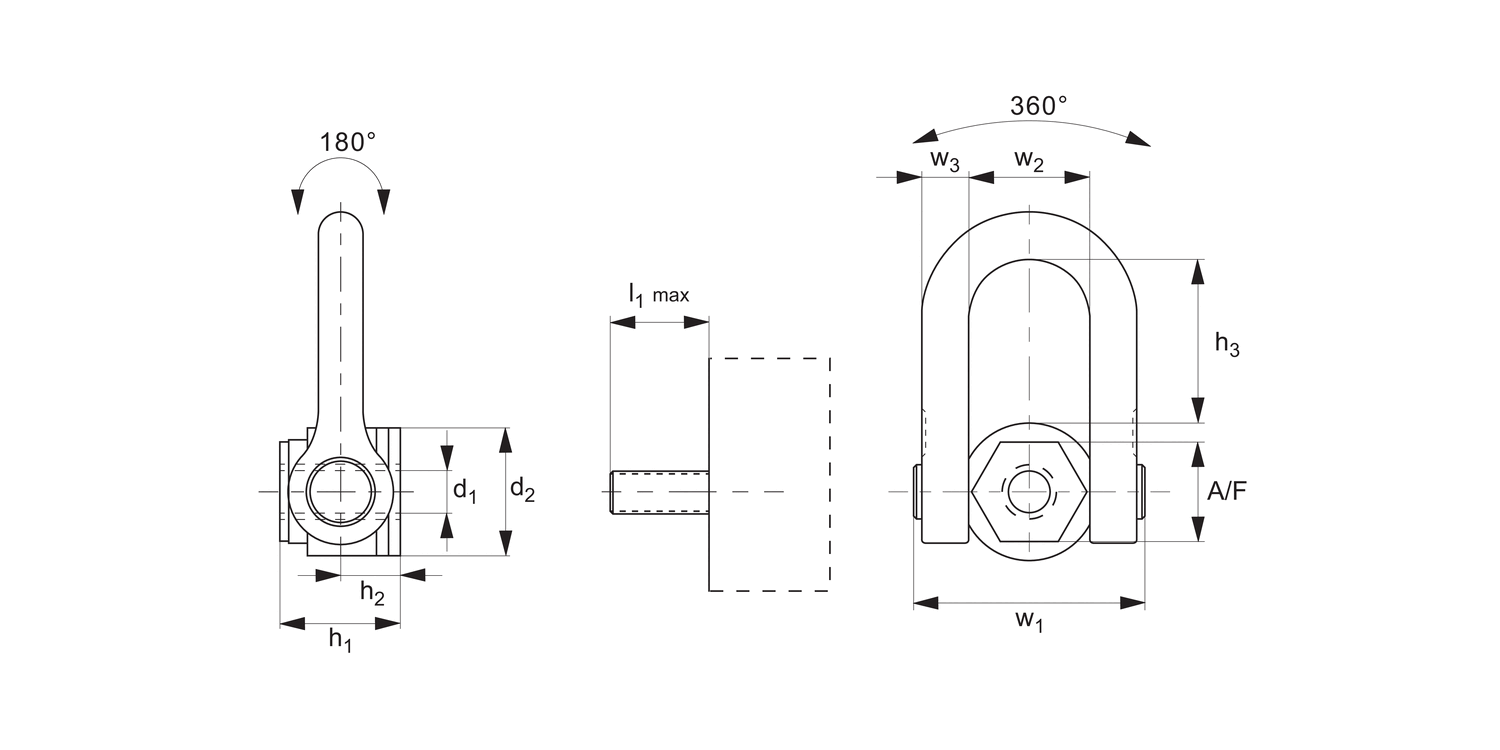

63084 Double Swivel Shackle Nuts Female
material: Steel
Order No.
63084.W0030
Load
max.
tons (t)
8.5
d1
tol. 6g (tol. 2A)
M30x3,5
h1 & lmax.
66
h2
31
h3
98
w1
149
d2
70
w2
73
w3
33
A/F
50
Safety factor
4
Torque to
Nm
250
Weight
kg
5.1
£ 673.86 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-2 | £ 673.86 | 0% |
| 3-4 | £ 606.47 | 10% |
| 5-9 | £ 572.78 | 15% |
| 10-19 | £ 539.09 | 20% |
| 20+ | £ 505.40 | 25% |
Technical & Application
Material
High tensile steel, strength class >8.
Supplied with CE certificate.
Technical Notes
Designed to be used directly with the hook of the crane. Load ratings clearly marked.
For use in temperatures from -20°C to +200°C. Can be used in lower or higher temperatures,
but this affects the load rating - please ask for more information.
Please refer to our technical information pages when specifying and/or using.
Tips
Double articulation allows perfect alignment with the sling if the part rotates during the lift.
With "automatic" position recovery system for best orientation to sling direction.
Tighten by hex. key or spanner.
Important Notes
Tolerance of male thread to be 6H (metric) or UNC-2B (inch).
Supplied with certificate and operating instructions.
