Knurled Knobs
72485 Torque Control Knob
material: Thermoplastic
Order No.
72485.W0030
Type
Female
d1
42
d2
M 6
d3
-
d4
13.5
d5
27
h1
43.5
h2
11.5
l
-
t
11
Tightening torque
±10% max.
Nm
2.0
Weight
g
127
£ 79.44 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1+ | £ 79.44 |
Technical & Application

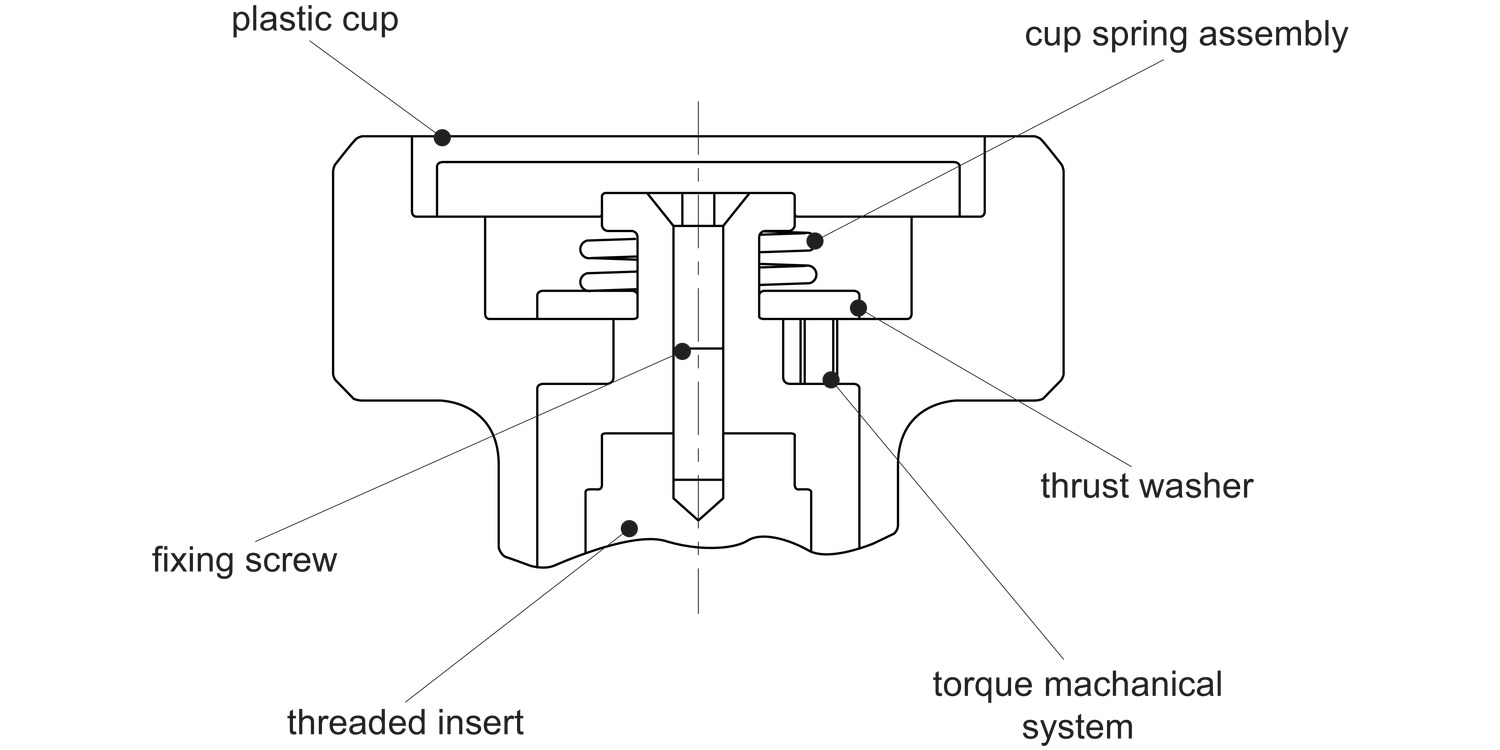

Material
Cap: thermoplastic PA 6, light grey, similar to RAL 7035
Torque mechanism: Steel, hardened.
Body: Aluminium, black anodised
Inner part: Steel, blackened
Technical Notes
The handle with intergrate torque mechanism allows a defined torque during tightening. Reaching the torque results in a "over-looking". For releasing the torque is transmitted indefinitely.
Product Datasheets
CAD files
Application images
