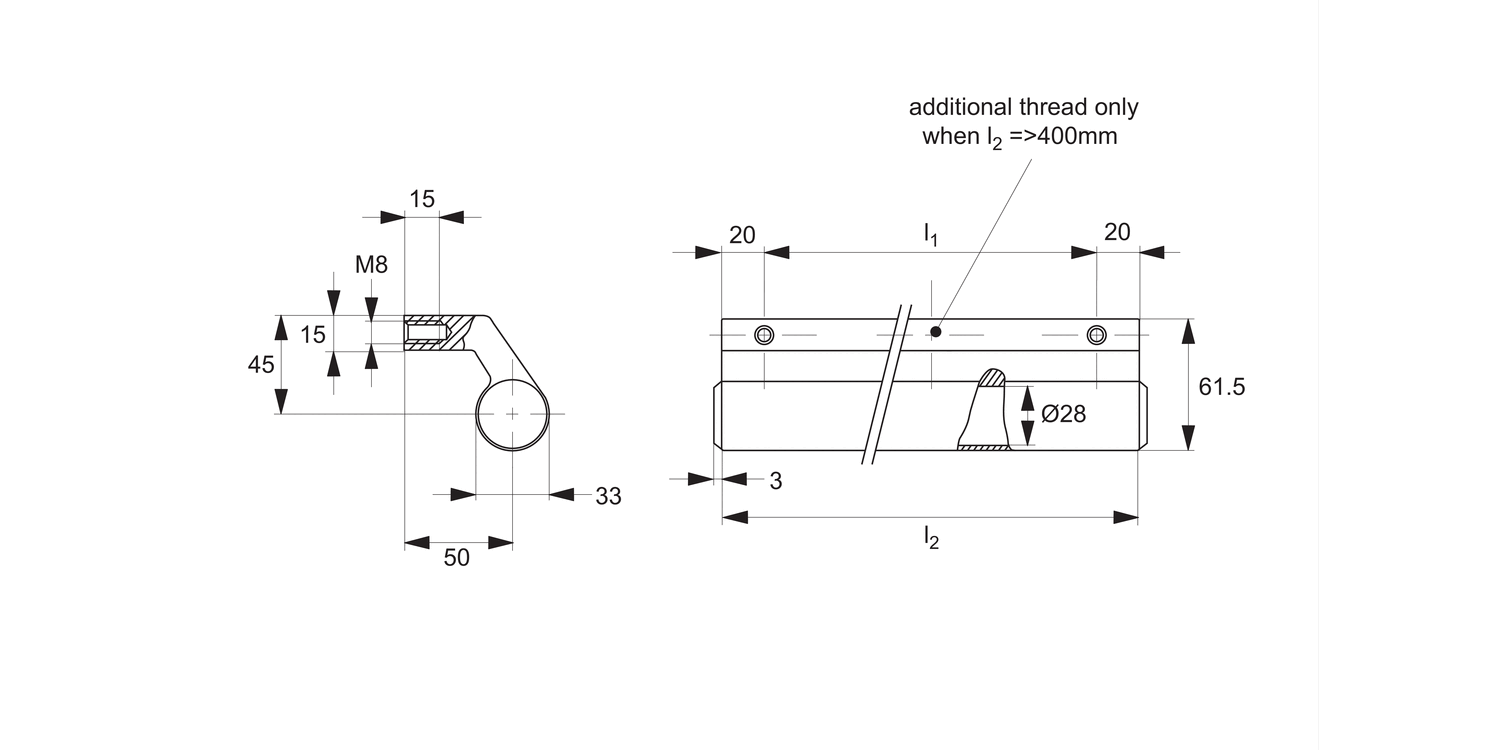

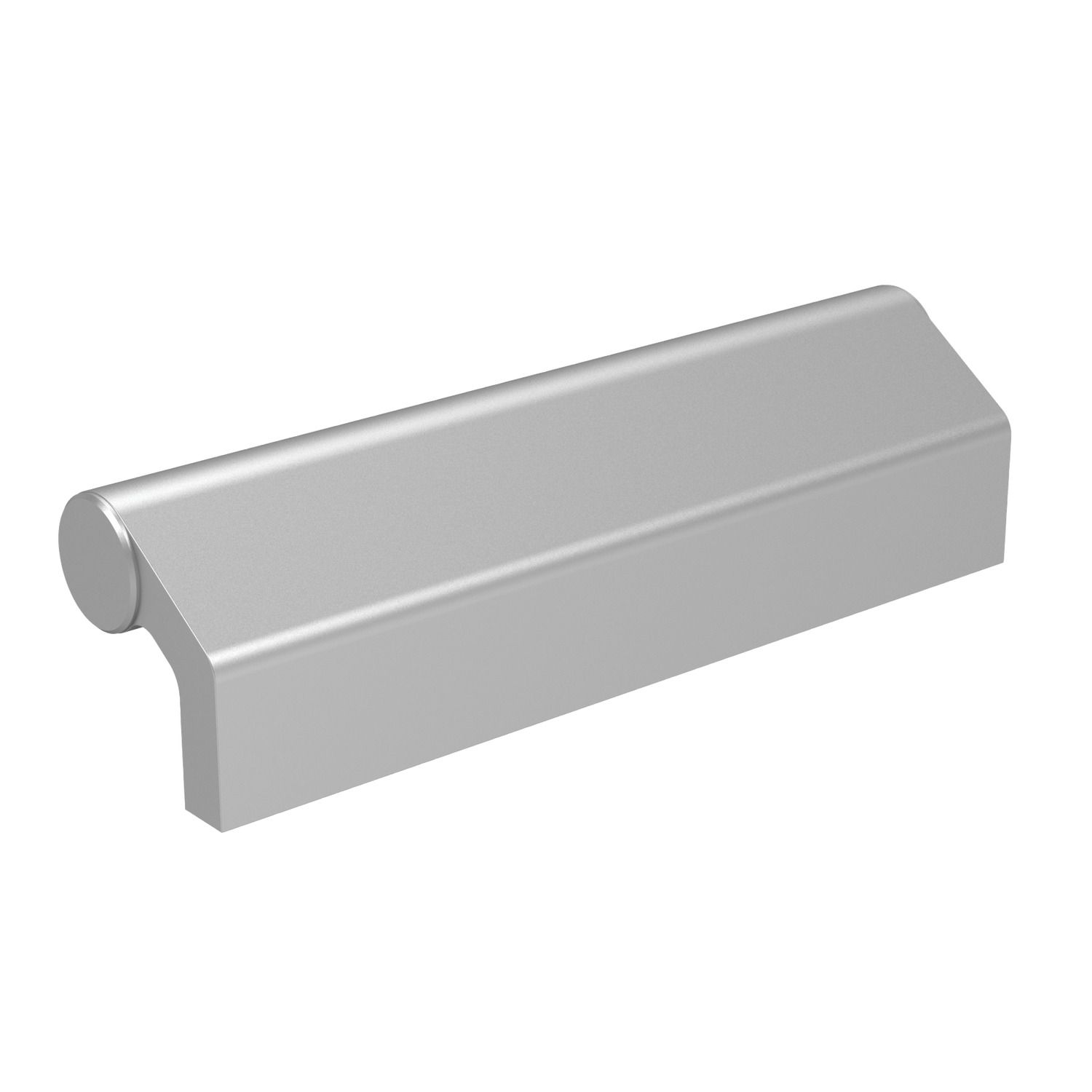

79650 Ledge Pulls

Name: 79650.W0160-1
Brand: WC
SKU: 79650.W0160-1
Price: 79.22 GBP
Availability: OutOfStock

material: Aluminium

Article properties

Order No.

79650.W0160-1

Colour

Natural

l₂

200

l₁

160

See full product selection

£ 79.22 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 21 working days from order.
Typical UK delivery charge: £13.95.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 79.22	0%
5-9	£ 75.26	5%
10-19	£ 71.30	10%
20-49	£ 67.34	15%
50+	£ 59.42	25%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Handle: aluminium section AlMgSi 0.5. Semi-gloss anodizing in natural colour or black powder coated with fine structure.
End caps: polyamide, black, with fine-grain structure.

Technical Notes

Minimum stress resistance >1000N.

Tips

For sliding doors and drawers in machinery and technical plants, also suitable as edge protection.

Product Datasheets

79650 Ledge Pulls24 June 2025, 15:39 / 200.76 kB

Ledge Pulls24 June 2025, 15:34 / 1.30 MB

Pull Handles24 June 2025, 15:31 / 4.23 MB

Grips, Handles & Handwheels24 June 2025, 15:32 / 11.95 MB

Design Elements24 June 2025, 15:33 / 69.38 MB

CAD files

79650 Acis17 April 2024, 10:11 / 169.88 kB

79650 IGES17 April 2024, 10:11 / 690.10 kB

79650 Parasolid17 April 2024, 10:11 / 137.41 kB

79650 ProE17 April 2024, 10:11 / 1.22 MB

79650 SolidWorks17 April 2024, 10:11 / 3.06 MB

79650 Step17 April 2024, 10:11 / 241.30 kB
