Collet Wrenches

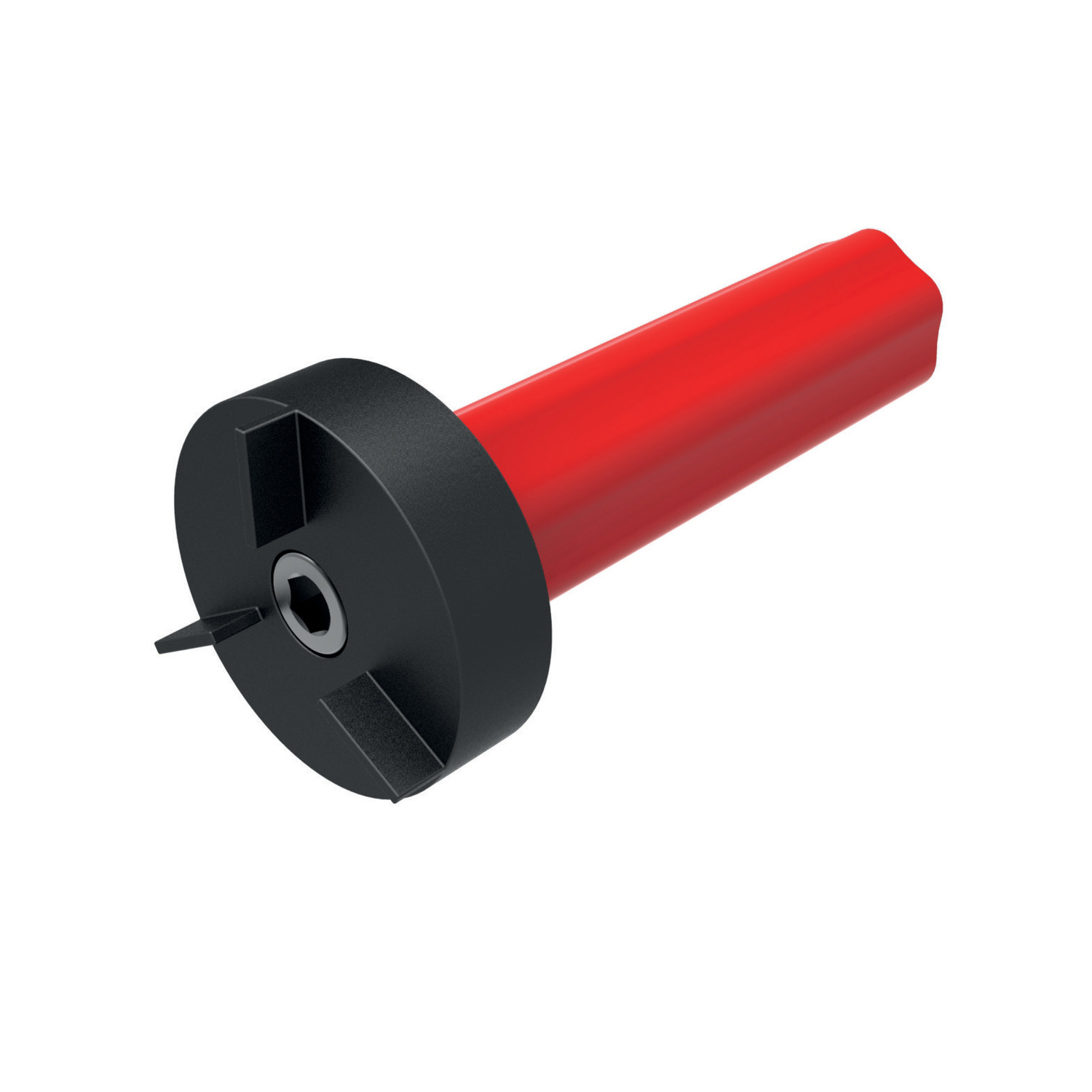

91080 Collet Wrenches
material: Steel
Order No.
91080.W0005
Collet size
5C
Fins
3

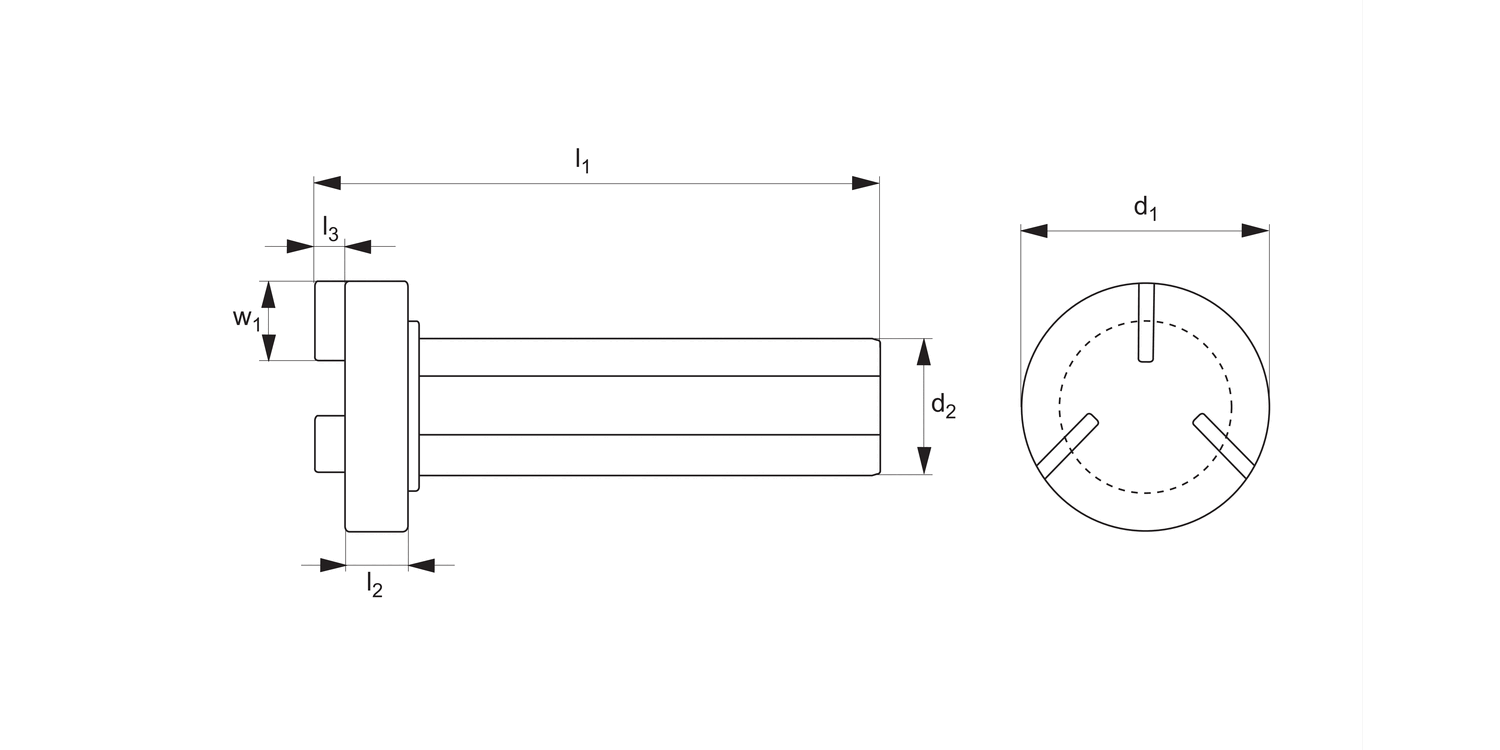

d1
31.8
d2
27.9
l1
109.2
l2
12.7
l3
7.6
w1
7.6
Weight
g
159
£ 43.20 per unit (click for quantity discounts)
Ready to despatch 2
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 43.20 | 0% |
| 5-9 | £ 41.04 | 5% |
| 10-19 | £ 38.88 | 10% |
| 20-49 | £ 36.72 | 15% |
| 50+ | £ 32.40 | 25% |
Technical & Application
Material
Steel head and fins.
Red plastic handle.
Technical Notes
Simplifies insertion and removal of collets in the spindle nose on CNC lathes.
