Panel Latches
insert driver - fixed grip

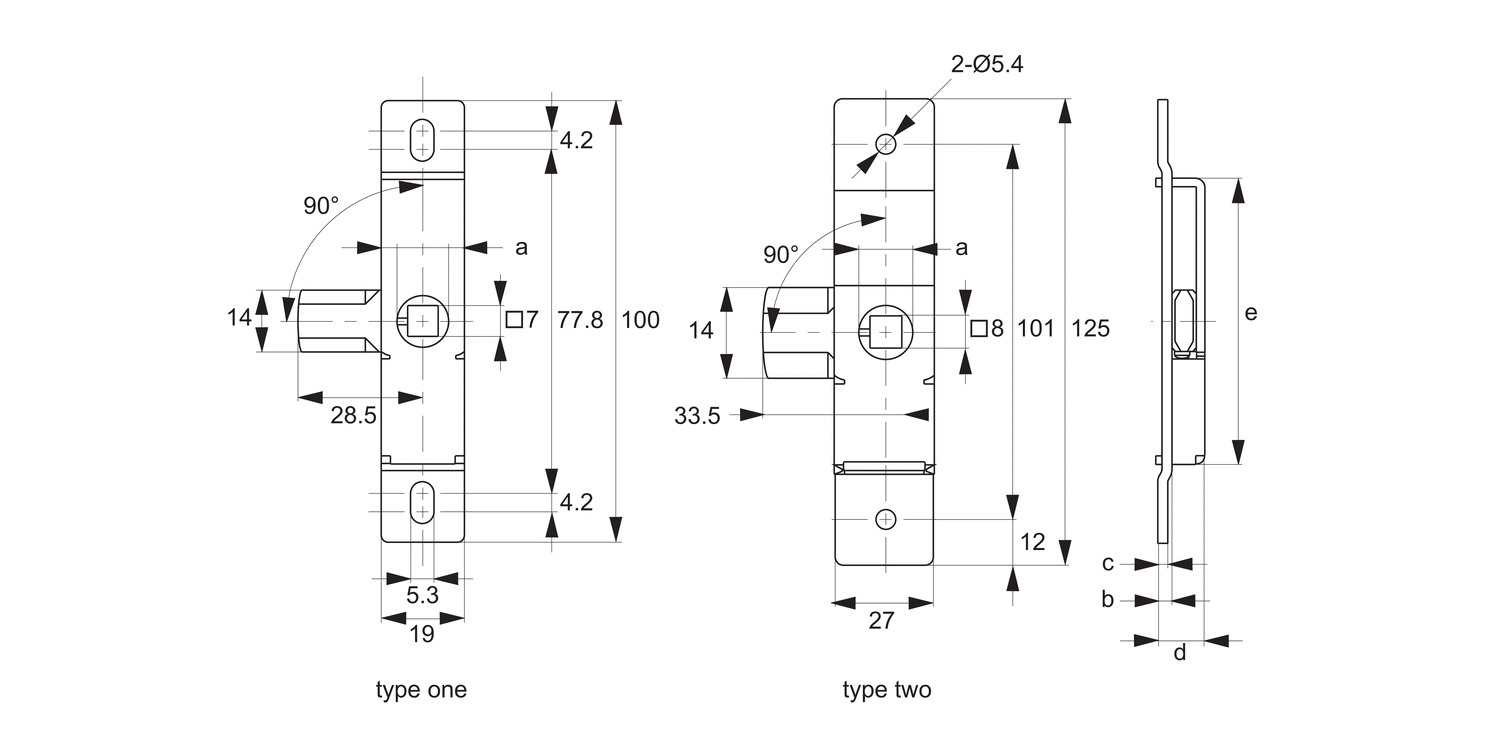

A1546 Panel Latches
uncovered - square driver - steel, material: Steel
Order No.
A1546.AW0012
Insert type
Square 7
Type
Type One
a
12
b
3.0
c
2.0
d
10.4
e
65.0
£ 6.47 per unit (click for quantity discounts)
Ready to despatch 8
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-19 | £ 6.47 | 0% |
| 20-49 | £ 5.82 | 10% |
| 50-99 | £ 5.50 | 15% |
| 100-499 | £ 4.85 | 25% |
| 500+ | £ 4.21 | 35% |
Technical & Application
Material
Body & insert: Q235 steel, zinc plated.
Supplied with: Cam: stainless steel.
Technical Notes
Can be used with a square 7 or 8 square bar for handle/key opening.
Fix internally to panels or enclosures via rivets, or M 5 screws (not supplied).
