Cam Latch
flush t-handle

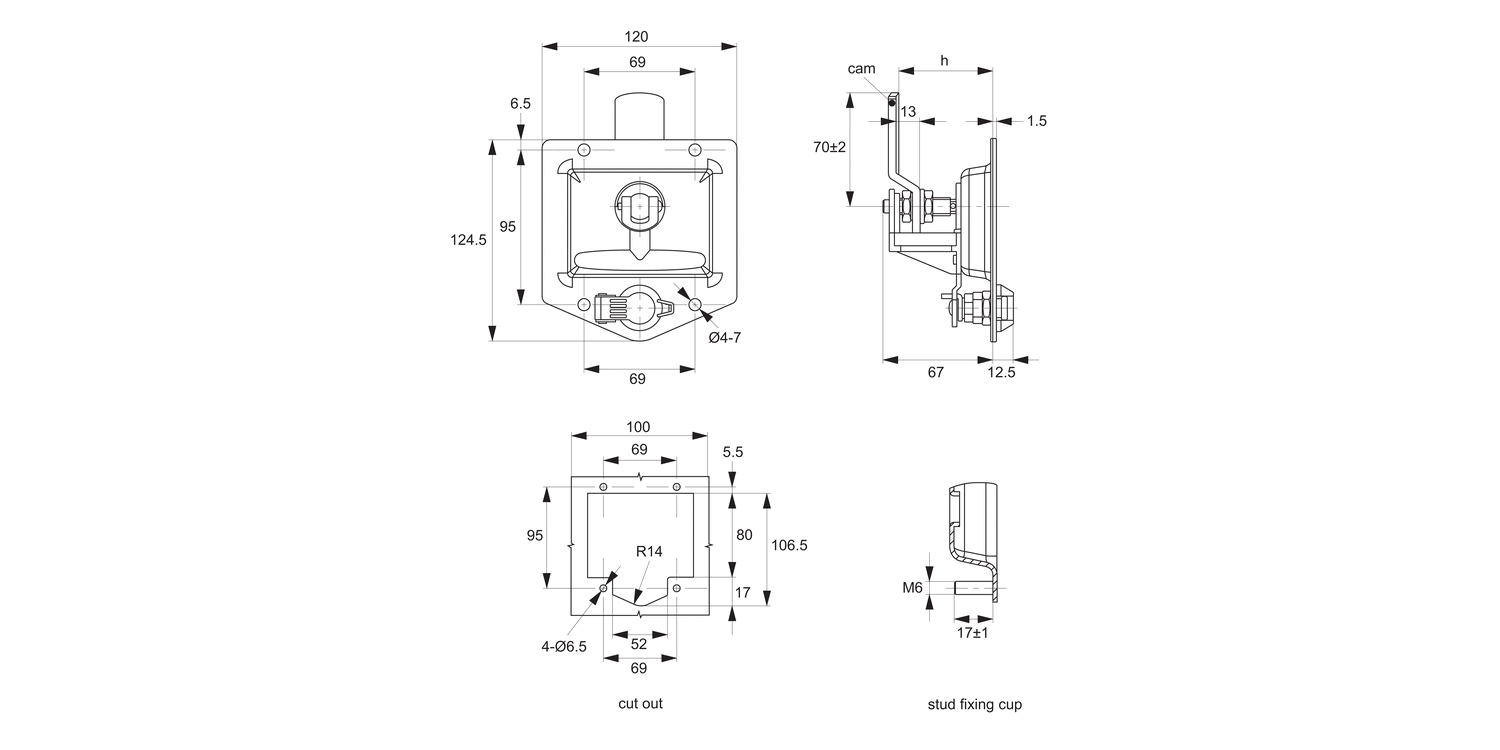

B4588 Cam Latch - Flush T-handle
vertical - heavy duty - adjustable grip - standard cylinder lock - stainless, material: Stainless steel
Order No.
B4588.AW0020
Mounting type
Stud Fixing
Lock type
Std. Cylinder
Key type
Keyed Alike
h grip range
48 - 58
£ 36.54 per unit (click for quantity discounts)
Ready to despatch 7
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 36.54 | 0% |
| 10-19 | £ 32.89 | 10% |
| 20-49 | £ 31.06 | 15% |
| 50-99 | £ 29.23 | 20% |
| 100+ | £ 25.58 | 30% |
Technical & Application
Material
Body: stainless steel, AISI 303.
Handle: die cast zinc, chrome plated.
Cylinder lock: die cast zinc, chrome plated.
Supplied with: Keys: two per lock.
Cam: stainless steel, AISI 303.
Technical Notes
Hole fixing type requires 4 off M 6 screws (not supplied), for front mounting.
Stud fixing type has 4 off M 6 welded studs for near mounting with M 6 nuts (not supplied).
Tips
Ideal for electricity sub-stations, HGVs and other road side vehicles.
T-handle is in the vertical position when locked.
For use inside of cabinet gasket.
