Cam Latch
flush t-handle

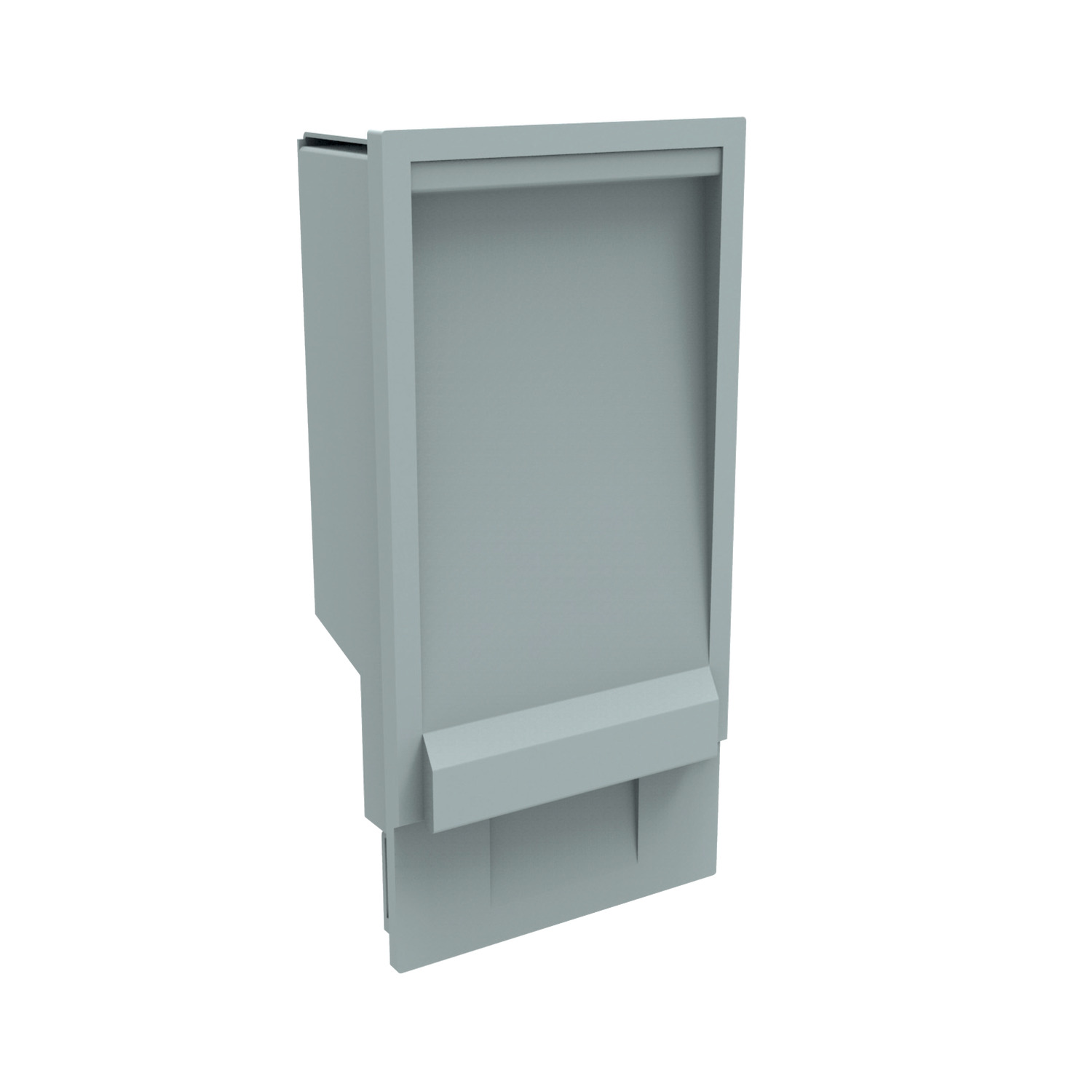

B4604 Cam Latch - Concealed T-Handle
aluminium - rod control - padlock shackle, material: Aluminium
£ 24.68 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 24.68 | 0% |
| 10-19 | £ 22.21 | 10% |
| 20-49 | £ 20.98 | 15% |
| 50-99 | £ 19.74 | 20% |
| 100+ | £ 17.28 | 30% |
Technical & Application
Material
Body and Cover: aluminium, grey powder coated.
Technical Notes
Designed for medium voltage electricity panels.

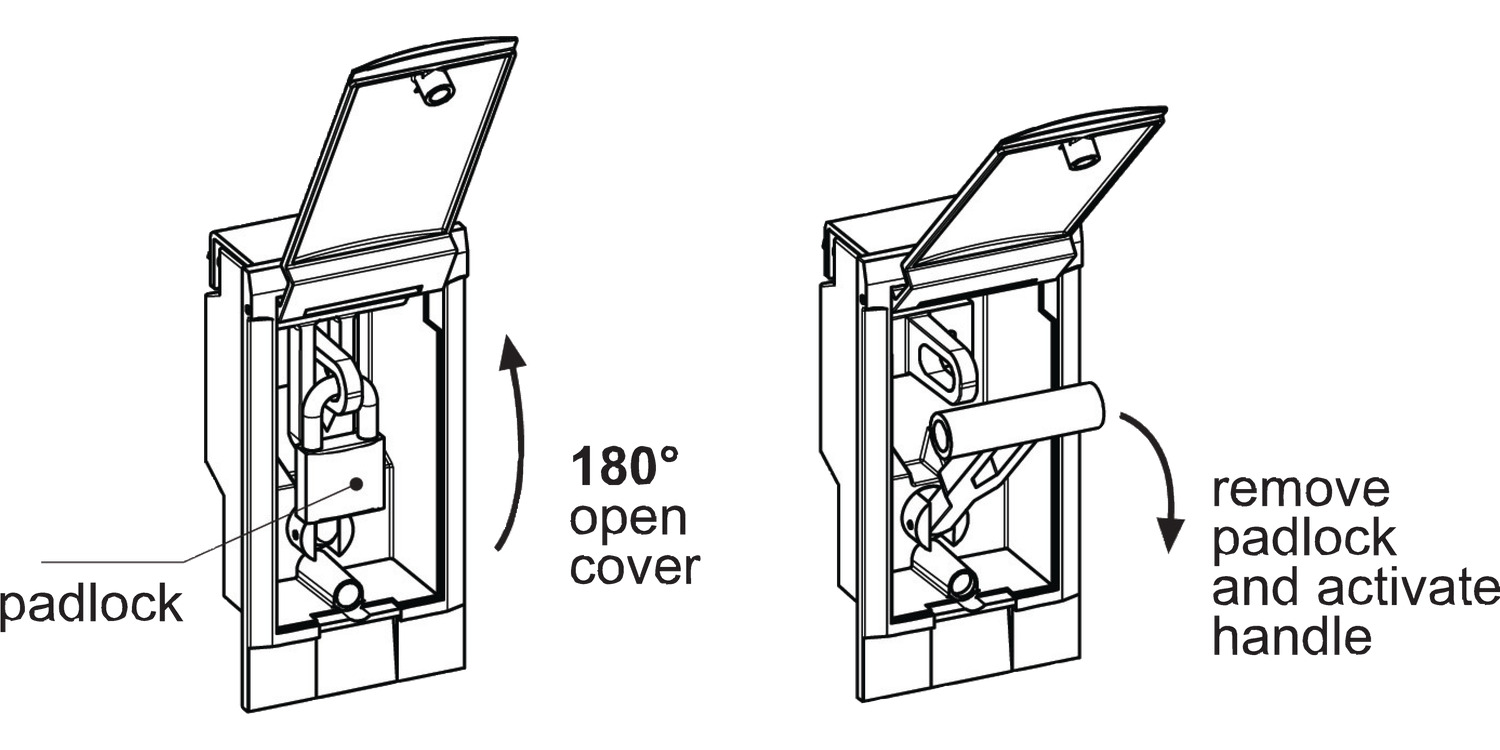

T-handle is in the vertical position when locked. For added security has padlock shackle to prevent lifting/turning of T-handle to suit max. padlock shackle of 9mm dia (not supplied).

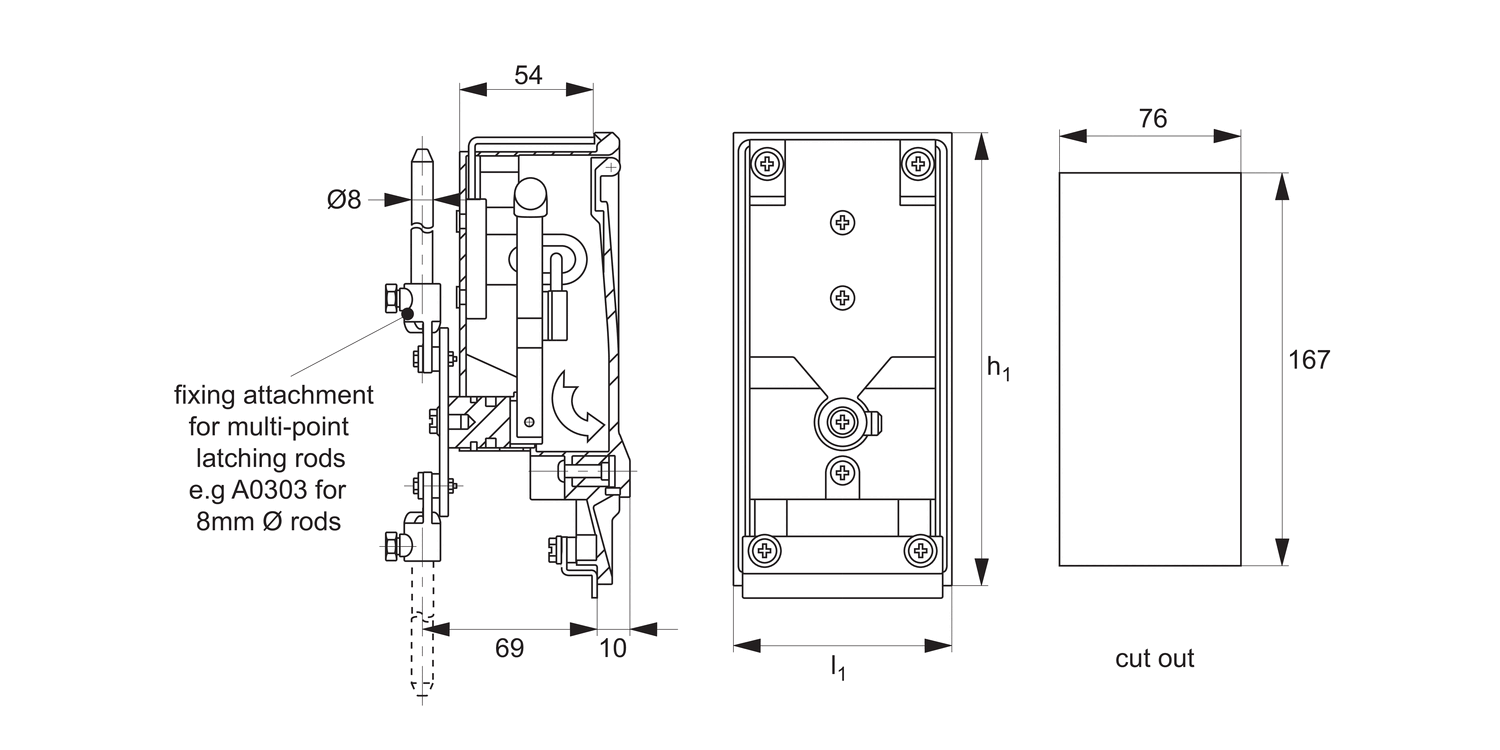

Use with multi-point latching rods (A0303) with 8mm Ø rods, to achieve two point latching of larger enclosure panels. Handle secured to frame via mounting brackets (supplied).
Product Datasheets
Application images
