Knuckle Catches
E2070 Rotary Catches
material: Polyacetal/polyethylene
Order No.
E2070.AC0015
Finish
Brown

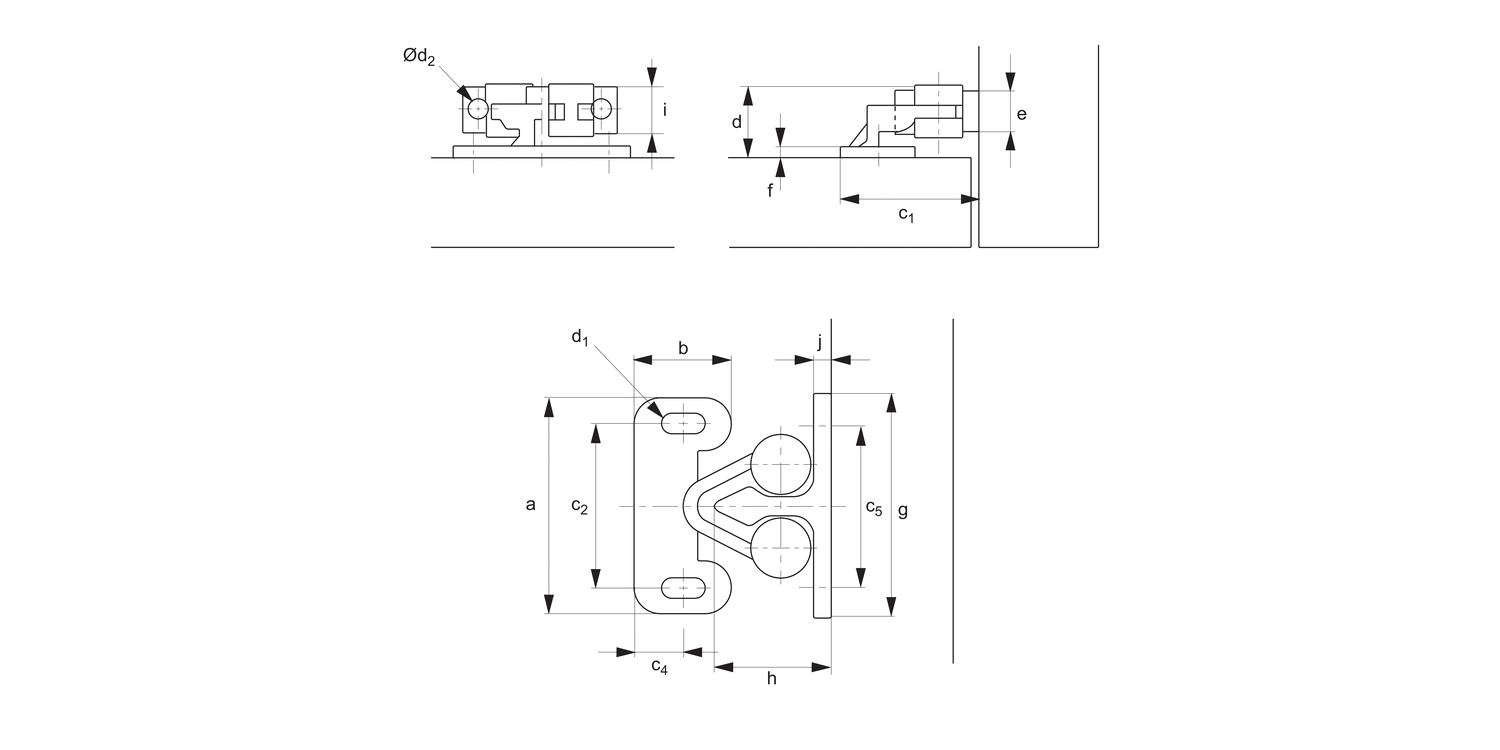

a
31.3
Push in force
kg
2.2
Pull out force
kg
3.2
b
14
c1
27.2
c2
24.4
c3
7.5
c4
23.6
Weight
g
4
d
12.6
d1
3,1x7
d2
3.1
e
9
f
2.3
g
32
h
16.5
i
9.0
j
2.0
£ 0.33 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-49 | £ 0.33 | 0% |
| 50-99 | £ 0.30 | 10% |
| 100-249 | £ 0.28 | 15% |
| 250-499 | £ 0.26 | 20% |
| 500+ | £ 0.25 | 25% |
Technical & Application
Material
Strike and catch: polyacetal.
Roller: polyethylene.
Technical Notes
This catch has been tested to 300,000 cycles.
Screws not supplied.
Product Datasheets
Application images
