Touch Latches
non-magnetic

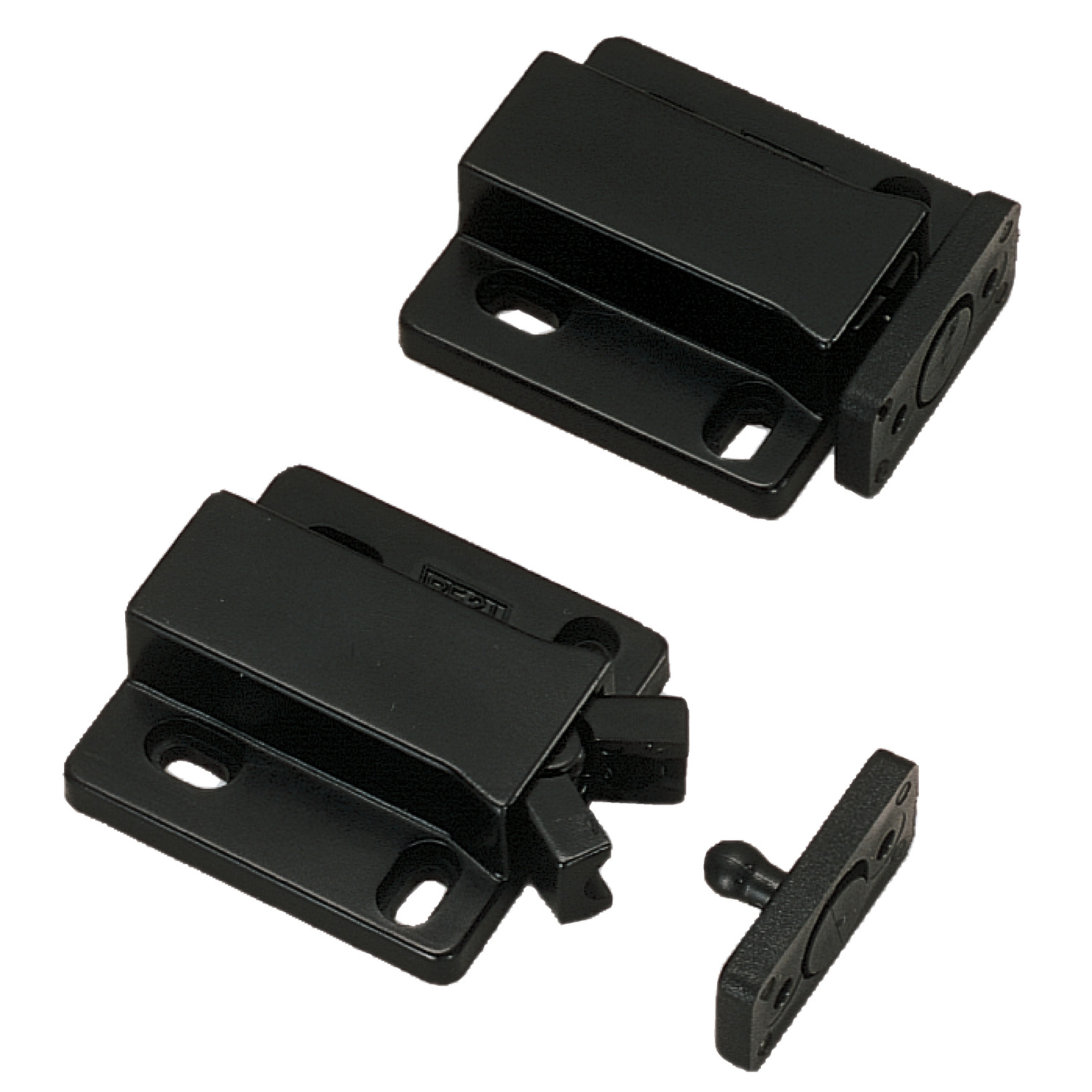

E2400 Touch Latches
non-magnetic, material: Plastic
Order No.
E2400.AC0020
Finish
Black
Retaining force
kgf
3
Weight
g
15
£ 4.79 per unit (click for quantity discounts)
Ready to despatch 64
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-19 | £ 4.79 | 0% |
| 20-49 | £ 4.31 | 10% |
| 50-99 | £ 4.07 | 15% |
| 100-499 | £ 3.59 | 25% |
| 500+ | £ 3.11 | 35% |
Technical & Application
Material
Body and catch: ABS plastic.
Technical Notes
For overlay door allow 3mm gap between door and cabinet frame for push space.
Supplied with screws (2.7x13, 2.4x10).
Important Notes
Pulling the door with excessive force without unlatching the unit may damage the mechanism.
Constant loading of over 3Kgf, either pushing or pulling, is not recommended.
