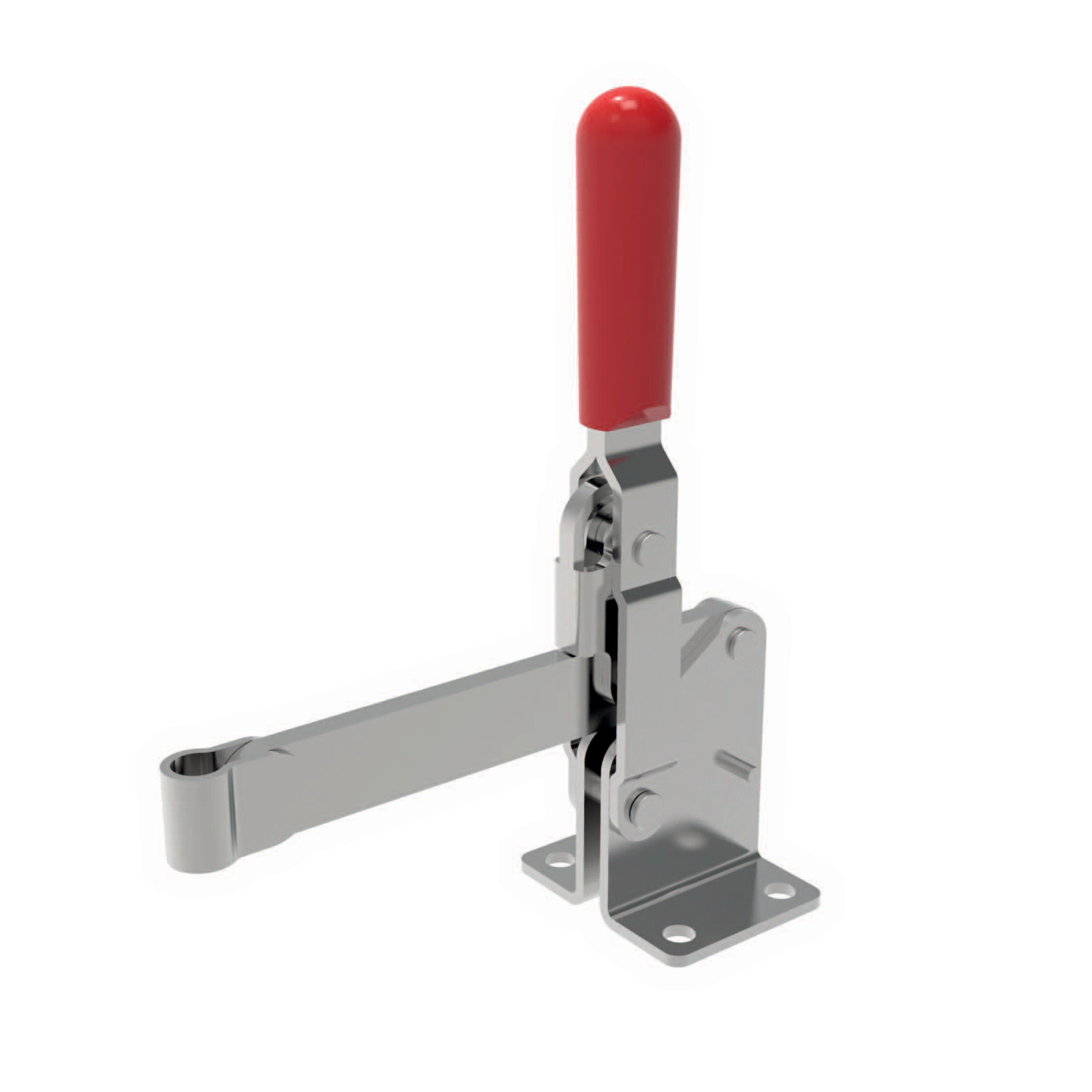

EC604 Toggle Clamps - Vertical Acting

Name: EC604-5
Brand: WC
SKU: EC604-5
Price: 52.58 GBP
Availability: OutOfStock

economy - horizontal base - weldable arm, material: Steel, zinc plated

Article properties

Order No.

EC604-5

Size

Holding force kN

4.5

d₁

M12

d₂

8.7

h₁

224

h₂

50.8

h₃

22.5

h₄

Weight g

1100

l₁

176

l₂

125.0

l₃

l₄

l₅

w₁

64.2

w₂

45.2

w₃

α/α*

103°/112°

See full product selection

£ 52.58 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 52.58	0%
5-9	£ 49.95	5%
10-19	£ 47.32	10%
20+	£ 44.69	15%

Download product datasheet

Technical & Application

Material

Body: steel, zinc plated.
Rivets: stainless steel.
Bushes: case hardened and greased.
Handle: plastic, red, oil resistant.
Supplied complete with clamping screw and rubber nose.

Technical Notes

symbola/symbol* alternative angle through use of removable stop.
